AI Search Open Platform provides a document parsing service via API. You can integrate this service into your business processing workflow to parse unstructured data into structured data for use in your business applications.

Service name

Service ID

Description

API QPS limit

Document Analysis Service

ops-document-analyze-001

Extracts logical hierarchical structures (such as titles and paragraphs), text, tables, and images from unstructured documents and returns the output in a structured format.

Supported document types: TXT, PDF, HTML, DOC, DOCX, PPT, and PPTX.

Note

To request a higher API QPS limit, submit a ticket to technical support.

ops-document-analyze-002

Analyzes multiple unstructured document formats, such as PDFs and images. It excels at identifying complex elements, such as tables, formulas, and charts, and offers high inference speed.

Usage limits: PDF files are limited to 400 pages. The request body cannot exceed 8 MB.

Prerequisites

Get authentication credentials

The AI Search open platform requires an API key for authentication. For instructions, see Get an API key.
Get the service endpoint

You can call the service via the public network or a VPC. For details, see Get the service endpoint.

Overview

The request body must not exceed 8 MB.

Overview

Document content parsing offers both synchronous and asynchronous interfaces. The synchronous interface is not recommended for production environments due to the risk of HTTP timeouts, but it can be used for debugging. For production environments, we recommend the asynchronous interface. This is a two-step process: first, create an asynchronous extraction task to obtain a task_id, and then poll for the task's status via the asynchronous interface until the task is complete.

Asynchronous extraction task

Request method

POST

URL

{host}/v3/openapi/workspaces/{workspace_name}/document-analyze/{service_id}/async

host: The service endpoint. You can call the API service over the public network or through a VPC. For more information, see Get a service endpoint.
workspace_name: The name of the workspace. For example, default.
service_id: The ID of the built-in service. For example, ops-document-analyze-001.

Request parameters

Header parameter

API key authentication

Parameter	Type	Required	Description	Example value
Content-Type	String	Yes	The media type of the request body.	application/json
Authorization	String	Yes	The API key for authentication.	Bearer OS-d1**2a

Body parameters

Parameter	Type	Required	Description	Example
service_id	String	Yes	The built-in service ID.	ops-document-analyze-001
document.url	String	No	The URL of the document. The file must be publicly downloadable via HTTP or HTTPS without authentication. You must specify either `document.url` or `document.content`.	http://opensearch-shanghai.oss-cn-shanghai.aliyuncs.com/chatos/***/file-parser/samples/GB10767.pdf
document.content	String	No	The Base64-encoded content of the document. You must specify either `document.url` or `document.content`.	"aGVsbG8gd29ybGQ="
document.file_name	String	No	The file name. If this parameter is not specified, the system infers it from the URL. This parameter is required if you provide the document's content directly using `document.content`.	test.pdf
document.file_type	String	No	The file type. If this parameter is not specified, the system infers it from the extension of the `file_name`. This parameter is required if the type cannot be inferred. Supported file types: TXT, PDF, HTML, DOC, DOCX, PPT, and PPTX. When using the `ops-document-analyze-002` service to process PDF files, the page count cannot exceed 400.	pdf
output.image_storage	String	No	Specifies how to store images extracted from the document. `base64`: The default value. `url`: The URL is valid for three days.	url
strategy.enable_semantic	Boolean	No	Enables semantic-based extraction of hierarchical structures from TXT and other unstructured documents. `true`: The model service returns the document's hierarchical structure in Markdown format along with the document parsing results, which improves the accuracy of subsequent document chunking. This feature is not supported for HTML, PPT, and PPTX documents. Enabling this feature increases document parsing time. The system may automatically disable it if parsing exceeds 400 seconds or the document exceeds 100 pages. In the `usage` billable item, a `semantic_token_count` parameter is added to show the token count used by the model, which is used for billing. `false`: The default value. Semantic hierarchical structure extraction is disabled.	false

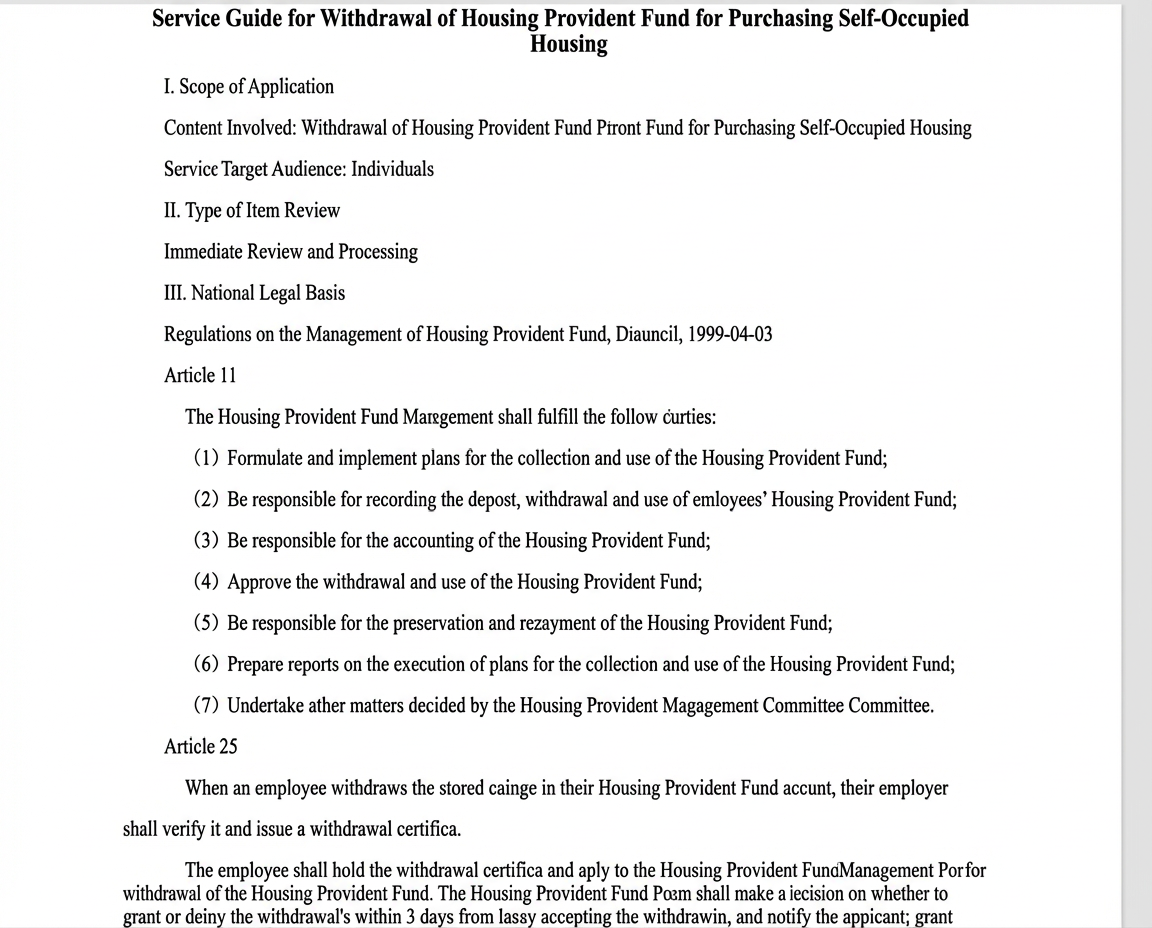

For documents where the table of contents and the body are not clearly distinguished, as in the figure below, this feature produces a more accurate hierarchical structure.

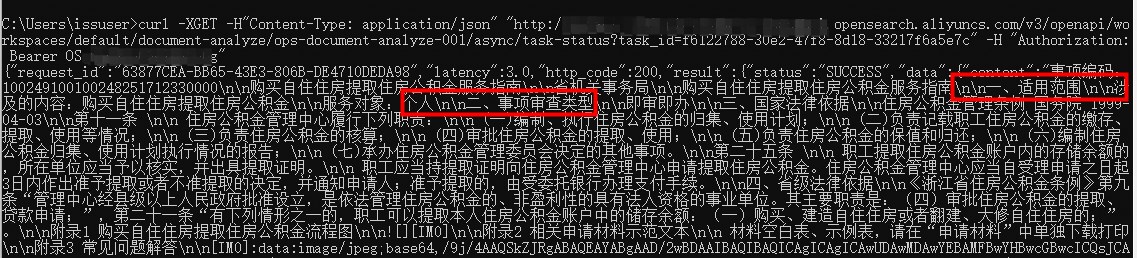

With semantic structure extraction disabled:

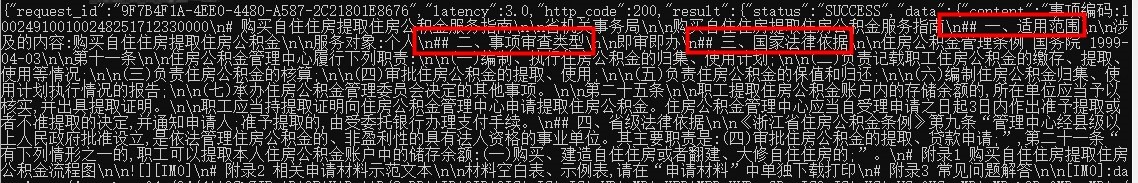

When semantic structure extraction is enabled, the hierarchical structure of the results is more accurate (the "##" in the screenshot indicates a level-2 heading).

Note
If usage.semantic_token_count returns a value, the semantic structure extraction was successful, and the token fee for this billing item is charged. If no value is returned, the extraction was unsuccessful, and no fee is charged.

The table below shows the estimated duration and semantic token count after enabling semantic result extraction.

PDF pages	Tokens	Without semantic hierarchy	With semantic hierarchy
PDF pages	Tokens	Time (s)	Time (s)	Semantic tokens
7	11504	2	49	36243
25	10375	1	33	59332
42	41435	5	68	130717

Response parameters

Parameter	Type	Description	Example
result.task_id	String	The ID of the asynchronous task for document parsing.	d5a4019e-853a-****-b5b6-8053d9f5a9fc

cURL example

curl --location 'http://****shanghai.opensearch.aliyuncs.com/v3/openapi/workspaces/default/document-analyze/ops-document-analyze-001/async/' \
--header 'Authorization: Bearer your API key' \
--header 'Content-Type: application/json' \
--data '{
  "document":{
      "url": "https://help-static-aliyun-doc.aliyuncs.com/file-manage-files/zh-CN/20241018/jahnyn/%E8%A7%A3%E6%9E%90%E6%B5%8B%E8%AF%95.doc"
    },
    "output" :{
      "image_storage":"base64"
    },
    "strategy": {
      "enable_semantic":true
    }
}'

Response examples

Successful response

{
    "request_id": "D5A4019E-853A-4E20-****-8053D9F5A9FC",
    "latency": 5.0,
    "http_code": 200,
    "result": {
        "task_id": "d5a4019e-853a-****-b5b6-8053d9f5a9fc"
    }
}

Error response

If a request fails, the response describes the error in the code and message fields.

{
    "request_id": "590A7EB8-AA84-****-AF31-8C35DC965972",
    "latency": 0.0,
    "code": "InvalidParameter",
    "http_code": 400,
    "message": "document.file_name required"
}

Asynchronous task retrieval

Request method

GET

URL

{host}/v3/openapi/workspaces/{workspace_name}/document-analyze/{service_id}/async/task-status?task_id=${task_id}

host: The service endpoint. You can call the API service over the public network or through a VPC. For more information, see Get a service endpoint.
workspace_name: The name of the workspace. For example, default.
service_id: The ID of the built-in service. For example, ops-document-analyze-001.
task_id: The asynchronous task ID returned by the task creation request. For example, d5a4019e-853a-****-b5b6-8053d9f5a9fc.

Request parameters

Header Parameters

API key authentication

Parameter	Type	Required	Description	Example
Content-Type	String	Yes	The media type of the request. The value must be application/json.	application/json
Authorization	String	Yes	The API key for authentication, prefixed with Bearer .	Bearer OS-d1**2a

Response parameters

Parameter	Type	Description	Value
result.task_id	String	The ID of the asynchronous document parsing task.	24c3ad59-****-40cf-974b-b63d63e0571
result.status	String	The task status. Possible values are: PENDING: The task is queued for processing. SUCCESS: The task completed successfully. FAIL: The task failed.	PENDING
result.error	String	The error message for a failed task. This parameter is empty otherwise.	Failed to decrypt the document.
result.data	Object	The document parsing result.	markdown
result.data.content	String	The parsed content of the document. For PDF files, the content is in Markdown format. For other file types, the content is in HTML format.	"XXX"
result.data.content_type	String	The format of the parsed content. markdown html	markdown
result.data.page_num	Int	The number of pages in the document.	15
request_id	String	The unique identifier for this API call.	B4AB89C8-B135-****-A6F8-2BAB8018688
latency	Float/Int	The request latency in milliseconds (ms).	10
usage	Object	The metering information for this API call.	"usage": { "token_count": 123, "table_count": 5, "image_count": 6, "semantic_token_count":3068 }
usage.token_count	Int	The character count in the document.	1234
usage.table_count	Int	The table count in the document.	5
usage.image_count	Int	The image count in the document.	6
usage.semantic_token_count	Int	The character count in the input to the semantic extraction model.	3068

cURL request

curl -XGET -H"Content-Type: application/json" \
"http://****-hangzhou.opensearch.aliyuncs.com/v3/openapi/workspaces/default/document-analyze/ops-document-analyze-001/async/task-status?task_id=110d6349-2e51-****-8bfb-25e5de434686" \
-H "Authorization: Bearer Your API key"

Response examples

Successful response

{
    "request_id": "27F9CEC3-9052-****-83FF-E7957B680492",
    "latency": 13.0,
    "http_code": 200,
    "result": {
        "status": "SUCCESS",
        "data": {
            "content": "Provided proper attribution is provided, Alibaba hereby grants permission to reproduce the tables and figures in this paper solely for use in journalistic or scholarly works....",
            "content_type": "markdown",
            "page_num": 15
        },
        "task_id": "24c3ad59-b196-****-974b-b63d63e05895"
    },
    "usage": {
        "token_count": 31867,
        "table_count": 4,
        "image_count": 8,
        "semantic_token_count":3068
    }
}

Error response

If an access request fails, the code and message fields in the response explain the error.

Create a synchronous parsing task

Important

Avoid using the synchronous interface in a production environment due to the risk of HTTP timeouts. You can use it for debugging instead.

Request method

POST

URL

{host}/v3/openapi/workspaces/{workspace_name}/document-analyze/{service_id}/sync

Parameters

host: The service endpoint. You can call the API service over the public network or a VPC. For more information, see Get a service endpoint.
workspace_name: The workspace name. For example, default.
service_id: The built-in service ID. For example, ops-document-analyze-001.

Request parameters

Header parameter

API key authentication

Parameter	Type	Required	Description	Value
Content-Type	String	Yes	The request type.	application/json
Authorization	String	Yes	Your API key.	Bearer OS-d1**2a

Body parameter

Parameter	Type	Required	Description	Example value
document.url	String	No	The public URL of the document. It must be accessible via HTTP or HTTPS without authentication. You must specify either `document.url` or `document.content`.	http://opensearch-shanghai.oss-cn-shanghai.aliyuncs.com/chatos/***/file-parser/samples/GB10767.pdf
document.content	String	No	The document content, Base64-encoded. You must specify either `document.url` or `document.content`.	"aGVsbG8gd29ybGQ="
document.file_name	String	No	The file name. If this parameter is omitted, the system infers the name from the document.url. This parameter is required when document.content is specified.	test.pdf
document.file_type	String	No	The file type. If this parameter is omitted, the system infers the file type from the extension of the `file_name`. This parameter is required if the type cannot be automatically inferred. Supported file types: TXT, PDF, HTML, DOC, DOCX, PPT, and PPTX.	pdf
output.image_storage	String	No	The image storage method. `base64`: The default method. `url`: The URL is valid for three days.	url
strategy.enable_semantic	Boolean	No	Specifies whether to enable semantic structure extraction. The default is `false`. When enabled, this feature provides a more accurate hierarchical structure in the returned Markdown, but it significantly increases processing time and adds the `semantic_token_count` billing item to the usage details. The default timeout is 400 seconds. If a request for an oversized document (more than 100 pages) times out, the service degrades by disabling structure extraction. This feature does not support HTML, PPT, or PPTX documents.	false

Response parameters

Parameter	Type	Description	Example
result.status	String	The task status. Valid values include: `PENDING`: The task is awaiting processing. `SUCCESS`: The task completed successfully. `FAIL`: The task failed.	PENDING
result.error	String	The error message returned when the status is `FAIL`. This field is not present for successful tasks.	Document decryption failed
result.data	Object	The document parsing result.	markdown
result.data.content	String	The parsed content of the document. For PDF files, the content is in Markdown format. For other file types, the content is in HTML format.	"XXX"
result.data.content_type	String	The content type of the parsed document. Valid values include: `markdown` `html`	markdown
result.data.page_num	Int	The page count of the document.	15
request_id	String	A unique identifier for the request.	B4AB89C8-B135-****-A6F8-2BAB801A2CE4
latency	Float/Int	The request latency in milliseconds (ms).	10
usage	Object	Usage details for the request.	"usage": { "token_count": 123, "table_count": 5, "image_count": 6, "semantic_token_count":3068 }
usage.token_count	Int	The total number of tokens in the document.	1234
usage.table_count	Int	The total number of tables in the document.	5
usage.image_count	Int	The total number of images in the document.	6
usage.semantic_token_count	Int	The total number of semantic tokens used as input for the semantic extraction model.	3068

cURL

curl --location 'http://****shanghai.opensearch.aliyuncs.com/v3/openapi/workspaces/default/document-analyze/ops-document-analyze-001/sync/' \
--header 'Authorization: Bearer your API key' \
--header 'Content-Type: application/json' \
--data '{
  "document":{
      "url": "https://help-static-aliyun-doc.aliyuncs.com/file-manage-files/zh-CN/20241018/jahnyn/%E8%A7%A3%E6%9E%90%E6%B5%8B%E8%AF%95.doc"
    },
    "output" :{
      "image_storage":"base64"
    },
    "strategy": {
      "enable_semantic":true
    }
}'

Response examples

Successful response example

{
    "request_id": "27F9CEC3-9052-****-83FF-E7957B689D04",
    "latency": 13.0,
    "http_code": 200,
    "result": {
        "status": "SUCCESS",
        "data": {
            "content": "Provided proper attribution is given, Alibaba hereby grants permission to reproduce the tables and figures in this paper solely for use in journalistic or scholarly works....",
            "content_type": "markdown",
            "page_num": 15
        }
    },
    "usage": {
        "token_count": 31867,
        "table_count": 4,
        "image_count": 8,
        "semantic_token_count":3068
    }
}

Error response example

If an access request fails, the response indicates the error in the code and message fields.

{
    "request_id": "6F33AFB6-A35C-****-AFD2-9EA16CCF4383",
    "latency": 2.0,
    "code": "InvalidParameter",
    "http_code": 400,
    "message": "JSON parse error: Cannot deserialize value of type `ImageStorage` from String \\"xxx\\"
}

Status codes

Http status code	Error code	Description
200	-	The request succeeded. This status is returned even if the task failed. Check the `result.status` field to determine the task status.
404	BadRequest.TaskNotExist	The task does not exist.
400	InvalidParameter	The request was invalid.
500	InternalServerError	An internal error occurred.

For more information about status codes, see status codes.
