Manage OSS directories

How it works

OSS uses flat storage and does not have real folders. The directories in the console are generated from the / delimiter in object names.

For example, when you see the following hierarchy in the console:

examplebucket
    └── log/
       ├── date1.txt
       ├── date2.txt
       ├── date3.txt
    └── destfolder/
       └── 2021/
          ├── photo.jpg

The actual objects stored in OSS are:

log/date1.txt
log/date2.txt
destfolder/2021/photo.jpg

Create a directory

Create a directory in the following ways:

• Automatic creation: When you upload an object whose name contains a path, the corresponding directory is automatically created.

• Manual creation: Creates a zero-byte object ending in / that serves as a directory placeholder.

  Console

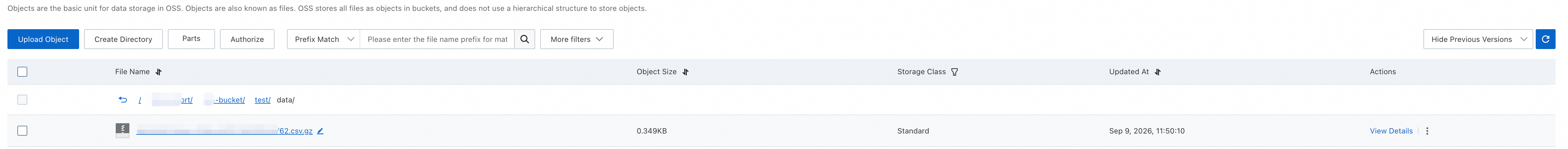

  1. Log on to the OSS console. In the target bucket, navigate to Object Management > Objects.

  2. Click Create Directory.

  3. Enter a Directory Name and click OK.

     Directory names must follow these rules:

     • The directory name must be UTF-8 encoded and cannot contain emojis.

     • Forward slashes (/) are used in a directory name to indicate subdirectories. Use forward slashes (/) in a directory name to create a nested directory structure. The directory name cannot start with a forward slash (/) or a backslash (\). The directory name cannot contain consecutive forward slashes (//).

     • The subdirectory name cannot be two consecutive periods (..).

     • The directory name must be 1 to 254 characters in length.

  ossutil

  Create a directory named dir/ in the examplebucket bucket:

  ossutil mkdir oss://examplebucket/dir

  mkdir (create directory)

  SDK

  These examples create a directory using common SDKs. Other SDKs are covered in Introduction to OSS SDKs.

  Java

  import com.aliyun.oss.ClientException;
  import com.aliyun.oss.OSS;
  import com.aliyun.oss.common.auth.*;
  import com.aliyun.oss.OSSClientBuilder;
  import com.aliyun.oss.OSSException;
  import com.aliyun.oss.model.PutObjectRequest;
  import java.io.ByteArrayInputStream;

  public class Demo {

      public static void main(String[] args) throws Exception {
          // Set the endpoint. The China (Hangzhou) region is used in this example. Specify the actual endpoint.
          String endpoint = "https://oss-cn-hangzhou.aliyuncs.com";
          // For security, do not hard-code access credentials. Leaked credentials can compromise all your resources. This example uses an environment variable for credentials. Ensure it is configured before running.
          EnvironmentVariableCredentialsProvider credentialsProvider = CredentialsProviderFactory.newEnvironmentVariableCredentialsProvider();
          // Specify the bucket name, for example, examplebucket.
          String bucketName = "examplebucket";
          // Specify the directory name. The directory name must end with a forward slash (/).
          String objectName = "exampledir/";

          // Create an OSSClient instance.
          OSS ossClient = new OSSClientBuilder().build(endpoint, credentialsProvider);

          try {
              String content = "";

              // Create a PutObjectRequest object.
              PutObjectRequest putObjectRequest = new PutObjectRequest(bucketName, objectName, new ByteArrayInputStream(content.getBytes()));

              // To set the storage class and access permission for the object during the upload, see the following sample code.
              // ObjectMetadata metadata = new ObjectMetadata();
              // metadata.setHeader(OSSHeaders.OSS_STORAGE_CLASS, StorageClass.Standard.toString());
              // metadata.setObjectAcl(CannedAccessControlList.Private);
              // putObjectRequest.setMetadata(metadata);

              // Upload the object.
              ossClient.putObject(putObjectRequest);
          } catch (OSSException oe) {
              System.out.println("Caught an OSSException, which means your request made it to OSS, "
                      + "but was rejected with an error response for some reason.");
              System.out.println("Error Message:" + oe.getErrorMessage());
              System.out.println("Error Code:" + oe.getErrorCode());
              System.out.println("Request ID:" + oe.getRequestId());
              System.out.println("Host ID:" + oe.getHostId());
          } catch (ClientException ce) {
              System.out.println("Caught an ClientException, which means the client encountered "
                      + "a serious internal problem while trying to communicate with OSS, "
                      + "such as not being able to access the network.");
              System.out.println("Error Message:" + ce.getMessage());
          } finally {
              if (ossClient != null) {
                  ossClient.shutdown();
              }
          }
      }
  }

  PHP

  <?php
  if (is_file(__DIR__ . '/../autoload.php')) {
      require_once __DIR__ . '/../autoload.php';
  }
  if (is_file(__DIR__ . '/../vendor/autoload.php')) {
      require_once __DIR__ . '/../vendor/autoload.php';
  }

  use OSS\Credentials\EnvironmentVariableCredentialsProvider;
  use OSS\OssClient;
  use OSS\CoreOssException;
  // Obtain access credentials from environment variables. Before you run this example, make sure that the OSS_ACCESS_KEY_ID and OSS_ACCESS_KEY_SECRET environment variables are configured.
  $provider = new EnvironmentVariableCredentialsProvider();
  // Specify the endpoint for your bucket's region. For example, use https://oss-cn-hangzhou.aliyuncs.com for the China (Hangzhou) region.
  $endpoint = "yourEndpoint";
  // Specify the bucket name, for example, examplebucket.
  $bucket= "examplebucket";
  // Specify the directory name. The name must end with a forward slash (/).
  $object = "exampledir/";
  $content = "";
  try{
      $config = array(
          "provider" => $provider,
          "endpoint" => $endpoint,
      );
      $ossClient = new OssClient($config);

      $ossClient->putObject($bucket, $object, $content);
  } catch(OssException $e) {
      printf(__FUNCTION__ . ": FAILED\n");
      printf($e->getMessage() . "\n");
      return;
  }
  print(__FUNCTION__ . "OK" . "\n");

  // You can set headers when you upload an object, such as setting the access permission to private or specifying custom metadata.
  $options = array(
      OssClient::OSS_HEADERS => array(
          'x-oss-object-acl' => 'private',
          'x-oss-meta-info' => 'your info'
      ),
  );
  try{
      $config = array(
          "provider" => $provider,
          "endpoint" => $endpoint,
      );
      $ossClient = new OssClient($config);

      $ossClient->putObject($bucket, $object, $content, $options);
  } catch(OssException $e) {
      printf(__FUNCTION__ . ": FAILED\n");
      printf($e->getMessage() . "\n");
      return;
  }
  print(__FUNCTION__ . "OK" . "\n");

  Node.js

  const OSS = require('ali-oss');

  const client = new OSS({
    // Specify the region where your bucket is located. For example, use 'oss-cn-hangzhou' for the China (Hangzhou) region.
    region: 'yourregion',
    // Obtain access credentials from environment variables. Before you run this example, make sure that the OSS_ACCESS_KEY_ID and OSS_ACCESS_KEY_SECRET environment variables are configured.
    accessKeyId: process.env.OSS_ACCESS_KEY_ID,
    accessKeySecret: process.env.OSS_ACCESS_KEY_SECRET,
    // Specify the bucket name.
    bucket: 'examplebucket',
  });

  async function putBuffer () {
    try {
      // Specify the directory name. The name must end with a forward slash (/).
      const result = await client.put('exampledir/', new Buffer(''));
      console.log(result);
    } catch (e) {
      console.log(e);
    }
  }

  putBuffer();

  Python

  # -*- coding: utf-8 -*-

  import oss2
  from oss2.credentials import EnvironmentVariableCredentialsProvider

  # Obtain access credentials from environment variables. Before you run this example, make sure that the OSS_ACCESS_KEY_ID and OSS_ACCESS_KEY_SECRET environment variables are configured.
  auth = oss2.ProviderAuth(EnvironmentVariableCredentialsProvider())
  # Specify the endpoint for your bucket's region. For example, use https://oss-cn-hangzhou.aliyuncs.com for the China (Hangzhou) region.
  # Specify the bucket name.
  bucket = oss2.Bucket(auth, 'https://oss-cn-hangzhou.aliyuncs.com', 'examplebucket')

  # Specify the directory name. The name must end with a forward slash (/).
  bucket.put_object('exampledir/', '')

  C#

  using System.Text;
  using Aliyun.OSS;

  // Specify the endpoint for your bucket's region. For example, use https://oss-cn-hangzhou.aliyuncs.com for the China (Hangzhou) region.
  var endpoint = "yourEndpoint";
  // Obtain access credentials from environment variables. Before you run this example, make sure that the OSS_ACCESS_KEY_ID and OSS_ACCESS_KEY_SECRET environment variables are configured.
  var accessKeyId = Environment.GetEnvironmentVariable("OSS_ACCESS_KEY_ID");
  var accessKeySecret = Environment.GetEnvironmentVariable("OSS_ACCESS_KEY_SECRET");
  // Specify the bucket name, for example, examplebucket.
  var bucketName = "examplebucket";
  // Specify the directory name. The name must end with a forward slash (/).
  var objectName = "exampledir/";
  var objectContent = "";

  // Create an OssClient instance.
  var client = new OssClient(endpoint, accessKeyId, accessKeySecret);
  try
  {
      byte[] binaryData = Encoding.ASCII.GetBytes(objectContent);
      MemoryStream requestContent = new MemoryStream(binaryData);
      // Create the directory.
      client.PutObject(bucketName, objectName, requestContent);
      Console.WriteLine("Put object succeeded");
  }
  catch (Exception ex)
  {
      Console.WriteLine("Put object failed, {0}", ex.Message);
  }

  C

  #include "oss_api.h"
  #include "aos_http_io.h"
  /* Specify the endpoint for your bucket's region. For example, use https://oss-cn-hangzhou.aliyuncs.com for the China (Hangzhou) region. */
  const char *endpoint = "yourEndpoint";

  /* Specify the bucket name, for example, examplebucket. */
  const char *bucket_name = "examplebucket";
  /* Specify the directory name. The name must end with a forward slash (/). */
  const char *object_name = "exampledir/";
  const char *object_content = "";
  void init_options(oss_request_options_t *options)
  {
      options->config = oss_config_create(options->pool);
      /* Initialize the aos_string_t type with a char* string. */
      aos_str_set(&options->config->endpoint, endpoint);
      /* Obtain access credentials from environment variables. Before you run this example, make sure that the OSS_ACCESS_KEY_ID and OSS_ACCESS_KEY_SECRET environment variables are configured. */
      aos_str_set(&options->config->access_key_id, getenv("OSS_ACCESS_KEY_ID"));
      aos_str_set(&options->config->access_key_secret, getenv("OSS_ACCESS_KEY_SECRET"));
      /* Specify whether a CNAME is used. 0 indicates that no CNAME is used. */
      options->config->is_cname = 0;
      /* Set network parameters, such as the timeout period. */
      options->ctl = aos_http_controller_create(options->pool, 0);
  }
  int main(int argc, char *argv[])
  {
      /* Call the aos_http_io_initialize method at program startup to initialize global resources, such as the network and memory. */
      if (aos_http_io_initialize(NULL, 0) != AOSE_OK) {
          exit(1);
      }
      /* The memory pool (pool), which is equivalent to apr_pool_t, is used for memory management. It is implemented in the apr library. */
      aos_pool_t *pool;
      /* Create a memory pool. The second parameter is NULL, which indicates that the memory pool does not inherit from another memory pool. */
      aos_pool_create(&pool, NULL);
      /* Create and initialize options. This parameter includes global configuration information such as the endpoint, access_key_id, access_key_secret, is_cname, and curl. */
      oss_request_options_t *oss_client_options;
      /* Allocate memory for options from the memory pool. */
      oss_client_options = oss_request_options_create(pool);
      /* Initialize the client option oss_client_options. */
      init_options(oss_client_options);
      /* Initialize parameters. */
      aos_string_t bucket;
      aos_string_t object;
      aos_list_t buffer;
      aos_buf_t *content = NULL;
      aos_table_t *headers = NULL;
      aos_table_t *resp_headers = NULL;
      aos_status_t *resp_status = NULL;
      aos_str_set(&bucket, bucket_name);
      aos_str_set(&object, object_name);
      aos_list_init(&buffer);
      content = aos_buf_pack(oss_client_options->pool, object_content, strlen(object_content));
      aos_list_add_tail(&content->node, &buffer);
      /* Upload the object. */
      resp_status = oss_put_object_from_buffer(oss_client_options, &bucket, &object, &buffer, headers, &resp_headers);
      /* Check whether the upload is successful. */
      if (aos_status_is_ok(resp_status)) {
          printf("put object from buffer succeeded\n");
      } else {
          printf("put object from buffer failed\n");
      }
      /* Destroy the memory pool. This releases the memory allocated to resources during the request. */
      aos_pool_destroy(pool);
      /* Release the previously allocated global resources. */
      aos_http_io_deinitialize();
      return 0;
  }

  ossbrowser

  1. Install ossbrowser 2.0 and log on to ossbrowser 2.0.

  2. Go to the target bucket and click Create Directory.

  3. Enter a directory name and click Save.

Rename a directory

Renaming a directory is not atomic. It involves two steps:

1. Copy: Recursively copy all objects from the source directory to a new destination directory.

2. Delete: After you confirm that the copy operation is successful, permanently delete the source directory and all objects within it.

Delete a directory

ossutil rm oss://examplebucket/test/ -r

import com.aliyun.oss.ClientException;
import com.aliyun.oss.OSS;
import com.aliyun.oss.common.auth.*;
import com.aliyun.oss.OSSClientBuilder;
import com.aliyun.oss.OSSException;
import com.aliyun.oss.model.*;
import java.io.UnsupportedEncodingException;
import java.net.URLDecoder;
import java.util.ArrayList;
import java.util.List;

public class Demo {

    public static void main(String[] args) throws Exception {
        // Specify the endpoint for the region where your bucket is located. For example, for the China (Hangzhou) region, set the endpoint to https://oss-cn-hangzhou.aliyuncs.com.
        String endPoint = "https://oss-cn-hangzhou.aliyuncs.com";
        // Avoid hard-coding access credentials in your code to prevent security risks from leaks. This example loads credentials from environment variables. Ensure these variables are configured before running the code.
        EnvironmentVariableCredentialsProvider credentialsProvider = CredentialsProviderFactory.newEnvironmentVariableCredentialsProvider();
        // Specify the bucket name, for example, examplebucket.
        String bucketName = "examplebucket";

        // Specify the full path of the directory to be deleted. The path cannot contain the bucket name.
        final String prefix = "log/";

        // Create an OSSClient instance.
        OSS ossClient = new OSSClientBuilder().build(endPoint, credentialsProvider);

        try {
            // Delete the directory and all objects in it.
            String nextMarker = null;
            ObjectListing objectListing = null;
            do {
                ListObjectsRequest listObjectsRequest = new ListObjectsRequest(bucketName)
                        .withPrefix(prefix)
                        .withMarker(nextMarker);

                objectListing = ossClient.listObjects(listObjectsRequest);
                if (objectListing.getObjectSummaries().size() > 0) {
                    List<String> keys = new ArrayList<String>();
                    for (OSSObjectSummary s : objectListing.getObjectSummaries()) {
                        System.out.println("key name: " + s.getKey());
                        keys.add(s.getKey());
                    }
                    DeleteObjectsRequest deleteObjectsRequest = new DeleteObjectsRequest(bucketName).withKeys(keys).withEncodingType("url");
                    DeleteObjectsResult deleteObjectsResult = ossClient.deleteObjects(deleteObjectsRequest);
                    List<String> deletedObjects = deleteObjectsResult.getDeletedObjects();
                    try {
                        for(String obj : deletedObjects) {
                            String deleteObj =  URLDecoder.decode(obj, "UTF-8");
                            System.out.println(deleteObj);
                        }
                    } catch (UnsupportedEncodingException e) {
                        e.printStackTrace();
                    }
                }

                nextMarker = objectListing.getNextMarker();
            } while (objectListing.isTruncated());
        } catch (OSSException oe) {
            System.out.println("Caught an OSSException, which means your request made it to OSS, "
                    + "but was rejected with an error response for some reason.");
            System.out.println("Error Message:" + oe.getErrorMessage());
            System.out.println("Error Code:" + oe.getErrorCode());
            System.out.println("Request ID:" + oe.getRequestId());
            System.out.println("Host ID:" + oe.getHostId());
        } catch (ClientException ce) {
            System.out.println("Caught an ClientException, which means the client encountered "
                    + "a serious internal problem while trying to communicate with OSS, "
                    + "such as not being able to access the network.");
            System.out.println("Error Message:" + ce.getMessage());
        } finally {
            if (ossClient != null) {
                ossClient.shutdown();
            }
        }
    }
}

<?php
if (is_file(__DIR__ . '/../autoload.php')) {
   require_once __DIR__ . '/../autoload.php';
}
if (is_file(__DIR__ . '/../vendor/autoload.php')) {
   require_once __DIR__ . '/../vendor/autoload.php';
}

use OSS\OssClient;
use OSS\Core\OssException;
// This example loads access credentials from environment variables. Before running, ensure that `OSS_ACCESS_KEY_ID` and `OSS_ACCESS_KEY_SECRET` are set.
$accessKeyId = getenv("OSS_ACCESS_KEY_ID");
$accessKeySecret = getenv("OSS_ACCESS_KEY_SECRET");
// Specify the endpoint for your bucket's region. For example, for the China (Hangzhou) region, set the endpoint to https://oss-cn-hangzhou.aliyuncs.com.
$endpoint = "your-endpoint";
// Specify the bucket name.
$bucket = "examplebucket";

try {
   $ossClient = new OssClient($accessKeyId, $accessKeySecret, $endpoint, false);
   $option = array(
      OssClient::OSS_MARKER => null,
      // Specify the full path of the directory to be deleted. The path cannot contain the bucket name.
      OssClient::OSS_PREFIX => "log/",
      OssClient::OSS_DELIMITER=>'',
   );
   $bool = true;
   while ($bool){
      $result = $ossClient->listObjects($bucket,$option);
      $objects = array();
      if(count($result->getObjectList()) > 0){
         foreach ($result->getObjectList() as $key => $info){
            printf("key name:".$info->getKey().PHP_EOL);
            $objects[] = $info->getKey();
         }
         // Delete the directory and all objects in it.
         $delObjects = $ossClient->deleteObjects($bucket, $objects);
         foreach ($delObjects as $info){
            $obj = strval($info);
            printf("Delete ".$obj." : Success" . PHP_EOL);
         }
      }

      if($result->getIsTruncated() === 'true'){
         $option[OssClient::OSS_MARKER] = $result->getNextMarker();
      }else{
         $bool = false;
      }
   }
   printf("Delete Objects : OK" . PHP_EOL);
} catch (OssException $e) {
   printf("Delete Objects : Failed" . PHP_EOL);
   printf($e->getMessage() . PHP_EOL);
   return;
}

const OSS = require('ali-oss');

const client = new OSS({
  // Specify the region where your bucket is located. For example, for the China (Hangzhou) region, set the region to oss-cn-hangzhou.
  region: 'yourregion',
  // This example loads access credentials from environment variables. Before running, ensure that `OSS_ACCESS_KEY_ID` and `OSS_ACCESS_KEY_SECRET` are set.
  accessKeyId: process.env.OSS_ACCESS_KEY_ID,
  accessKeySecret: process.env.OSS_ACCESS_KEY_SECRET,
  // Specify the bucket name.
  bucket: 'yourbucketname'
});

// Handle a failed request to prevent `promise.all` from being interrupted. Returns the failure reason and the name of the object that failed to be deleted.
async function handleDel(name, options) {
  try {
    await client.delete(name);
  } catch (error) {
    error.failObjectName = name;
    return error;
  }
}

// Delete multiple objects.
async function deletePrefix(prefix) {
  const list = await client.list({
    prefix: prefix,
  });

  list.objects = list.objects || [];
  const result = await Promise.all(list.objects.map((v) => handleDel(v.name)));
  console.log(result);
}
// Delete the directory and all objects in it.
deletePrefix('log/')

# -*- coding: utf-8 -*-
import oss2
from oss2.credentials import EnvironmentVariableCredentialsProvider

# This example loads access credentials from environment variables. Before running, ensure that `OSS_ACCESS_KEY_ID` and `OSS_ACCESS_KEY_SECRET` are set.
auth = oss2.ProviderAuth(EnvironmentVariableCredentialsProvider())
# Set your endpoint to the endpoint of the region where your bucket is located. For example, for the China (Hangzhou) region, set the endpoint to https://oss-cn-hangzhou.aliyuncs.com.
# Specify the bucket name.
bucket = oss2.Bucket(auth, 'https://oss-cn-hangzhou.aliyuncs.com', 'examplebucket')
prefix = "exampledir/"

# Delete the directory and all objects in it.
for obj in oss2.ObjectIterator(bucket, prefix=prefix):
    bucket.delete_object(obj.key)

package main

import (
    "fmt"
    "os"

    "github.com/aliyun/aliyun-oss-go-sdk/oss"
)

func main() {
    // This example loads access credentials from environment variables. Before running, ensure that `OSS_ACCESS_KEY_ID` and `OSS_ACCESS_KEY_SECRET` are set.
    provider, err := oss.NewEnvironmentVariableCredentialsProvider()
    if err != nil {
        fmt.Println("Error:", err)
        os.Exit(-1)
    }

    // Create an OSSClient instance.
    // Specify the endpoint for the region where your bucket is located. For example, the endpoint for the China (Hangzhou) region is `https://oss-cn-hangzhou.aliyuncs.com`. Replace this with the endpoint for your actual region.
    client, err := oss.New("your-endpoint", "", "", oss.SetCredentialsProvider(&provider))
    if err != nil {
        fmt.Println("Error:", err)
        os.Exit(-1)
    }

    // Specify the bucket name.
    bucket, err := client.Bucket("examplebucket")
    if err != nil {
        fmt.Println("Error:", err)
        os.Exit(-1)
    }

    marker := oss.Marker("")
    // Specify the full path of the directory to be deleted. The path cannot contain the bucket name.
    prefix := oss.Prefix("log/")
    count := 0
    for {
        lor, err := bucket.ListObjects(marker, prefix)
        if err != nil {
            fmt.Println("Error:", err)
            os.Exit(-1)
        }

        objects := []string{}
        for _, object := range lor.Objects {
            objects = append(objects, object.Key)
        }
        // Delete the directory and all objects in it.
        // Set `oss.DeleteObjectsQuiet` to `true` to suppress the deletion results.
        delRes, err := bucket.DeleteObjects(objects, oss.DeleteObjectsQuiet(true))
        if err != nil {
            fmt.Println("Error:", err)
            os.Exit(-1)
        }

        if len(delRes.DeletedObjects) > 0 {
            fmt.Println("These objects failed to delete:", delRes.DeletedObjects)
            os.Exit(-1)
        }

        count += len(objects)

        prefix = oss.Prefix(lor.Prefix)
        marker = oss.Marker(lor.NextMarker)
        if !lor.IsTruncated {
            break
        }
    }
    fmt.Printf("success,total delete object count:%d\n", count)
}

#include <alibabacloud/oss/OssClient.h>
using namespace AlibabaCloud::OSS;

int main(void)
{
    /* Initialize OSS account information. */

    /* Specify the endpoint for the region where your bucket is located. For example, for the China (Hangzhou) region, set the endpoint to https://oss-cn-hangzhou.aliyuncs.com. */
    std::string Endpoint = "your-endpoint";
    /* Specify the bucket name. */
    std::string BucketName = "examplebucket";
    /* Specify the full path of the directory to be deleted. The path cannot contain the bucket name. */
    std::string keyPrefix = "log/";

    /* Initialize resources, such as the network. */
    InitializeSdk();

    ClientConfiguration conf;
    /* This example loads access credentials from environment variables. Before running, ensure that `OSS_ACCESS_KEY_ID` and `OSS_ACCESS_KEY_SECRET` are set. */
    auto credentialsProvider = std::make_shared<EnvironmentVariableCredentialsProvider>();
    OssClient client(Endpoint, credentialsProvider, conf);

    std::string nextMarker = "";
    bool isTruncated = false;
    do {
            ListObjectsRequest request(BucketName);
            request.setPrefix(keyPrefix);
            request.setMarker(nextMarker);
            auto outcome = client.ListObjects(request);

            if (!outcome.isSuccess()) {
                /* Handle exceptions. */
                std::cout << "ListObjects fail" <<
                ",code:" << outcome.error().Code() <<
                ",message:" << outcome.error().Message() <<
                ",requestId:" << outcome.error().RequestId() << std::endl;
                break;
            }
            for (const auto& object : outcome.result().ObjectSummarys()) {
                DeleteObjectRequest request(BucketName, object.Key());
                /* Delete the directory and all objects in it. */
                auto delResult = client.DeleteObject(request);
            }
            nextMarker = outcome.result().NextMarker();
            isTruncated = outcome.result().IsTruncated();
    } while (isTruncated);

    /* Release resources, such as the network. */
    ShutdownSdk();
    return 0;
}

Query object count and size

Production considerations
