Optimize batch inserts

Test environment

The following table describes the test environment.

CREATE TABLE `sbtest1` (
    `id` int(11) NOT NULL,
    `k` int(11) NOT NULL DEFAULT '0',
    `c` char(120) NOT NULL DEFAULT '',
    `pad` char(60) NOT NULL DEFAULT '',
    PRIMARY KEY (`id`),
    KEY `k_1` (`k`)
) ENGINE = InnoDB DEFAULT CHARSET = utf8mb4;

Batch feature: BATCH_INSERT_POLICY=SPLIT

To improve concurrency for bulk data inserts, PolarDB-X optimizes batch insert statements. If a single batch insert statement exceeds 256 KB, PolarDB-X dynamically splits it into multiple smaller batches and executes them serially. This process is called SPLIT.

The BATCH_INSERT_POLICY=SPLIT mechanism ensures optimal performance, reduces overhead from parallel batch insert statements in PolarDB-X, and helps prevent load imbalance across distributed nodes.

To disable the BATCH_INSERT_POLICY=SPLIT mechanism, use the following hint: /*+TDDL:CMD_EXTRA(BATCH_INSERT_POLICY=NONE)*/. Disabling this policy ensures that PolarDB-X does not automatically split batches during execution. This allows you to validate performance at various batch sizes, such as 2,000, 5,000, or 10,000. However, test results indicate that performance gains are not significant when the batch size exceeds 1,000.

Single-table performance baseline

In distributed mode, a single table resides on a single data node. Its performance can serve as a performance baseline to evaluate the horizontal scaling capability of sharded tables, which distribute data evenly across multiple data nodes.

The test performs batch insert operations on a single table in PolarDB-X. The data for a single table is stored on a single data node. PolarDB-X writes data to the corresponding data node according to the table definition.

Scenario 1: batch size

Scenario 2: Degree of parallelism (DOP)

Test summary

/*+TDDL:CMD_EXTRA(BATCH_INSERT_POLICY=NONE)*/

Performance benchmark for sharded tables

Both the batch size and the degree of parallelism (DOP) affect the performance of batch insert operations. This section tests and analyzes these two factors.

Scenario 1: batch size

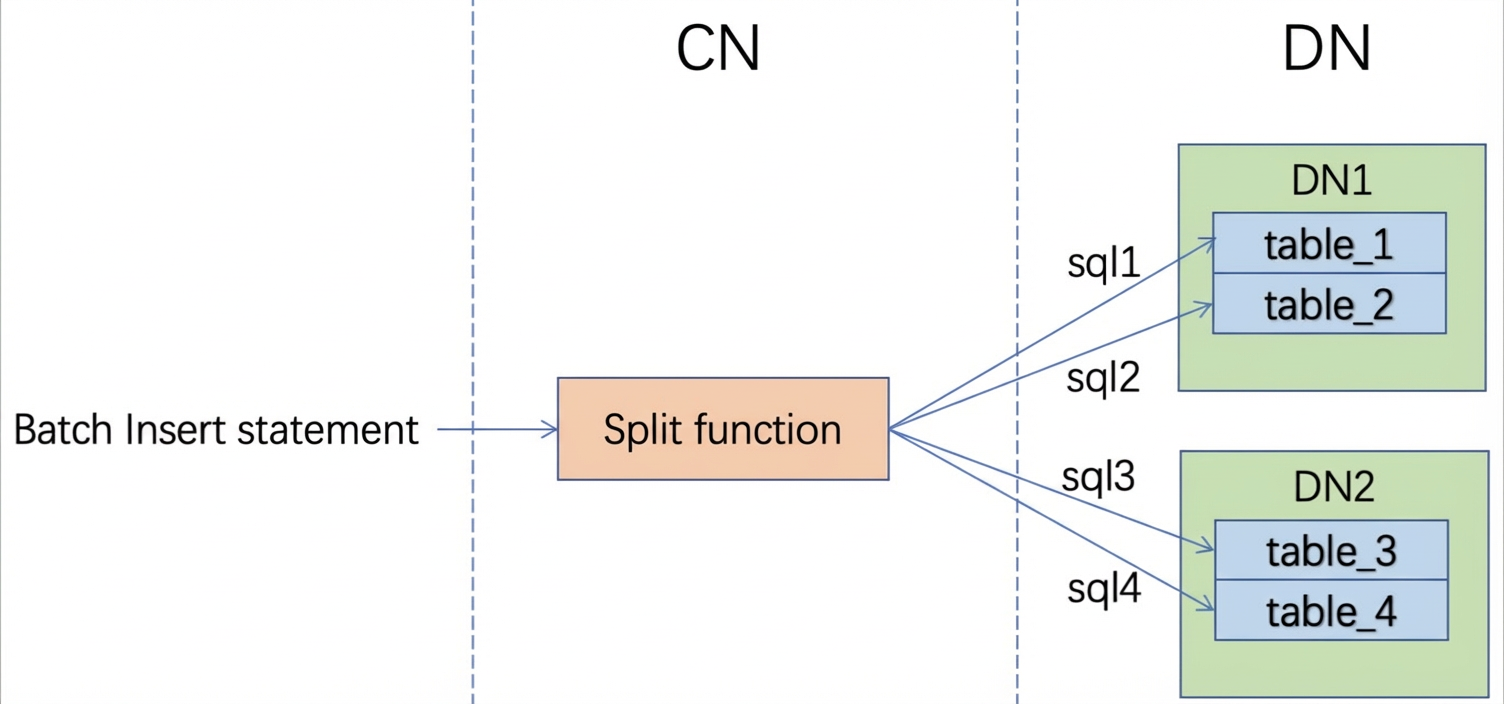

When performing a batch insert on a sharded table, the sharding function splits the VALUES clause. This changes the batch size that is pushed down to the data nodes, as illustrated in the following diagram.

Therefore, with data sharding, you can use larger Batch Insert statements in PolarDB-X or try to place data for the same physical table into a single Batch Insert statement. This ensures that after the sharding function separates the values, the batch size pushed down to a single data shard is appropriate, which improves the performance of storage nodes.

• Sub-scenario 1: BATCH_INSERT_POLICY=SPLIT

  Parameters:

  • BATCH_INSERT_POLICY: Enabled

  • DOP: 32

  • Shards: 32

  • Columns: 4

  • GSI: None

  • Sequence: None

  Test item	Batch size	1	10	100	500	1000	2000	5000	10000
  PolarDB-X (32 shards)	Performance (rows/s)	12804	80987	229995	401215	431579	410120	395398	389176

  Note

  The BATCH_INSERT_POLICY strategy is triggered when the batch size is 2,000 or greater.

• Sub-scenario 2: BATCH_INSERT_POLICY=NONE

  Parameters:

  • BATCH_INSERT_POLICY: Disabled

  • DOP: 32

  • Shards: 32

  • Columns: 4

  • GSI: None

  • Sequence: None

  Test item	Batch size	1000	2000	5000	10000	20000	30000	50000
  PolarDB-X (32 shards)	Performance (rows/s)	431579	463112	490350	526751	549990	595026	685500

  Summary:

  1. With BATCH_INSERT_POLICY=SPLIT and a batch size of 1,000, the overall performance is approximately 430,000 rows per second, double the performance of a non-sharded table.

  2. With BATCH_INSERT_POLICY=NONE, the values in this test are randomly distributed by a Hash sharding function, resulting in an almost even data distribution across each shard. With a maximum batch size of 50,000, the overall performance reaches 680,000 rows per second.

Scenario 2: DOP

The optimal DOP fully utilizes the CPU or maximizes the IOPS of the PolarDB-X data nodes. Because batch insert statements involve minimal computation, PolarDB-X compute nodes have low overhead, and the main workload is on the PolarDB-X data nodes. A DOP that is too low or too high can reduce performance. The optimal value depends on factors such as the number of nodes, node specifications (such as CPU cores), and thread pool pressure. Therefore, no single value is universally optimal. Run tests in a production-like environment to determine the best DOP for your workload.

• Sub-scenario 1: Test different DOPs on a 4-node cluster with a batch size of 1,000.

  Parameters:

  • batch size: 1,000

  • Columns: 4

  • GSI: None

  • Sequence: None

  Test item	Threads	1	2	4	8	16	32	64	80	96
  PolarDB-X (32 shards)	Performance (rows/s)	40967	80535	151415	246062	367720	431579	478876	499918	487173

  Summary: For this configuration, peak performance occurs at a concurrency of 64 to 80 threads, reaching approximately 500,000 rows per second.

• Sub-scenario 2: Test DOP with different numbers of nodes

  Parameters:

  • 2 nodes: 2 CNs × 2 DNs

  • batch size: 20,000

  • Column: 4

  • GSI: None

  • Sequence: None

  Test item	Threads	4	8	12	16
  PolarDB-X (16 shards)	Performance (rows/s)	159794	302754	296298	241444

  Parameters:

  • 3 nodes: 3 CNs × 3 DNs

  • batch size: 20,000

  • Columns: 4

  • GSI: None

  • Sequence: None

  Test item	Threads	9	12	15	18
  PolarDB-X (24 shards)	Performance (rows/s)	427212	456050	378420	309052

  Parameters:

  • 4 nodes: 4 CNs × 4 DNs

  • batch size: 20,000

  • Columns: 4

  • GSI: None

  • Sequence: None

  Test item	Threads	16	32	40	64
  PolarDB-X (32 shards)	Performance (rows/s)	464612	549990	551992	373268

  Summary: As the number of nodes increases, the optimal DOP also needs to increase. Peak performance is 300,000 rows/s with a DOP of 8 on 2 nodes, 450,000 rows/s with a DOP of 12 on 3 nodes, and 550,000 rows/s with a DOP of 32 on 4 nodes. The performance scales almost linearly with the number of nodes, at a rate of approximately 0.9 to 1.0.

• Sub-scenario 3: Test DOP with different node specifications

  Parameters:

  • batch size: 20,000

  • Columns: 4

  • GSI: None

  • Sequence: None

  Test item	Threads	4	8	10	12	16
  PolarDB-X (4-core, 16 GB)	Performance (rows/s)	165674	288828	276837	264873	204738

  Test item	Threads	8	10	12	16
  PolarDB-X (8-core, 32 GB)	Performance (rows/s)	292780	343498	315982	259892

  Test item	Threads	16	32	40	64
  PolarDB-X (16-core, 64 GB)	Performance (rows/s)	464612	549990	551992	373268

  Summary: As node specifications are upgraded, the optimal DOP also increases. Peak performance is 280,000 rows/s with a DOP of 8 on 4-core, 16 GB nodes; 340,000 rows/s with a DOP of 10 on 8-core, 32 GB nodes; and 550,000 rows/s with a DOP of 32 on 16-core, 64 GB nodes. The performance scales with the node specifications at a rate of approximately 0.5 to 0.6.

Summary

• We recommend a batch size of 1,000 and a DOP between 16 and 32. This configuration optimizes concurrency and balances the resource load on the instance.

• To maximize data import throughput, increase the batch size. As a best practice, the batch size should be between (number of shards) × 100 and (number of shards) × 1,000, for example, 20,000 to 50,000. Keep the size of each batch insert statement between 2 MB and 8 MB, as the default maximum packet size is 16 MB. You must also set BATCH_INSERT_POLICY=NONE using a hint.

  Important

  An oversized SQL statement can overload a single compute node in a distributed system. This increases the risk of excessive memory consumption and can lead to an unbalanced load across nodes.

• Batch insert operations are primarily IOPS-intensive; CPU and memory are typically not the main bottlenecks. Therefore, when scaling resources to improve performance, prioritize scaling out by adding more nodes over scaling up individual nodes.

• For batch imports of on-premises text data, use Batch Tool, the dedicated import and export utility for PolarDB-X. For more information, see Import and export data using the Batch Tool.
