User-defined functions

Function pushdown

PolarDB-X checks the SQL DATA ACCESS field of a UDF to decide whether to register it on data nodes. Only UDFs with SQL DATA ACCESS set to NO SQL are registered on data nodes and can be pushed down.

To maintain MySQL compatibility, PolarDB-X registers pushdown-eligible UDFs with the MySQL library on the data node.

The SQL DATA ACCESS field cannot be modified because the pushdown logic of a UDF is involved.

Pushdown after scaling

After scaling, run pushdown udf to register pushdown-eligible UDFs with the new data node (DN).

Create a UDF

CREATE
    [DEFINER = user]
    FUNCTION sp_name ([func_parameter[,...]])
    RETURNS type
    [characteristic ...] routine_body

func_parameter:
    param_name type

characteristic:
    COMMENT 'string'
  | LANGUAGE SQL
  | [NOT] DETERMINISTIC
  | { CONTAINS SQL | NO SQL | READS SQL DATA | MODIFIES SQL DATA }
  | SQL SECURITY { DEFINER | INVOKER }

routine_body:
    Valid SQL routine statement

Key characteristics:

Example:

CREATE FUNCTION my_mul(x int, y int)
RETURNS int
LANGUAGE SQL
DETERMINISTIC
COMMENT 'my multiply function'
RETURN x*y*31;

Call a UDF

Call a UDF the same way as a built-in function:

SELECT my_mul(2, 2);
+--------------+
| my_mul(2, 2) |
+--------------+
|          124 |
+--------------+

Modify a UDF

ALTER FUNCTION supports modifying COMMENT, LANGUAGE SQL, and SQL SECURITY. It does not support changing SQL DATA ACCESS.

ALTER FUNCTION func_name [characteristic ...]

characteristic: {
    COMMENT 'string'
  | LANGUAGE SQL
  | SQL SECURITY { DEFINER | INVOKER }
}

Delete a UDF

DROP FUNCTION [IF EXISTS] FUNCTION_NAME;

View UDFs

View all UDFs:

SELECT * FROM information_schema.Routines WHERE ROUTINE_TYPE = 'FUNCTION';

View a specific UDF:

SHOW FUNCTION STATUS [LIKE 'pattern' | WHERE expr]

SHOW CREATE FUNCTION function_name;

SELECT * FROM information_schema.Routines WHERE ROUTINE_NAME = 'function_name';

View pushed-down UDFs:

SELECT * FROM information_schema.pushed_function;

Cancel a running UDF

Run the KILL statement to terminate a query that is executing a UDF:

KILL {QUERY | CONNECTION} connection_id;

Cache commands

Cache lifecycle example

The following example walks through the full cache lifecycle for my_mul.

-- Create the UDF.
CREATE FUNCTION my_mul(x int, y int)
     RETURNS int
     LANGUAGE SQL
     DETERMINISTIC
     COMMENT 'my multiply function'
     RETURN x*y*31;

-- The function exists in cache, but the body is not loaded yet (SIZE = 0).
SELECT * FROM information_schema.function_cache;
+--------------------+--------------+------+
| ID                 | FUNCTION     | SIZE |
+--------------------+--------------+------+
| xx.xx.xx.xx:3000   | mysql.my_mul |    0 |
| yy.yy.yy.yy:3100   | mysql.my_mul |    0 |
+--------------------+--------------+------+

-- Call the UDF. This triggers the function body to load on one node.
SELECT my_mul(2, 2);
+--------------+
| my_mul(2, 2) |
+--------------+
|          124 |
+--------------+

-- The body is now loaded on the node that executed the call (SIZE = 79).
SELECT * FROM information_schema.function_cache;
+--------------------+--------------+------+
| ID                 | FUNCTION     | SIZE |
+--------------------+--------------+------+
| xx.xx.xx.xx:3000   | mysql.my_mul |    0 |
| yy.yy.yy.yy:3100   | mysql.my_mul |   79 |
+--------------------+--------------+------+

SELECT * FROM information_schema.function_cache_capacity;
+--------------------+-----------+-------------+
| ID                 | USED_SIZE | TOTAL_SIZE  |
+--------------------+-----------+-------------+
| xx.xx.xx.xx:3000   |         0 | 15139759718 |
| yy.yy.yy.yy:3100   |        79 | 15139759718 |
+--------------------+-----------+-------------+

-- Reload the UDF to reset the cache on all nodes.
RELOAD FUNCTIONS;

-- All nodes show SIZE = 0 again.
SELECT * FROM information_schema.function_cache;
+--------------------+--------------+------+
| ID                 | FUNCTION     | SIZE |
+--------------------+--------------+------+
| xx.xx.xx.xx:3000   | mysql.my_mul |    0 |
| yy.yy.yy.yy:3100   | mysql.my_mul |    0 |
+--------------------+--------------+------+

Memory limits

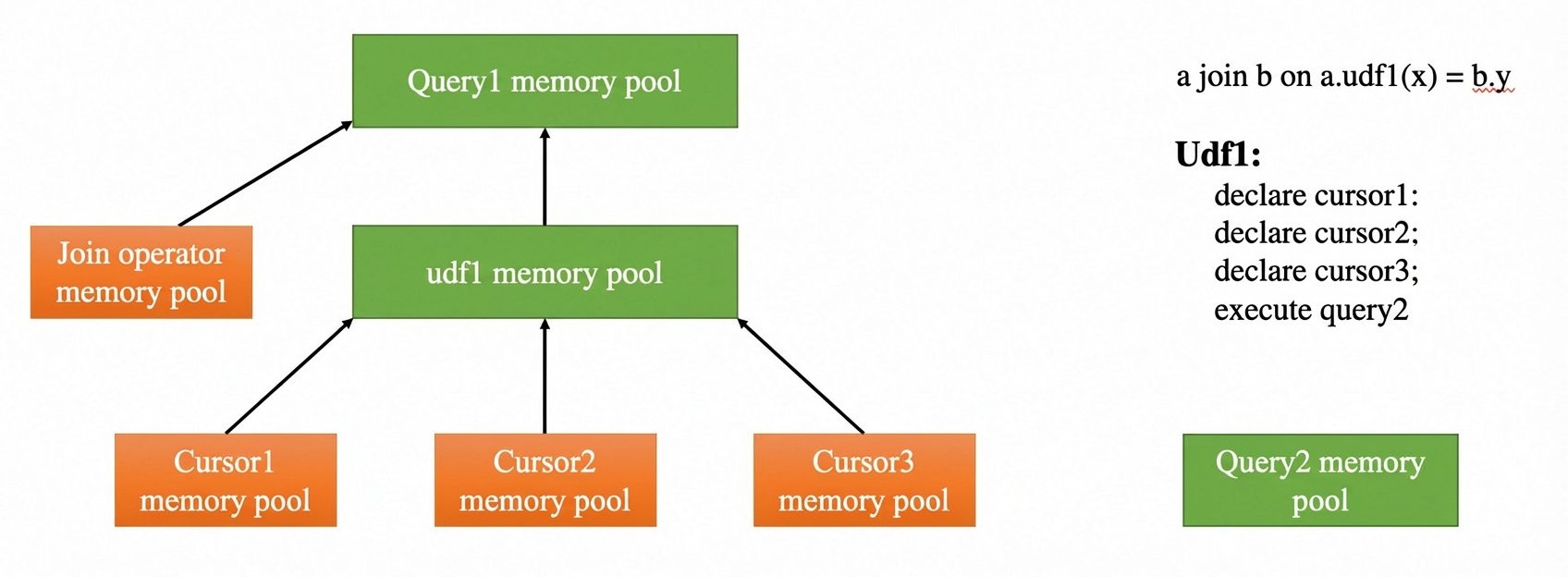

During UDF execution, memory is primarily used by cursors. Use the following parameters to set memory limits:

Memory for the entire query that calls the UDF is also limited.

Call depth limit

Use the MAX_PL_DEPTH parameter to limit UDF call depth. Deep call stacks are difficult to debug and consume significant resources.
