GitHub sign-in for RDS for Supabase

Step 1: Create a GitHub OAuth application

In this step, you register an OAuth application on the GitHub platform to obtain the client ID and client secret required for API authentication.

1. Sign in to your GitHub account and navigate to Settings > Developer settings > OAuth Apps.

2. Click New OAuth App.

3. On the registration page, fill in the application information. The key settings are as follows:

   • Application name: A custom name for your application, such as MySaaS Platform.

   • Homepage URL: The live homepage URL of your application, such as https://app.example.com.

   • Authorization callback URL: The URL where GitHub redirects users after they authorize your application. This URL must be the public endpoint of your RDS for Supabase instance with /auth/v1/callback appended. You can find this address in the Network Information section of your RDS for Supabase instance details page. The format is as follows:

     https://<Supabase public endpoint>/auth/v1/callback

     Note The Supabase public endpoint must not include a port number.

4. After registering the application, the page displays the generated client ID. Click Generate a new client secret to create a secret.

   Important The client secret is displayed only once upon creation. Copy and store it securely, as you will need it for a later step. Leaking this secret poses a severe security risk.

Step 2: Configure authentication parameters

In this step, you enable GitHub authentication in your RDS for Supabase instance and enter the credentials you obtained in the previous step.

1. On the RDS console, choose AI Application Development. Select a region, and then click the Project ID to open the instance details page.

2. In the left-side navigation pane, click Auth Configuration.

3. In the Authentication Providers list, find and click GitHub.

4. Configure the following parameters:

   • Enable GitHub login: Turn on this switch.

   • GitHub OAuth App Client ID: Enter the client ID you obtained from GitHub.

   • GitHub OAuth App Client Secret: Enter the client secret that you saved.

   • Authorization Callback URL: Re-enter the same authorization callback URL that you configured in your GitHub OAuth Application.

5. Click Confirm. After the configuration takes effect, the instance restarts automatically.

Step 3: Configure network and security policies

In this step, you configure network access and security policies. This allows the RDS for Supabase instance to access the GitHub public API while restricting access to your instance to authorized applications.

1. Configure instance public access: On the instance details page, in the Network Information section, make sure the Allow Public Network Access switch is turned on. This setting allows your Supabase instance to make outbound API requests to the GitHub servers.

2. Configure an access allowlist: On the instance details page, in the Allowlist Information section, click Add Allowlist Group. Add the public egress IP address or CIDR block of your frontend application server to the allowlist. This configuration ensures that only trusted sources can access your Supabase instance's API endpoints.

Step 4: Verify functionality and data

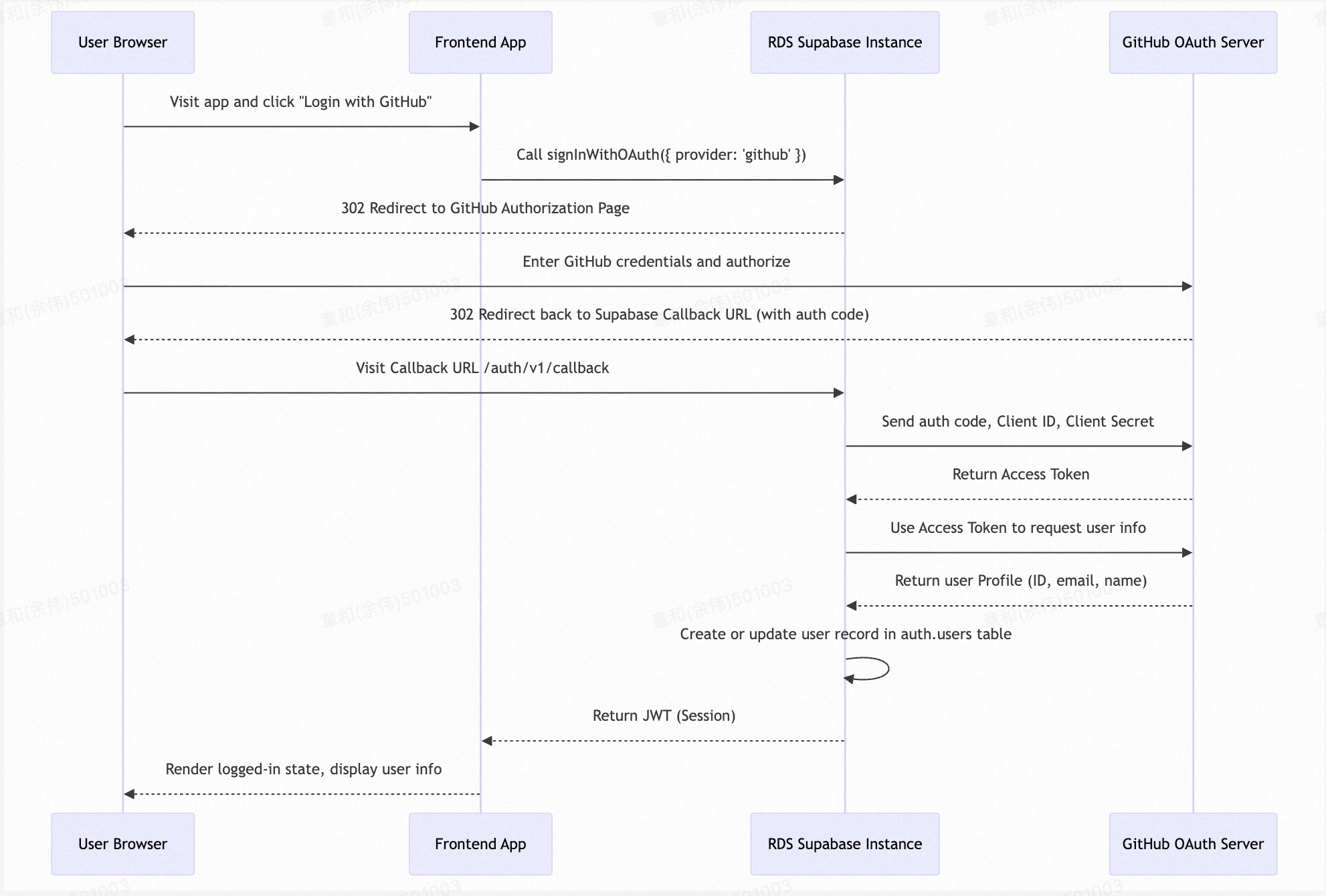

In this step, you use a minimal client application to verify the authentication flow and confirm that user data is synchronized to RDS for Supabase.

1. Build a verification client Set up a simple frontend project to test the authentication flow. The project includes index.html (page structure), main.js (authentication logic), supabase-config.js (connection configuration), and package.json (dependency management).

   supabase-config.js This file stores the connection credentials for RDS for Supabase.

   // Supabase configuration file
   // Replace the placeholders with your actual Supabase project information
   export const SUPABASE_CONFIG = {
       // RDS for Supabase project URL
       url: 'YOUR_SUPABASE_URL',

       // RDS for Supabase anonymous key (anon key)
       anonKey: 'YOUR_SUPABASE_ANON_KEY'
   };

   Note You can obtain YOUR_SUPABASE_URL and YOUR_SUPABASE_ANON_KEY from the API Documentation section of the RDS for Supabase instance details page.

   main.js This file contains the core logic for initiating a sign-in request using the supabase-js SDK.

   import { createClient } from '@supabase/supabase-js';
   import { SUPABASE_CONFIG } from './supabase-config.js';

   const supabase = createClient(SUPABASE_CONFIG.url, SUPABASE_CONFIG.anonKey);

   // Bind a click event to the sign-in button
   document.getElementById('github-login').addEventListener('click', async () => {
       const { data, error } = await supabase.auth.signInWithOAuth({
           provider: 'github',
           options: {
               redirectTo: window.location.origin // Redirect back to the app home page after authentication
           }
       });

       if (error) {
           console.error('GitHub sign-in error:', error.message);
       }
   });

   // Listen for authentication state changes to update the UI
   supabase.auth.onAuthStateChange((event, session) => {
       if (event === 'SIGNED_IN') {
           console.log('Signed in:', session.user);
           // Update the UI to show user information here
       } else if (event === 'SIGNED_OUT') {
           console.log('Signed out');
           // Update the UI to show the sign-in interface here
       }
   });

   For the complete client example code, refer to the original documentation.

2. Execute and verify the flow

   1. In the project's root directory, run npm install to install dependencies, and then run npm run dev to start the local development server.

   2. In your browser, go to the provided local address (for example, http://localhost:5173).

   3. Click Sign in with GitHub. The browser should redirect to the GitHub authorization page.

   4. After authorizing the application, the page automatically redirects back to your application. Check the browser's developer console and confirm that "Signed in" and a user object have been logged.

3. Confirm backend user data After a successful sign-in, log in to Supabase Studio to confirm that the user data was saved.

   1. On the RDS for Supabase instance details page, in the Network Information section, click the Public Connection Address and log in to Supabase Studio using the project password.

   2. In the left-side navigation pane, select Authentication > Users.

   3. In the user list, you should see a new user record. The Provider column should display github, and the record should contain metadata synchronized from GitHub, such as the email and username.

Cost breakdown

• RDS for Supabase instance fees: Enabling GitHub authentication incurs no extra charges. Costs are determined solely by the specifications (compute, storage) of the selected RDS for Supabase instance.

• Data transfer fees: The OAuth authentication flow generates a small amount of data transfer between RDS for Supabase and the GitHub API over the public internet. These fees are typically negligible.

Key risks

• Configuration error risk: A mismatch in the authorization callback URL between your GitHub and RDS for Supabase configurations is the most common cause of authentication failures, often resulting in a "redirect_uri_mismatch" error.

• Credential leak risk: The client secret is highly sensitive information. If it is hard-coded in client-side code or committed to a public code repository, it creates a severe security vulnerability that allows an attacker to impersonate your application. You must manage secrets using server-side environment variables or a key management service.

• Service dependency risk: Your application's sign-in functionality will depend on the availability of the GitHub OAuth service. If the GitHub service is down, sign-in and registration through this method will be unavailable. Provide an alternative sign-in method (such as email) or a clear error message in your application.

• Network interruption risk: If public access for the RDS for Supabase instance is disabled, or if Virtual Private Cloud (VPC) or security group rules accidentally block outbound access to github.com, Supabase will be unable to complete the token exchange with GitHub, and the authentication flow will fail.
