Solution overview

If your applications are primarily built with the Spring Boot or Spring Cloud framework and they frequently access databases like MySQL, SQL Server, PostgreSQL, or MariaDB, we recommend implementing runtime data source rotation to enhance security. The solution architecture is shown in the following figure:

This solution uses KMS to host database credentials securely, Nacos for dynamic configuration management, and Druid to manage database connections. This solution provides the following features:

Centralized and encrypted data source configurations: Manage database connection information centrally and use encryption to secure configuration data during storage and transmission.
Fully managed credentials with dual-layer access control: The system fully manages database credentials with a dual-layer authentication mechanism for enhanced access security.
Scheduled runtime credential rotation and rapid leak remediation: Automatically rotate database credentials at runtime based on a defined policy and quickly remediate leaks to reduce security risks.
Zero-downtime account switching: Switch database access accounts dynamically with zero downtime, ensuring high availability and simplifying maintenance.
Application-side performance tuning: Flexibly adjust key performance parameters such as connection pool size and timeout settings to improve system stability and responsiveness.
Exception protection mechanism: Prevents disruptive misconfigurations by validating and protecting critical parameters, ensuring safe and controlled changes.

Prerequisites

Activate ApsaraDB RDS and create an instance.
Procedure
After you activate ApsaraDB RDS, create an instance if you do not already have one. For detailed instructions, see Create an ApsaraDB RDS for MySQL instance.

Click here to open the ApsaraDB RDS instance creation page. Configure the following basic parameters and keep the default values for other settings:
1. Billing Method: For short-term testing, we recommend that you select Pay-As-You-Go.
2. Region: Select an Alibaba Cloud region. You cannot change the region after the instance is created.
3. Product Type: Select the Basic series. It is cost-effective for learning or testing but has longer recovery and restart times.
Activate Key Management Service (KMS), create a dedicated KMS instance, and create a key ID.

Create a dedicated KMS instance

After you activate KMS, create an instance if you do not already have one. For detailed instructions, see Create a dedicated KMS instance.

Go to the Instance Management page in the KMS console. Select a region from the top menu bar, and then click Create Instance. Select a suitable Alibaba Cloud region and keep the default values for other settings.
Create a key ID
If you do not have a key, create one by following these steps. For detailed instructions, see Manage keys.

Go to the Key Management page in the KMS console. Select a region from the top menu bar, click the Default Keys tab, and click Enable in the Actions column for the master key. Configure the following basic parameters and keep the default values for other settings:
1. Alias: An alias for the key.
2. Advanced Settings: The origin of the key material.
  - Alibaba Cloud KMS: KMS generates the key material.
  - External: You must import your own key material, as KMS does not generate it. For more information, see Import symmetric key material.
  Carefully read and select the checkbox for I understand the method and significance of using external key material.
Activate MSE and create an Enterprise Edition instance.
Create an Enterprise Edition instance
After you activate MSE, create an instance if you do not already have one. For detailed instructions, see Create an instance.

Go to the Instance List page in the MSE console. Select a region from the top menu bar, and then click Create Instance. Configure the following basic parameters and keep the default values for other settings:
1. Billing Method: For short-term testing, we recommend that you select Pay-As-You-Go.
2. Region: Select an Alibaba Cloud region. You cannot change the region after the instance is created.
3. Product Version: Select Enterprise Edition.

  This feature is available only in the Enterprise Edition of MSE Nacos, not in the Professional or Developer editions.
4. Instance Name: Set a name for the instance. The name must be globally unique within the Alibaba Cloud region and cannot be changed after creation.

Create a KMS secret

Go to the Secrets Manager page in the KMS console and select Database Credential.
Select an Instance ID and click Create Secret > Create Single Secret.

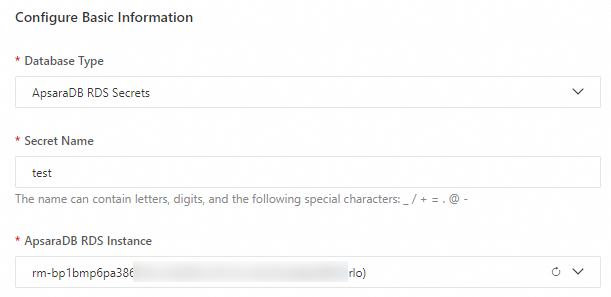

In the Create Database Credential panel, for the RDS Credential, select a Database Type, enter a Secret Name, and select the associated RDS Instance.

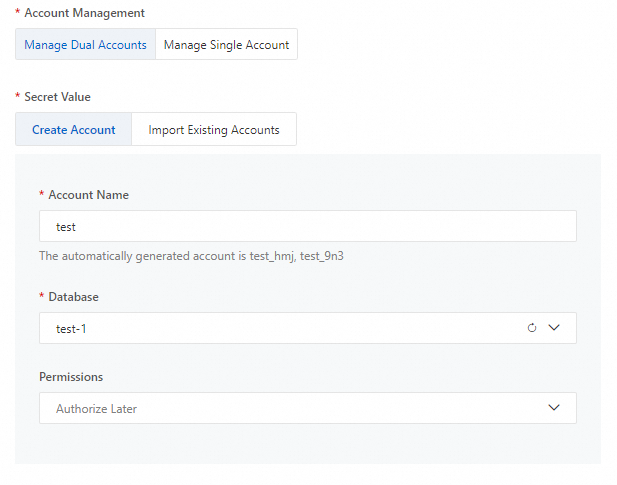

Select Dual-account hosting, enter a Custom Account Name, Select Database, and Specify Permissions.
Select an Encryption Key, set the Rotation Period, and click OK.

KMS automatically creates a database account and password with a strong password policy.

Create a data source

Note

The data source feature is built on the Nacos configuration center, where data source configurations are stored in an encrypted format.

Go to the Instance List page in the MSE console. Select a region from the top menu bar.
Click the name of the target Enterprise Edition instance. In the left-side navigation pane, choose Data Source Management.

If the instance is not bound to a KMS key, follow the prompts in the dialog box to bind a key.
On the Data Source Management page, select a target namespace and click Create Data Source.

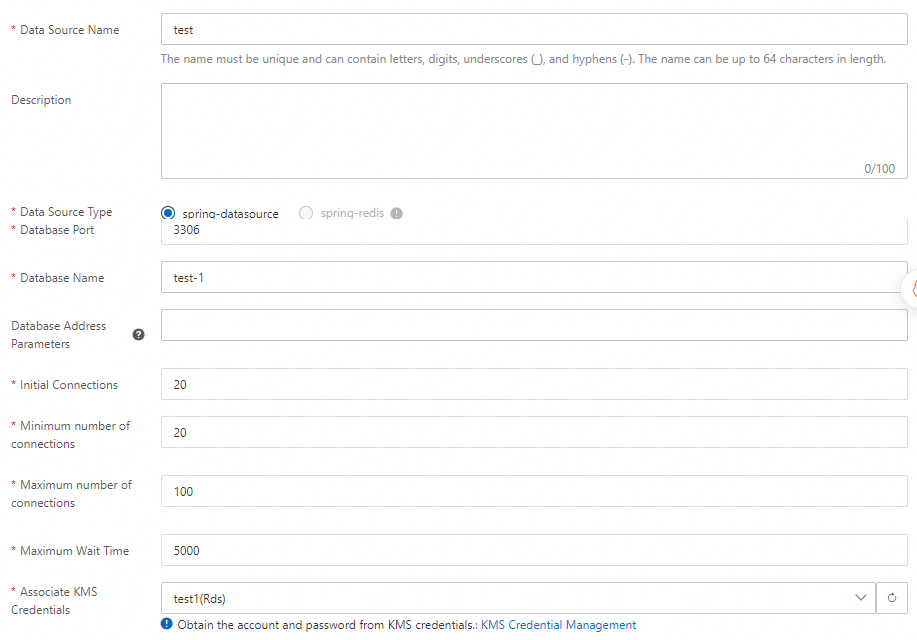

In the Create Data Source panel, configure the data source parameters. For more information about the parameters, see Create a data source.

Click OK. In the Confirm Data Source Creation dialog box, click OK again to submit the data source.

Credential rotation

KMS provides two methods for rotating data source credentials:

Scheduled rotation: You can set a rotation period when you create a secret, and KMS will automatically rotate the secret on schedule.
Immediate rotation: If a credential leak occurs or you need to rotate credentials immediately, you can use the KMS Secrets Manager console to trigger a rotation.

When a KMS secret is rotated, either on a schedule or on demand, KMS notifies MSE Nacos to update the encrypted data source configuration. Nacos then pushes the update to the application in real time. Druid gracefully replaces active connections with no disruption to your business.

Note

Credential rotation is managed by KMS Secrets Manager. If you directly modify the password of a managed account through the ApsaraDB RDS console, an API, or a high-privilege account in the database, the application will not receive the changes in real time.

Application access

On the data source details page, click the Application Access tab to view the access steps for each data source.

Note

For parameter configurations, use the actual settings displayed in the Application Access tab of the console. These settings are specific to the binding relationships and dynamic adaptation rules of your instance and data source.

Step 1: Upgrade versions

Upgrade Spring Cloud Alibaba to version 2023.0.3.3 or later.
Upgrade Druid to version 1.2.27 or later.

<!--  Druid connection pool, including Spring Starter and Druid core -->
<dependency>
	<groupId>com.alibaba</groupId>
	<artifactId>druid-spring-boot-3-starter</artifactId>
	<version>1.2.27</version>
</dependency>
<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>druid</artifactId>
    <version>1.2.27</version>
</dependency>

<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
    <version>2023.0.3.3</version>
</dependency>

<!--  Commercial KMS encryption and decryption plugin -->
<dependency>
	<groupId>com.alibaba.nacos</groupId>
	<artifactId>nacos-client-mse-extension</artifactId>
	<version>1.0.5</version>
</dependency>

Step 2: Modify configuration

Modify application.properties to enable dynamic data source rotation and specify the Nacos configuration for the data source.

# Import the data source configuration into Spring to initialize the data source
spring.config.import[0]=optional:nacos:cipher-kms-aes-256-proxy-spring-{resourceName}.properties?group=nacos-datasource

# Specify the Nacos address. The public endpoint is used by default. Modify it as needed.
spring.cloud.nacos.config.server-addr={nacos server}
# Specify the namespace ID
spring.cloud.nacos.config.namespace={namespace ID}
# Specify the KMS region ID
spring.cloud.nacos.config.kms_region_id={instance region}

# Enable Druid data source management and specify the data ID for the encrypted rotation configuration
spring.nacos.config.proxy.druid.enabled=true
spring.nacos.config.proxy.druid.data-id={dataID}

Step 3: Configure access credentials

The data source's encrypted configuration is decrypted in memory at runtime. To enable this, you must provide credentials with decryption permissions. Two credential management methods are supported:

AK-free access credential

If your application runs on Alibaba Cloud ECS or ACK, we recommend using an AK-free access credential. Set the following JVM parameters:

For ECS RAM roles:

-Dspring.cloud.nacos.config.ramRoleName=${ramRoleName}

For OIDC Role ARNs:

-Dspring.cloud.nacos.config.alibabaCloudRoleSessionName=${sessionName}

Traditional AK/SK

Set the following JVM parameters:

-Dspring.cloud.nacos.config.accessKey=${accessKey}
-Dspring.cloud.nacos.config.secretKey=${secretKey}

Replace ${accessKey} and ${secretKey} with your actual AccessKey ID and AccessKey secret.

For either method, you must grant the "Decryption permission for KMS encrypted configurations" to the corresponding account or role. This allows the application to decrypt the configuration into plaintext in its memory.

Go to the instance details page and choose Security > Authentication and Authorization > Client Authentication. Select Decryption permission for KMS encrypted configurations as the authorization granularity and follow the instructions to complete the authorization. For more information about credential types, see Configure client access credentials.

FAQ

1. Old credential invalidation after rotation

During rotation, KMS notifies MSE to update the credentials and keeps two credential versions active. Credentials older than the two most recent versions become invalid. In the future, this process will integrate with data source session management to invalidate old credentials only after all active connections using them have closed, which will further enhance stability.

2. Detecting exception protection

When Nacos pushes a configuration update, if the application's connection pool triggers the exception protection mechanism, the application reports an update failure to Nacos. You can check the config.log file in Nacos for the keyword "notify-error" to detect these failures. Future versions of Nacos will report the callback status of the client listener, allowing you to directly view client callback failures in the listener query results.
