Sensitive data protection for observability

Masking: preserve readability, reduce privacy risk

mask is suitable for processing PII or credential fields scattered in text. It supports two matching modes:

• buildin: built-in rules for phone numbers, email addresses, ID card numbers, bank card numbers, IP addresses, landline numbers, AccessKey pairs, license plates, International Mobile Subscriber Identity (IMSI), and VIN numbers.

• keyword: matches by field name or key name, such as password, token, authorization, and api_key.

  The masking method can use a placeholder or preserve prefixes and suffixes. For example, a phone number can retain the first three and last four digits, which protects privacy while allowing fuzzy matching for troubleshooting on the business side. Masked logs remain readable, searchable, and aggregatable, so this is the default choice for most log scenarios. For detailed usage, see Use the mask function for data masking.

Typical scenarios include:

• Phone numbers, email addresses, and ID card numbers scattered in AI gateway prompts.

• Client IP addresses and authentication tokens in application access logs.

• Bank card numbers, addresses, and user identifiers in LLM application logs.

Symmetric encryption: ciphertext storage, authorized restoration

aes_encrypt is suitable for scenarios where data needs to be restored later and key ownership is clear. For example, internal RAG Q&A, model requests, and customer solutions can be stored as ciphertext and restored by a team that holds the Key + IV during authorized audits.

If collection, analysis, and auditing are all within the same team, the Key + IV can be managed centrally, which makes symmetric encryption a simple and high-performance option. Its boundary is also clear: once the key is shared, all holders have decryption capability, so it fits use within the same organization or security domain, and not broad distribution across teams.

Envelope encryption: public-private key separation for high-sensitivity collaboration

envelope_encrypt is suitable for scenarios where the collection side and decryption side are separated. It uses an envelope encryption mechanism: a random DEK is generated to encrypt business data, and then an asymmetric public key encrypts the DEK. The collection side only needs the public key configured; the private key is held separately by the security or audit team.

This pattern is suitable for highly sensitive fields, such as:

• Complete returns after an AI Coding tool reads files.

• Command execution output.

• Entire log segments containing keys, connection strings, and configuration files.

  The DEK is generated at the pipeline level, so business data is still processed by AES; only the DEK is encrypted asymmetrically, which limits the impact on collection throughput.

Client-side protection: keep plaintext from leaving the collection side

In stricter compliance scenarios, sensitive data protection must be pushed down to the collection side: logs are processed immediately upon collection, so plaintext does not leave the host or container, and does not enter subsequent transport links.

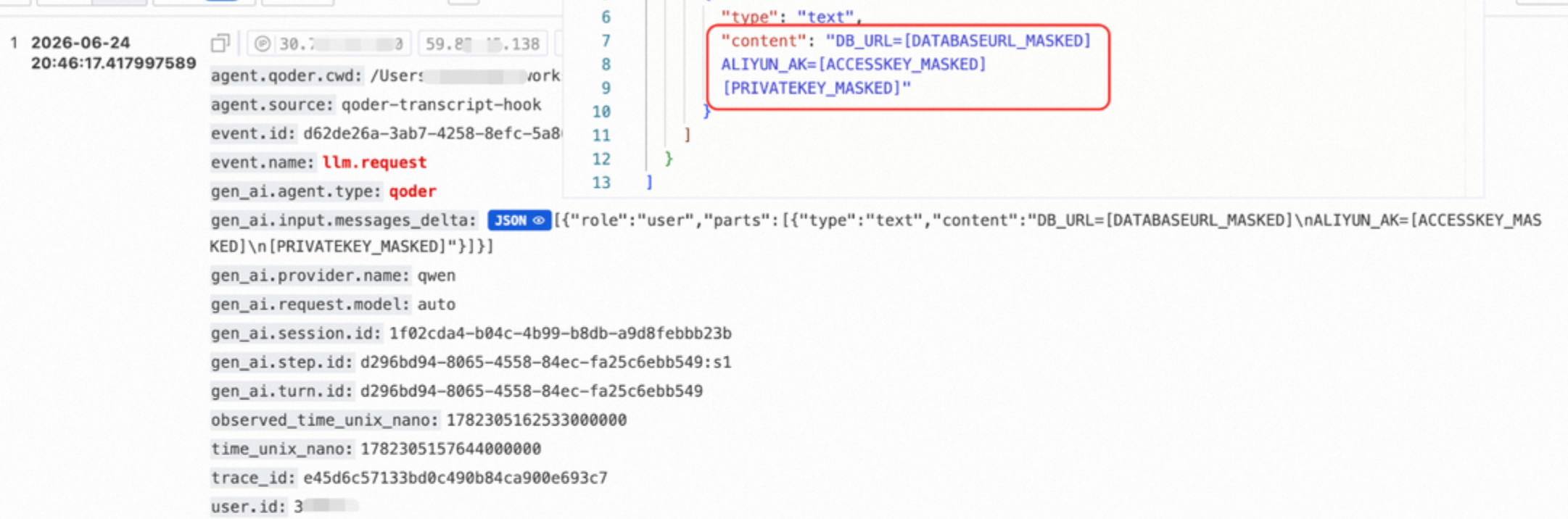

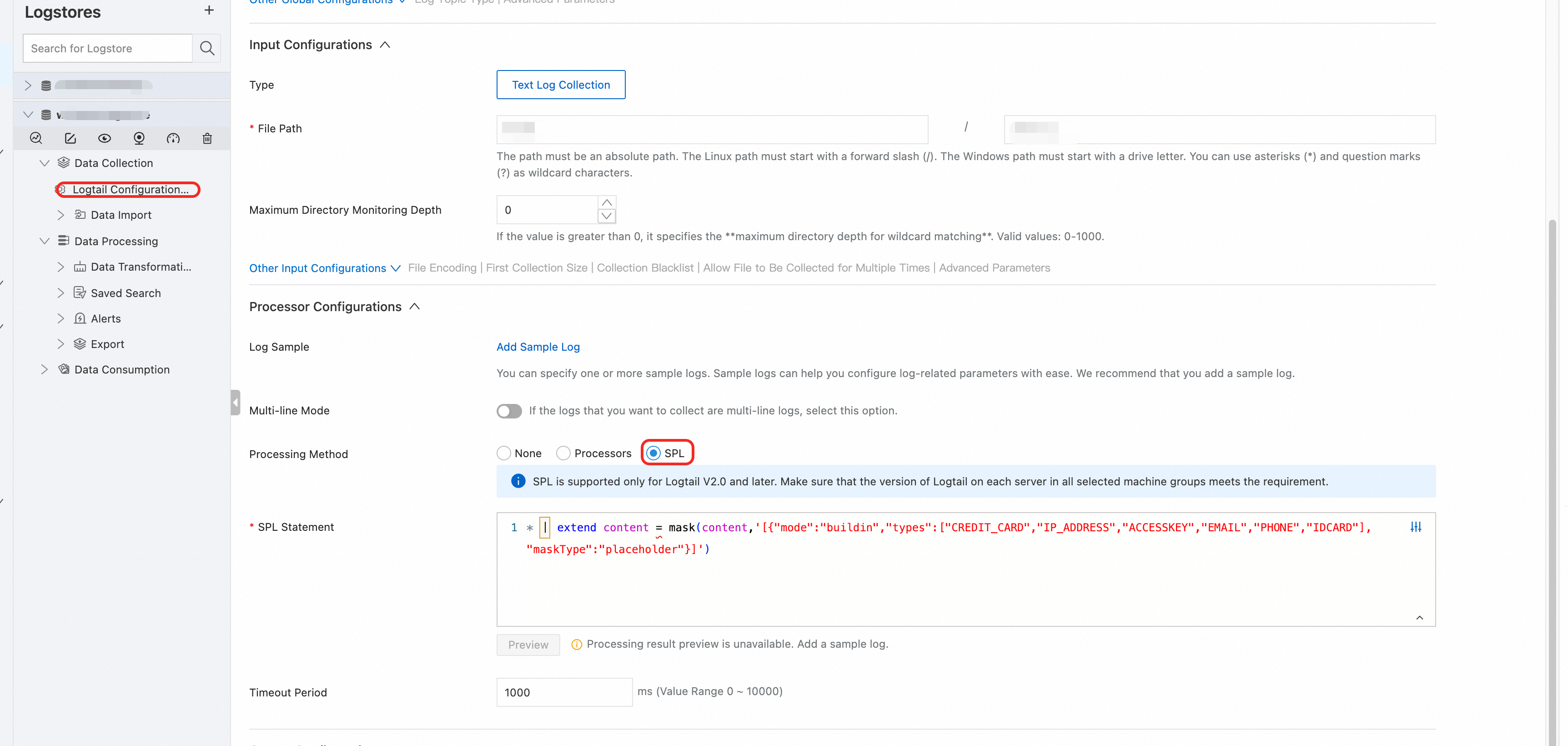

Client-side protection has two implementations: LoongCollector for host/container log processing at collection time, and LoongSuite Pilot for client-side privacy control in AI Coding Agent scenarios. They solve different problems but share the same goal: control plaintext propagation before data leaves the collection side.

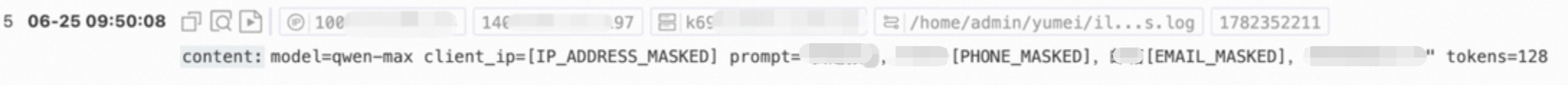

model=qwen-max client_ip=192.0.2.55 prompt="I am Zhang, phone number 138xxxxxxxx, email zhangwei@xxxx.com, help me check my recent orders" tokens=128

DB_URL=mysql://root:Abc@2025!@10.0.0.12:3306/prod
ALIYUN_AK=<REDACTED_AK>
-----BEGIN RSA PRIVATE KEY-----
MIIEvQIBADANBgkqh...
-----END RSA PRIVATE KEY-----

Pre-ingestion protection: centralized governance for direct-write data before storage

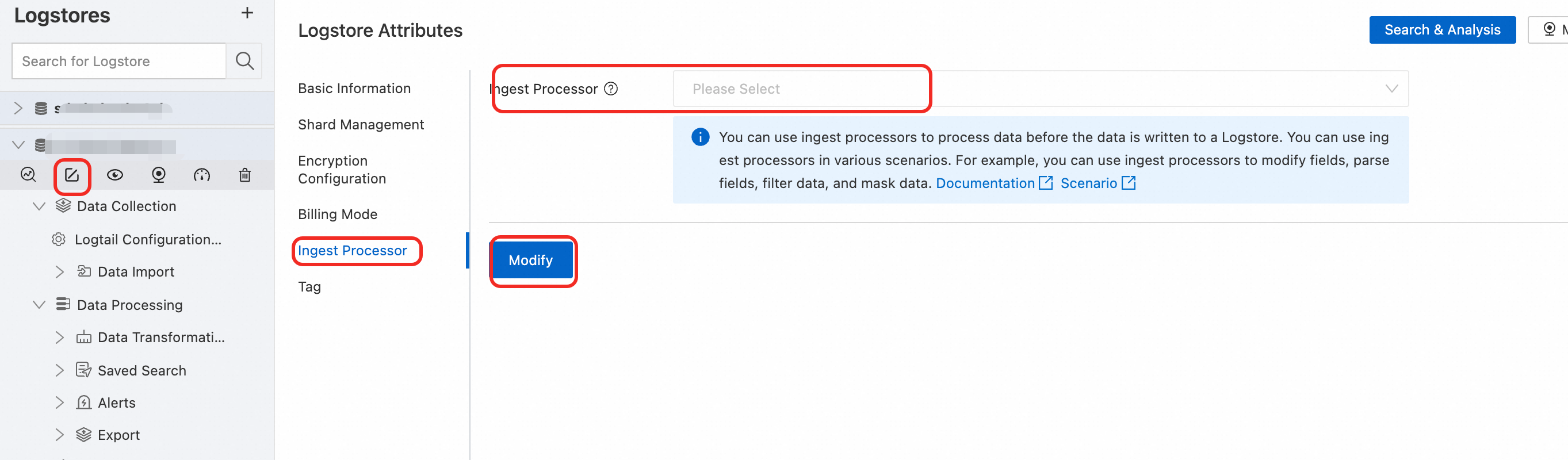

Not all data passes through LoongCollector. Many systems write directly to Simple Log Service through SDKs, web tracking, OpenAPI, or third-party collection pipelines. For this data, write processors provide server-side centralized governance: after data arrives at Simple Log Service and before it is written to a LogStore, SPL is executed to complete masking or encryption.

Write processor rules are placed on the Simple Log Service side, and clients do not need to be upgraded individually. When processing policies change, adjust the processor configuration to cover all direct-write data. For scenarios involving multiple business lines, multi-language SDKs, or third-party system reporting, this approach is easier to implement.

Using AI gateway access logs as an example, the gateway concatenates each model call into a single line separated by ## and writes it directly to Simple Log Service. The request field is the complete model request body and may contain user prompts, ID card numbers, and other arbitrary sensitive content. The remaining fields are structured call metadata:

2026-06-25 11:17:25.471##c9d7ab4c-b312-9d08-9243-c7f7475905be##5000000276111136##API_KEY##qwen-max##text-generation##{"input":{"prompt":"My ID card number is 530102********011X, help me check my insurance policy status"}}##chat-app##3de69809a9d0fd22773f33c77dab12a8

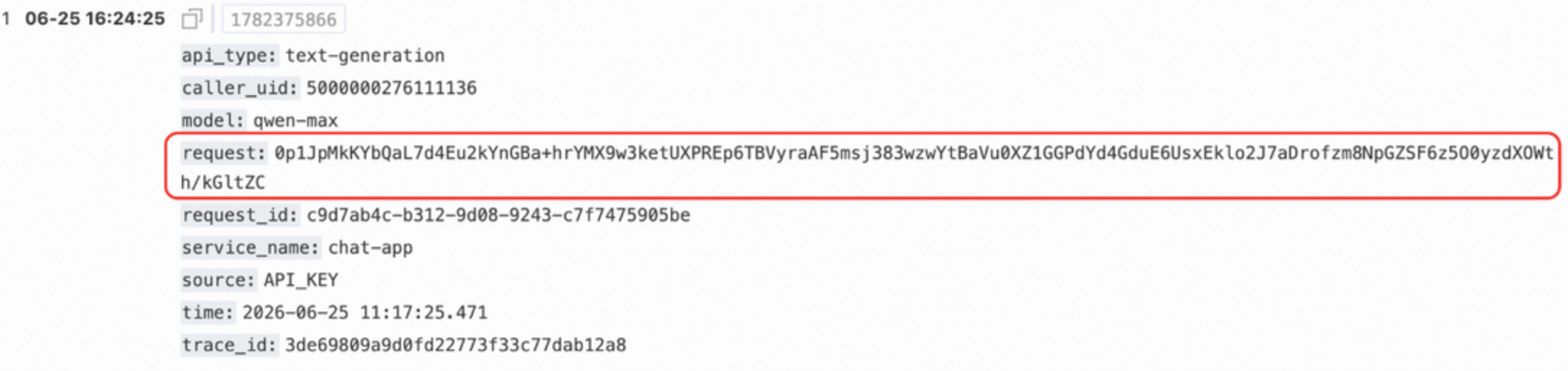

The request field here is an unstructured request body. This example uses symmetric encryption on the request field to demonstrate how write processors uniformly process direct-write data before ingestion: first split the fields by separator, then execute aes_encrypt on the highly sensitive body.

* | extend temp = split(content, '##')
| extend time          = temp[1],
           request_id    = temp[2],
           caller_uid    = temp[3],
           source        = temp[4],
           model         = temp[5],
           api_type      = temp[6],
           request       = temp[7],
           service_name  = temp[8],
           trace_id      = temp[9]
| extend request = to_base64(aes_encrypt(
        cast(request as binary),
        cast('aZ4kP9mX2qL7nR1t' as binary),
        cast('Gh8dW3sB6vN0cT5e' as binary)))
| project-away content, temp

Post-ingestion data transformation: generate secure datasets for shared analysis

Client-side processing and write processors address "pre-ingestion protection". Data transformation addresses a different problem: how to reorganize data that has already entered a LogStore into a more secure dataset suitable for long-term analysis.

In practice, many teams maintain two LogStores:

• Raw LogStore: short retention period, strict access permissions, used only for emergency troubleshooting or security investigations.

• Protected LogStore: generated by a data transformation job, with sensitive fields masked or encrypted, longer retention period, and available for broader analysis and auditing.

  This pattern is particularly suitable for AI observability data. Using AI Coding (such as Qoder) activity logs collected by LoongSuite Pilot as an example, each llm.response event carries a set of structured metadata (session ID, model, user ID, etc.) and a gen_ai.output.messages field — the complete text of the model response for that turn, which may contain arbitrary sensitive content such as internal system names, host information, configurations, or keys:

{
  "event.name": "llm.response",
  "gen_ai.session.id": "58bf461a-285f-468e-963c-00cd1706a9d9",
  "gen_ai.provider.name": "qwen",
  "gen_ai.response.model": "auto",
  "user.id": "1",
  "gen_ai.output.messages": "[{\"role\":\"assistant\",\"parts\":[{\"type\":\"text\",\"content\":\"Candidate salary table prepared: Zhang (phone number 138xxxxxxxx)...\"}],\"finish_reason\":\"end_turn\"}]",
  "trace_id": "a58ed78ac2573159b4fa8b38ab4c2697",
  "__time__": "1782367255"
}

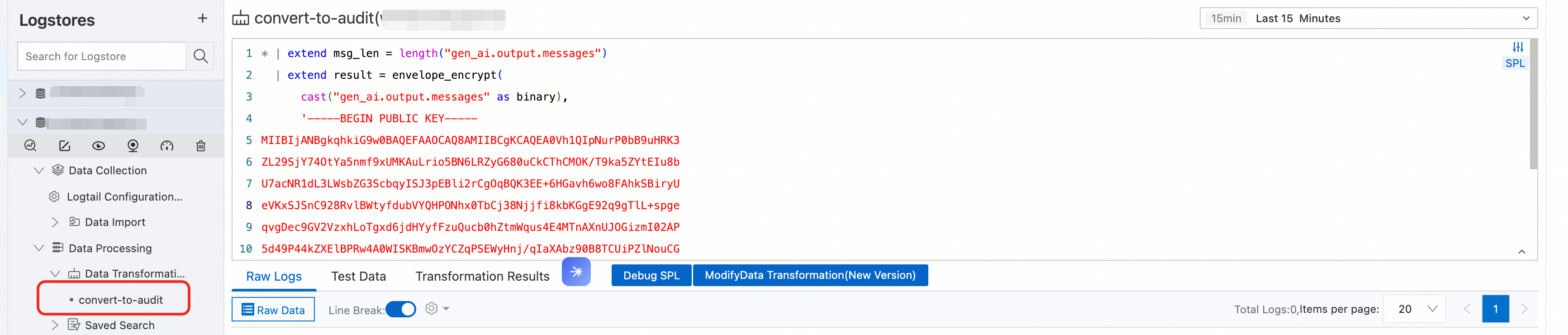

The gen_ai.output.messages field is an unstructured model response of variable format. Field-by-field masking is difficult to cover all risks, yet the original text may need to be restored for in-depth investigation. This example uses envelope encryption to demonstrate how data transformation first derives analysis fields (here, the response length msg_len) and then encrypts the highly sensitive body before writing to the protected LogStore:

* | extend msg_len = length("gen_ai.output.messages")
| extend result = envelope_encrypt(
      cast("gen_ai.output.messages" as binary),
      '-----BEGIN PUBLIC KEY-----
MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA0Vh1QIpNurP0bB9uHRK3
ZL29SjY74OtYa5nmf9xUMKAuLrio5BN6LRZyG680uCkCThCMOK/T9ka5ZYtEIu8b
U7acNR1dL3LWsbZG3ScbqyISJ3pEBli2rCgOqBQK3EE+6HGavh6wo8FAhkSBiryU
eVKxSJSnC928RvlBWtyfdubVYQHPONhx0TbCj38Njjfi8kbKGgE92q9gTlL+spge
qvgDec9GV2VzxhLoTgxd6jdHYyfFzuQucb0hZtmWqus4E4MTnAXnUJOGizmI02AP
5d49P44kZXElBPRw4A0WISKBmwOzYCZqPSEWyHnj/qIaXAbz90B8TCUiPZlNouCG
TwIDAQAB
-----END PUBLIC KEY-----',
      '{"mode":"RSA"}',
      '{"mode":"CTR"}')
| extend encrypted_dek = result['encrypted_dek'],
           enc_output_messages = result['encrypted_data']
| project-away "gen_ai.output.messages"

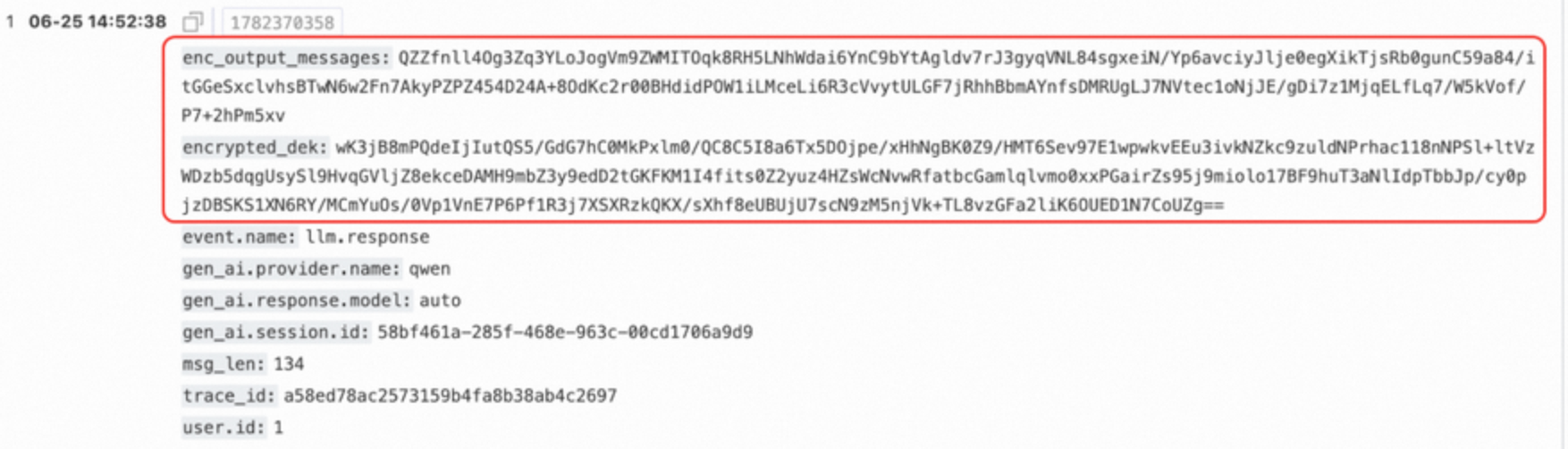

After data transformation writes to the protected LogStore, gen_ai.output.messages has been removed and replaced by the ciphertext enc_output_messages and the public-key-encrypted encrypted_dek. All other metadata remains in plaintext:

With this approach, the protected LogStore retains the event type, session ID, model, user ID, response length, and other analysis fields for alerting, trend analysis, and risk investigation. The actual model response body has become ciphertext. When an in-depth investigation is needed, security personnel with the private key decrypt the specified records.

Do not encrypt all fields indiscriminately. Instead, extract the necessary analysis metadata before encryption, and encrypt only the highly sensitive body. Day-to-day analysis then relies on metadata, while sensitive original text is accessed through authorized decryption under controlled conditions.
