Collect and analyze ECS text logs using LoongCollector

Prerequisites

Activate service and prepare an account

• Activate Simple Log Service: If this is your first time, log on to the Simple Log Service console and follow the on-screen instructions to activate the service.

• Prepare an account:

  • Alibaba Cloud account: This account has full permissions by default.

  • RAM user: If you use a RAM user, you must grant it the required permission policies:

    • AliyunLogFullAccess: Grants permissions to create and manage Simple Log Service resources such as projects and logstores.

    • AliyunECSFullAccess: Grants permissions to install the collection agent on an ECS instance.

    • AliyunOOSFullAccess: Grants permissions to automatically install the collection agent on an ECS instance through Operation Orchestration Service (OOS).

    In a production environment, you can create custom permission policies for more granular control over RAM user permissions.

Prepare an ECS instance

Ensure that the security group rules for the ECS instance allow outbound traffic on port 80 (HTTP) and port 443 (HTTPS).

Generate mock logs

1. Log on to the ECS instance.

2. Create a script file named generate_nginx_logs.sh and paste the following content. This script writes a standard Nginx access log entry to /var/log/nginx/access.log every 5 seconds.

   generate_nginx_logs.sh

   #!/bin/bash

   #==============================================================================
   # Script Name: generate_nginx_logs.sh
   # Script Description: Simulates an NGINX server and continuously writes logs to access.log.
   #==============================================================================

   # --- Configurable Parameters ---

   # Log file path
   LOG_FILE="/var/log/nginx/access.log"

   # --- Mock Data Pools ---

   # Random IP address pool
   IP_ADDRESSES=(
       "192.168.1.10" "10.0.0.5" "172.16.31.40" "203.0.113.15"
       "8.8.8.8" "1.1.X.X" "91.198.XXX.XXX" "114.114.114.114"
       "180.76.XX.XX" "223.5.5.5"
   )

   # HTTP request method pool
   HTTP_METHODS=("GET" "POST" "PUT" "DELETE" "HEAD")

   # Common request path pool
   REQUEST_PATHS=(
       "/index.html" "/api/v1/users" "/api/v1/products?id=123" "/images/logo.png"
       "/static/js/main.js" "/static/css/style.css" "/login" "/admin/dashboard"
       "/robots.txt" "/sitemap.xml" "/non_existent_page.html"
   )

   # HTTP status code pool (You can adjust the weights, for example, add more 200s to increase their probability)
   HTTP_STATUSES=(200 200 200 200 201 301 404 404 500 502 403)

   # Common User-Agent pool
   USER_AGENTS=(
       "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/91.0.4472.124 Safari/537.36"
       "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/91.0.4472.114 Safari/537.36"
       "Mozilla/5.0 (iPhone; CPU iPhone OS 14_6 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Version/14.1.1 Mobile/15E148 Safari/604.1"
       "Mozilla/5.0 (Linux; Android 11; SM-G991U) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/91.0.4472.120 Mobile Safari/537.36"
       "curl/7.68.0"
       "Googlebot/2.1 (+http://www.google.com/bot.html)"
   )

   # Common Referer pool
   REFERERS=(
       "https://www.google.com/"
       "https://www.bing.com/"
       "https://github.com/"
       "https://stackoverflow.com/"
       "-"
       "-"
       "-"
   )
   # Check and create the log directory
   LOG_DIR=$(dirname "$LOG_FILE")
   if [ ! -d "$LOG_DIR" ]; then
       echo "Log directory '$LOG_DIR' does not exist. Attempting to create..."
       # Use sudo to create the directory because root permissions are usually required
       sudo mkdir -p "$LOG_DIR"
       if [ $? -ne 0 ]; then
           echo "Error: Failed to create directory '$LOG_DIR'. Check permissions or create it manually."
           exit 1
       fi
       echo "Directory created successfully."
   fi

   # Check write permissions for the log file
   trap 'echo -e "\n\nScript interrupted. Stopping log generation..."; exit 0;' SIGINT

   # --- Core Function ---

   # Define a function to randomly select an element from an array
   # Usage: random_element "array_name"
   function random_element() {
       local arr=("${!1}")
       echo "${arr[$((RANDOM % ${#arr[@]}))]}"
   }

   # Catch the Ctrl+C interrupt signal for a graceful exit
   trap 'echo -e "\n\nScript interrupted. Stopping log generation..."; exit 0;' SIGINT

   # --- Main Loop ---

   echo "Start generating mock NGINX logs to $LOG_FILE ..."
   echo "A log entry is generated every 5 seconds."
   echo "Press Ctrl+C to stop."
   sleep 2

   # Infinite loop to continuously generate logs
   while true; do
       # 1. Get the current time in the default NGINX format: [dd/Mon/YYYY:HH:MM:SS +ZZZZ]
       timestamp=$(date +'%d/%b/%Y:%H:%M:%S %z')

       # 2. Randomly select data from the pools
       ip=$(random_element IP_ADDRESSES[@])
       method=$(random_element HTTP_METHODS[@])
       path=$(random_element REQUEST_PATHS[@])
       status=$(random_element HTTP_STATUSES[@])
       user_agent=$(random_element USER_AGENTS[@])
       referer=$(random_element REFERERS[@])

       # 3. Generate a random response body size (in bytes)
       bytes_sent=$((RANDOM % 5000 + 100)) # A random number between 100 and 5100

       # 4. Concatenate into a complete NGINX combined format log entry
       # Format: $remote_addr - $remote_user [$time_local] "$request" $status $body_bytes_sent "$http_referer" "$http_user_agent"
       log_line="$ip - - [$timestamp] \"$method $path HTTP/1.1\" $status $bytes_sent \"$referer\" \"$user_agent\""

       # 5. Append the log line to the file
       # echo "$log_line" >> "$LOG_FILE"
       echo "$log_line" | sudo tee -a "$LOG_FILE" > /dev/null

       # 6. Wait for 5 seconds before the next loop
       sleep 5
   done

3. Grant execution permissions: chmod +x generate_nginx_logs.sh.

4. Run the script in the background: nohup ./generate_nginx_logs.sh &.

Next steps

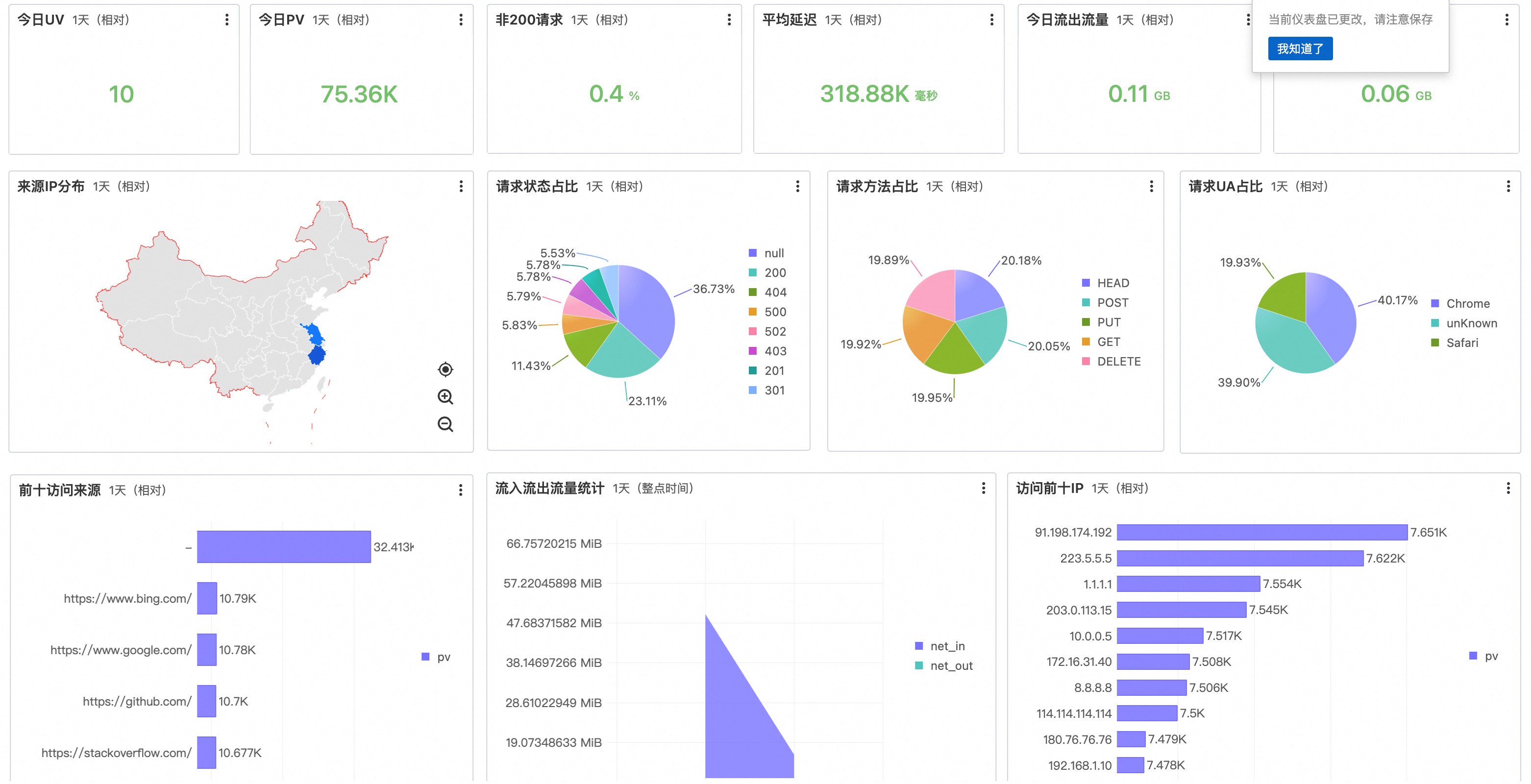

You have completed the full workflow: log collection, query and analysis, dashboard visualization, and alert configuration. Read the following documents to understand the key concepts and plan your log resources based on your business needs:

• Understand the concepts of a project and a logstore.

• Learn about data collection methods and choose the right method for your scenario.

• Understand storage resource hierarchy, plan the resource lifecycle, and allocate a reasonable number of shards.
