Kubernetes Ingress log center

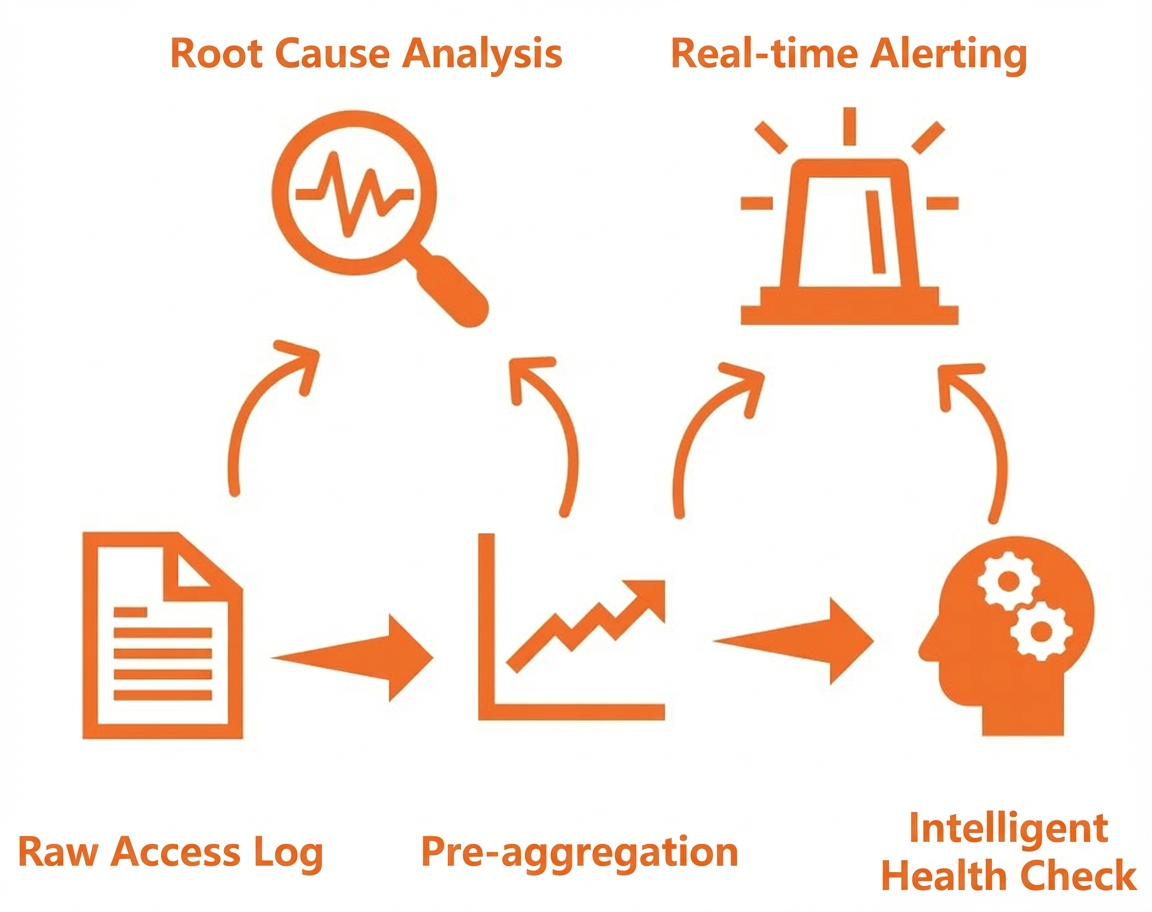

The Ingress log center automatically aggregates real-time access logs and provides features such as intelligent health checks and real-time alerting.

• Collects, stores, queries, and analyzes real-time access logs.

• Extracts various metrics from raw access logs in real time. These metrics include page views (PV), request success rate, average latency, P50/P99/P9999 latency, and inbound and outbound traffic. It supports aggregation by multiple dimensions, such as host and status.

• Provides rich visualization reports, including monitoring dashboards, anomaly reports, and operations dashboards. It supports report subscriptions by email and through DingTalk groups.

• Provides an intelligent health check feature that supports global and service-level checks. It also annotates anomalies directly in visualization reports.

• Supports custom alert configurations. Alert notifications can be sent to Message Center, email, text messages, voice calls, and DingTalk. It also supports integration with custom webhooks.

The selected project contains the following assets:

• Logstore

  • The access log Logstore stores Kubernetes Ingress access logs. You create this Logstore.

    • The indexing feature is enabled by default for this Logstore, and indexes are configured for some fields. You can add indexed fields. Changes to indexes take effect only on new data. You can also reindex historical data. For more information, see Reindex logs.

    • You can change the log storage period. For more information, see Modify Logstore configurations.

  • The inspection result Logstore stores inspection results. This dedicated Logstore is automatically generated after you enable the log center feature. Its name is access log Logstore name-metrics-result.

  Important

  • Do not delete the Logstore for Kubernetes Ingress access logs. Otherwise, logs cannot be collected into SLS.

  • Do not delete the indexes of specific fields in the access log Logstore. If you delete the indexes, metric transformation fails.

• Metricstore

  The Metricstore stores aggregated metric information. This dedicated Metricstore is automatically generated after you enable the log center feature. Its name is access log Logstore name-metrics.

  Note

  The Metricstore stores aggregated metrics. The data volume is greatly reduced compared to raw access logs, making it suitable for long-term storage.

• Aggregation rules

  Rule name	Time granularity	Aggregation dimension	Generated metrics
  total	10 seconds	total	pv body_bytes_sent_avg body_bytes_sent_sum request_length_avg request_length_sum upstream_response_time_avg upstream_response_time_p50 upstream_response_time_p90 upstream_response_time_p99 upstream_response_time_p9999 request_time_avg request_time_p50 request_time_p90 request_time_p99 request_time_p9999
  host	10 seconds	host	pv:host body_bytes_sent_avg:host body_bytes_sent_sum:host request_length_avg:host request_length_sum:host upstream_response_time_avg:host upstream_response_time_p50:host upstream_response_time_p90:host upstream_response_time_p99:host upstream_response_time_p9999:host request_time_avg:host request_time_p50:host request_time_p90:host request_time_p99:host request_time_p9999:host
  host_status	10 seconds	host+status	pv:host:status body_bytes_sent_avg:host:status body_bytes_sent_sum:host:status request_length_avg:host:status request_length_sum:host:status upstream_response_time_avg:host:status upstream_response_time_p50:host:status upstream_response_time_p90:host:status upstream_response_time_p99:host:status upstream_response_time_p9999:host:status request_time_avg:host:status request_time_p50:host:status request_time_p90:host:status request_time_p99:host:status request_time_p9999:host:status

• Inspection rules

  Rule name	Enabling status	Inspection algorithm	Inspection metrics
  total	Enabled by default	Time2Graph	pv body_bytes_sent_avg body_bytes_sent_sum request_length_avg request_length_sum upstream_response_time_avg request_time_avg
  host	Enabled by default	Time2Graph	pv:host body_bytes_sent_avg:host body_bytes_sent_sum:host request_length_avg:host request_length_sum:host upstream_response_time_avg:host request_time_avg:host
  host_status	Disabled by default	Time2Graph	pv:host:status body_bytes_sent_avg:host:status body_bytes_sent_sum:host:status request_length_avg:host:status request_length_sum:host:status upstream_response_time_avg:host:status request_time_avg:host:status

• Dedicated dashboards

  Dashboard	Associated Logstore or Metricstore	Description
  Operations dashboard	access log Logstore name	Displays information related to user requests, including PV, UV, mobile distribution, and country/province/city distribution. Note This information is calculated based on the full amount of raw access logs. There may be some delay when the data volume is extremely large.
  Overview	access log Logstore name-metrics	Displays overall monitoring information of Kubernetes, including PV, failure rate, 5XX ratio, status code distribution, and traffic.
  Monitoring dashboard	access log Logstore name-metrics	Supports filtering detailed monitoring information of instances by dimensions such as host and status.
  Anomalies	access log Logstore name-metrics access log Logstore name-metrics-result	Displays service-level anomalous information detected by the stream inspection algorithm, including anomaly statistics and real-time display of specific metrics anomalies.
