How do I create a CSR file?

This topic explains how to generate a Certificate Signing Request (CSR) file using OpenSSL or Keytool before applying for an SSL certificate.

Before you begin

To apply for an SSL certificate, you need a private key file and a CSR file. The CSR file contains your public key and organizational information, which the certificate authority (CA) uses for validation.

SSL Certificates Service supports two tools for generating a CSR file:

Requirements for the CSR file:

• The key must be RSA type, 2,048 bits in length.

• For a multi-domain or wildcard certificate, specify a single domain name in the Common Name field (or What is your first and last name? in Keytool).

• If you enter Chinese characters, encode them in UTF-8. Keytool handles this natively; OpenSSL requires UTF-8 support to be configured.

Use the system-generated CSR in SSL Certificates Service when possible to avoid validation failures caused by incorrectly formatted input. For more information about how to address a validation failure, see The "Primary domain name cannot be empty" error is returned when I upload my CSR file. What do I do?. If you generate a CSR manually, keep the private key confidential and back it up immediately.

Generate a CSR file

Use OpenSSL to generate a CSR file

1. Log in to your server and navigate to the directory where you want to store the key and CSR files.

2. Install OpenSSL if it is not already installed. For installation instructions, see the OpenSSL website.

3. Run the following command to generate a private key and CSR file simultaneously:

   openssl req -new -nodes -sha256 -newkey rsa:2048 -keyout [$Key_File] -out [$OpenSSL_CSR]

   Note

   Note: The command parameters are described as follows:

   Parameter	Description
   -new	Generates a new CSR file
   -nodes	Creates an unencrypted private key file
   -sha256	Uses SHA-256 as the digest algorithm
   -newkey rsa:2048	Generates a new 2,048-bit RSA private key
   [$Key_File]	The filename for the private key
   [$OpenSSL_CSR]	The path where the CSR file is saved

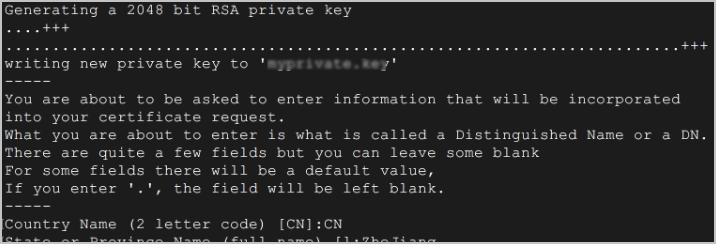

   The following output is returned.



4. Enter the required information when prompted:

   Field	Description
   Organization Name	Your company name (Chinese or English)
   Organizational Unit Name	Your department name (Chinese or English)
   Country Code	The two-letter ISO country code of your organization. For example, CN for China.
   State or Province	The state or province name (Chinese or English)
   Locality	The city name (Chinese or English)
   Common Name	The domain name for which you are applying for the certificate
   Email Address	Optional
   A challenge password	Optional

5. Retrieve the generated private key file and CSR file from the current directory.

Use Keytool to generate a CSR file

1. Log in to your server and navigate to the directory where you want to store the keystore and CSR files.

2. Verify that Keytool is available. Keytool is included in the Java Development Kit (JDK).

   Note

   Note: In most cases, Keytool is installed with the JDK. Run keytool -help to confirm.

3. Run the following command to generate a keystore file:

   keytool -genkey -alias [$Alias] -keyalg RSA -keysize 2048 -keystore [$Keytool_Path]

   Note

   Note: The command parameters are described as follows:

   Parameter	Description
   -keyalg	The key type. Must be RSA.
   -keysize	The key length. Must be 2048.
   [$Alias]	A custom alias for the certificate. Use the same alias in all subsequent Keytool commands for this certificate.
   [$Keytool_Path]	The path where the keystore file is saved

4. Enter a password to protect the keystore when prompted. Store this password securely — you need it to access the private key and to generate the CSR in a later step.

5. Enter the required information when prompted:

   Field	Description
   First and last name	The domain name for which you are applying for the certificate
   Name of your organizational unit	Your department name
   Name of your organization	Your company name
   Name of your city or locality	Your city name
   Name of your state or province	Your state or province name
   Two-letter country code for this unit	The two-letter ISO country code of your organization

6. Confirm the input by entering Y.

7. Enter the key password when prompted. Press Enter to use the same password as the keystore.

8. Run the following command to export a CSR file from the keystore:

   keytool -certreq -sigalg SHA256withRSA -alias [$Alias] -keystore [$Keytool_Path] -file [$Keytool_CSR]

   Note

   Note: The command parameters are described as follows:

   Parameter	Description
   -sigalg SHA256withRSA	The digest algorithm for the CSR signature
   [$Alias]	Must match the alias used when the keystore was created
   [$Keytool_Path]	The path to the keystore file
   [$Keytool_CSR]	The path where the CSR file is saved

9. Enter the keystore password when prompted to confirm and finalize CSR generation.

Application scope

• SSL Certificates Service
