Synchronize data from MySQL to Tablestore by using Canal-Tablestore(Tablestore)-阿里云帮助中心

This topic describes how to use Canal to synchronize data from a MySQL database to Tablestore. You can synchronize data from a self-managed MySQL database or an ApsaraDB RDS for MySQL instance. Canal supports real-time incremental data synchronization and full data synchronization.

Background information

Canal is an open source project from Alibaba. It provides incremental data subscription and consumption by parsing the incremental logs of MySQL databases. Canal works by impersonating a MySQL slave. It simulates the interaction protocol of a MySQL slave, sends a dump request to the MySQL master, and then retrieves and parses the binary log. For more information, see Canal.

Preparations

Obtain the connection details for the source MySQL database, including the username, password, database endpoint, and Java Database Connectivity (JDBC) connection string.
Important
To synchronize MySQL data using Canal, you must enable binary logging for MySQL. For more information about how to check whether binary logging is enabled and how to enable it, see Appendix 1: MySQL preparations.

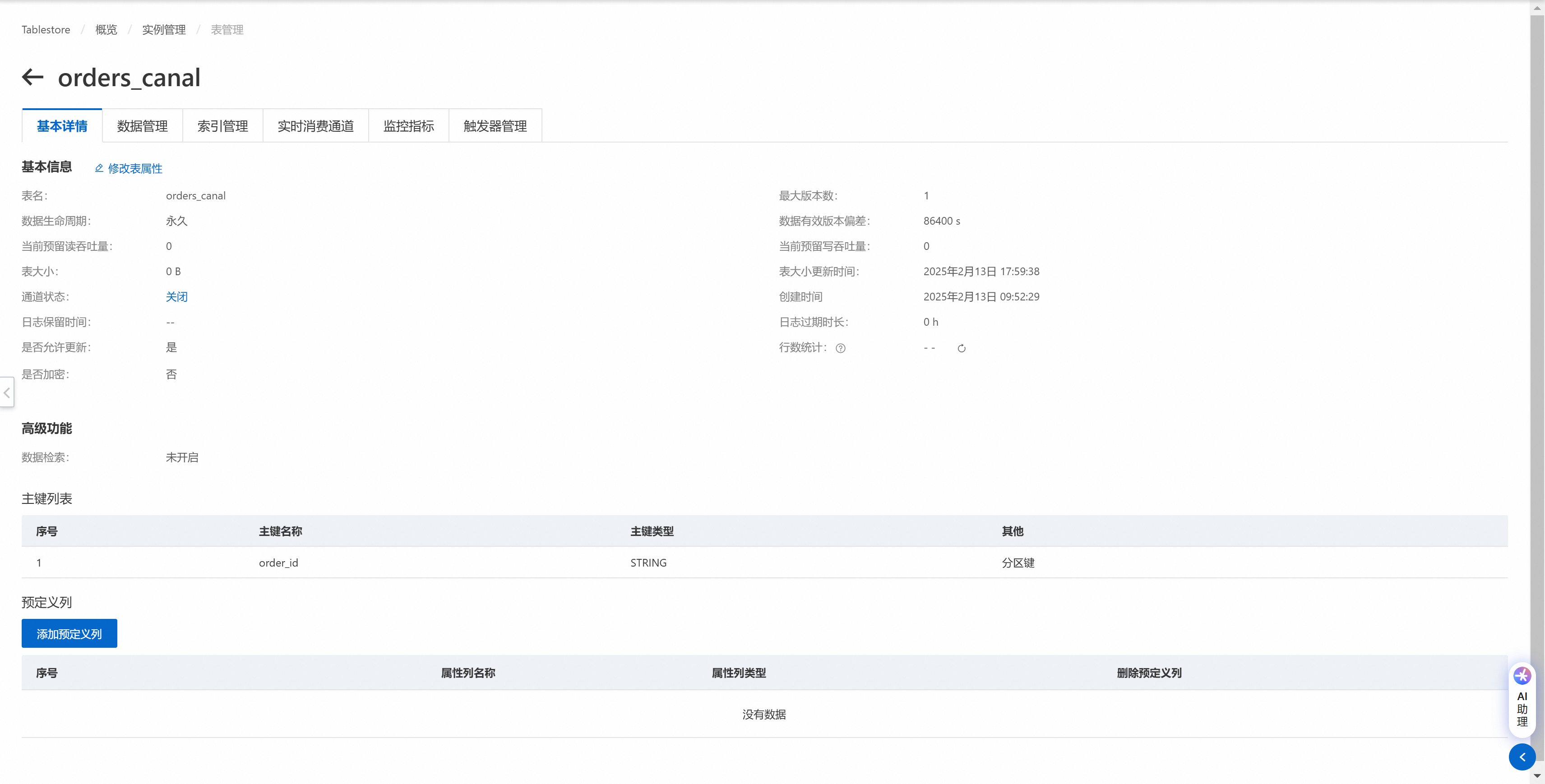

Activate Tablestore, and then create an instance and a data table to store the synchronized data. For more information, see Activate Tablestore and create an instance and Create a data table.
Note
When you create the data table, use the primary key or unique index of the source MySQL table as the primary key for the Tablestore data table. For more information about the sample MySQL and Tablestore data tables used in this topic, see Appendix 3: Sample data.
Obtain the instance name and endpoint of the Tablestore instance.
1. Log on to the Tablestore console.
2. In the top navigation bar, select a resource group and a region.
3. On the Overview page, click the alias of an instance or Instance Management in the Actions column.
4. On the Instance Details tab, you can view the name and endpoint of the instance.
Obtain an AccessKey pair. You can use the AccessKey pair of your Alibaba Cloud account or a Resource Access Management (RAM) user. For more information about how to obtain an AccessKey pair, see Obtain an AccessKey pair.
Note
For security purposes, we recommend that you use a RAM user to access Tablestore. You can create a RAM user, grant the user the AliyunOTSFullAccess permission, and then create an AccessKey pair for the RAM user. For more information, see Use the AccessKey pair of a RAM user to access Tablestore.

Procedure

The procedures in this topic are performed on an Elastic Computing Service (ECS) instance that runs Alibaba Cloud Linux 3.2104 LTS 64-bit or Ubuntu 24.04 64-bit. For more information, see Elastic Computing Service.

1. Install the JDK

Canal requires JDK 1.8 or later. We recommend that you use JDK 1.8. This section describes how to install JDK 1.8 on an ECS instance that runs Alibaba Cloud Linux or Ubuntu. If you use a different server, you must install the JDK based on your server's requirements.

Alibaba Cloud Linux

yum -y install java-1.8.0-openjdk-devel.x86_64

Ubuntu

apt update && apt upgrade
apt install openjdk-8-jdk

2. Deploy the Deployer service

Create a deployment folder for the Deployer service.
```
cd && mkdir -p canal/deployer
cd canal/deployer
```
Download and decompress the Deployer package.
1. Download the Deployer package.
```
wget https://github.com/alibaba/canal/releases/download/canal-1.1.8/canal.deployer-1.1.8.tar.gz
```
  If the network connection is poor, you can download canal.deployer-1.1.8.tar.gz and upload it to the server.
2. Decompress the package.
```
tar -zxvf canal.deployer-1.1.8.tar.gz
```

Edit the configuration file.

Create an instance directory and copy the default configuration file to the new directory.
```
mkdir conf/tablestore
cp conf/example/instance.properties conf/tablestore
```

Modify the configuration file.

vi conf/tablestore/instance.properties

Modify the following configuration items to specify the source MySQL database to monitor.

Configuration item	Example value	Description
canal.instance.master.address	Self-managed MySQL: 47...44:3306 ApsaraDB RDS for MySQL: rm-cn-rp************mo.rwlb.rds.aliyuncs.com:3306	The endpoint of the source MySQL database that Canal listens to. The format is `host:port`.
canal.instance.dbUsername	canal	The username of the source MySQL database user. Important This user must have the `SELECT`, `REPLICATION SLAVE`, and `REPLICATION CLIENT` permissions. For information about how to grant permissions, see Grant MySQL Slave permissions to a MySQL user.
canal.instance.dbPassword	Ca*******88	The password of the source MySQL database user.

Complete sample configuration file

#################################################
## mysql serverId , v1.0.26+ will autoGen
# canal.instance.mysql.slaveId=0

# enable gtid use true/false
canal.instance.gtidon=false

# rds oss binlog
canal.instance.rds.accesskey=
canal.instance.rds.secretkey=
canal.instance.rds.instanceId=

# position info
canal.instance.master.address=47.**.**.44:3306
canal.instance.master.journal.name=
canal.instance.master.position=
canal.instance.master.timestamp=
canal.instance.master.gtid=

# multi stream for polardbx
canal.instance.multi.stream.on=false

# ssl
#canal.instance.master.sslMode=DISABLED
#canal.instance.master.tlsVersions=
#canal.instance.master.trustCertificateKeyStoreType=
#canal.instance.master.trustCertificateKeyStoreUrl=
#canal.instance.master.trustCertificateKeyStorePassword=
#canal.instance.master.clientCertificateKeyStoreType=
#canal.instance.master.clientCertificateKeyStoreUrl=
#canal.instance.master.clientCertificateKeyStorePassword=

# table meta tsdb info
canal.instance.tsdb.enable=true
#canal.instance.tsdb.url=jdbc:mysql://127.0.0.1:3306/canal_tsdb
#canal.instance.tsdb.dbUsername=canal
#canal.instance.tsdb.dbPassword=Ca*******88

#canal.instance.standby.address =
#canal.instance.standby.journal.name =
#canal.instance.standby.position =
#canal.instance.standby.timestamp =
#canal.instance.standby.gtid=

# username/password
canal.instance.dbUsername=canal
canal.instance.dbPassword=Ca*******88
canal.instance.connectionCharset = UTF-8
# enable druid Decrypt database password
canal.instance.enableDruid=false
#canal.instance.pwdPublicKey=MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBALK4BUxdDltRRE5/zXpVEVPUgunvscYFtEip3pmLlhrWpacX7y7GCMo2/JM6LeHmiiNdH1FWgGCpUfircSwlWKUCAwEAAQ==

# table regex
canal.instance.filter.regex=.*\\..*
# table black regex
canal.instance.filter.black.regex=mysql\\.slave_.*
# table field filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.field=test1.t_product:id/subject/keywords,test2.t_company:id/name/contact/ch
# table field black filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.black.field=test1.t_product:subject/product_image,test2.t_company:id/name/contact/ch

# mq config
canal.mq.topic=example
# dynamic topic route by schema or table regex
#canal.mq.dynamicTopic=mytest1.user,topic2:mytest2\\..*,.*\\..*
canal.mq.partition=0
# hash partition config
#canal.mq.enableDynamicQueuePartition=false
#canal.mq.partitionsNum=3
#canal.mq.dynamicTopicPartitionNum=test.*:4,mycanal:6
#canal.mq.partitionHash=test.table:id^name,.*\\..*
#################################################

Modify the canal.properties file to customize the instance name.
```
vi conf/canal.properties
```
Modify the following configuration item to set the instance name to tablestore.
```
canal.destinations = tablestore
```

Start the Deployer service.

sh bin/startup.sh

Run the following command to view the logs and verify that the service has started.

tail -f logs/tablestore/tablestore.log

If the service starts successfully, the following information is displayed.

2025-02-13 19:45:40.622 [destination = tablestore , address = /47.**.**.44:3306 , EventParser] WARN  c.a.o.c.p.inbound.mysql.rds.RdsBinlogEventParserProxy - ---> find start position successfully, EntryPosition[included=false,journalName=binlog.000001,position=249075669,serverId=1,gtid=,timestamp=1739446563000] cost : 22134ms , the next step is binlog dump
2025-02-13 19:45:40.737 [destination = tablestore , address = /47.**.**.44:3306 , EventParser] WARN  c.a.otter.canal.parse.inbound.mysql.MysqlConnection - load MySQL @@version_comment : Source distribution

To shut down the Deployer service, run the following command.

sh bin/stop.sh

3. Deploy the Adapter service

Create a deployment folder for the Adapter service.
```
cd && mkdir -p canal/adapter
cd canal/adapter
```
Download and decompress the Adapter package.
1. Download the Adapter package canal.adapter-1.0.1.tar.gz and upload it to the deployment folder on the server.
  Important
  The Adapter package on GitHub does not support writing data to Tablestore. You must use the Adapter package provided in this topic.
2. Decompress the package.
```
tar -zxvf canal.adapter-1.0.1.tar.gz
```

Edit the configuration file.

Modify the application.yml configuration file to define adapter information.

vi conf/application.yml

Modify the following configuration items to specify the MySQL database connection information and adapter information.

Configuration item	Example value	Description
srcDataSources	defaultDS	The identifier of the source database. You can keep the default value.
srcDataSources.defaultDS.url	Self-managed MySQL: jdbc:mysql://47...44:3306/kiat?useSSL=false ApsaraDB RDS for MySQL: jdbc:mysql://rm-cn-rp********mo.rwlb.rds.aliyuncs.com/kiat?useSSL=false	The JDBC connection information of the source MySQL database.
srcDataSources.defaultDS.username	canal	The username of the source MySQL database user.
srcDataSources.defaultDS.password	Ca*******88	The password of the source MySQL database user.
canalAdapters.instance	tablestore	The name of the Canal instance. This must be the same as the instance name in the Deployer configuration.
canalAdapters.groups.groupId	g1	The ID of the adapter group. You can keep the default value.
canalAdapters.groups.groupId.outerAdapters.name	tablestore	The adapter type. Set this to tablestore. This indicates that the adapter writes data to Tablestore.
canalAdapters.groups.groupId.outerAdapters.key	orders	The adapter identifier. To synchronize multiple tables, you can use this parameter to differentiate them.
canalAdapters.groups.groupId.outerAdapters.properties.tablestore.endpoint	https://i0********44.cn-hangzhou.ots.aliyuncs.com	The endpoint of the Tablestore instance. Important To ensure secure resource access, public network access is disabled by default for new Tablestore instances. If you use a public endpoint, go to the Instance Management > Network Management page and select Public Network for Network Type.
canalAdapters.groups.groupId.outerAdapters.properties.tablestore.accessSecretId	LT********************bE	The AccessKey ID of your Alibaba Cloud account or RAM user.
canalAdapters.groups.groupId.outerAdapters.properties.tablestore.accessSecretKey	CR**************************HD	The AccessKey secret of your Alibaba Cloud account or RAM user.
canalAdapters.groups.groupId.outerAdapters.properties.tablestore.instanceName	i0********44	The name of the Tablestore instance.

Complete sample configuration file

server:
  port: 8081
spring:
  jackson:
    date-format: yyyy-MM-dd HH:mm:ss
    time-zone: GMT+8
    default-property-inclusion: non_null

canal.conf:
  mode: tcp #tcp kafka rocketMQ rabbitMQ
  flatMessage: true
  zookeeperHosts:
  syncBatchSize: 1
  retries: 3
  timeout:
  accessKey:
  secretKey:
  terminateOnException: true
  consumerProperties:
    # canal tcp consumer
    canal.tcp.server.host: 127.0.0.1:11111
    canal.tcp.zookeeper.hosts:
    canal.tcp.batch.size: 500
    canal.tcp.username:
    canal.tcp.password:

  srcDataSources:
    defaultDS:
      url: jdbc:mysql://47.**.**.44:3306/ki**at?useSSL=false
      username: canal
      password: Ca*******88
  canalAdapters:
  - instance: tablestore # canal instance Name or mq topic name
    groups:
    - groupId: g1
      outerAdapters:
      - name: logger
      - name: tablestore
        key: orders
        properties:
          tablestore.endpoint: https://i0********44.cn-hangzhou.ots.aliyuncs.com
          tablestore.accessSecretId: LT********************bE
          tablestore.accessSecretKey: CR**************************HD
          tablestore.instanceName: i0********44

Sample configuration file for multi-table synchronization

server:
  port: 8081
spring:
  jackson:
    date-format: yyyy-MM-dd HH:mm:ss
    time-zone: GMT+8
    default-property-inclusion: non_null

canal.conf:
  mode: tcp #tcp kafka rocketMQ rabbitMQ
  flatMessage: true
  zookeeperHosts:
  syncBatchSize: 1
  retries: 3
  timeout:
  accessKey:
  secretKey:
  terminateOnException: true
  consumerProperties:
    # canal tcp consumer
    canal.tcp.server.host: 127.0.0.1:11111
    canal.tcp.zookeeper.hosts:
    canal.tcp.batch.size: 500
    canal.tcp.username:
    canal.tcp.password:

  srcDataSources:
    defaultDS:
      url: jdbc:mysql://47.**.**.44:3306/ki**at?useSSL=false
      username: canal
      password: Ca*******88
  canalAdapters:
  - instance: tablestore # canal instance Name or mq topic name
    groups:
    - groupId: g1
      outerAdapters:
      - name: logger
      - name: tablestore
        key: orders
        properties:
          tablestore.endpoint: https://i0********44.cn-hangzhou.ots.aliyuncs.com
          tablestore.accessSecretId: LT********************bE
          tablestore.accessSecretKey: CR**************************HD
          tablestore.instanceName: i0********44
      - name: tablestore
        key: sku
        properties:
          tablestore.endpoint: https://n0********16.cn-hangzhou.ots.aliyuncs.com
          tablestore.accessSecretId: LT********************6r
          tablestore.accessSecretKey: 5z**************************TP
          tablestore.instanceName: n0********16

Modify the adapter configuration file to specify the data to consume and the table mapping.

Note

To synchronize multiple tables, you can create multiple .yml configuration files in the conf/tablestore folder of the Adapter installation directory. Ensure that the outerAdapterKey in these files matches the canalAdapters.groups.groupId.outerAdapters.key in the application.yml file.

vi conf/tablestore/orders.yml

Modify the following configuration items.

Configuration item	Example value	Description
dataSourceKey	defaultDS	The identifier of the source database. This must be the same as srcDataSources in the application.yml file.
destination	tablestore	The instance name. This must be the same as canalAdapters.instance in the application.yml file.
groupId	g1	The ID of the adapter group. This must be the same as canalAdapters.groups.groupId in the application.yml file.
outerAdapterKey	orders	The adapter identifier. This must be the same as canalAdapters.groups.groupId.outerAdapters.key in the application.yml file.
threads	1	The number of buckets in TablestoreWriter. The default value is 1.
updateChangeColumns	false	Row overwrite or row update. The default value is false, which indicates row overwrite. When a row is updated, the entire old row in Tablestore is overwritten with the latest full row value. If set to true, it indicates row update. When a row is updated, only the changed fields are updated.
dbMapping.database	ki**at	The name of the MySQL database to synchronize.
dbMapping.table	orders	The name of the source MySQL data table to synchronize.
dbMapping.targetTable	orders_canal	The name of the destination table in Tablestore.
dbMapping.targetPk	order_id: order_id	The primary key configuration. The format is `pk: target_pk`, which means `source_table_primary_key_name: destination_table_primary_key_name`. Note If you configure multiple primary key columns, their order must be the same as the primary key order in Tablestore. The Tablestore adapter supports configuring an auto-increment primary key column. The format is `$$: target_pk`. This creates a primary key column named target_pk in the destination table, and this column is an auto-increment column. When input data is written to Tablestore, the Tablestore Adapter automatically fills in the value for this column.
dbMapping.targetColumns	modified_time: $string	Configure the data columns to synchronize and their mapping. Type conversion is supported. The following four formats are supported: `id: target_id$string`: The id field of the source table is synchronized to the target_id field of the destination table. The field type is mapped to string. `id: target_id`: The id field of the source table is synchronized to the target_id field of the destination table. The default type mapping is used. `id: $string`: The field name remains the same after synchronization. The field type is mapped to string. `id:` : The field name remains the same after synchronization. The default type mapping is used. Important Non-auto-increment primary key columns configured in dbMapping.targetPk must also be configured here. Auto-increment primary key columns do not need to be configured. If you do not configure type conversion, Canal infers the destination field type based on the source field type. For more information, see Appendix 2: Field type mapping between MySQL source tables and Tablestore destination tables When you configure the mapped field type, the type name is case-insensitive.
dbMapping.commitBatch	200	The number of data rows imported in a single batch RPC request. This corresponds to maxBatchRowsCount in TablestoreWriter.
dbMapping.etlCondition	where create_time >= {}	The filter condition for full data extraction. The field names in the filter condition are the field names of the source table. This is optional. Important The filter condition takes effect only when the params parameter is included in the command for full data synchronization. Otherwise, even if etlCondition is set, all data is synchronized.

Complete sample configuration file

dataSourceKey: defaultDS
destination: tablestore
groupId: g1
outerAdapterKey: orders
threads: 1
updateChangeColumns: false
dbMapping:
  database: ki**at
  table: orders
  targetTable: orders_canal
  targetPk:
    order_id: order_id
  targetColumns:
    order_id:
    user_id:
    sku_id:
    price:
    num:
    total_price:
    order_status:
    create_time: $string
    modified_time: $string
  etlCondition:
  commitBatch: 200 # The size of a batch commit

Start the Adapter service.

sh bin/startup.sh

Run the following command to view the logs and verify that the service has started.

tail -f logs/adapter/adapter.log

If the service starts successfully, the following information is displayed.

2025-02-13 16:16:21.415 [main] INFO  c.a.o.canal.adapter.launcher.loader.CanalAdapterLoader - Start adapter for canal-client mq topic: tablestore-g1 succeed
2025-02-13 16:16:21.415 [main] INFO  c.a.o.canal.adapter.launcher.loader.CanalAdapterService - ## the canal client adapters are running now ......
2025-02-13 16:16:21.415 [Thread-5] INFO  c.a.otter.canal.adapter.launcher.loader.AdapterProcessor - =============> Start to connect destination: tablestore <=============
2025-02-13 16:16:21.421 [main] INFO  org.apache.coyote.http11.Http11NioProtocol - Starting ProtocolHandler ["http-nio-8081"]
2025-02-13 16:16:21.423 [main] INFO  org.apache.tomcat.util.net.NioSelectorPool - Using a shared selector for servlet write/read
2025-02-13 16:16:21.447 [main] INFO  o.s.boot.web.embedded.tomcat.TomcatWebServer - Tomcat started on port(s): 8081 (http) with context path ''
2025-02-13 16:16:21.452 [main] INFO  c.a.otter.canal.adapter.launcher.CanalAdapterApplication - Started CanalAdapterApplication in 3.931 seconds (JVM running for 4.515)
2025-02-13 16:16:21.521 [Thread-5] INFO  c.a.otter.canal.adapter.launcher.loader.AdapterProcessor - =============> Subscribe destination: tablestore succeed <=============

After the Adapter service starts, Canal automatically begins to synchronize incremental data from MySQL and periodically writes synchronization logs.

2025-02-13 19:56:06.400 [writer-scheduled-pool-%d0] INFO  com.alicloud.openservices.tablestore.TableStoreWriter - WriterStatistics: WriterStatistics: {
    totalRequestCount=0,
    totalRowsCount=0,
    totalSucceedRowsCount=0,
    totalFailedRowsCount=0,
    totalSingleRowRequestCount=0,
}

To shut down the Adapter service, run the following command.

sh bin/stop.sh

4. Verify incremental data synchronization

Insert a row of data into the source table in MySQL.

If the synchronization is successful, the adapter.log file contains the following synchronization log.

2025-02-13 16:14:25.512 [writer-scheduled-pool-%d0] INFO  com.alicloud.openservices.tablestore.TableStoreWriter - WriterStatistics: WriterStatistics: {
    totalRequestCount=1,
    totalRowsCount=1,
    totalSucceedRowsCount=1,
    totalFailedRowsCount=0,
    totalSingleRowRequestCount=0,
}

View the data in the Tablestore console.

5. (Optional) Synchronize full data

Run the following command to call the Adapter service method and trigger a synchronization task.

Note

After you run the command, Canal first aborts the incremental data transfer and then synchronizes the full data. After the full data synchronization is complete, Canal automatically resumes incremental data synchronization.

Command format:

curl "hostip:port/etl/type/key/task" -X POST

Example:

curl "localhost:8081/etl/tablestore/orders/orders.yml" -X POST

The following is an example of a synchronization command with a filter condition. When this command is called, the value of params replaces {} in dbMapping.etlCondition:

curl "localhost:8081/etl/tablestore/orders/orders.yml?params='2025-01-01'" -X POST

The following describes the parameters:

Configuration item	Example value	Description
hostip	localhost	The IP address of the server where the Canal service is deployed. If running locally, you can set this to localhost.
port	8081	The port of the Canal service.
type	tablestore	The adapter type. This must be set to tablestore.
key	orders	The adapter identifier. This must be the same as canalAdapters.groups.groupId.outerAdapters.key in the application.yml file.
task	orders.yml	The name of the configuration file.

After the synchronization is successful, the adapter.log file contains the synchronization log.

2025-02-13 19:59:40.836 [http-nio-8081-exec-1] INFO  o.a.catalina.core.ContainerBase.[Tomcat].[localhost].[/] - Initializing Spring FrameworkServlet 'dispatcherServlet'
2025-02-13 19:59:40.836 [http-nio-8081-exec-1] INFO  org.springframework.web.servlet.DispatcherServlet - FrameworkServlet 'dispatcherServlet': initialization started
2025-02-13 19:59:40.865 [http-nio-8081-exec-1] INFO  org.springframework.web.servlet.DispatcherServlet - FrameworkServlet 'dispatcherServlet': initialization completed in 28 ms
2025-02-13 19:59:40.954 [http-nio-8081-exec-1] INFO  com.alicloud.openservices.tablestore.TableStoreWriter - Start initialize ots writer, table name: orders_canal.
2025-02-13 19:59:41.012 [http-nio-8081-exec-1] INFO  com.alicloud.openservices.tablestore.TableStoreWriter - End initialize with table meta: TableName: orders_canal, PrimaryKeySchema: order_id:STRING, DefinedColumnSchema: .
2025-02-13 19:59:41.017 [writer-scheduled-pool-%d0] INFO  com.alicloud.openservices.tablestore.TableStoreWriter - WriterStatistics: WriterStatistics: {
    totalRequestCount=0,
    totalRowsCount=0,
    totalSucceedRowsCount=0,
    totalFailedRowsCount=0,
    totalSingleRowRequestCount=0,
}
2025-02-13 19:59:41.149 [pool-8-thread-2] INFO  com.alicloud.openservices.tablestore.TableStoreWriter - WriterStatistics: WriterStatistics: {
    totalRequestCount=0,
    totalRowsCount=133,
    totalSucceedRowsCount=0,
    totalFailedRowsCount=0,
    totalSingleRowRequestCount=0,
}
2025-02-13 19:59:41.982 [pool-8-thread-1] INFO  com.alicloud.openservices.tablestore.TableStoreWriter - WriterStatistics: WriterStatistics: {
    totalRequestCount=44,
    totalRowsCount=8943,
    totalSucceedRowsCount=6740,
    totalFailedRowsCount=0,
    totalSingleRowRequestCount=0,
}
2025-02-13 19:59:42.085 [http-nio-8081-exec-1] INFO  c.a.o.c.c.a.tablestore.service.TablestoreEtlService - Full data import completed, 10001 rows imported in total, time taken: 1064
2025-02-13 19:59:42.086 [http-nio-8081-exec-1] INFO  com.alicloud.openservices.tablestore.TableStoreWriter - WriterStatistics: WriterStatistics: {
    totalRequestCount=54,
    totalRowsCount=10001,
    totalSucceedRowsCount=10001,
    totalFailedRowsCount=0,
    totalSingleRowRequestCount=0,
}

Appendix

Appendix 1: MySQL preparations

Enable binary logging

Binary logging is enabled by default for new instances of MySQL 8.0 and ApsaraDB RDS for MySQL. Log on to MySQL and run the following command to check whether binary logging is enabled.

show variables like 'log_bin';

If binary logging is enabled, the following information is displayed.

mysql> show variables like 'log_bin';
+---------------+-------+
| Variable_name | Value |
+---------------+-------+
| log_bin       | ON    |
+---------------+-------+
1 row in set (0.01 sec)

If the value of the log_bin parameter is OFF, binary logging is disabled. Add the following content to the my.cnf configuration file to enable it.

[mysqld]
log-bin=mysql-bin # Enable binary logging
binlog-format=ROW # Select ROW mode
server_id=1 # Required for MySQL replication. Do not use the same ID as the Canal SlaveId

Grant MySQL Slave permissions to a MySQL user

You can grant permissions to an existing user, or log on to MySQL to create a new user and grant permissions.

The command to create a MySQL user is as follows.
```
create user 'canal' identified by 'password';
```

The command to grant permissions is as follows.

grant select, replication slave, replication client on *.* to 'canal'@'%';

After you grant permissions, you must flush the privileges.
```
flush privileges;
```

Appendix 2: Field type mapping between MySQL source tables and Tablestore destination tables

When you configure field mapping between a MySQL source table and a Tablestore destination table, if you do not manually specify the destination field type, Canal automatically determines the type based on the source field type. The following table describes the type mapping.

Source field type	Tablestore destination field type
string	string
int	int
integer	int
bool	bool
boolean	bool
binary	binary
double	double
float
decimal

Appendix 3: Sample data

MySQL source table

The following is the statement to create the MySQL source table.

create table orders (
  order_id varchar(50) primary key comment 'Order ID',
  user_id varchar(10) not null comment 'User ID',
  sku_id varchar(10) not null comment 'SKU ID',
  price decimal(12, 2) not null comment 'Unit price of the item',
  num int not null comment 'Quantity of the item',
  total_price decimal(12, 2) not null comment 'Total price of the order',
  order_status varchar(2) not null comment 'Order status',
  create_time timestamp not null default current_timestamp comment 'Order creation time',
  modified_time timestamp not null default current_timestamp on update current_timestamp comment 'Last modification time'
);

Tablestore destination table

Because Tablestore is schema-free, you only need to specify the primary key order_id when you create the destination table. The following figure shows the basic details of the destination table.

上一篇: Synchronize MySQL data to Tablestore with DataX 下一篇: Synchronize MySQL data using DTS
