Store and query CPFS file metadata in Tablestore

Architecture

The overall data flow is as follows:

1. CPFS file system: A scanning script runs on a Linux machine with the CPFS file system mounted. The script traverses specified directories to collect file metadata, including paths, sizes, access times, and modification times, as well as fileset quota information. The script first saves the scan results locally, then writes them to Tablestore, and finally packages and uploads them to OSS for archiving.

2. Tablestore: Provides persistent storage for metadata. It uses Search Index to support flexible queries based on dimensions such as time ranges, file paths, and filesets. It integrates with Grafana using SQL-mapped tables.

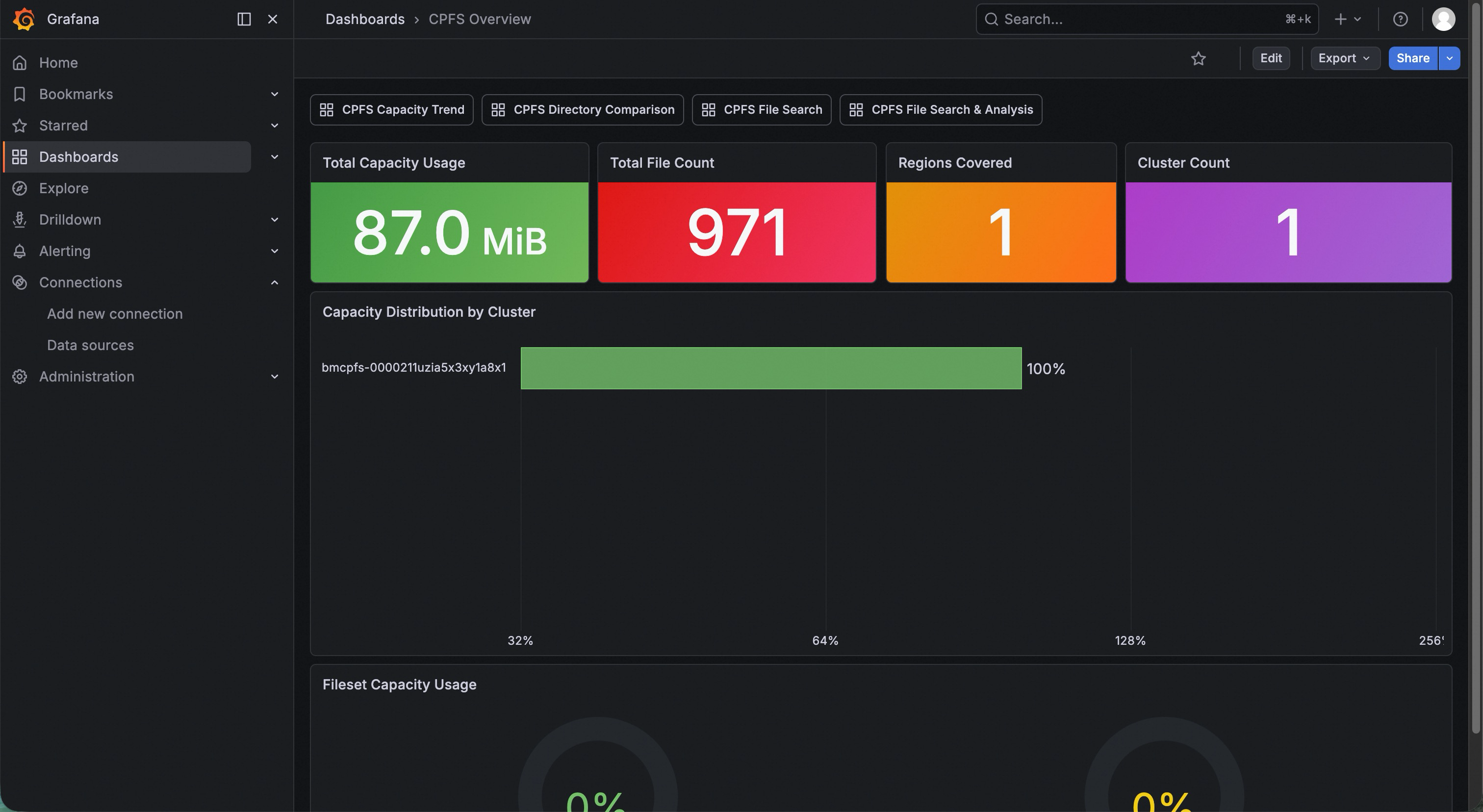

3. Grafana: Connects to Tablestore using the Alibaba Cloud Tablestore data source plugin. By importing a pre-built dashboard, you can visualize metrics such as file system capacity, file counts, and fileset usage.

Prerequisites

Prepare the following environment and resources.

1. Mount a CPFS file system: This example uses the CPFS Intelligent Computing Edition. Mount the root directory of the file system to the /cpfs directory on a Linux server. For mounting instructions, see the CPFS documentation:

   • CPFS General-purpose Edition: Mount a file system

   • CPFS Intelligent Computing Edition: Mount a CPFS file system for intelligent computing in PAI | Mount a CPFS file system for intelligent computing in ACK

2. Python environment: Ensure Python 3.8 or later is installed on the machine that runs the scan.

3. Tablestore instance: Create an instance in the Tablestore console and obtain the instance name and endpoint.

4. OSS bucket: Create an OSS bucket to store archived scan results, and note the bucket name and its region.

5. Grafana: Ensure Grafana is installed on the machine used for visual monitoring.

Step 1: Install dependencies

On the machine where you will run the scan, install the required Python dependency packages.

pip3 install alibabacloud-oss-v2 tablestore alibabacloud-nas20170626

Step 2: Initialize Tablestore

Before you run the scan, you must create a table, a Search Index, and an SQL mapping table in your Tablestore instance. The init_ots.py script automates these tasks.

The script performs the following actions:

• Table: Uses file_name (file path) as the primary key to store file metadata. The time to live (TTL) is set to 86,400 seconds (1 day).

• Search Index: Creates an index on fields such as file size, timestamps, and fileset information to enable multidimensional queries and aggregations.

• SQL mapping table: Creates an SQL mapping for the table, which enables the Grafana Tablestore data source plugin to query data using SQL.

Save the following script as init_ots.py.

#!/usr/bin/env python3
# -*- coding: utf-8 -*-

"""
Tablestore initialization script.
Creates a table, a Search Index, and an SQL mapping table.
"""

import sys
import argparse
from tablestore import OTSClient, TableMeta, TableOptions, ReservedThroughput, CapacityUnit
from tablestore import FieldSchema, FieldType, SearchIndexMeta, IndexSetting, AnalyzerType, SplitAnalyzerParameter

def create_table(client, table_name):
    """
    Creates a table.
    Primary key: file_name (String)
    TTL: 86400
    """
    print(f"[1/3] Creating table: {table_name}")

    try:
        # Define the primary key schema.
        schema_of_primary_key = [('file_name', 'STRING')]

        # Define the table metadata.
        table_meta = TableMeta(table_name, schema_of_primary_key)

        # Define the table options. Set the TTL to 86,400 seconds.
        table_options = TableOptions(
            time_to_live=86400,
            max_version=1,
            max_time_deviation=86400,
            allow_update=False
        )

        # You must specify the reserved throughput when you create a table. The default value is 0.
        reserved_throughput = ReservedThroughput(CapacityUnit(0, 0))

        # Create the table.
        client.create_table(table_meta, table_options, reserved_throughput)

        print(f"✓ Table created: {table_name}")
        return True

    except Exception as e:
        print(f"✗ Failed to create table: {str(e)}")
        return False


def create_search_index(client, table_name, index_name):
    """
    Creates a Search Index.
    TTL: 86400
    """
    print(f"[2/3] Creating Search Index: {index_name}")

    try:
        # Define the field schema.
        fields = [
            # file_name: Text. Uses a split analyzer with "/" as the delimiter. Case-sensitive.
            FieldSchema('file_name', FieldType.TEXT, index=True,
                        analyzer=AnalyzerType.SPLIT,
                        analyzer_parameter=SplitAnalyzerParameter("/")),

            # aTime: Long
            FieldSchema('aTime', FieldType.LONG, index=True),

            # wTime: Long
            FieldSchema('wTime', FieldType.LONG, index=True),

            # cluster_id: Keyword
            FieldSchema('cluster_id', FieldType.KEYWORD, index=True, enable_sort_and_agg=True),

            # fileSize: Long
            FieldSchema('fileSize', FieldType.LONG, index=True),

            # cTime: Long
            FieldSchema('cTime', FieldType.LONG, index=True),

            # region: Keyword
            FieldSchema('region', FieldType.KEYWORD, index=True, enable_sort_and_agg=True),

            # mTime: Long
            FieldSchema('mTime', FieldType.LONG, index=True),

            # fileset_id: Keyword
            FieldSchema('fileset_id', FieldType.KEYWORD, index=True, enable_sort_and_agg=True),

            # fileset_name: Keyword
            FieldSchema('fileset_name', FieldType.KEYWORD, index=True, enable_sort_and_agg=True),

            # fileset_file_count_quota: Long
            FieldSchema('fileset_file_count_quota', FieldType.LONG, index=True),

            # fileset_size_quota: Long
            FieldSchema('fileset_size_quota', FieldType.LONG, index=True),
        ]

        # Configure the index settings.
        index_setting = IndexSetting(routing_fields=['file_name'])

        # Define the Search Index metadata.
        index_meta = SearchIndexMeta(
            fields,
            index_setting=index_setting,
            index_sort=None,
            time_to_live=86400
        )

        # Create the Search Index.
        client.create_search_index(table_name, index_name, index_meta)

        print(f"✓ Search Index created: {index_name}")
        return True

    except Exception as e:
        print(f"✗ Failed to create Search Index: {str(e)}")
        return False


def create_mapping_table(client, table_name):
    """
    Creates an SQL mapping table.
    """
    print(f"[3/3] Creating SQL mapping table")

    try:
        # Construct the SQL statement.
        sql_query = f"""CREATE TABLE `{table_name}` (
            `file_name` VARCHAR(1024),
            `aTime` BIGINT(20),
            `wTime` BIGINT(20),
            `cluster_id` MEDIUMTEXT,
            `fileSize` BIGINT(20),
            `cTime` BIGINT(20),
            `region` MEDIUMTEXT,
            `mTime` BIGINT(20),
            `fileset_id` MEDIUMTEXT,
            `fileset_name` MEDIUMTEXT,
            `fileset_file_count_quota` BIGINT(20),
            `fileset_size_quota` BIGINT(20),
            PRIMARY KEY(`file_name`)
        )"""

        # Execute the SQL statement.
        client.exe_sql_query(sql_query)

        print(f"✓ SQL mapping table created")
        return True

    except Exception as e:
        print(f"✗ Failed to create SQL mapping table: {str(e)}")
        return False


def main():
    """
    Main function
    """
    print("=" * 60)
    print("Tablestore Initialization Script")
    print("=" * 60)

    # Parse command-line arguments.
    parser = argparse.ArgumentParser(description='Tablestore initialization script - Creates a table, a Search Index, and an SQL mapping table')
    parser.add_argument('--endpoint', required=True, help='The endpoint of the Tablestore instance')
    parser.add_argument('--instance-name', required=True, help='The name of the Tablestore instance')
    parser.add_argument('--access-key-id', required=True, help='Your Access Key ID')
    parser.add_argument('--access-key-secret', required=True, help='Your Access Key Secret')
    parser.add_argument('--table-name', required=True, help='The name of the table to create')
    parser.add_argument('--search-index-name', required=True, help='The name of the Search Index to create')

    args = parser.parse_args()

    # Print the configuration information.
    print("\nConfiguration:")
    print(f"  Endpoint: {args.endpoint}")
    print(f"  Instance Name: {args.instance_name}")
    print(f"  Table Name: {args.table_name}")
    print(f"  Search Index Name: {args.search_index_name}")
    print()

    try:
        # Initialize the Tablestore client.
        print("Connecting to the Tablestore instance...")
        client = OTSClient(
            args.endpoint,
            args.access_key_id,
            args.access_key_secret,
            args.instance_name
        )
        print("✓ Connection successful\n")

        # Run the initialization steps.
        success = True

        # Step 1: Create the table
        if not create_table(client, args.table_name):
            success = False
            sys.exit(1)

        print()

        # Step 2: Create the Search Index
        if not create_search_index(client, args.table_name, args.search_index_name):
            success = False
            sys.exit(1)

        print()

        # Step 3: Create the SQL mapping table
        if not create_mapping_table(client, args.table_name):
            success = False
            sys.exit(1)

        print()
        print("=" * 60)
        if success:
            print("✓ All initialization steps are complete!")
        else:
            print("✗ An error occurred during initialization")
        print("=" * 60)

    except Exception as e:
        print(f"\n✗ Script execution failed: {str(e)}")
        sys.exit(1)


if __name__ == "__main__":
    main()

Run the following command to initialize Tablestore.

python3 init_ots.py \
  --endpoint https://<instance-name>.<region-id>.ots.aliyuncs.com \
  --instance-name <instance-name> \
  --access-key-id <Access Key ID> \
  --access-key-secret <Access Key Secret> \
  --table-name bmcpfs_test \
  --search-index-name bmcpfs_test_idx

Step 3: Deploy scanning script

On the machine that will run the scan, create a deployment directory, such as /opt/cpfs-scanner, and populate it with the following files.

1. Create a file named meta_stat.py and add the following code.

   import argparse
   import concurrent
   import csv
   import fcntl
   import json
   import logging
   import os
   import re
   import shutil
   import subprocess
   import sys
   import tarfile
   import time
   from collections import OrderedDict
   from concurrent.futures import ThreadPoolExecutor, as_completed, ProcessPoolExecutor
   from datetime import datetime, timezone
   from logging.handlers import RotatingFileHandler
   from typing import Dict, Optional

   import alibabacloud_oss_v2 as oss
   import tablestore
   from alibabacloud_oss_v2.exceptions import OperationError
   from alibabacloud_nas20170626.client import Client as NAS20170626Client
   from alibabacloud_credentials.client import Client as CredentialClient
   from alibabacloud_credentials.models import Config as CredentialConfig
   from alibabacloud_tea_openapi import models as open_api_models
   from alibabacloud_nas20170626 import models as nas20170626_models
   from alibabacloud_tea_util import models as util_models
   from tablestore import PutRowItem

   VERSION = "1.3a"
   PUT = "PUT"
   UPDATE = "UPDATE"
   IGNORE = "IGNORE"
   NEW_ATIME = "NEW_ATIME"
   AVAILABLE_OTS_COLUMN_CONDITION = [IGNORE, NEW_ATIME]
   AVAILABLE_OTS_WRITE_TYPE = [UPDATE, PUT]
   TABLESTORE_BATCH_SIZE = 200
   # Set up logging.
   SCRIPT_DIR = os.path.dirname(os.path.abspath(__file__))
   LOG_FILE = os.path.join(SCRIPT_DIR, 'meta_stat.log')

   # Initialize the logger.
   logger = logging.getLogger('meta_stat')
   logger.setLevel(logging.DEBUG)

   # Console handler.
   console_handler = logging.StreamHandler()
   console_formatter = logging.Formatter('%(levelname)s: %(message)s')
   console_handler.setFormatter(console_formatter)
   console_handler.setLevel(logging.INFO)
   logger.addHandler(console_handler)

   # File handler (with rotation).
   file_handler = RotatingFileHandler(LOG_FILE, maxBytes=1024 * 1024 * 5, backupCount=5)
   file_formatter = logging.Formatter('%(asctime)s - %(levelname)s - %(message)s')
   file_handler.setFormatter(file_formatter)
   file_handler.setLevel(logging.DEBUG)
   logger.addHandler(file_handler)

   # Other constant definitions.
   PYTHON_FILE_PATH = os.path.abspath(__file__)
   SCRIPT_DIR = os.path.dirname(PYTHON_FILE_PATH)
   os.chdir(SCRIPT_DIR)  # Change to the script's directory.
   PYTHON_PATH = sys.executable
   DATE = datetime.now().strftime("%Y%m%dT%H%M")
   SYSTEM_DIRS = [".sys_recyclebin", ".snapshots", ".sys_healthchecker",
                  ".audit_log", ".msgq", ".fakesnapshots"]

   thread_executor = ThreadPoolExecutor(max_workers=10)
   MAX_OTS_FUTURES = 10


   def read_from_json(key, filename, default=None):
       config_path = os.path.join(SCRIPT_DIR, filename)
       if not os.path.exists(config_path):
           if default is not None:
               return default
           raise FileNotFoundError(f"Credential file not found: {config_path}")
       with open(config_path, 'r') as f:
           try:
               config_json = json.load(f)
           except json.JSONDecodeError:
               raise ValueError(f"Invalid format in .meta_stat_key.json. Check if the file is valid JSON. Path: {config_path}")
       value = config_json.get(key)
       if value is None:
           if default is not None:
               return default
           raise ValueError(
               f".meta_stat_key.json is missing the required field: {key}. Make sure the file contains access_key_id and access_key_secret.")
       return value


   BASE_PATH = read_from_json("BASE_PATH", '.meta_stat_key.json')
   if not BASE_PATH.endswith('/'):
       BASE_PATH += '/'
   OUTPUT_DIR_PREFIX = read_from_json("OUTPUT_DIR_PREFIX", '.meta_stat_key.json')
   OSS_CONFIG_FILE_NAME = os.path.basename(read_from_json("OSS_KEY", '.meta_stat_key.json'))


   class OssTool:
       def __init__(self):
           self.region = read_from_json('OSS_REGION', '.meta_stat_key.json')
           self.bucket = read_from_json('OSS_BUCKET', '.meta_stat_key.json')
           self.key = read_from_json('OSS_KEY', '.meta_stat_key.json')
           self.endpoint = read_from_json('OSS_ENDPOINT', '.meta_stat_key.json')
           self.client = None

       def init_client(self):
           if self.client is not None:
               return

           try:
               credentials_provider = oss.credentials.StaticCredentialsProvider(
                   access_key_id=read_from_json('oss_access_key_id', '.meta_stat_key.json'),
                   access_key_secret=read_from_json('oss_access_key_secret', '.meta_stat_key.json')
               )
           except Exception as e:
               raise RuntimeError(f"Failed to load the local key file. Make sure that .meta_stat_key.json exists and is correctly configured. Error: {e}")

           cfg = oss.config.load_default()
           cfg.credentials_provider = credentials_provider
           cfg.region = self.region
           if self.endpoint:
               cfg.endpoint = self.endpoint
           self.client = oss.Client(cfg)

       def download_file_if_newer(self):
           self.init_client()
           _file_path = os.path.join(SCRIPT_DIR, os.path.basename(self.key))
           try:
               head_result = self.client.head_object(oss.HeadObjectRequest(bucket=self.bucket, key=self.key))
               if_modified_since = self.get_local_file_mtime(_file_path)

               if head_result.last_modified <= if_modified_since:
                   logger.info("Time:%s, File is up to date. Skipping download." % datetime.now())
                   return False

               result = self.client.get_object_to_file(oss.GetObjectRequest(bucket=self.bucket, key=self.key),
                                                       _file_path)

               if result.status_code == 200:
                   logger.info(f"File has been updated and saved to: {_file_path}")
                   return True
               else:
                   logger.warning(f"Download failed. Status code: {result.status_code}")
                   return False

           except OperationError as e:
               error = e.kwargs.get('error')
               if error and error.status_code == 304:
                   logger.info("Time:%s, File is up to date. Skipping download." % datetime.now())
                   return False
               else:
                   logger.error(f"Request failed: {e}", exc_info=True)
                   return False
           except Exception as e:
               logger.exception(f"An exception occurred: {e}")
               return False

       def upload_file_to_oss(self, local_file_path, oss_key):
           self.init_client()

           request = oss.PutObjectRequest(
               bucket=self.bucket,
               key=oss_key,
               body=open(local_file_path, 'rb')
           )

           try:
               result = self.client.put_object(request)

               if result.status_code == 200:
                   logger.info(f"File has been uploaded to OSS: oss://{self.bucket}/{oss_key}")
                   return True
               else:
                   logger.warning(f"Upload failed. Status code: {result.status_code}")
                   return False

           except OperationError as e:
               error = e.kwargs.get('error')
               if error and error.status_code == 404:
                   logger.error("The destination bucket or path does not exist. Check your configuration.")
               else:
                   logger.error(f"Request failed: {e}", exc_info=True)
               return False
           except Exception as e:
               logger.exception(f"An exception occurred: {e}")
               return False

       def upload_dir_to_oss(self, new_dir_path, oss_path):
           # Record the start time.
           start_time = time.time()
           for file in os.listdir(new_dir_path):
               if file.endswith(".csv"):
                   file_path = os.path.join(new_dir_path, file)
                   self.upload_file_to_oss(file_path, os.path.join(oss_path, file))
           logger.info(f"OSS upload complete. Time elapsed: {time.time() - start_time} seconds")

       @staticmethod
       def get_local_file_mtime(_file_path):
           if not os.path.exists(_file_path):
               return datetime.fromtimestamp(0, tz=timezone.utc)
           mtime = os.path.getmtime(_file_path)
           return datetime.fromtimestamp(mtime, tz=timezone.utc)


   class TablestoreWriter:
       def __init__(self):
           ots_config = read_from_json("otsConfig", OSS_CONFIG_FILE_NAME)
           self.table_name = ots_config.get("tableName")
           self.endpoint = ots_config.get("endpoint")
           self.instance_name = ots_config.get("instanceName")
           self.row_exist_exception_str = ots_config.get("rowExistenceException")
           self.column_condition = ots_config.get("columnCondition")
           self.ots_write_type = ots_config.get("writeType")
           self.access_key_id = read_from_json("ots_access_key_id", '.meta_stat_key.json')
           self.access_key_secret = read_from_json("ots_access_key_secret", '.meta_stat_key.json')
           self._tablestore_client = tablestore.OTSClient(
               self.endpoint,
               self.access_key_id,
               self.access_key_secret,
               self.instance_name
           )

       def single_put(self, row: tablestore.PutRowItem) -> bool:
           retry_count = 20
           for i in range(retry_count):
               try:
                   self._tablestore_client.put_row(self.table_name, row.row)
                   return True
               except Exception as e:
                   if i == retry_count - 1:
                       print("Failed to update single row", e)
                       return False
           return True

       def single_update(self, row: tablestore.UpdateRowItem) -> bool:
           retry_count = 20
           for i in range(retry_count):
               try:
                   self._tablestore_client.update_row(self.table_name, row.row, row.condition)
                   return True
               except Exception as e:
                   if i == retry_count - 1:
                       print("Failed to update single row", e)
                       return False

       @staticmethod
       def batch_write(rows: list[tablestore.UpdateRowItem]) -> int:
           global ots_writer, thread_executor
           if ots_writer is None:
               ots_writer = TablestoreWriter()

           succeed_cnt = 0
           row_items = []
           cur_batch_size = 0
           futures = set()
           for idx, updateItem in enumerate(rows):
               row_items.append(updateItem)
               cur_batch_size = cur_batch_size + 1
               if cur_batch_size == TABLESTORE_BATCH_SIZE or idx == len(rows) - 1:
                   batch_write_req = tablestore.BatchWriteRowRequest()
                   batch_write_req.add(tablestore.TableInBatchWriteRowItem(ots_writer.table_name, list(row_items)))
                   row_items.clear()
                   futures.add(
                       thread_executor.submit(TablestoreWriter.single_batch_update, batch_write_req, cur_batch_size))
                   cur_batch_size = 0
           for future in futures:
               succeed_cnt += future.result()
           return succeed_cnt

       @staticmethod
       def single_batch_update(batch_write_req, cur_batch_size):
           succeed_cnt = 0
           try:
               batch_write_row_response = ots_writer._tablestore_client.batch_write_row(batch_write_req)
               if not batch_write_row_response.is_all_succeed():
                   succeed_cnt += len(batch_write_row_response.get_succeed_of_update())
                   succeed_cnt += len(batch_write_row_response.get_succeed_of_put())
                   # Update row item.
                   failed_update = batch_write_row_response.get_failed_of_update()
                   for row_item in failed_update:
                       if not row_item.is_ok and row_item.error_code != "OTSConditionCheckFail":
                           logger.warning("Failed to update single row")
                           single_update_item = batch_write_req.items[ots_writer.table_name].row_items[row_item.index]
                           if ots_writer.single_update(single_update_item):
                               succeed_cnt += 1

                   # Put row item.
                   failed_put = batch_write_row_response.get_failed_of_put()
                   for row_item in failed_put:
                       if not row_item.is_ok:
                           logger.warning("Failed to put single row")
                           single_put_item = batch_write_req.items[ots_writer.table_name].row_items[row_item.index]
                           if ots_writer.single_put(single_put_item):
                               succeed_cnt += 1
               else:
                   succeed_cnt += cur_batch_size
           except Exception as e:
               print("batch update failed: ", e)
           return succeed_cnt

       @staticmethod
       def create_put_row_item(pk: list[tuple], columns: list[tuple],
                               column_conditions: list[tablestore.ColumnCondition]) -> PutRowItem:
           global ots_writer
           if ots_writer is None:
               ots_writer = TablestoreWriter()
           if pk is None or len(pk) != 1:
               return None
           row = tablestore.Row(pk, columns)
           return tablestore.PutRowItem(row,
                                        tablestore.Condition(ots_writer.row_exist_exception_str, column_conditions[0]))

       @staticmethod
       def create_update_row_item(pk: list[tuple], columns: list[tuple],
                                  column_conditions: list[tablestore.ColumnCondition]) -> tablestore.UpdateRowItem:
           global ots_writer
           if ots_writer is None:
               ots_writer = TablestoreWriter()
           if pk is None:
               return None
           row = tablestore.Row(pk, {"update": columns})
           if column_conditions is None or len(column_conditions) == 0:
               return tablestore.UpdateRowItem(row, None)
           elif len(column_conditions) == 1:
               return tablestore.UpdateRowItem(row, tablestore.Condition(ots_writer.row_exist_exception_str,
                                                                         column_conditions[0]))
           else:
               composite_condition = tablestore.CompositeColumnCondition(tablestore.LogicalOperator.AND)
               for condition in column_conditions:
                   composite_condition.add_sub_condition(condition)
               row_conditions = tablestore.Condition(ots_writer.row_exist_exception_str, composite_condition)
               return tablestore.UpdateRowItem(row, row_conditions)

       def extract_pk(self, pk_fields, _dict) -> list[tuple]:
           ots_pk_fields = []
           for field_key, field_value in pk_fields.items():
               ots_pk_field = TablestoreWriter.get_ots_update_field(_dict, field_key, field_value)
               ots_pk_fields.append(ots_pk_field)
           return ots_pk_fields

       @staticmethod
       def less_than_condition(column_name: str, time_stamp: int) -> tablestore.SingleColumnCondition:
           return tablestore.SingleColumnCondition(column_name=column_name, column_value=time_stamp,
                                                   comparator=tablestore.ComparatorType.LESS_THAN)

       @staticmethod
       def upload_dir_to_ots(new_dir_path):
           """
           Uploads all `.ots` files from a directory to Tablestore and deletes them upon completion.
           Data is read from the files and written to Tablestore in batches.
           """
           global ots_writer
           if ots_writer is None:
               ots_writer = TablestoreWriter()
           with ProcessPoolExecutor(max_workers=MAX_OTS_FUTURES) as executor:
               start_time = time.time()
               # Record the start time.
               for file in os.listdir(new_dir_path):
                   if file.endswith(".ots"):
                       file_path = os.path.join(new_dir_path, file)
                       TablestoreWriter.upload_csv_to_ots(executor, file_path)
                       # Delete the file after it has been uploaded.
                       os.remove(file_path)
                       logger.info(f"Deleted file: {file_path}. Time elapsed: {time.time() - start_time} seconds")
               logger.info(f"Tablestore upload complete. Time elapsed: {time.time() - start_time} seconds")

       @staticmethod
       def upload_csv_to_ots(executor, file_path):
           global ots_writer
           logger.info(f"Starting to upload file: {file_path}")
           start_time = time.time()
           if ots_writer is None:
               ots_writer = TablestoreWriter()
           fields = read_from_json('fields', OSS_CONFIG_FILE_NAME)
           fields_value_to_key = {value: key for key, value in fields.items()}
           pk_fields = read_from_json('pkFields', OSS_CONFIG_FILE_NAME)
           with open(file_path, 'r', newline='', encoding='utf-8') as f:
               future_set = set()
               timestamp_ms = int(time.time() * 1000)
               reader = csv.reader(f)
               _ = next(reader)  # Skip the header row.
               rows = []
               for idx, row in enumerate(reader):
                   if len(row) != 6:
                       logger.warning(f"Skipping invalid row {idx + 1}: incorrect number of fields. Row: {row}")
                       continue
                   path, size, inode, atime_ms, mtime_ms, ctime_ms = row
                   try:
                       _dict = {
                           'path': path,
                           'size': int(size),
                           'inode': int(inode),
                           'atime_ms': int(atime_ms),
                           'mtime_ms': int(mtime_ms),
                           'ctime_ms': int(ctime_ms),
                           'wtime_ms': int(timestamp_ms)
                       }
                   except ValueError as e:
                       logger.error(f"Value conversion failed at line {idx + 1}: {e}")
                       continue

                   # Construct the primary key (assetId, fileName).
                   pk = ots_writer.extract_pk(pk_fields, _dict)
                   if not pk:
                       logger.warning(f"Failed to extract primary key from _dict: {_dict}")
                       continue
                   if ots_writer.column_condition == IGNORE:
                       conditions = [None]
                   elif ots_writer.column_condition == NEW_ATIME:
                       conditions = [TablestoreWriter.less_than_condition(fields_value_to_key['$atime_ms'],
                                                                          _dict['atime_ms'])]
                   else:
                       conditions = [None]
                   if ots_writer.ots_write_type == UPDATE:
                       # TODO: Consider making these conditions configurable in the future.
                       ots_fields = []
                       for field_key, field_value in fields.items():
                           ots_field = TablestoreWriter.get_ots_update_field(_dict, field_key, field_value)
                           if ots_field is not None:
                               ots_fields.append(ots_field)
                       update_row_item = TablestoreWriter.create_update_row_item(pk, ots_fields, conditions)
                       if update_row_item:
                           rows.append(update_row_item)
                   elif ots_writer.ots_write_type == PUT:
                       ots_fields = []
                       for field_key, field_value in fields.items():
                           ots_field = TablestoreWriter.get_ots_update_field(_dict, field_key, field_value)
                           if ots_field is not None:
                               ots_fields.append(ots_field)
                       put_row_item = TablestoreWriter.create_put_row_item(pk, ots_fields, conditions)
                       if put_row_item:
                           rows.append(put_row_item)
                   else:
                       logger.error(f"Unknown Tablestore write type: {ots_writer.ots_write_type}")
                       continue

                   # Submit a batch every 10 * TABLESTORE_BATCH_SIZE rows.
                   if len(rows) >= 10 * TABLESTORE_BATCH_SIZE:
                       future_set.add(executor.submit(TablestoreWriter.batch_write, list(rows)))
                       rows.clear()

                       # Limit the maximum number of in-flight futures.
                       if len(future_set) >= MAX_OTS_FUTURES:
                           done, future_set = concurrent.futures.wait(
                               future_set,
                               return_when=concurrent.futures.FIRST_COMPLETED
                           )

                           # Optional: Check for exceptions.
                           for future in done:
                               try:
                                   future.result()
                               except Exception as e:
                                   logger.error(f"Tablestore submission failed: {e}")
               # Submit the remaining data.
               if rows:
                   future_set.add(executor.submit(TablestoreWriter.batch_write, list(rows)))
               # Wait for all tasks to complete and handle exceptions.
               for future in as_completed(future_set):
                   try:
                       future.result()
                   except Exception as e:
                       logger.info(f"Batch failed with exception: {e}")
               logger.info(f"Tablestore submission complete. Time elapsed: {time.time() - start_time} seconds")

       @staticmethod
       def get_ots_update_field(_dict, field_key, field_value):
           global nas_client
           if field_value[0] != '$':
               return field_key, field_value
           else:
               if field_value == "$dajiang_asset_Id":
                   # Split the path and find the matching asset ID.
                   path = _dict['path']
                   parts = path.strip('/').split('/')
                   for i in range(len(parts) - 1):
                       # Check if the current part is 10 digits long and the previous part is its first 3 digits.
                       if len(parts[i + 1]) == 10 and parts[i] == parts[i + 1][:3]:
                           return field_key, parts[i + 1]
                   return None
               if field_value == "$dajiang_file_name":
                   # Split the path and find the matching asset ID.
                   path = _dict['path']
                   parts = path.strip('/').split('/')
                   for i in range(len(parts) - 1):
                       # Check if the current part is 10 digits long and the previous part is its first 3 digits.
                       if len(parts[i + 1]) == 10 and parts[i] == parts[i + 1][:3]:
                           return field_key, '/'.join(parts[i + 1:])
               if field_value in ["$fset_id", "$fset_name", "$fset_file_count_quota", "$fset_size_quota"]:
                   # Get the fileset information for the file.
                   global nas_client
                   if nas_client is None:
                       logger.warning("NAS client is not initialized. Cannot retrieve fileset information.")
                       return None

                   # Get the fsid from the configuration.
                   fsid = read_from_json("fsid", OSS_CONFIG_FILE_NAME, None)
                   if not fsid:
                       logger.warning("Cannot get fsid from the configuration.")
                       return None

                   # Ensure the fsid is complete (includes a prefix).
                   if not fsid.startswith('bmcpfs-') and not fsid.startswith('cpfs-'):
                       full_fsid = f"bmcpfs-{fsid}"
                   else:
                       full_fsid = fsid

                   # Get the file path and find the corresponding fileset information.
                   file_path = _dict.get('path', '')
                   fset_info = nas_client.get_fset_info_by_path(full_fsid, file_path)

                   if fset_info:
                       # Return the value based on the field type.
                       if field_value == "$fset_id":
                           return field_key, fset_info['fset_id']
                       elif field_value == "$fset_name":
                           return field_key, fset_info['description']
                       elif field_value == "$fset_file_count_quota":
                           v = fset_info['file_count_limit']
                           return (field_key, v) if v is not None else None
                       elif field_value == "$fset_size_quota":
                           v = fset_info['size_limit']
                           return (field_key, v) if v is not None else None
                   else:
                       logger.debug(f"Cannot find fileset information for the path {file_path}")
                       return None
               return field_key, _dict.get(field_value[1:], field_value)


   class NasClient:
       """NAS OpenAPI client for retrieving fileset information."""
       def __init__(self):
           self.client = None
           # Cache for fileset information: {fsid: [{fset_id, file_system_path, description, quota}, ...]}
           self.fileset_cache = {}
           self.last_cache_time = {}  # Records the cache time for each fsid.
           self.cache_ttl = 3600  # Cache TTL: 1 hour.

       def init_client(self, access_key_id: str, access_key_secret: str, endpoint: str):
           """Initializes the NAS client."""
           if self.client is not None:
               return

           try:
               credentials_config = CredentialConfig(
                   type='access_key',
                   access_key_id=access_key_id,
                   access_key_secret=access_key_secret
               )
               credentials_client = CredentialClient(credentials_config)

               config = open_api_models.Config(
                   credential=credentials_client,
                   endpoint=endpoint
               )
               self.client = NAS20170626Client(config)
               logger.info("NAS client initialized successfully.")
           except Exception as e:
               logger.error(f"Failed to initialize NAS client: {e}")
               raise RuntimeError(f"Cannot initialize NAS client: {e}")

       def get_filesets(self, fsid: str) -> Optional[list]:
           """Gets all fileset information for a specified file system, using a cache."""
           current_time = time.time()

           # Check if the cache exists and has not expired.
           if fsid in self.fileset_cache and fsid in self.last_cache_time:
               if current_time - self.last_cache_time[fsid] < self.cache_ttl:
                   logger.debug(f"Using cached fileset information for: {fsid}")
                   return self.fileset_cache[fsid]

           # Call the API to get fileset information.
           try:
               request = nas20170626_models.DescribeFilesetsRequest()
               request.file_system_id = fsid
               runtime = util_models.RuntimeOptions()

               resp = self.client.describe_filesets_with_options(request, runtime)

               if resp.body and resp.body.entries and resp.body.entries.entrie:
                   filesets = []
                   for entry in resp.body.entries.entrie:
                       if entry.fset_id and entry.file_system_path:
                           # Extract quota information (can be empty).
                           file_count_limit = None
                           size_limit = None
                           if entry.quota:
                               file_count_limit = entry.quota.file_count_limit
                               size_limit = entry.quota.size_limit

                           filesets.append({
                               'fset_id': entry.fset_id,
                               'file_system_path': entry.file_system_path,
                               'description': entry.description,
                               'file_count_limit': file_count_limit,
                               'size_limit': size_limit
                           })

                   # Update the cache.
                   self.fileset_cache[fsid] = filesets
                   self.last_cache_time[fsid] = current_time
                   logger.info(f"Successfully retrieved {len(filesets)} filesets for {fsid}")
                   return filesets
               else:
                   logger.warning(f"No filesets found for file system {fsid}")
                   return []

           except Exception as e:
               logger.error(f"Failed to get fileset information: {e}")
               return None

       def get_fset_info_by_path(self, fsid: str, file_path: str) -> Optional[dict]:
           """Gets the complete fileset information based on a file path."""
           filesets = self.get_filesets(fsid)
           if filesets is None:
               return None

           # Find the best-matching fileset (longest path match).
           matched_fset = None
           matched_path_length = -1

           for fset in filesets:
               fs_path = fset['file_system_path']
               # Make sure that the file system path ends with a forward slash (/) for easier matching.
               if not fs_path.endswith('/'):
                   fs_path += '/'

               # Check if the file path starts with the file system path.
               if file_path.startswith(fs_path):
                   # Select the longest match (most specific match).
                   if len(fs_path) > matched_path_length:
                       matched_path_length = len(fs_path)
                       matched_fset = fset

           return matched_fset

   oss_tool: OssTool = None
   ots_writer: TablestoreWriter = None
   nas_client: NasClient = None


   def run_bmstat_for_dir(mode, fsid):
       input_dir = mode.input_dir
       if not check_path_exists_with_sudo(input_dir):
           logger.error(f"Input directory {input_dir} does not exist")
           return
       temp_output_dir = f"{OUTPUT_DIR_PREFIX}{fsid}/"
       os.makedirs(temp_output_dir, exist_ok=True)
       # If input_dir matches /cpfs/{fsid}/.
       if input_dir == f"/cpfs/{fsid}/":
           exclude_dirs = [f"{input_dir}{d}" for d in SYSTEM_DIRS]
       else:
           exclude_dirs = []
       exclude_dirs.extend(mode.exclude_dir_set)

       # Construct the subcommand.
       command = [
           "sudo",
           PYTHON_PATH, "nas_stat_util.py",
           "-t", "inode_list",
           "-i", input_dir,
           "--backup-count", "0",
           "--output-format", "path,size,inode,atime_ms,mtime_ms,ctime_ms",
           "--filter-inode-type", "regular_file",
           "--output-without-prefix", BASE_PATH[0:len(BASE_PATH) - 1],
           "--use-csv-format"
       ]

       if exclude_dirs:
           command.extend(["--exclude-full-path-dirs", ",".join(exclude_dirs)])
       if mode.ots_output_path_set:
           command.extend(["--ots-output-path", ",".join(mode.ots_output_path_set)])
       if mode.output_path_set:
           command.extend(["-o", ",".join([f"{temp_output_dir}{d}" for d in mode.output_path_set])])

       logger.info(f"Running command: {' '.join(command)}")
       try:
           result = subprocess.run(command, check=True, stdout=subprocess.PIPE, stderr=subprocess.PIPE)
           logger.info(f"Finished {mode.input_dir}: {result.stdout.decode()}")
       except subprocess.CalledProcessError as e:
           logger.error(f"Error running command for {mode.input_dir}: {e.stderr.decode()}")


   def update_crontab(new_cron_expr):
       """
       Updates the crontab entry for the script's 'run' command.
       It replaces the schedule for an existing entry or adds a new one if it does not exist.
       """
       try:
           # Get the current crontab content.
           result = subprocess.run(['crontab', '-l'], capture_output=True, text=True)
           if result.returncode not in (0, 1):  # A return code of 1 is normal for an empty file.
               logger.error(f"Failed to read crontab: {result.stderr}")
               return

           lines = result.stdout.splitlines()
           updated = False
           new_lines = []

           pattern = re.compile(
               r'.*{PYTHON_FILE_PATH}\s+--type\s+run.*'.format(PYTHON_FILE_PATH=re.escape(PYTHON_FILE_PATH)))

           for line in lines:
               if pattern.search(line):
                   # If a match is found, replace the first 5 fields (the cron expression).
                   parts = line.strip().split(maxsplit=5)
                   if len(parts) >= 6:
                       command_part = parts[5]
                       new_line = f"{new_cron_expr} {command_part}"
                       new_lines.append(new_line)
                       updated = True
                   else:
                       new_lines.append(line)
               else:
                   new_lines.append(line)
           # If no match is found, add a new line.
           if not updated:
               new_cron_line = f"{new_cron_expr} {PYTHON_PATH} {PYTHON_FILE_PATH} --type run"
               new_lines.append(new_cron_line)
               logger.info("No matching line found. A new cron job has been added.")

           # Write back the new crontab.
           new_crontab = '\n'.join(new_lines) + '\n'
           subprocess.run(['crontab', '-'], input=new_crontab, text=True, check=True)
           logger.info("Crontab updated.")

       except Exception as e:
           logger.error(f"Failed to update crontab: {e}")


   def remove_crontab_entry():
       """
       Removes the crontab entry for the script's 'run' command.
       """
       try:
           result = subprocess.run(['crontab', '-l'], capture_output=True, text=True)
           if result.returncode not in (0, 1):  # A return code of 1 is normal for an empty file.
               logger.error(f"Failed to read crontab: {result.stderr}")
               return

           lines = result.stdout.splitlines()
           new_lines = []

           for line in lines:
               # Match the line containing PYTHON_FILE_PATH and --type run.
               if re.search(r'.*{PYTHON_FILE_PATH}\s+--type\s+run.*'.format(PYTHON_FILE_PATH=PYTHON_FILE_PATH), line):
                   logger.info(f"Removing cron line: {line}")
                   continue
               new_lines.append(line)

           # Write back the new crontab.
           new_crontab = '\n'.join(new_lines) + '\n'
           subprocess.run(['crontab', '-'], input=new_crontab, text=True, check=True)
           logger.info("Crontab has been cleaned up.")

       except Exception as e:
           logger.error(f"Failed to delete crontab entry: {e}")


   def download_only():
       """
       Performs the download-only operation. It checks for and downloads an updated
       configuration file from OSS. Typically scheduled to run frequently.
       """
       download_success = oss_tool.download_file_if_newer()
       if download_success:
           file_path = os.path.join(SCRIPT_DIR, os.path.basename(read_from_json('OSS_KEY', '.meta_stat_key.json')))
           meta_stat_config = parse_config(file_path)
           schedule = meta_stat_config.get('schedule')
           if schedule['type'] == 'cron':
               cron_expr = schedule.get('cron')
               if cron_expr:
                   update_crontab(cron_expr)
               else:
                   logger.info("Missing cron expression. Cannot update the task.")
                   return
           else:
               # Remove the cron job entry.
               remove_crontab_entry()

           if schedule['type'] == 'once' or schedule['type'] == 'one':
               # Schedule the task directly.
               run_only()
               return


   def compress_directory(new_dir_name, output_dir):
       """
       Compresses a directory into a .tar.gz archive using pigz.

       :param new_dir_name: The name of the directory to compress.
       :param output_dir: The output directory.
       :return: The path of the generated compressed file.
       """

       base_name = os.path.basename(new_dir_name)
       tar_path = os.path.join(output_dir, f"{base_name}.tar")
       gz_path = f"{tar_path}.gz"

       # Step 1: Create the .tar file.
       with tarfile.open(tar_path, "w") as tar:
           tar.add(new_dir_name, arcname=base_name)

       # Step 2: Compress the .tar file by using pigz.
       try:
           subprocess.run(['pigz', '-f', '-v', tar_path], check=True)
       except subprocess.CalledProcessError as e:
           logger.error(f"Compression failed: {e}")
           return None

       # Step 3: Delete the original directory and .tar file.
       if os.path.exists(tar_path):
           os.remove(tar_path)
           logger.info(f"Deleted the original .tar file: {tar_path}")
       if os.path.exists(new_dir_name):
           shutil.rmtree(new_dir_name)
           logger.info(f"Deleted the original directory: {new_dir_name}")

       logger.info(f"Directory compression complete: {gz_path}")
       return gz_path


   def run_only():
       """
       Runs the main metadata scanning and uploading process. This is the core
       'run' operation, which can be triggered directly or by a scheduled cron job.
       """
       global ots_writer
       lock_file = os.path.join(SCRIPT_DIR, '.meta_stat.lock')
       try:
           lock_fd = os.open(lock_file, os.O_CREAT | os.O_RDWR)
           fcntl.flock(lock_fd, fcntl.LOCK_EX | fcntl.LOCK_NB)
       except (IOError, OSError):
           logger.info("Another instance is already running. Exiting.")
           exit(1)

       begin_date = datetime.now().strftime("%Y%m%dT%H%M")
       file_path = os.path.join(SCRIPT_DIR, os.path.basename(read_from_json('OSS_KEY', '.meta_stat_key.json')))
       meta_stat_config = parse_config(file_path)
       # Get the directory output modes.
       dir_output_modes, ots_file_name_to_input_dir_dict = determine_output_modes(meta_stat_config)
       fsid = read_from_json("fsid", OSS_CONFIG_FILE_NAME, 'fsid')
       if fsid.startswith('bmcpfs-'):
           fsid = fsid[7:]
       elif fsid.startswith('cpfs-'):
           fsid = fsid[5:]
       for dir_path in dir_output_modes:
           mode = dir_output_modes[dir_path]
           run_bmstat_for_dir(mode, fsid)
       end_date = datetime.now().strftime("%Y%m%dT%H%M")
       new_dir_name = f"beg_{begin_date}_end_{end_date}_{fsid}"
       new_dir_path = f"{OUTPUT_DIR_PREFIX}{new_dir_name}"
       temp_output_dir = f"{OUTPUT_DIR_PREFIX}{fsid}/"
       os.rename(temp_output_dir, new_dir_path)
       # Upload and delete the local files.
       TablestoreWriter.upload_dir_to_ots(new_dir_path)
       # Upload to OSS.
       if meta_stat_config['scan_to_files']:
           oss_upload_type = read_from_json("ossUploadType", OSS_CONFIG_FILE_NAME, 'gz')  # csv
           if oss_upload_type == 'csv':
               oss_tool.upload_dir_to_oss(new_dir_path, meta_stat_config['oss_path'])
           local_file_path = compress_directory(new_dir_path, OUTPUT_DIR_PREFIX)
           if oss_upload_type == 'gz':
               oss_tool.upload_file_to_oss(local_file_path,
                                           os.path.join(meta_stat_config['oss_path'], f"{new_dir_name}.tar.gz"))
           # Keep only the latest .tar.gz file locally and delete the others.
           for file in os.listdir(OUTPUT_DIR_PREFIX):
               if file.startswith(f"beg_") and file.endswith(".tar.gz") and file != f"{new_dir_name}.tar.gz":
                   os.remove(f"{OUTPUT_DIR_PREFIX}{file}")


   def upload_only():
       upload_to_tablestore_list = read_from_json('uploadToTablestore', OSS_CONFIG_FILE_NAME)
       for file_path in upload_to_tablestore_list:
           if not os.path.exists(file_path):
               logger.error(f"File does not exist: {file_path}")
               exit(1)
       with ProcessPoolExecutor(max_workers=MAX_OTS_FUTURES) as executor:
           for file_path in upload_to_tablestore_list:
               TablestoreWriter.upload_csv_to_ots(executor, file_path)


   def main():
       global oss_tool, nas_client
       # Create a command-line argument parser.
       parser = argparse.ArgumentParser(description="Download file from OSS with conditional check")

       # Add command-line arguments.
       parser.add_argument('--type', choices=['download', 'run', 'upload'], required=True,
                           help='Specify the operation type: `download` only checks and downloads the configuration; `run` executes the statistics task; `upload` executes the upload task.')
       # Parse the command-line arguments.
       args = parser.parse_args()

       oss_tool = OssTool()

       # Initialize the NAS client (if NAS-related parameters are configured).
       try:
           nas_access_key_id = read_from_json('nas_access_key_id', '.meta_stat_key.json', None)
           nas_access_key_secret = read_from_json('nas_access_key_secret', '.meta_stat_key.json', None)
           nas_endpoint = read_from_json('nas_endpoint', '.meta_stat_key.json', None)

           if nas_access_key_id and nas_access_key_secret and nas_endpoint:
               nas_client = NasClient()
               nas_client.init_client(nas_access_key_id, nas_access_key_secret, nas_endpoint)
               logger.info("NAS client initialized successfully.")
           else:
               logger.info("NAS-related parameters are not configured. The `$fset` field mapping will be unavailable.")
               nas_client = None
       except Exception as e:
           logger.warning(f"Failed to initialize the NAS client: {e}. The `$fset` field mapping will be unavailable.")
           nas_client = None

       if args.type == 'download':
           download_only()
       elif args.type == 'run':
           run_only()
       elif args.type == 'upload':
           upload_only()


   def determine_output_modes(meta_stat_config):
       scan_to_files = set(meta_stat_config['scan_to_files'])
       scan_to_tablestore = set(meta_stat_config['scan_to_tablestore'])
       all_directories = set(scan_to_files).union(set(scan_to_tablestore))
       dir_output_modes = OrderedDict()
       ots_file_name_to_input_dir_dict = {}

       for dir_path in sorted(all_directories):
           output_mode = DirectoryOutputMode(input_dir=dir_path)
           dir_output_modes[dir_path] = output_mode
       # First, determine the required output for each task.
       for _item in scan_to_files:
           output_file_name = _item
           if output_file_name.startswith('/'):
               output_file_name = output_file_name[1:]
           if output_file_name.endswith('/'):
               output_file_name = output_file_name[:-1]
           output_file_name = output_file_name.replace('/', '_') + ".csv"
           dir_output_modes[_item].output_path_set.add(output_file_name)
       for _item in scan_to_tablestore:
           output_file_name = _item
           if output_file_name.startswith('/'):
               output_file_name = output_file_name[1:]
           if output_file_name.endswith('/'):
               output_file_name = output_file_name[:-1]
           output_file_name = output_file_name.replace('/', '_') + ".ots"
           dir_output_modes[_item].output_path_set.add(output_file_name)
           ots_file_name_to_input_dir_dict[output_file_name] = _item
       # If a directory `b` is a subdirectory of an existing task `a`, add `b` to `a`'s exclude list and add `a`'s output targets to `b`'s.
       for _item_b in dir_output_modes:
           for _item_a in dir_output_modes:
               if _item_b.startswith(_item_a) and _item_b != _item_a:
                   dir_output_modes[_item_a].exclude_dir_set.add(_item_b)
                   dir_output_modes[_item_b].output_path_set.update(dir_output_modes[_item_a].output_path_set)

       return dir_output_modes, ots_file_name_to_input_dir_dict


   class DirectoryOutputMode:
       def __init__(self, input_dir: str, exclude_dir_list=None, output_path_set=None, ots_output_path_set=None):
           self.input_dir = input_dir
           if exclude_dir_list is None:
               exclude_dir_list = set()
           self.exclude_dir_set = exclude_dir_list
           if output_path_set is None:
               output_path_set = set()
           self.output_path_set = output_path_set
           if ots_output_path_set is None:
               ots_output_path_set = set()
           self.ots_output_path_set = ots_output_path_set

       def __repr__(self):
           return f"DirectoryOutputMode(input_dir={self.input_dir}, exclude_dir_list={self.exclude_dir_set}, output_path_set={self.output_path_set}, ots_output_path_set={self.ots_output_path_set})"


   def is_valid_cron(cron_str: str) -> bool:
       """
       Checks if the input string is a valid cron expression (5 fields).
       Supports *, /, -, and number combinations. Does not validate the value range.
       """
       cron_pattern = r'^(\s*(\*|[\d\-\*/]+)(,\s*(\*|[\d\-\*/]+))*){5}$'
       return bool(re.match(cron_pattern, cron_str.strip()))


   def check_path_exists_with_sudo(path):
       try:
           result = subprocess.run(
               ['sudo', 'test', '-e', path],
               stdout=subprocess.PIPE,
               stderr=subprocess.PIPE,
               timeout=5
           )
           return result.returncode == 0
       except Exception as e:
           print(f"Error checking path: {e}")
           return False


   def parse_config(config_path: str) -> Dict:
       """
       Parses the configuration file and returns structured data.
       :param config_path: The path to the JSON configuration file.
       :return: A dictionary containing the configuration fields.
       """
       try:
           with open(config_path, 'r', encoding='utf-8') as f:
               config = json.load(f)

           # Extract fields.
           fsid = config.get("fsid")
           scan_to_tablestore = config.get("scanToTablestore", [])
           ots_config = config.get("otsConfig", {})
           fields = config.get("fields", {})
           pk_fields = config.get("pkFields", {})
           scan_to_files = config.get("scanToFiles", [])
           oss_path = config.get("ossPath")
           schedule = config.get("schedule", {})

           if scan_to_files is None:
               scan_to_files = []
           if oss_path is None:
               oss_path = ""
           if oss_path.startswith('/'):
               oss_path = oss_path[1:]

           # Basic validation.
           if not fsid or not isinstance(fsid, str):
               raise ValueError("Missing a valid fsid field")
           # The fsid can contain only alphanumeric characters.
           if fsid.startswith('bmcpfs-'):
               fsid = fsid[7:]
           elif fsid.startswith('cpfs-'):
               fsid = fsid[5:]
           if not fsid.isalnum():
               raise ValueError("fsid can contain only letters and digits")

           if not isinstance(scan_to_files, list):
               raise ValueError("scanToFiles must be a list")
           # Update scan_to_files.
           concat_paths(fsid, scan_to_files)

           # Check if the path exists.
           for path in scan_to_files:
               if not check_path_exists_with_sudo(path):
                   raise ValueError(f"Path {path} does not exist")

           if not isinstance(scan_to_tablestore, list):
               raise ValueError("scanToTablestore must be a list")

           concat_paths(fsid, scan_to_tablestore)

           for path in scan_to_tablestore:
               if not check_path_exists_with_sudo(path):
                   raise ValueError(f"Path {path} does not exist")

           if not isinstance(ots_config, dict):
               raise ValueError("otsConfig must be a dictionary")

           # Validate ots_config.
           for key in ['instanceName', 'tableName', 'endpoint', 'rowExistenceException', 'columnCondition', 'writeType']:
               if key not in ots_config:
                   raise ValueError(f"otsConfig is missing the {key} field")
               if not ots_config[key]:
                   raise ValueError(f"The {key} field in otsConfig cannot be empty")
               if key == 'rowExistenceException':
                   if ots_config[key] not in [tablestore.RowExistenceExpectation.IGNORE,
                                              tablestore.RowExistenceExpectation.EXPECT_EXIST]:
                       raise ValueError(f"The {key} field in otsConfig must be IGNORE or EXPECT_EXIST")
               if key == 'columnCondition':
                   if ots_config[key] not in [IGNORE, NEW_ATIME]:
                       raise ValueError(f"The {key} field in otsConfig must be IGNORE or NEW_ATIME")
               if key == 'writeType':
                   if ots_config[key] not in AVAILABLE_OTS_WRITE_TYPE:
                       raise ValueError(f"The {key} field in otsConfig must be PUT or UPDATE")

           if not isinstance(fields, dict):
               raise ValueError("fields must be a dictionary")

           if not isinstance(pk_fields, dict):
               raise ValueError("pkFields must be a dictionary")

           if not isinstance(schedule, dict):
               raise ValueError("schedule must be a dictionary")

           if schedule['type'] == 'cron':
               # Check if it is a valid cron expression.
               cron_expr = schedule.get('cron')
               if not cron_expr:
                   raise ValueError("The cron field cannot be empty")
               if not is_valid_cron(cron_expr):
                   raise ValueError(f"Invalid cron expression: {cron_expr}")

           if oss_path and not oss_path.endswith('/'):
               oss_path += '/'

           return {
               "fsid": fsid,
               "scan_to_files": scan_to_files,
               "scan_to_tablestore": scan_to_tablestore,
               "ots_config": ots_config,
               "fields": fields,
               "oss_path": oss_path,
               "schedule": schedule,
           }

       except FileNotFoundError:
           raise FileNotFoundError(f"Configuration file not found: {config_path}")
       except json.JSONDecodeError:
           raise ValueError(f"Invalid configuration file format (not valid JSON): {config_path}")
       except Exception as e:
           raise RuntimeError(f"Error parsing the configuration: {e}")


   def concat_paths(fsid, paths):
       for i, path in enumerate(paths):
           concat_path = BASE_PATH
           if not concat_path.endswith('/'):
               concat_path += '/'
           if path.startswith('/'):
               path = path[1:]
           concat_path += path
           if not concat_path.endswith('/'):
               concat_path += '/'
           paths[i] = concat_path


   if __name__ == '__main__':
       main()


2. Create a nas_stat_util.py file with the following content.

   # coding=utf-8
   import argparse
   import concurrent
   import csv
   import io
   import os
   import stat
   import sys
   import threading
   import time
   from concurrent import futures
   from concurrent.futures import ProcessPoolExecutor, ThreadPoolExecutor
   from logging.handlers import RotatingFileHandler
   from multiprocessing import Manager
   from queue import Queue
   from stat import S_ISREG, S_ISDIR

   TOOL_VERSION = "1.3"
   INODE_LIST = 'inode_list'
   DIR_TREE = 'dir_tree'
   ALL = 'all'
   REGULAR_FILE = 'regular_file'
   DIR = 'dir'
   VALID_TYPES = [INODE_LIST, DIR_TREE]
   VALID_FILTER_INODE_TYPES = [ALL, REGULAR_FILE, DIR]
   BATCH_LINES = 10000
   thread_pool = None


   class DirectoryStats:
       def __init__(self, args, _stat):
           self.item_count = 0
           self.item_size = 0
           self.skipped_item_count = 0
           if args is not None:
               if _stat is not None:
                   if args.use_atime:
                       self.atime = _stat.st_atime
                   if args.use_mtime:
                       self.mtime = _stat.st_mtime
                   if args.use_ctime:
                       self.ctime = _stat.st_ctime
                   if args.use_inode:
                       self.inode = int(_stat.st_ino)
                   if args.use_uid:
                       self.uid = _stat.st_uid
                   if args.use_gid:
                       self.gid = _stat.st_gid
               if args.use_all_inode_num:
                   self.all_inode_num = 0
               if args.use_all_size:
                   self.all_size = 0

       def add_item_count(self, size):
           self.item_count += size

       def add_item_size(self, size):
           self.item_size += size

       def add_skipped_item_count(self, size):
           self.skipped_item_count += size

       def add_all_inode_num(self, size):
           if self.all_inode_num is None:
               self.all_inode_num = 0
           self.all_inode_num += size

       def add_all_size(self, size):
           if self.all_size is None:
               self.all_size = 0
           self.all_size += size

       def __repr__(self):
           return (f"DirectoryStats(item_count={self.item_count}, "
                   f"item_size={self.item_size}, skipped_item_count={self.skipped_item_count})")


   class DirectoryStatMap:
       def __init__(self):
           self.directory_map = {}
           self.inode_num = 0
           self.wait_walk_dir_list = []

       def get_or_create(self, directory, args, _stat):
           if directory not in self.directory_map:
               if _stat is None:
                   try:
                       _stat = os.lstat(directory)
                   except:
                       pass
               self.directory_map[directory] = DirectoryStats(args, _stat)
           return self.directory_map[directory]

       def add_inode_num(self, num):
           self.inode_num += num

       def add_wait_walk_dir(self, directory):
           self.wait_walk_dir_list.append(directory)


   def output_timestamp(args, timestamp, with_ms=False):
       if args.human_readable:
           return time.strftime("%Y-%m-%dT%H:%M:%S%z", time.localtime(timestamp))
       if with_ms:
           return int(timestamp * 1000)
       return int(timestamp)


   def output_bytes(args, num_bytes):
       if args.human_readable:
           for unit in ['B', 'KB', 'MB', 'GB', 'TB', 'PB', 'EB', 'ZB', 'YB']:
               if abs(num_bytes) < 1024.0:
                   return f"{num_bytes:3.1f}{unit}"
               num_bytes /= 1024.0
           return f"{num_bytes:.1f}YB"
       return num_bytes


   def to_csv_format(text):
       output = io.StringIO()
       writer = csv.writer(output, quoting=csv.QUOTE_MINIMAL, lineterminator='')
       writer.writerow([text])
       return output.getvalue()


   def format_output_line(args, item_path, _stat=None, dir_stat=None):
       try:
           output_parts = []
           for field in args.output_format_list:
               try:
                   if args.stat_type == INODE_LIST:
                       if field == 'path':
                           if args.output_without_prefix:
                               raw_path = item_path.replace(args.output_without_prefix, '', 1)
                           else:
                               raw_path = item_path
                           if args.use_csv_format:
                               result_path = to_csv_format(raw_path)
                           else:
                               result_path = raw_path
                           output_parts.append(result_path)
                       elif field == 'size':
                           output_parts.append(
                               output_bytes(args,
                                            _stat.st_size if args.use_file_size else _stat.st_blocks * args.block_size))
                       elif field == 'raw_size':
                           output_parts.append(_stat.st_size if args.use_file_size else _stat.st_blocks * args.block_size)
                       elif field == 'inode':
                           output_parts.append(_stat.st_ino)
                       elif field == 'atime':
                           output_parts.append(output_timestamp(args, _stat.st_atime))
                       elif field == 'mtime':
                           output_parts.append(output_timestamp(args, _stat.st_mtime))
                       elif field == 'ctime':
                           output_parts.append(output_timestamp(args, _stat.st_ctime))
                       elif field == 'atime_ms':
                           output_parts.append(output_timestamp(args, _stat.st_atime, True))
                       elif field == 'mtime_ms':
                           output_parts.append(output_timestamp(args, _stat.st_mtime, True))
                       elif field == 'ctime_ms':
                           output_parts.append(output_timestamp(args, _stat.st_ctime, True))
                       elif field == 'uid':
                           output_parts.append(_stat.st_uid)
                       elif field == 'gid':
                           output_parts.append(_stat.st_gid)
                   elif args.stat_type == DIR_TREE:
                       if field == 'path':
                           if args.output_without_prefix:
                               raw_path = item_path.replace(args.output_without_prefix, '', 1)
                           else:
                               raw_path = item_path
                           if args.use_csv_format:
                               result_path = to_csv_format(raw_path)
                           else:
                               result_path = raw_path
                           output_parts.append(result_path)
                       elif field == 'inode_num':
                           output_parts.append(dir_stat.item_count)
                       elif field == 'size':
                           output_parts.append(output_bytes(args, dir_stat.item_size if (
                               args.use_file_size) else dir_stat.item_size * args.block_size))
                       elif field == 'raw_size':
                           output_parts.append(
                               dir_stat.item_size if args.use_file_size else dir_stat.item_size * args.block_size)
                       elif field == 'skip_num':
                           output_parts.append(dir_stat.skipped_item_count)
                       elif field == 'inode':
                           output_parts.append(dir_stat.inode)
                       elif field == 'atime':
                           output_parts.append(output_timestamp(args, dir_stat.atime))
                       elif field == 'mtime':
                           output_parts.append(output_timestamp(args, dir_stat.mtime))
                       elif field == 'ctime':
                           output_parts.append(output_timestamp(args, dir_stat.ctime))
                       elif field == 'atime_ms':
                           output_parts.append(output_timestamp(args, dir_stat.atime, True))
                       elif field == 'mtime_ms':
                           output_parts.append(output_timestamp(args, dir_stat.mtime, True))
                       elif field == 'ctime_ms':
                           output_parts.append(output_timestamp(args, dir_stat.ctime, True))
                       elif field == 'uid':
                           output_parts.append(dir_stat.uid)
                       elif field == 'gid':
                           output_parts.append(dir_stat.gid)
                       elif field == 'all_inode_num':
                           output_parts.append(dir_stat.all_inode_num)
                       elif field == 'all_size':
                           output_parts.append(output_bytes(args, dir_stat.all_size if (
                               args.use_file_size) else dir_stat.all_size * args.block_size))
               except Exception as e:
                   print(f"Error formatting output field: {e}")
                   output_parts.append('')
           if output_parts:
               output_parts = [str(part) for part in output_parts]
               return ','.join(output_parts) + '\n'
           return ''
       except Exception as e:
           print(f"Error formatting output line: {e}")
           return ''


   def inode_stat_print(args, local_dir_stat_map, item_path=None, _stat=None, thread_local_output_lines=None):
       if thread_local_output_lines is None:
           thread_local_output_lines = []
       if args.stat_type == INODE_LIST:
           thread_local_output_lines.append(format_output_line(args, item_path, _stat=_stat))
           if len(thread_local_output_lines) >= BATCH_LINES:
               output_stat_lines(args, local_dir_stat_map, thread_local_output_lines)


   def dir_stat_map_print(args, dir_stat_map, output_handle, print_elapsed_time=False, clear_screen=False):
       try:
           if clear_screen:
               os.system('cls' if os.name == 'nt' else 'clear')
           function_local_output_lines = []
           for iter_dir_path, iter_dir_stat in sorted(dir_stat_map.directory_map.items()):
               function_local_output_lines.append(format_output_line(args, iter_dir_path, dir_stat=iter_dir_stat))

               if len(function_local_output_lines) >= BATCH_LINES:
                   with args.m_output_file_lock:
                       output_handle.writelines(function_local_output_lines)
                       function_local_output_lines.clear()

           with args.m_output_file_lock:
               output_handle.writelines(function_local_output_lines)
               function_local_output_lines.clear()
               if print_elapsed_time:
                   end_time = time.time()
                   elapsed_time = end_time - args.start_time
                   output_handle.write(f"Elapsed time: {elapsed_time} seconds\n")
       except Exception as e:
           print(f"Error printing directory statistics: {e}")


   def output_total_line_print(args, dir_stat_map, output_handle, print_elapsed_time=False, clear_screen=False):
       if clear_screen:
           os.system('cls' if os.name == 'nt' else 'clear')
       with args.m_output_file_lock:
           output_handle.write(f"Total lines output: {dir_stat_map.inode_num}\n")
           if print_elapsed_time:
               end_time = time.time()
               elapsed_time = end_time - args.start_time
               output_handle.write(f"Elapsed time: {elapsed_time} seconds\n")


   def stat_print_at_runtime(args, dir_stat_map, output_handle, print_elapsed_time=False):
       time.sleep(args.print_process_time)
       while not args.stat_finish:
           if args.stat_type == DIR_TREE:
               dir_stat_map_print(args, dir_stat_map, output_handle, print_elapsed_time, clear_screen=True)
           elif args.stat_type == INODE_LIST:
               output_total_line_print(args, dir_stat_map, output_handle, print_elapsed_time, clear_screen=True)
           else:
               break
           time.sleep(args.print_process_time)


   def filter_inode(args, _stat):
       if args.min_size and _stat.st_size < args.min_size:
           return False
       if args.max_size and _stat.st_size > args.max_size:
           return False
       if args.atime and _stat.st_atime > args.atime:
           return False
       if args.atime_after and _stat.st_atime < args.atime_after:
           return False
       if args.mtime and _stat.st_mtime > args.mtime:
           return False
       if args.mtime_after and _stat.st_mtime < args.mtime_after:
           return False
       if args.ctime and _stat.st_ctime > args.ctime:
           return False
       if args.ctime_after and _stat.st_ctime < args.ctime_after:
           return False
       if args.filter_inode_type != ALL:
           if args.filter_inode_type == REGULAR_FILE and not S_ISREG(_stat.st_mode):
               return False
           if args.filter_inode_type == DIR and not S_ISDIR(_stat.st_mode):
               return False

       return True


   class CustomArgumentParser(argparse.ArgumentParser):
       def __init__(self, *args, **kwargs):
           super().__init__(*args, **kwargs)

           self.common_group = self.add_argument_group('Common arguments')
           self.common_group.add_argument("-t", "--type", dest="stat_type", required=True, choices=VALID_TYPES,
                                          help="The type of statistics to generate. Supported types: " + ','.join(VALID_TYPES))
           self.common_group.add_argument("-i", "--input", dest="input", required=True,
                                          help="A comma-separated list of input directories to scan.")
           self.common_group.add_argument("--input-from-file", dest="input_from_file", action="store_true",
                                          help="Read input directories from a file, with one directory path per line.")
           self.common_group.add_argument("-o", "--output-path", dest="output_path",
                                          default="/tmp/nas_stat_util.output", help="The path to the output file. Multiple paths can be specified as a comma-separated list.")
           self.common_group.add_argument("--human", dest="human_readable", action="store_true",
                                          help="Print sizes in a human-readable format (e.g., 1K, 2M, 3G).")
           self.common_group.add_argument("--processes", dest="processes", type=int,
                                          default=10, help="The number of concurrent processes for scanning.")
           self.common_group.add_argument("--threads", dest="threads", type=int, default=10,
                                          help="The number of concurrent threads per process.")
           self.common_group.add_argument("--backup-count", dest="backup_count", type=int, default=9,
                                          help="The number of old output files to retain as backups.")
           self.common_group.add_argument("--print-process-time", dest="print_process_time", type=int, default=0,
                                          help="The interval in seconds to print progress. Set to 0 to disable.")
           self.common_group.add_argument("--exclude-dirs", dest="exclude_dirs", help="A comma-separated list of directory names to exclude.")
           self.common_group.add_argument("--exclude-full-path-dirs", dest="exclude_full_path_dirs",
                                          help="A comma-separated list of full directory paths to exclude.")
           self.common_group.add_argument("--output-format", dest="output_format",
                                          help=('Specifies the output fields as a comma-separated list. '
                                                'Available fields for inode_list: path,size,raw_size,inode,atime,mtime,ctime,atime_ms,mtime_ms,ctime_ms,uid,gid (default: path,size). '
                                                'Available fields for dir_tree: path,inode_num,size,raw_size,skip_num,inode,atime,mtime,ctime,atime_ms,mtime_ms,ctime_ms,uid,gid,all_inode_num,all_size (default: path,inode_num,size,skip_num).')
                                          )
           self.common_group.add_argument("--output-without-head", dest="output_without_header", action='store_true',
                                          help="Omit the header from the output file.")
           self.common_group.add_argument("--output-without-prefix", dest="output_without_prefix", default='',
                                          help="A prefix to remove from all output paths.")
           self.common_group.add_argument("--use-file-size", dest="use_file_size", action='store_true',
                                          help="Use file size for calculations instead of disk usage.")
           self.common_group.add_argument("--use-csv-format", dest="use_csv_format", action='store_true',
                                          help="Enclose the path field in quotes, following CSV format.")
           self.common_group.add_argument("--block-size", dest="block_size", type=int, default=512,
                                          help="The block size for disk usage calculations, in bytes. Default: 512.")
           self.common_group.add_argument("-s", "--min-size", dest="min_size", type=int,
                                          help="Minimum file size in bytes. Files smaller than this will be excluded.")
           self.common_group.add_argument("--max-size", dest="max_size", type=int,
                                          help="Maximum file size in bytes. Files larger than this will be excluded.")
           self.common_group.add_argument("-a", "--atime", dest="atime", type=int,
                                          help="Includes files accessed on or before this Unix timestamp.")
           self.common_group.add_argument("--atime-after", dest="atime_after", type=int,
                                          help="Includes files accessed on or after this Unix timestamp.")
           self.common_group.add_argument("-m", "--mtime", dest="mtime", type=int,
                                          help="Includes files modified on or before this Unix timestamp.")
           self.common_group.add_argument("--mtime-after", dest="mtime_after", type=int,
                                          help="Includes files modified on or after this Unix timestamp.")
           self.common_group.add_argument("-c", "--ctime", dest="ctime", type=int,
                                          help="Includes files with an inode change on or before this Unix timestamp.")
           self.common_group.add_argument("--ctime-after", dest="ctime_after", type=int,
                                          help="Includes files with an inode change on or after this Unix timestamp.")
           self.common_group.add_argument("--filter-inode-type", dest="filter_inode_type",
                                          choices=VALID_FILTER_INODE_TYPES, default=ALL,
                                          help=f"Filter by inode type. Supported: {VALID_FILTER_INODE_TYPES}. Default: all.")

           self.type_dir_group = self.add_argument_group('Directory Tree Type Arguments')
           self.type_dir_group.add_argument("-d", "--depth", dest="depth", type=int, default=2,
                                            help="The maximum directory depth to report in directory tree mode.")

           self.type_file_group = self.add_argument_group('Inode List Type Arguments')


   def add_dir_stat_map(args, sum_dir_stat_map, local_dir_stat_map):
       if sum_dir_stat_map is None or local_dir_stat_map is None:
           return
       if local_dir_stat_map.directory_map is not None:
           for iter_dir_path, iter_dir_stat in local_dir_stat_map.directory_map.items():
               if iter_dir_path not in sum_dir_stat_map.directory_map:
                   sum_dir_stat_map.directory_map[iter_dir_path] = iter_dir_stat
               else:
                   dir_stat = sum_dir_stat_map.directory_map[iter_dir_path]
                   dir_stat.add_item_count(iter_dir_stat.item_count)
                   dir_stat.add_item_size(iter_dir_stat.item_size)
                   dir_stat.add_skipped_item_count(iter_dir_stat.skipped_item_count)
                   if args.use_all_inode_num:
                       dir_stat.add_all_inode_num(iter_dir_stat.all_inode_num)
                   if args.use_all_size:
                       dir_stat.add_all_size(iter_dir_stat.all_size)
       if local_dir_stat_map.inode_num is not None:
           sum_dir_stat_map.add_inode_num(local_dir_stat_map.inode_num)
       if local_dir_stat_map.wait_walk_dir_list is not None:
           sum_dir_stat_map.wait_walk_dir_list.extend(local_dir_stat_map.wait_walk_dir_list)


   def stat_process(args, dir_list):
       global thread_pool
       if not thread_pool:
           thread_pool = ThreadPoolExecutor(max_workers=args.threads)
       args.thread_lock = threading.Lock()
       process_dir_stat_map = DirectoryStatMap()
       args.process_wait_queue_size = args.m_process_wait_queue.qsize()
       args.thread_future_set = set()
       args.thread_wait_queue = Queue()
       for dir_path in dir_list:
           future = thread_pool.submit(stat_walk, args, dir_path, True, None, time.perf_counter())
           args.thread_future_set.add(future)
       while len(args.thread_future_set) > 0 or not args.thread_wait_queue.empty():
           while not args.thread_wait_queue.empty():
               if args.m_process_wait_queue.qsize() < args.max_process_queue_size:
                   args.m_process_wait_queue.put(args.thread_wait_queue.get())
               elif len(args.thread_future_set) < args.max_thread_queue_size:
                   future = thread_pool.submit(stat_walk, args, args.thread_wait_queue.get(), True, None,
                                               time.perf_counter())
                   args.thread_future_set.add(future)
               else:
                   break
           args.process_wait_queue_size = args.m_process_wait_queue.qsize()
           try:
               for future in futures.as_completed(args.thread_future_set, timeout=1):
                   thread_dir_stat_map = future.result()
                   add_dir_stat_map(args, process_dir_stat_map, thread_dir_stat_map)
                   args.thread_future_set.remove(future)
           except concurrent.futures.TimeoutError:
               pass
           except Exception as e:
               print(f"Error in worker thread: {e}")
               args.thread_future_set.remove(future)
       return process_dir_stat_map


   def stat_walk(args, top, need_output, thread_local_output_lines, start_time):
       local_dir_stat_map = DirectoryStatMap()
       # Each thread maintains its own output list.
       if thread_local_output_lines is None:
           thread_local_output_lines = []
       try:
           try:
               scandir_it = os.scandir(top)
           except OSError as error:
               add_skip_to_dir_stat_map(args, local_dir_stat_map, error, top)
               return local_dir_stat_map

           with scandir_it:
               while True:
                   try:
                       try:
                           entry = next(scandir_it)
                       except StopIteration:
                           break
                   except OSError as error:
                       add_skip_to_dir_stat_map(args, local_dir_stat_map, error, top)
                       break

                   try:
                       is_dir = entry.is_dir()
                   except OSError:
                       is_dir = False

                   path = os.path.join(top, entry.name)
                   if is_dir:
                       if entry.name in args.exclude_dir_set:
                           continue
                       if not path.endswith('/'):
                           path += '/'
                       if path in args.exclude_full_path_dir_set:
                           continue
                       my_stat(args, local_dir_stat_map, thread_local_output_lines, path)
                       if entry.is_symlink():
                           continue
                       if time.perf_counter() - start_time > 1 and args.thread_wait_queue.qsize() < args.max_thread_queue_size - len(
                               args.thread_future_set) + args.max_process_queue_size - args.process_wait_queue_size:
                           args.thread_wait_queue.put(path)
                       else:
                           _local_dir_stat_map = stat_walk(args, path, False, thread_local_output_lines, start_time)
                           add_dir_stat_map(args, local_dir_stat_map, _local_dir_stat_map)
                   else:
                       my_stat(args, local_dir_stat_map, thread_local_output_lines, path)
           if need_output and args.stat_type == INODE_LIST:
               output_stat_lines(args, local_dir_stat_map, thread_local_output_lines)
           return local_dir_stat_map
       except Exception as error:
           add_skip_to_dir_stat_map(args, local_dir_stat_map, error, top)
           return local_dir_stat_map


   def output_stat_lines(args, local_dir_stat_map, thread_local_output_lines):
       with args.thread_lock:
           with args.m_output_file_lock:
               for output_path in args.output_path_list:
                   with open(output_path, 'a') as output_handle:
                       output_handle.writelines(thread_local_output_lines)
       local_dir_stat_map.add_inode_num(len(thread_local_output_lines))
       thread_local_output_lines.clear()


   def my_stat(args, local_dir_stat_map, thread_local_output_lines, item_path):
       try:
           _stat = os.lstat(item_path)
           if not args.need_filter or filter_inode(args, _stat):
               if args.stat_type == DIR_TREE:
                   add_inode_to_dir_stat_map(args, local_dir_stat_map, item_path, _stat)
                   # Record directory information.
                   if stat.S_ISDIR(_stat.st_mode) and get_depth_from_str(item_path) <= args.min_key_depth + args.depth:
                       local_dir_stat_map.get_or_create(item_path, args, _stat)
               elif args.stat_type == INODE_LIST:
                   if filter_inode(args, _stat):
                       inode_stat_print(args, local_dir_stat_map, item_path, _stat, thread_local_output_lines)
           if args.use_all_inode_num or args.use_all_size:
               if args.stat_type == DIR_TREE:
                   add_inode_to_dir_stat_map(args, local_dir_stat_map, item_path, _stat, all_mode=True)
                   # Record directory information.
                   if stat.S_ISDIR(_stat.st_mode) and get_depth_from_str(item_path) <= args.min_key_depth + args.depth:
                       local_dir_stat_map.get_or_create(item_path, args, _stat)
       except Exception as error:
           add_skip_to_dir_stat_map(args, local_dir_stat_map, error, item_path)


   def roll_output_file(args):
       for output_path in args.output_path_list:
           need_roll = os.path.isfile(output_path)
           if args.backup_count > 0 and need_roll:
               file_handler = RotatingFileHandler(output_path, backupCount=args.backup_count)
               file_handler.doRollover()


   def validate_input_dirs(args):
       directories = []
       if args.input_from_file:
           with open(args.input, 'r') as file:
               for line in file:
                   line = line.strip()
                   if line:
                       directories.append(line)
       else:
           directories.extend([_dir.strip() for _dir in args.input.split(",")])
       # Check if each directory exists.
       for index, directory in enumerate(directories):
           if not directory.endswith('/'):
               directory += '/'
               directories[index] = directory
           if not os.path.isdir(directory):
               raise argparse.ArgumentTypeError(f"Directory '{directory}' does not exist.")
       return directories


   def check_and_init_args(args):
       args.output_path_list = args.output_path.split(",")
       args.min_key_depth = None
       if args.stat_type == DIR_TREE or args.stat_type == INODE_LIST:
           args.input_dirs = validate_input_dirs(args)
           for _dir in args.input_dirs:
               if args.min_key_depth is None:
                   args.min_key_depth = get_depth_from_str(_dir)
               else:
                   args.min_key_depth = min(args.min_key_depth, get_depth_from_str(_dir))
       args.exclude_dir_set = frozenset()
       if args.exclude_dirs is not None:
           args.exclude_dir_set = frozenset(args.exclude_dirs.split(","))
       args.exclude_full_path_dir_set = frozenset()
       if args.exclude_full_path_dirs is not None:
           exclude_full_path_dir_list = []
           for path in args.exclude_full_path_dirs.split(","):
               if not path.endswith('/'):
                   path += '/'
               exclude_full_path_dir_list += [path]
           args.exclude_full_path_dir_set = frozenset(exclude_full_path_dir_list)

       args.max_process_queue_size = 100 * args.processes
       args.max_thread_queue_size = 100 * args.threads
       if args.output_format is None:
           if args.stat_type == DIR_TREE:
               args.output_format_list = ['path', 'inode_num', 'size', 'skip_num']
           elif args.stat_type == INODE_LIST:
               args.output_format_list = ['path', 'size']
       else:
           args.output_format_list = args.output_format.split(',')
       args.use_atime = "atime" in args.output_format_list or "atime_ms" in args.output_format_list
       args.use_mtime = "mtime" in args.output_format_list or "mtime_ms" in args.output_format_list
       args.use_ctime = "ctime" in args.output_format_list or "ctime_ms" in args.output_format_list
       args.use_inode = "inode" in args.output_format_list
       args.use_uid = "uid" in args.output_format_list
       args.use_gid = "gid" in args.output_format_list
       args.use_all_inode_num = "all_inode_num" in args.output_format_list
       args.use_all_size = "all_size" in args.output_format_list
       args.need_filter = (args.min_size is not None or args.max_size is not None
                           or args.atime is not None or args.atime_after is not None
                           or args.ctime is not None or args.ctime_after is not None
                           or args.mtime is not None or args.mtime_after is not None
                           or args.filter_inode_type is not None)


   # / -> depth 0
   # /a/ -> depth 1
   # /a.txt -> depth 1
   # /a/b/ -> depth 2
   # /a/b.txt -> depth 2
   def get_depth_from_str(file_path):
       if file_path.endswith('/'):
           return file_path.count('/') - 1
       return file_path.count('/')


   def get_depth_from_list(file_path_list):
       if file_path_list[-1] == '':
           return len(file_path_list) - 2
       return len(file_path_list) - 1


   def add_inode_to_dir_stat_map(args, input_dir_stat_map, inode_path, _stat, all_mode=False):
       inode_size = _stat.st_size if args.use_file_size else _stat.st_blocks
       base_depth = args.min_key_depth
       file_path_list = inode_path.split('/')
       file_depth = get_depth_from_list(file_path_list)
       dir_path = ''
       for i in range(0, min(1 + base_depth + args.depth, file_depth)):
           dir_path += file_path_list[i] + '/'
           if i >= base_depth:
               dir_stat = input_dir_stat_map.get_or_create(dir_path, args, _stat)
               if all_mode:
                   dir_stat.add_all_inode_num(1)
                   dir_stat.add_all_size(inode_size)
               else:
                   dir_stat.add_item_count(1)
                   dir_stat.add_item_size(inode_size)


   def add_skip_to_dir_stat_map(args, input_dir_stat_map, error, inode_path):
       print(f"Skipping path due to an error. Path: {inode_path}, Error: {error}")
       file_path_list = inode_path.split('/')
       file_depth = get_depth_from_list(file_path_list)
       base_depth = args.min_key_depth
       if inode_path.endswith('/'):
           file_depth += 1
       dir_path = ''
       for i in range(0, min(1 + base_depth + args.depth, file_depth)):
           dir_path += file_path_list[i] + '/'
           if i >= base_depth:
               dir_stat = input_dir_stat_map.get_or_create(dir_path, args, None)
               dir_stat.add_skipped_item_count(1)


   def chunks(lst, n):
       for i in range(0, len(lst), n):
           yield lst[i:i + n]


   def stat_func(args):
       args.stat_finish = False
       dir_stat_map = DirectoryStatMap()
       args.start_time = time.time()
       with Manager() as manager:
           args.m_output_file_lock = manager.Lock()
           args.m_process_wait_queue = manager.Queue()
           args.add_wait_flag = False
           process_future_set = set()
           try:
               if args.print_process_time > 0:
                   threading.Thread(target=stat_print_at_runtime, args=(args, dir_stat_map, sys.stdout, True)).start()
               if args.stat_type == DIR_TREE or args.stat_type == INODE_LIST:
                   roll_output_file(args)
                   init_file_header(args)
                   with ProcessPoolExecutor(max_workers=args.processes) as walk_executor:
                       input_dir_chunks = list(chunks(args.input_dirs, args.max_thread_queue_size))
                       for input_dir_chunk in input_dir_chunks:
                           future = walk_executor.submit(stat_process, args, input_dir_chunk)
                           process_future_set.add(future)

                       while len(process_future_set) > 0 or not args.m_process_wait_queue.empty():
                           while not args.m_process_wait_queue.empty():
                               if args.max_process_queue_size <= len(process_future_set):
                                   break
                               _dir = args.m_process_wait_queue.get()
                               future = walk_executor.submit(stat_process, args, [_dir])
                               process_future_set.add(future)
                           try:
                               for future in futures.as_completed(process_future_set, timeout=1):
                                   local_dir_stat_map = future.result()
                                   add_dir_stat_map(args, dir_stat_map, local_dir_stat_map)
                                   process_future_set.remove(future)
                           except concurrent.futures.TimeoutError:
                               pass
                           except Exception as e:
                               print(f"Error in worker process: {e}")
                               process_future_set.remove(future)

                       args.stat_finish = True
                       if args.stat_type == DIR_TREE:
                           for output_path in args.output_path_list:
                               with open(output_path, 'a+') as output_file:
                                   dir_stat_map_print(args, dir_stat_map, output_file)
                           dir_stat_map_print(args, dir_stat_map, sys.stdout, print_elapsed_time=True,
                                              clear_screen=(args.print_process_time > 0))
                       elif args.stat_type == INODE_LIST:
                           output_total_line_print(args, dir_stat_map, sys.stdout, print_elapsed_time=True,
                                                   clear_screen=(args.print_process_time > 0))
           except Exception as e:
               print(f"Error in stat_func: {e}")
           args.stat_finish = True


   def init_file_header(args):
       for output_path in args.output_path_list:
           file_exists = os.path.isfile(output_path)
           file_empty = not file_exists or os.path.getsize(output_path) == 0
           with open(output_path, 'a+') as output_file:
               with args.m_output_file_lock:
                   if args.output_without_header:
                       continue
                   if file_empty:
                       output_file.write(','.join(args.output_format_list) + '\n')
                       output_file.flush()


   def main():
       parser = CustomArgumentParser(description='Scans and collects metadata statistics for NAS file systems.')
       args = parser.parse_args()
       check_and_init_args(args)
       stat_func(args)


   if __name__ == "__main__":
       main()


3. Configure the .meta_stat_key.json file, which stores the keys and parameters for accessing various cloud services.

   {
       "oss_access_key_id": "<AccessKey ID>",
       "oss_access_key_secret": "<AccessKey Secret>",
       "ots_access_key_id": "<AccessKey ID>",
       "ots_access_key_secret": "<AccessKey Secret>",
       "BASE_PATH": "/cpfs",
       "OUTPUT_DIR_PREFIX": "/opt/cpfs-scanner/bmstat/",
       "OSS_REGION": "<region-id>",
       "OSS_BUCKET": "bmcpfs-scan",
       "OSS_KEY": "bmcpfs_stat_tool_config.json",
       "OSS_ENDPOINT": "oss-<region-id>-internal.aliyuncs.com",
       "nas_access_key_id": "<AccessKey ID>",
       "nas_access_key_secret": "<AccessKey Secret>",
       "nas_endpoint": "nas-vpc.<region-id>.aliyuncs.com"
   }

   The following table describes each configuration item.

   Parameter	Description
   oss_access_key_id / oss_access_key_secret	The AccessKey for accessing OSS. This key must have read and write permissions on the target bucket.
   ots_access_key_id / ots_access_key_secret	The AccessKey for accessing Tablestore. This key must have read and write permissions on the target instance.
   BASE_PATH	The mount path of the CPFS file system. For example, /cpfs.
   OUTPUT_DIR_PREFIX	The local output directory for scan result files. Ensure you have write permissions on this directory.
   OSS_REGION	The region of the OSS bucket.
   OSS_BUCKET	The name of the OSS bucket for archived scan result files.
   OSS_KEY	The name of the scan behavior configuration file. This name is used to read the configuration locally and is also the object name of the file in OSS (for the --type download mode).
   OSS_ENDPOINT	The OSS endpoint. If your server supports internal network access, use an internal endpoint to reduce latency and data transfer costs.
   nas_access_key_id / nas_access_key_secret	The AccessKey for querying fileset information via the NAS API.
   nas_endpoint	The endpoint for the NAS API.

4. Configure the bmcpfs_stat_tool_config.json file. This file defines the scan scope, field mappings, and Tablestore write parameters.

   {
       "fsid": "<file-system-id>",
       "ossPath": "/",
       "scanToFiles": [
       ],
       "scanToTablestore": [
           "/fileset1",
           "/fileset2"
       ],
       "fields": {
           "aTime": "$atime_ms",
           "cTime": "$ctime_ms",
           "mTime": "$mtime_ms",
           "fileSize": "$size",
           "cluster_id": "cluster_id",
           "fileset_id": "$fset_id",
           "fileset_name": "$fset_name",
           "fileset_file_count_quota": "$fset_file_count_quota",
           "fileset_size_quota": "$fset_size_quota",
           "wTime": "$wtime_ms",
           "region": "region-id"
       },
       "pkFields": {
           "file_name": "$path"
       },
       "otsConfig": {
           "instanceName": "<instance-name>",
           "tableName": "bmcpfs_test",
           "endpoint": "https://<instance-name>.<region-id>.vpc.tablestore.aliyuncs.com",
           "rowExistenceException": "IGNORE",
           "columnCondition": "IGNORE",
           "writeType": "PUT"
       },
       "schedule": {
           "type": "once",
           "cron": "0 * * * *"
       }
   }

   The following table describes each configuration item.

   Parameter	Description
   fsid (Required)	The CPFS file system ID. You can obtain this ID from the CPFS console.
   scanToTablestore (Required)	Specifies the directories to scan and write to Tablestore. These paths are relative to the BASE_PATH parameter.
   otsConfig.instanceName (Required)	The Tablestore instance name.
   otsConfig.tableName (Required)	The Tablestore table name. This must match the table name that you created in Step 2.
   otsConfig.endpoint (Required)	The Tablestore VPC endpoint, in the format https://<instance-name>.<region-id>.vpc.tablestore.aliyuncs.com. If your server cannot access the VPC endpoint, use a public endpoint.
   fields	The mapping from scanned fields to Tablestore column names. Values that start with $ are CPFS metadata variables.
   pkFields	The primary key field mapping. file_name maps to the full path of the file.
   cluster_id	The cluster ID. You can customize this value.
   region	The region. You can customize this value.
   schedule.type	The scheduling type. The value once indicates a one-time execution.
   schedule.cron	The Cron expression. This parameter applies when type is configured for scheduled execution.

   Note

   Paths specified in scanToFiles and scanToTablestore are relative to the BASE_PATH defined in the .meta_stat_key.json file. For example, if BASE_PATH is /cpfs, the path /fileset1 corresponds to the actual scan path /cpfs/fileset1.

5. Make the scanning scripts executable.

   chmod 755 meta_stat.py nas_stat_util.py

Step 4: Run the scan

Run the following command to start the scan. The tool reads the local configuration, scans the specified directories, writes metadata to Tablestore, and uploads packaged results to OSS.

python3 meta_stat.py --type run

The --type parameter supports the following three modes.

To run scans regularly, configure a scheduled task in crontab. Run the following command to open the crontab file:

crontab -e

Add a scheduled task rule at the end of the file. For example, to run a scan at midnight every day, add the following line:

0 0 * * * /usr/bin/python3 /opt/cpfs-scanner/meta_stat.py --type run >> /opt/cpfs-scanner/cron.log 2>&1

The >> /opt/cpfs-scanner/cron.log 2>&1 part redirects standard output and standard error to a log file for troubleshooting. Adjust the Python interpreter and script paths to match your environment.

Step 5: Configure Grafana display

Sample Grafana dashboard templates

{
  "annotations": {
    "list": [
      {
        "builtIn": 1,
        "datasource": {
          "type": "grafana",
          "uid": "-- Grafana --"
        },
        "enable": true,
        "hide": true,
        "iconColor": "rgba(0, 211, 255, 1)",
        "name": "Annotations & Alerts",
        "type": "dashboard"
      }
    ]
  },
  "editable": true,
  "fiscalYearStartMonth": 0,
  "graphTooltip": 0,
  "id": 6,
  "links": [
    {
      "asDropdown": true,
      "icon": "external link",
      "includeVars": false,
      "keepTime": false,
      "tags": [],
      "targetBlank": false,
      "title": "Other Dashboards",
      "tooltip": "",
      "type": "dashboards",
      "url": ""
    }
  ],
  "liveNow": true,
  "panels": [
    {
      "datasource": {
        "type": "aliyun-tablestore-grafana-datasource-adapt-react",
        "uid": "fffrqt7w6setcc"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "continuous-BlYlRd"
          },
          "custom": {
            "axisBorderShow": false,
            "axisCenteredZero": false,
            "axisColorMode": "text",
            "axisLabel": "",
            "axisPlacement": "auto",
            "fillOpacity": 80,
            "gradientMode": "none",
            "hideFrom": {
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "lineWidth": 1,
            "scaleDistribution": {
              "type": "linear"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": 0
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": [
          {
            "matcher": {
              "id": "byName",
              "options": "file_size"
            },
            "properties": [
              {
                "id": "unit",
                "value": "bytes"
              }
            ]
          }
        ]
      },
      "gridPos": {
        "h": 11,
        "w": 24,
        "x": 0,
        "y": 0
      },
      "id": 9,
      "options": {
        "barRadius": 0,
        "barWidth": 0.1,
        "colorByField": "time",
        "fullHighlight": true,
        "groupWidth": 0.7,
        "legend": {
          "calcs": [],
          "displayMode": "list",
          "placement": "bottom",
          "showLegend": false
        },
        "orientation": "auto",
        "showValue": "auto",
        "stacking": "none",
        "text": {
          "valueSize": 1
        },
        "tooltip": {
          "hideZeros": false,
          "mode": "single",
          "sort": "none"
        },
        "xField": "time",
        "xTickLabelRotation": 0,
        "xTickLabelSpacing": 100
      },
      "pluginVersion": "12.3.1",
      "targets": [
        {
          "datasource": {
            "type": "aliyun-tablestore-grafana-datasource-adapt-react",
            "uid": "fffrqt7w6setcc"
          },
          "formatType": "Table",
          "query": "SELECT DATE(DATE_ADD(FROM_UNIXTIME(cTime / 1000), INTERVAL 8 HOUR)) AS date ,SUM(fileSize) as file_size\n FROM (\n  SELECT \n    cTime,fileSize \n  FROM \n    $tableName USE INDEX($indexName)  \n  WHERE \n    cTime >= $__unixMilliTimeFrom() AND cTime < $__unixMilliTimeTo()\n) tl\nGROUP BY date\nORDER BY date",
          "refId": "A",
          "xcol": " time",
          "ycol": ""
        }
      ],
      "title": "New file capacity",
      "type": "barchart"
    },
    {
      "datasource": {
        "type": "aliyun-tablestore-grafana-datasource-adapt-react",
        "uid": "fffrqt7w6setcc"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "fixedColor": "green",
            "mode": "fixed"
          },
          "custom": {
            "axisBorderShow": false,
            "axisCenteredZero": false,
            "axisColorMode": "text",
            "axisLabel": "",
            "axisPlacement": "auto",
            "fillOpacity": 80,
            "gradientMode": "none",
            "hideFrom": {
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "lineWidth": 1,
            "scaleDistribution": {
              "type": "linear"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "displayName": "Total New Files",
          "fieldMinMax": false,
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": 0
              }
            ]
          },
          "unit": "none"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 9,
        "w": 24,
        "x": 0,
        "y": 11
      },
      "id": 10,
      "options": {
        "barRadius": 0,
        "barWidth": 0.1,
        "colorByField": "day",
        "fullHighlight": true,
        "groupWidth": 0.7,
        "legend": {
          "calcs": [],
          "displayMode": "list",
          "placement": "right",
          "showLegend": false
        },
        "orientation": "auto",
        "showValue": "auto",
        "stacking": "none",
        "text": {
          "valueSize": 1
        },
        "tooltip": {
          "hideZeros": false,
          "mode": "multi",
          "sort": "none"
        },
        "xTickLabelRotation": 0,
        "xTickLabelSpacing": 100
      },
      "pluginVersion": "12.3.1",
      "targets": [
        {
          "datasource": {
            "type": "aliyun-tablestore-grafana-datasource-adapt-react",
            "uid": "fffrqt7w6setcc"
          },
          "formatType": "Table",
          "query": "SELECT DATE(DATE_ADD(FROM_UNIXTIME(cTime / 1000), INTERVAL 8 HOUR)) AS date ,COUNT(*) as file_count\nFROM (\n  SELECT \n    cTime,file_name \n  FROM \n    $tableName USE INDEX($indexName)  \n  WHERE \n    cTime >= $__unixMilliTimeFrom() AND cTime < $__unixMilliTimeTo()\n) tl\nGROUP BY date\nORDER BY date",
          "refId": "A",
          "xcol": "time",
          "ycol": ""
        }
      ],
      "title": "New file count",
      "type": "barchart"
    }
  ],
  "preload": true,
  "refresh": "5m",
  "schemaVersion": 42,
  "tags": [],
  "templating": {
    "list": [
      {
        "current": {
          "text": "bmcpfs_test",
          "value": "bmcpfs_test"
        },
        "hide": 2,
        "label": "Table name",
        "name": "tableName",
        "query": "bmcpfs_test",
        "skipUrlSync": true,
        "type": "constant"
      },
      {
        "current": {
          "text": "bmcpfs_test_idx",
          "value": "bmcpfs_test_idx"
        },
        "hide": 2,
        "name": "indexName",
        "query": "bmcpfs_test_idx",
        "skipUrlSync": true,
        "type": "constant"
      }
    ]
  },
  "time": {
    "from": "now-7d",
    "to": "now"
  },
  "timepicker": {},
  "timezone": "browser",
  "title": "CPFS capacity trend",
  "uid": "adj2l5q",
  "version": 41
}

{
  "annotations": {
    "list": [
      {
        "builtIn": 1,
        "datasource": {
          "type": "grafana",
          "uid": "-- Grafana --"
        },
        "enable": true,
        "hide": true,
        "iconColor": "rgba(0, 211, 255, 1)",
        "name": "Annotations & Alerts",
        "type": "dashboard"
      }
    ]
  },
  "editable": true,
  "fiscalYearStartMonth": 0,
  "graphTooltip": 0,
  "id": 7,
  "links": [
    {
      "asDropdown": false,
      "icon": "external link",
      "includeVars": false,
      "keepTime": false,
      "tags": [],
      "targetBlank": false,
      "title": "New link",
      "tooltip": "",
      "type": "dashboards",
      "url": ""
    }
  ],
  "panels": [
    {
      "datasource": {
        "type": "aliyun-tablestore-grafana-datasource-adapt-react",
        "uid": "fffrqt7w6setcc"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "fixedColor": "blue",
            "mode": "fixed"
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": 0
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": []
      },
      "gridPos": {
        "h": 4,
        "w": 8,
        "x": 0,
        "y": 0
      },
      "id": 1,
      "options": {
        "colorMode": "background",
        "graphMode": "area",
        "justifyMode": "auto",
        "orientation": "auto",
        "percentChangeColorMode": "standard",
        "reduceOptions": {
          "calcs": [
            "lastNotNull"
          ],
          "fields": "",
          "values": false
        },
        "showPercentChange": false,
        "textMode": "auto",
        "wideLayout": true
      },
      "pluginVersion": "12.3.1",
      "targets": [
        {
          "datasource": {
            "type": "aliyun-tablestore-grafana-datasource-adapt-react",
            "uid": "fffrqt7w6setcc"
          },
          "formatType": "Table",
          "query": "SELECT COUNT(*) AS total_count\nFROM (\n    SELECT file_name FROM $tableName USE INDEX() WHERE file_name Like CONCAT(REPLACE(REPLACE(REPLACE('$path1', '%', '\\\\%'),'\\\\','\\\\\\\\'),'_','\\\\_'),'%')\n    UNION ALL\n    SELECT file_name FROM $tableName USE INDEX() WHERE file_name Like CONCAT(REPLACE(REPLACE(REPLACE('$path2', '%', '\\\\%'),'\\\\','\\\\\\\\'),'_','\\\\_'),'%')\n) t",
          "refId": "A",
          "xcol": "_time",
          "ycol": ""
        }
      ],
      "title": "Total file count",
      "type": "stat"
    },
    {
      "datasource": {
        "type": "aliyun-tablestore-grafana-datasource-adapt-react",
        "uid": "fffrqt7w6setcc"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "fixedColor": "light-red",
            "mode": "fixed"
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": 0
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": []
      },
      "gridPos": {
        "h": 4,
        "w": 8,
        "x": 8,
        "y": 0
      },
      "id": 2,
      "options": {
        "colorMode": "background",
        "graphMode": "area",
        "justifyMode": "auto",
        "orientation": "auto",
        "percentChangeColorMode": "standard",
        "reduceOptions": {
          "calcs": [
            "lastNotNull"
          ],
          "fields": "",
          "values": false
        },
        "showPercentChange": false,
        "textMode": "auto",
        "wideLayout": true
      },
      "pluginVersion": "12.3.1",
      "targets": [
        {
          "datasource": {
            "type": "aliyun-tablestore-grafana-datasource-adapt-react",
            "uid": "fffrqt7w6setcc"
          },
          "formatType": "Table",
          "query": "SELECT COUNT(*) AS duplicate_count\nFROM (\n    SELECT file_name, fileSize\n    FROM $tableName USE INDEX()\n    WHERE file_name LIKE CONCAT(REPLACE(REPLACE(REPLACE('$path1', '%', '\\\\%'),'\\\\','\\\\\\\\'),'_','\\\\_'),'%')\n) a\nJOIN (\n    SELECT file_name, fileSize\n    FROM $tableName USE INDEX()\n    WHERE file_name LIKE CONCAT(REPLACE(REPLACE(REPLACE('$path2', '%', '\\\\%'),'\\\\','\\\\\\\\'),'_','\\\\_'),'%')\n) b\nON (SUBSTRING_INDEX(a.file_name, '/', -1) = SUBSTRING_INDEX(b.file_name, '/', -1) AND a.fileSize = b.fileSize)",
          "refId": "A",
          "xcol": "_time",
          "ycol": ""
        }
      ],
      "title": "Duplicate file count",
      "type": "stat"
    },
    {
      "datasource": {
        "type": "aliyun-tablestore-grafana-datasource-adapt-react",
        "uid": "fffrqt7w6setcc"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "fixedColor": "orange",
            "mode": "fixed"
          },
          "mappings": [],
          "noValue": "0GB",
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": 0
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          },
          "unit": "bytes"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 4,
        "w": 8,
        "x": 16,
        "y": 0
      },
      "id": 3,
      "options": {
        "colorMode": "background",
        "graphMode": "area",
        "justifyMode": "auto",
        "orientation": "auto",
        "percentChangeColorMode": "standard",
        "reduceOptions": {
          "calcs": [
            "lastNotNull"
          ],
          "fields": "",
          "values": false
        },
        "showPercentChange": false,
        "textMode": "auto",
        "wideLayout": true
      },
      "pluginVersion": "12.3.1",
      "targets": [
        {
          "datasource": {
            "type": "aliyun-tablestore-grafana-datasource-adapt-react",
            "uid": "fffrqt7w6setcc"
          },
          "formatType": "Table",
          "query": "SELECT SUM(a.fileSize) AS duplicate_size\nFROM (\n    SELECT file_name, fileSize\n    FROM $tableName USE INDEX()\n    WHERE file_name LIKE CONCAT(REPLACE(REPLACE(REPLACE('$path1', '%', '\\\\%'),'\\\\','\\\\\\\\'),'_','\\\\_'),'%')\n) a\nJOIN (\n    SELECT file_name, fileSize\n    FROM $tableName USE INDEX()\n    WHERE file_name LIKE CONCAT(REPLACE(REPLACE(REPLACE('$path2', '%', '\\\\%'),'\\\\','\\\\\\\\'),'_','\\\\_'),'%')\n) b\nON (SUBSTRING_INDEX(a.file_name, '/', -1) = SUBSTRING_INDEX(b.file_name, '/', -1) AND a.fileSize = b.fileSize)",
          "refId": "A",
          "xcol": "_time",
          "ycol": ""
        }
      ],
      "title": "Space used by duplicates",
      "type": "stat"
    },
    {
      "datasource": {
        "type": "aliyun-tablestore-grafana-datasource-adapt-react",
        "uid": "fffrqt7w6setcc"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "thresholds"
          },
          "custom": {
            "align": "auto",
            "cellOptions": {
              "type": "auto"
            },
            "footer": {
              "reducers": []
            },
            "hideFrom": {
              "viz": false
            },
            "inspect": false,
            "wrapHeaderText": false
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": 0
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": [
          {
            "matcher": {
              "id": "byName",
              "options": "Directory A/B path"
            },
            "properties": [
              {
                "id": "custom.width",
                "value": 801
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "File name"
            },
            "properties": [
              {
                "id": "custom.width",
                "value": 405
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "File size"
            },
            "properties": [
              {
                "id": "unit",
                "value": "bytes"
              }
            ]
          }
        ]
      },
      "gridPos": {
        "h": 9,
        "w": 24,
        "x": 0,
        "y": 4
      },
      "id": 4,
      "options": {
        "cellHeight": "sm",
        "showHeader": true,
        "sortBy": [
          {
            "desc": false,
            "displayName": "File size"
          }
        ]
      },
      "pluginVersion": "12.3.1",
      "targets": [
        {
          "datasource": {
            "type": "aliyun-tablestore-grafana-datasource-adapt-react",
            "uid": "fffrqt7w6setcc"
          },
          "formatType": "Table",
          "query": "SELECT \n    SUBSTRING_INDEX(a.file_name, '/', -1) AS 'File name',\n    CONCAT('A:',a.file_name,'\\n','B:',b.file_name) AS 'Directory A/B path',\n    a.fileSize AS 'File size'\nFROM (\n    SELECT file_name, fileSize\n    FROM $tableName USE INDEX()\n    WHERE file_name LIKE CONCAT(REPLACE(REPLACE(REPLACE('$path1', '%', '\\\\%'),'\\\\','\\\\\\\\'),'_','\\\\_'),'%')\n) a\nJOIN (\n    SELECT file_name, fileSize\n    FROM $tableName USE INDEX()\n    WHERE file_name LIKE CONCAT(REPLACE(REPLACE(REPLACE('$path2', '%', '\\\\%'),'\\\\','\\\\\\\\'),'_','\\\\_'),'%')\n) b\nON (SUBSTRING_INDEX(a.file_name, '/', -1) = SUBSTRING_INDEX(b.file_name, '/', -1) AND a.fileSize = b.fileSize)",
          "refId": "A",
          "xcol": "_time",
          "ycol": ""
        }
      ],
      "title": "Duplicate file list",
      "type": "table"
    },
    {
      "datasource": {
        "type": "aliyun-tablestore-grafana-datasource-adapt-react",
        "uid": "fffrqt7w6setcc"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "thresholds"
          },
          "custom": {
            "align": "auto",
            "cellOptions": {
              "type": "auto"
            },
            "footer": {
              "reducers": []
            },
            "hideFrom": {
              "viz": false
            },
            "inspect": false
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": 0
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": [
          {
            "matcher": {
              "id": "byName",
              "options": "File size"
            },
            "properties": [
              {
                "id": "unit",
                "value": "bytes"
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "Path source"
            },
            "properties": [
              {
                "id": "custom.width",
                "value": 118
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "File name"
            },
            "properties": [
              {
                "id": "custom.width",
                "value": 288
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "File path"
            },
            "properties": [
              {
                "id": "custom.width",
                "value": 904
              }
            ]
          }
        ]
      },
      "gridPos": {
        "h": 7,
        "w": 24,
        "x": 0,
        "y": 13
      },
      "id": 5,
      "options": {
        "cellHeight": "sm",
        "showHeader": true,
        "sortBy": [
          {
            "desc": false,
            "displayName": "File path"
          }
        ]
      },
      "pluginVersion": "12.3.1",
      "targets": [
        {
          "datasource": {
            "type": "aliyun-tablestore-grafana-datasource-adapt-react",
            "uid": "fffrqt7w6setcc"
          },
          "formatType": "Table",
          "query": "SELECT \n    'Path A' AS 'Path source',\n    SUBSTRING_INDEX(file_name, '/', -1) AS 'File name',\n    file_name AS 'File path',\n    fileSize AS 'File size'\nFROM $tableName USE INDEX()\nWHERE \n    file_name LIKE CONCAT(REPLACE(REPLACE(REPLACE('$path1', '%', '\\\\%'),'\\\\','\\\\\\\\'),'_','\\\\_'),'%')\n    AND (SUBSTRING_INDEX(file_name, '/', -1), fileSize) NOT IN (\n    SELECT \n        SUBSTRING_INDEX(file_name, '/', -1), fileSize\n    FROM \n        $tableName USE INDEX()\n    WHERE \n        file_name LIKE CONCAT(REPLACE(REPLACE(REPLACE('$path2', '%', '\\\\%'),'\\\\','\\\\\\\\'),'_','\\\\_'),'%')\n  )\n\nUNION ALL\n\nSELECT \n    'Path B' AS 'Path source',\n    SUBSTRING_INDEX(file_name, '/', -1) AS 'File name',\n    file_name AS 'File path',\n    fileSize AS 'File size'\nFROM $tableName USE INDEX()\nWHERE \n    file_name LIKE CONCAT(REPLACE(REPLACE(REPLACE('$path2', '%', '\\\\%'),'\\\\','\\\\\\\\'),'_','\\\\_'),'%')\n    AND (SUBSTRING_INDEX(file_name, '/', -1), fileSize) NOT IN (\n    SELECT \n        SUBSTRING_INDEX(file_name, '/', -1), fileSize\n    FROM \n        $tableName USE INDEX()\n    WHERE \n        file_name LIKE CONCAT(REPLACE(REPLACE(REPLACE('$path1', '%', '\\\\%'),'\\\\','\\\\\\\\'),'_','\\\\_'),'%')\n  )",
          "refId": "A",
          "xcol": "_time",
          "ycol": ""
        }
      ],
      "title": "Unique file list",
      "type": "table"
    }
  ],
  "preload": false,
  "schemaVersion": 42,
  "tags": [],
  "templating": {
    "list": [
      {
        "current": {
          "text": "/fileset1",
          "value": "/fileset1"
        },
        "label": "Source directory (A)",
        "name": "path1",
        "options": [
          {
            "selected": true,
            "text": "/fileset1",
            "value": "/fileset1"
          }
        ],
        "query": "/fileset1",
        "type": "textbox"
      },
      {
        "current": {
          "text": "/fileset2",
          "value": "/fileset2"
        },
        "label": "Reference directory (B)",
        "name": "path2",
        "options": [
          {
            "selected": true,
            "text": "/fileset2",
            "value": "/fileset2"
          }
        ],
        "query": "/fileset2",
        "type": "textbox"
      },
      {
        "current": {
          "text": "bmcpfs_test",
          "value": "bmcpfs_test"
        },
        "hide": 2,
        "label": "Table name",
        "name": "tableName",
        "query": "bmcpfs_test",
        "skipUrlSync": true,
        "type": "constant"
      }
    ]
  },
  "time": {
    "from": "now-6h",
    "to": "now"
  },
  "timepicker": {
    "hidden": true
  },
  "timezone": "browser",
  "title": "CPFS directory comparison",
  "uid": "adwm968",
  "version": 44
}

{
  "annotations": {
    "list": [
      {
        "builtIn": 1,
        "datasource": "-- Grafana --",
        "enable": true,
        "hide": true,
        "iconColor": "rgba(0, 211, 255, 1)",
        "name": "Annotations & Alerts",
        "type": "dashboard"
      }
    ]
  },
  "editable": true,
  "fiscalYearStartMonth": 0,
  "graphTooltip": 0,
  "id": 4,
  "links": [
    {
      "asDropdown": true,
      "icon": "external link",
      "includeVars": false,
      "keepTime": false,
      "tags": [],
      "targetBlank": false,
      "title": "Other Dashboards",
      "tooltip": "",
      "type": "dashboards",
      "url": ""
    }
  ],
  "panels": [
    {
      "datasource": {
        "type": "aliyun-tablestore-grafana-datasource-adapt-react",
        "uid": "fffrqt7w6setcc"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "thresholds"
          },
          "custom": {
            "align": "left",
            "cellOptions": {
              "type": "auto"
            },
            "footer": {
              "reducers": []
            },
            "inspect": false
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": 0
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": [
          {
            "matcher": {
              "id": "byName",
              "options": "File name"
            },
            "properties": [
              {
                "id": "custom.width",
                "value": 667
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "Creation time"
            },
            "properties": [
              {
                "id": "custom.width",
                "value": 238
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "Region"
            },
            "properties": [
              {
                "id": "custom.width",
                "value": 277
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "Creation time"
            },
            "properties": [
              {
                "id": "unit",
                "value": "dateTimeAsIso"
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "File size"
            },
            "properties": [
              {
                "id": "unit",
                "value": "bytes"
              }
            ]
          }
        ]
      },
      "gridPos": {
        "h": 21,
        "w": 24,
        "x": 0,
        "y": 0
      },
      "id": 1,
      "options": {
        "cellHeight": "md",
        "showHeader": true,
        "sortBy": []
      },
      "pluginVersion": "12.3.1",
      "targets": [
        {
          "datasource": {
            "type": "aliyun-tablestore-grafana-datasource-adapt-react",
            "uid": "fffrqt7w6setcc"
          },
          "formatType": "Table",
          "query": "SELECT \n  file_name AS \"File name\",\n  cTime AS \"Creation time\",\n  region AS \"Region\",\n  fileSize AS \"File size\"\nFROM $tableName USE INDEX($indexName)\nWHERE TEXT_MATCH_PHRASE(file_name,'$searchKeyword')\nLIMIT $limit",
          "refId": "A",
          "xcol": "_time",
          "ycol": ""
        }
      ],
      "title": "File search results",
      "type": "table"
    }
  ],
  "preload": false,
  "refresh": "",
  "schemaVersion": 42,
  "tags": [],
  "templating": {
    "list": [
      {
        "current": {
          "text": "/fileset1",
          "value": "/fileset1"
        },
        "label": "File search",
        "name": "searchKeyword",
        "options": [
          {
            "selected": true,
            "text": "/fileset1",
            "value": "/fileset1"
          }
        ],
        "query": "/fileset1",
        "type": "textbox"
      },
      {
        "current": {
          "text": "bmcpfs_test",
          "value": "bmcpfs_test"
        },
        "hide": 2,
        "label": "Table name",
        "name": "tableName",
        "query": "bmcpfs_test",
        "skipUrlSync": true,
        "type": "constant"
      },
      {
        "current": {
          "text": "5000",
          "value": "5000"
        },
        "label": "Display limit",
        "name": "limit",
        "options": [
          {
            "selected": false,
            "text": "10",
            "value": "10"
          },
          {
            "selected": false,
            "text": "50",
            "value": "50"
          },
          {
            "selected": false,
            "text": "100",
            "value": "100"
          },
          {
            "selected": false,
            "text": "500",
            "value": "500"
          },
          {
            "selected": false,
            "text": "1000",
            "value": "1000"
          },
          {
            "selected": true,
            "text": "5000",
            "value": "5000"
          },
          {
            "selected": false,
            "text": "10000",
            "value": "10000"
          }
        ],
        "query": "10,50,100,500,1000,5000,10000",
        "type": "custom"
      },
      {
        "current": {
          "text": "bmcpfs_test_idx",
          "value": "bmcpfs_test_idx"
        },
        "hide": 2,
        "name": "indexName",
        "query": "bmcpfs_test_idx",
        "skipUrlSync": true,
        "type": "constant"
      }
    ]
  },
  "time": {
    "from": "now-1h",
    "to": "now"
  },
  "timepicker": {
    "hidden": true
  },
  "timezone": "",
  "title": "CPFS file search",
  "uid": "file-search-analysis",
  "version": 33
}

{
  "annotations": {
    "list": [
      {
        "builtIn": 1,
        "datasource": "-- Grafana --",
        "enable": true,
        "hide": true,
        "iconColor": "rgba(0, 211, 255, 1)",
        "name": "Annotations & Alerts",
        "type": "dashboard"
      }
    ]
  },
  "editable": true,
  "fiscalYearStartMonth": 0,
  "graphTooltip": 0,
  "id": 3,
  "links": [
    {
      "asDropdown": true,
      "icon": "external link",
      "includeVars": false,
      "keepTime": false,
      "tags": [],
      "targetBlank": false,
      "title": "Other Dashboards",
      "tooltip": "",
      "type": "dashboards",
      "url": ""
    }
  ],
  "panels": [
    {
      "datasource": {
        "type": "aliyun-tablestore-grafana-datasource-adapt-react",
        "uid": "fffrqt7w6setcc"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "continuous-BlPu"
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": 0
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          },
          "unit": "none"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 3,
        "w": 12,
        "x": 0,
        "y": 0
      },
      "id": 3,
      "options": {
        "colorMode": "background",
        "graphMode": "none",
        "justifyMode": "auto",
        "orientation": "horizontal",
        "percentChangeColorMode": "standard",
        "reduceOptions": {
          "calcs": [
            "last"
          ],
          "fields": "",
          "values": false
        },
        "showPercentChange": false,
        "textMode": "auto",
        "wideLayout": true
      },
      "pluginVersion": "12.3.1",
      "targets": [
        {
          "datasource": {
            "type": "aliyun-tablestore-grafana-datasource-adapt-react",
            "uid": "fffrqt7w6setcc"
          },
          "formatType": "Table",
          "query": "SELECT COUNT(*) AS file_count\nFROM `$tableName` USE INDEX($indexName)\nWHERE \n  fileSize >= IF('$fileSize'='',0,$fileSize+0) * 1024\nAND \n  aTime >= $__unixMilliTimeFrom() AND aTime < $__unixMilliTimeTo()\nAND\n  TEXT_MATCH_PHRASE(file_name,'$pathFilter')",
          "refId": "A",
          "xcol": "_time",
          "ycol": ""
        }
      ],
      "title": "Matching file count",
      "type": "stat"
    },
    {
      "datasource": {
        "type": "aliyun-tablestore-grafana-datasource-adapt-react",
        "uid": "fffrqt7w6setcc"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "thresholds"
          },
          "mappings": [],
          "noValue": "0GB",
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": 0
              },
              {
                "color": "red",
                "value": 100
              }
            ]
          },
          "unit": "bytes"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 3,
        "w": 12,
        "x": 12,
        "y": 0
      },
      "id": 5,
      "options": {
        "colorMode": "background",
        "graphMode": "area",
        "justifyMode": "auto",
        "orientation": "horizontal",
        "percentChangeColorMode": "standard",
        "reduceOptions": {
          "calcs": [
            "last"
          ],
          "fields": "",
          "values": false
        },
        "showPercentChange": false,
        "textMode": "value",
        "wideLayout": true
      },
      "pluginVersion": "12.3.1",
      "targets": [
        {
          "datasource": {
            "type": "aliyun-tablestore-grafana-datasource-adapt-react",
            "uid": "fffrqt7w6setcc"
          },
          "formatType": "Table",
          "query": "SELECT \n  SUM(fileSize) AS cpfs_total_capacity_bytes\nFROM `$tableName` USE INDEX($indexName)\nWHERE \n  fileSize >= IF('$fileSize'='',0,$fileSize+0) * 1024\nAND \n  aTime >= $__unixMilliTimeFrom() AND aTime < $__unixMilliTimeTo()\nAND\n  TEXT_MATCH_PHRASE(file_name,'$pathFilter')",
          "refId": "A",
          "xcol": "aTime",
          "ycol": ""
        }
      ],
      "title": "Total size of matching files",
      "type": "stat"
    },
    {
      "datasource": {
        "type": "aliyun-tablestore-grafana-datasource-adapt-react",
        "uid": "fffrqt7w6setcc"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "thresholds"
          },
          "custom": {
            "align": "left",
            "cellOptions": {
              "type": "auto"
            },
            "footer": {
              "reducers": []
            },
            "inspect": false
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": 0
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": [
          {
            "matcher": {
              "id": "byName",
              "options": "File path"
            },
            "properties": [
              {
                "id": "custom.width",
                "value": 561
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "File size"
            },
            "properties": [
              {
                "id": "custom.width",
                "value": 198
              },
              {
                "id": "unit",
                "value": "bytes"
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "Creation time"
            },
            "properties": [
              {
                "id": "unit",
                "value": "dateTimeAsIso"
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "Access time"
            },
            "properties": [
              {
                "id": "unit",
                "value": "dateTimeAsIso"
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "Modification time"
            },
            "properties": [
              {
                "id": "unit",
                "value": "dateTimeAsIso"
              }
            ]
          }
        ]
      },
      "gridPos": {
        "h": 17,
        "w": 24,
        "x": 0,
        "y": 3
      },
      "id": 1,
      "options": {
        "cellHeight": "md",
        "showHeader": true,
        "sortBy": [
          {
            "desc": false,
            "displayName": "File path"
          }
        ]
      },
      "pluginVersion": "12.3.1",
      "targets": [
        {
          "datasource": {
            "type": "aliyun-tablestore-grafana-datasource-adapt-react",
            "uid": "fffrqt7w6setcc"
          },
          "formatType": "Table",
          "query": "SELECT \n  file_name AS \"File path\",\n  fileSize AS \"File size\",\n  cTime AS \"Creation time\",\n  aTime AS \"Access time\",\n  mTime AS \"Modification time\"\nFROM `$tableName` USE INDEX($indexName)\nWHERE \n  fileSize >= IF('$fileSize'='',0,$fileSize+0) * 1024\nAND \n  aTime >= $__unixMilliTimeFrom() AND aTime < $__unixMilliTimeTo()\nAND\n  TEXT_MATCH_PHRASE(file_name,'$pathFilter')\nORDER BY fileSize ASC\nLIMIT $limit",
          "refId": "A",
          "xcol": "_time",
          "ycol": ""
        }
      ],
      "title": "File query results",
      "type": "table"
    }
  ],
  "preload": false,
  "refresh": "5m",
  "schemaVersion": 42,
  "tags": [],
  "templating": {
    "list": [
      {
        "current": {
          "text": "",
          "value": ""
        },
        "label": "File size threshold (KiB)",
        "name": "fileSize",
        "options": [
          {
            "selected": true,
            "text": "",
            "value": ""
          }
        ],
        "query": "",
        "type": "textbox"
      },
      {
        "current": {
          "text": "fileset1",
          "value": "fileset1"
        },
        "label": "Directory filter",
        "name": "pathFilter",
        "options": [
          {
            "selected": true,
            "text": "fileset1",
            "value": "fileset1"
          }
        ],
        "query": "fileset1",
        "type": "textbox"
      },
      {
        "current": {
          "text": "5000",
          "value": "5000"
        },
        "label": "Display limit",
        "name": "limit",
        "options": [
          {
            "selected": false,
            "text": "10",
            "value": "10"
          },
          {
            "selected": false,
            "text": "50",
            "value": "50"
          },
          {
            "selected": false,
            "text": "100",
            "value": "100"
          },
          {
            "selected": false,
            "text": "500",
            "value": "500"
          },
          {
            "selected": false,
            "text": "1000",
            "value": "1000"
          },
          {
            "selected": true,
            "text": "5000",
            "value": "5000"
          },
          {
            "selected": false,
            "text": "10000",
            "value": "10000"
          }
        ],
        "query": "10,50,100,500,1000,5000,10000",
        "type": "custom"
      },
      {
        "current": {
          "text": "bmcpfs_test",
          "value": "bmcpfs_test"
        },
        "description": "",
        "hide": 2,
        "label": "Table name",
        "name": "tableName",
        "query": "bmcpfs_test",
        "skipUrlSync": true,
        "type": "constant"
      },
      {
        "current": {
          "text": "bmcpfs_test_idx",
          "value": "bmcpfs_test_idx"
        },
        "hide": 2,
        "name": "indexName",
        "query": "bmcpfs_test_idx",
        "skipUrlSync": true,
        "type": "constant"
      }
    ]
  },
  "time": {
    "from": "now-30d",
    "to": "now"
  },
  "timepicker": {},
  "timezone": "",
  "title": "CPFS file search & analysis",
  "uid": "cpfs-analysis",
  "version": 90
}
