Technical specifications of WUYING hardware clients

Parameter

Specifications

Size

Model

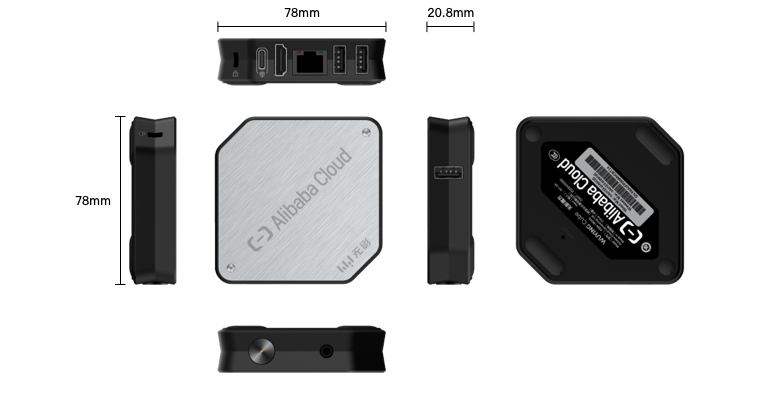

AS05-2DCXG

Wired network

100 Mbps Ethernet port

Wireless network

802.11a/b/g/n/ac dual-band Wi-Fi (2.4 GHz/5 GHz)

Bluetooth

Bluetooth 5.0

USB ports

3 × USB Type-A 2.0

Video port

1 × HDMI OUT (up to 2560 × 1400 at 60 FPS)

Audio output

3.5 mm 4-segment LRGM headset jack

Security lock slot

Standard security locks

In the box

• 1 × 5 V 2 A DC power adapter

• 1 × 1 m power cable

• 1 × 1 m HDMI 2.0 video cable

Warranty

3-year warranty

Parameter

Specifications

Size

Model

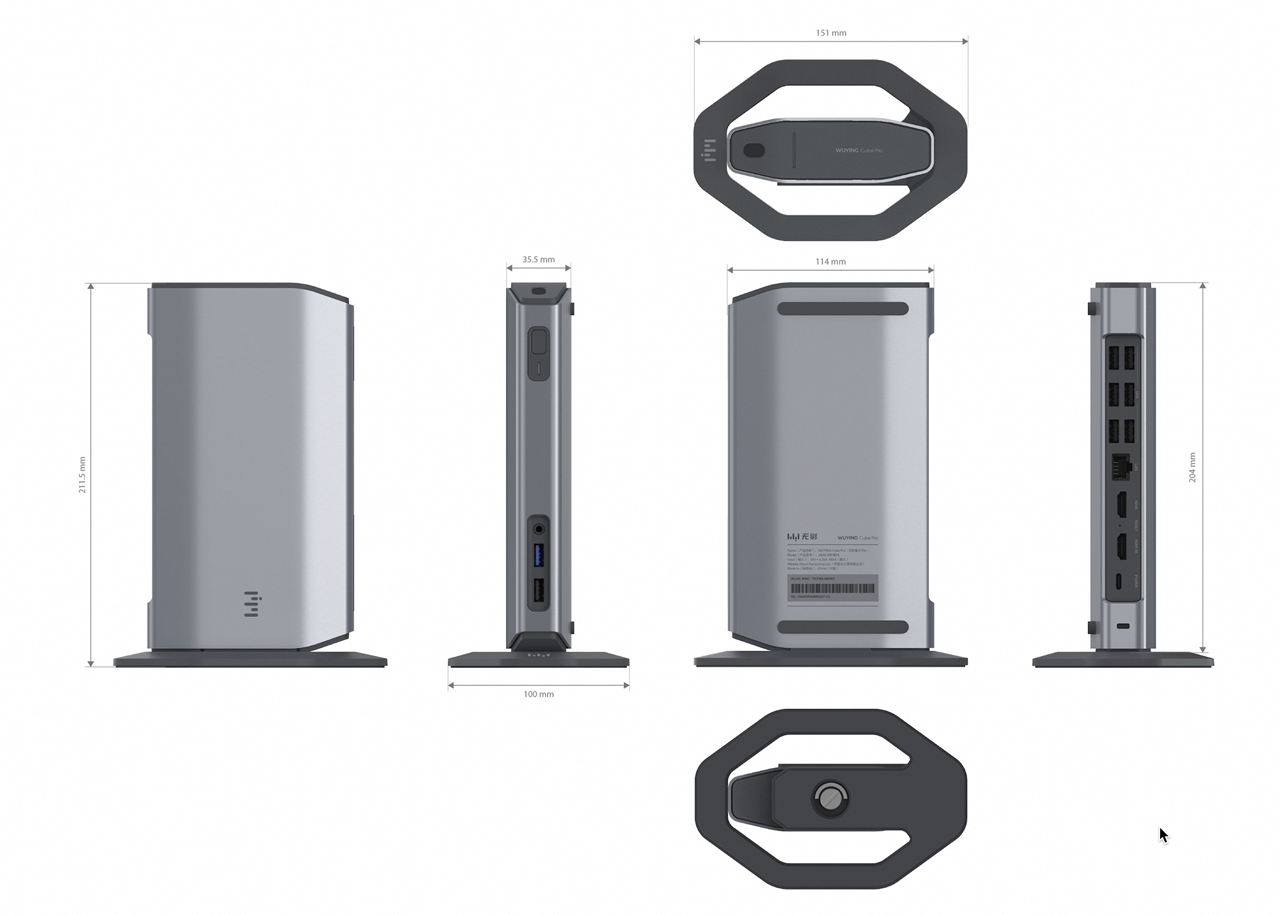

AS06-2BHXG

Wired network

1000 Mbps Ethernet port

Wireless network

802.11a/b/g/n/ac dual-band Wi-Fi (2.4 GHz/5 GHz)

Bluetooth

Bluetooth 5.0

USB ports

8 × USB Type-A (1 × USB 3.0, 7 × USB 2.0)

Video port

2 × HDMI OUT (single: up to 3840 × 2160; dual: up to 2560 × 1600 + 1920 × 1080)

Audio output

3.5 mm 4-segment LRGM headset jack

Power port

Type-C port (20 V DC)

Security lock slot

Standard security locks

In the box

• 1 × 45 W power adapter

• 1 × 1 m power cable

• 1 × 1 m HDMI 2.0 video cable

Warranty

3-year warranty

Category

Parameter

Specifications

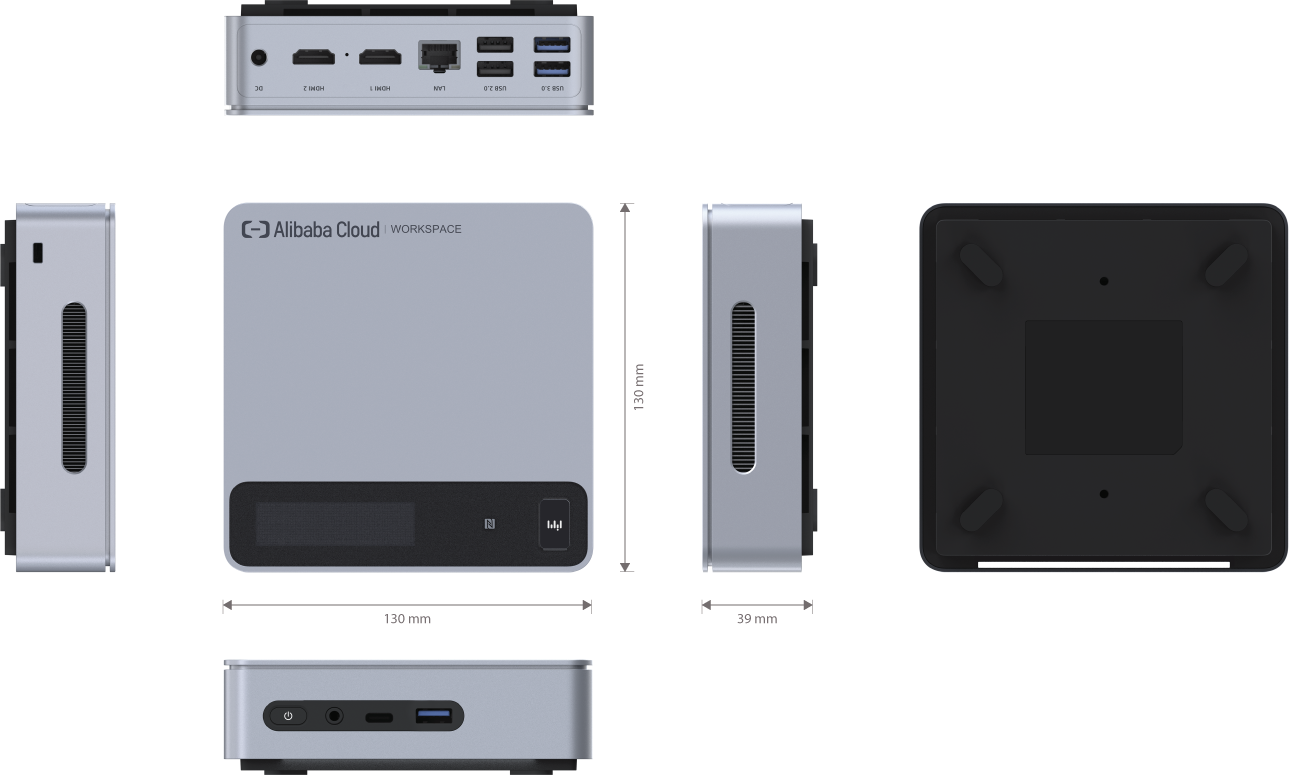

Basic information

Device model

AX01-4DGXG

Appearance

Color

Metal gray

Body material

PC+ABS

Smart mini screen

Resolution: 480 × 120 pixels. Anti-fingerprint coating.

Dimensions and weight

• Without packaging: 130 mm × 130 mm × 39 mm, approx. 430 g.

• With packaging: 158 mm × 158 mm × 91 mm, approx. 910 g.

Ports and features

USB ports

• 2 × USB 3.0 Type-A

• 3 × USB 2.0 Type-A

Type-C port

1 × USB 3.1 Type-C

Audio output

1 × 3.5 mm 4-segment LRGM headset jack

Buzzer

1 × buzzer

Video port

2 × HDMI OUT

Each port supports a maximum resolution of 4K (3840 × 2160 pixels).

NFC

1 × NFC induction module. Lets you log on to WUYING Workspace by tapping the client with a device running the WUYING iOS client or Android client.

RTC

1 × RTC battery clock

Custom function key

1 × WUYING custom function key (You can configure its function in System Settings.)

Network and connectivity

Wired network

1 × 1 GE port

Wireless network

1 × Wi-Fi 6 802.11ax/ac/a/b/g/n 2T2R

Bluetooth

Bluetooth 5.2

Power

Power port

DC port

Adapter specifications

1 × 12 V 3 A DC power adapter

Security

Security lock slot

1 × security lock slot

Other

Packing list

• 1 × main unit

• 1 × HDMI cable

• 1 × DC power adapter

• 1 × user manual

Warranty

3-year warranty

Parameter

Specifications

Size

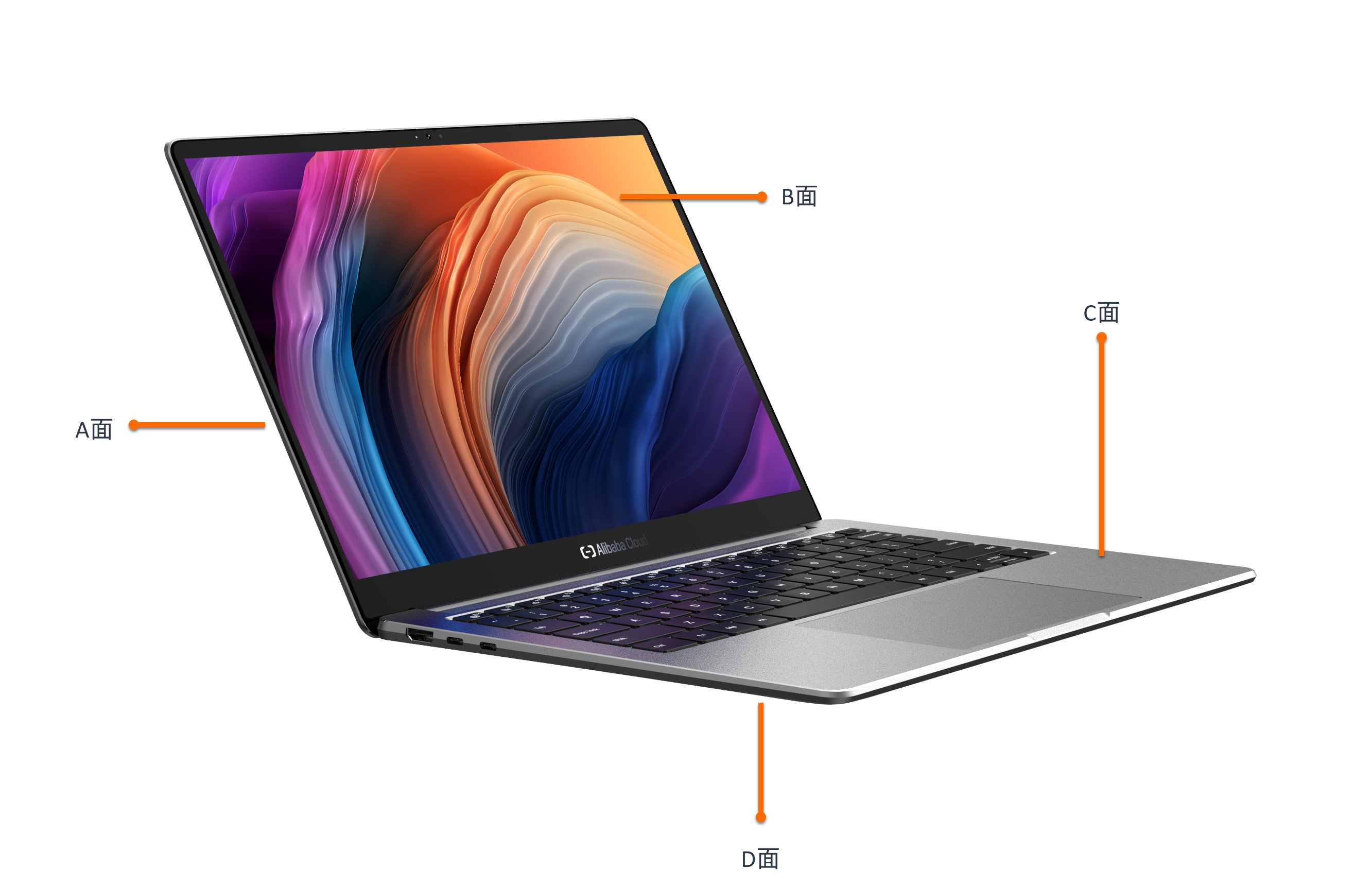

Body material

Metal material for the A, C, and D sides

Model

VNR210-W

Panel

14-inch LCD, 1920 × 1200, 16:10

Wireless network

802.11a/b/g/n/ac dual-band Wi-Fi (2.4 GHz/5 GHz)

Bluetooth

Bluetooth 5.0

Camera

2-megapixel standard camera

Video port

1 × HDMI OUT (up to 2K at 60 FPS)

Microphones

2

Speakers

2

Audio port

1 × 2-in-1 headset and microphone jack

USB ports

• 1 × USB Type-A 3.0

• 1 × USB Type-A 2.0

• 1 × USB Type-C 3.0 (does not support DisplayPort or USB Power Delivery)

• 1 × USB Type-C 2.0 (does not support DisplayPort)

Keyboard

Full-size keyboard with scissor switches

Touchpad

117 mm × 67 mm three-button mechanical touchpad

Battery

7.6 V 5000 mAh

Power adapter

12 V 2.5 A

Other

1 × security lock slot

Warranty

3-year warranty

Parameter

Specifications

Size

Weight

1.38 kg

Opening angle

125 degrees

Body material

• Aluminum alloy for the A, C, and D sides.

• Glass cover for the B side, featuring multilayer anti-fingerprint and anti-glare coating with full lamination.

Front camera

2-megapixel RGB camera.

Microphones

2 × digital silicon microphones

LTPS screen

• 14-inch ultra-thin In-Plane Switching (IPS)

• 2880 × 1800 pixels

• 100% sRGB color gamut

• 300 nits backlight, Direct Current (DC) dimming

• Screen-to-body ratio ≥ 90%

• TÜV Rheinland certified low blue light and flicker-free technology

Wi-Fi/Bluetooth

Intel AX2XX series - Wi-Fi 6 2T×2R-MIMO - BLE 5.0

Cellular data (LTE)

CAT4 - All carriers (supports nano-SIM cards for data traffic)

Audio

• Built-in stereo speakers: 8R/2.0 W × 2 integrated speakers

• Realtek driver chip

USB

• 2 × USB Type-A

• 1 × full-featured USB Type-C: DP 1.2 + HDMI 1.4 (supports 4K at 30 FPS in a single cloud desktop window)

• 1 × (U3+PD) USB Type-C: 3.0 5 V 3 A

HDMI

1 × HDMI 2.0 Type-A (Standard Edition)

Headset microphone

3.5 mm headset jack (LRGM)

Battery

58 Wh battery, supports fast charging.

Keyboard

Silent, backlit keyboard with a three-coat process, 16 mm keycaps, and 12 mm key travel.

Touchpad

135 mm × 78 mm ForcePad touchpad

Power

45 W, supports USB Type-C port, supports external power supply through USB Power Delivery (PD).

Warranty

3-year warranty

Parameter

Specifications

Size

Model

US05-2BFXG

Body material

Plastic body, metal base.

Panel

21.5-inch, 1920 × 1080 at 60 Hz

Wired network

10/100/1000 Mbps auto-sensing network adapter (RJ45 port)

Wireless network

802.11a/b/g/n/ac dual-band Wi-Fi (2.4 GHz/5 GHz) 2T2R

Bluetooth

Bluetooth 5.0

Camera

1 × 1-megapixel camera

Video port

1 × HDMI OUT (up to 2K)

Speakers

Multi-channel stereo speakers (2 W × 2)

Audio output

3.5 mm 3-segment headphone jack

USB ports

• 1 × USB 3.0 port

• 5 × USB 2.0 ports

Power adapter

36 W

Warranty

3-year warranty

Parameter

Specifications

Size

Model

US01-2BHXG

Panel

23.8-inch 1920 × 1080 at 60 Hz IPS display, Grade A+

Wired network

1 × 1 GE network interface card

Wireless network

802.11a/b/g/n/ac dual-band Wi-Fi 5 (2.4 GHz/5 GHz)

Bluetooth

Bluetooth 5.0

Video port

1 × HDMI OUT (up to 2560 × 1400 at 60 FPS)

Speakers

Multi-channel stereo speakers (2 W × 2)

Audio output

3.5 mm 4-segment headphone jack

USB ports

• 2 × USB 3.0

• 4 × USB 2.0

Power adapter

12 V 4 A DC power

Warranty

3-year warranty
