Schema Registry管理

云消息队列 Confluent 版使用Schema Registry管理Schema。本文将向您介绍在Linux环境下Schema Registry的基本操作。

前提条件

步骤一:准备示例代码

  1. 执行以下命令,克隆示例代码,并切换到7.9.0-post分支。

    git clone https://github.com/confluentinc/examples.git

    cd examples/clients/avro

    git checkout 7.9.0-post
  2. $HOME/.confluent/路径下创建客户端配置文件java.config。其中 $HOME为您的用户主目录。在配置文件中,配置如下配置项。

    # Required connection configs for Kafka producer, consumer, and admin
    bootstrap.servers={{ BROKER_ENDPOINT }}
    security.protocol=SASL_SSL
    sasl.jaas.config=org.apache.kafka.common.security.plain.PlainLoginModule required username='{{ CLUSTER_API_KEY }}' password='{{ CLUSTER_API_SECRET }}';
    sasl.mechanism=PLAIN

    # Required for correctness in Apache Kafka clients prior to 2.6
    client.dns.lookup=use_all_dns_ips

    # Best practice for higher availability in Apache Kafka clients prior to 3.0
    session.timeout.ms=45000

    # Best practice for Kafka producer to prevent data loss
    acks=all

    # Required connection configs for Confluent Cloud Schema Registry
    schema.registry.url=https://{{ SR_ENDPOINT }}
    basic.auth.credentials.source=USER_INFO
    basic.auth.user.info={{ SR_API_KEY }}:{{ SR_API_SECRET }}

    参数

    描述

    示例值

    BROKER_ENDPOINT

    KAFKA服务的链接地址。

    服务地址在云消息队列 Confluent 版控制台访问链接和接口页面查看。若需要使用公网访问,则需要开启公网,其他安全访问配置请参见网络访问与安全设置

    pub-kafka-xxxxxxxxxxx.csp.aliyuncs.com:9092

    CLUSTER_API_KEY

    云消息队列 Confluent 版控制台用户管理页面中LDAP用户名和密码。

    在测试过程中,可以暂时使用root账号及其密码。如需使用其他用户,则需在云消息队列 Confluent 版控制台中创建该用户,并为其授予Kafka cluster相应的权限。创建用户和授权,请参见用户管理和授权

    root

    CLUSTER_API_SECRET

    ******

    SR_ENDPOINT

    SCHEMA_REGISTRY服务的链接地址。

    服务地址在云消息队列 Confluent 版控制台访问链接和接口页面查看。若需要使用公网访问,则需要开启公网,其他安全访问配置请参见网络访问与安全设置

    pub-schemaregistry-xxxxxxxxxxx.csp.aliyuncs.com:443

    SR_API_KEY

    云消息队列 Confluent 版控制台用户管理页面中LDAP用户名和密码。

    在测试过程中,可以暂时使用root账号及其密码。如需使用其他用户,则需在云消息队列 Confluent 版控制台中创建该用户,并为其授予Schema Registry相应的权限。创建用户和授权,请参见用户管理和授权

    root

    SR_API_SECRET

    ******

步骤二:创建Topic

说明

示例代码中的Topic参数值设定为transactions。在测试时,可以直接创建名为transactionsTopic。如果需要使用其他的Topic,则需相应更改代码中的参数值。

  1. 登录Control Center控制台,在Home页面单击controlcenter.clusterk卡片,进入到Cluster overview页面。


  2. 在左侧导航栏,单击Topics,然后在Topic列表页面单击+ Add topic


  3. New topic页面,设置Topic名称和分区数,然后单击Create with defaults


  4. 创建完成后,进入到Topic详情页面。


步骤三:开启Schema格式校验

  1. Topic详情页面,单击Configuration页签,然后单击Edit settings


  2. 然后单击Switch to expert mode


  3. confluent_value_schema_validation字段设置为true,然后单击Save changes,启用Schema验证消息内容格式。启用后发送和消费数据时将进行格式校验。


步骤四:创建Schema

  1. 进入项目的examples/clients/avro目录下,执行以下命令,查看Payment.avsc文件内容。

    cat src/main/resources/avro/io/confluent/examples/clients/basicavro/Payment.avsc

    返回结果

    {
     "namespace": "io.confluent.examples.clients.basicavro",
     "type": "record",
     "name": "Payment",
     "fields": [
         {"name": "id", "type": "string"},
         {"name": "amount", "type": "double"}
     ]
    }

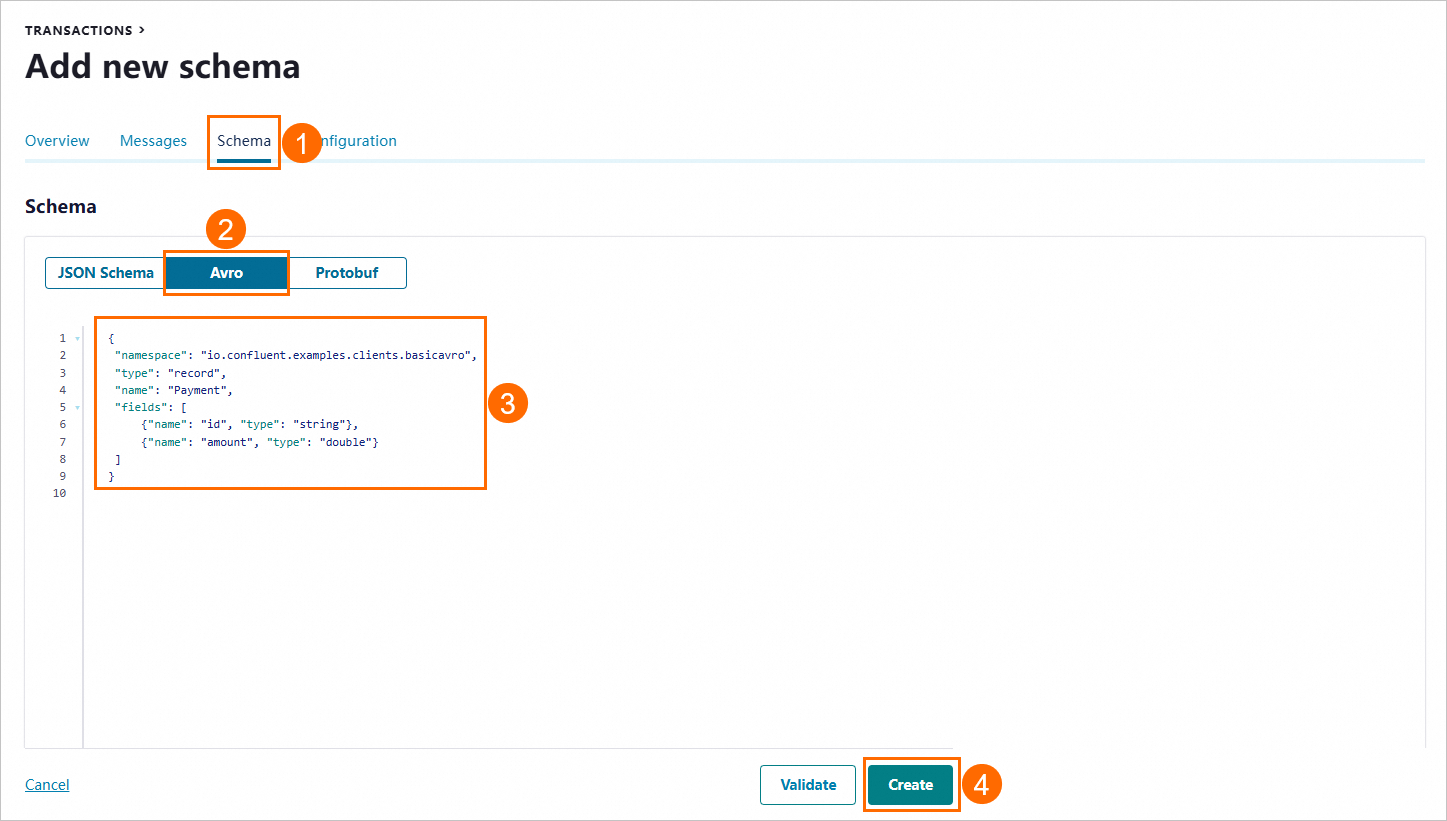

  2. Control Center控制台Topic详情页面,单击Schema,然后单击Set a schema

  3. Schema页签,单击Avro,将上述Payment.avsc文本填入文本框,单击Create


步骤五:发送/消费消息

发送消息

创建Schema的校验格式为Avro,则需要在发送消息时将消息序列化方式指定为KafkaAvroSerializer类,并将消息值类配置为Payment类。

示例代码如下:

生产消息示例代码

import io.confluent.kafka.serializers.AbstractKafkaSchemaSerDeConfig;
import org.apache.kafka.clients.producer.KafkaProducer;
import org.apache.kafka.clients.producer.ProducerConfig;
import org.apache.kafka.clients.producer.ProducerRecord;
import org.apache.kafka.common.serialization.StringSerializer;
import io.confluent.kafka.serializers.KafkaAvroSerializer;
import org.apache.kafka.common.errors.SerializationException;

import java.util.Properties;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.io.FileInputStream;
import java.io.InputStream;

public class ProducerExample {

    private static final String TOPIC = "transactions";
    private static final Properties props = new Properties();
    private static String configFile;

    @SuppressWarnings("InfiniteLoopStatement")
    public static void main(final String[] args) throws IOException {

        if (args.length < 1) {
          // Backwards compatibility, assume localhost
          props.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:9092");
          props.put(AbstractKafkaSchemaSerDeConfig.SCHEMA_REGISTRY_URL_CONFIG, "http://localhost:8081");
        } else {
          // Load properties from a local configuration file
          // Create the configuration file (e.g. at '$HOME/.confluent/java.config') with configuration parameters
          // to connect to your Kafka cluster, which can be on your local host, Confluent Cloud, or any other cluster.
          // Documentation at https://docs.confluent.io/platform/current/tutorials/examples/clients/docs/java.html
          configFile = args[0];
          if (!Files.exists(Paths.get(configFile))) {
            throw new IOException(configFile + " not found.");
          } else {
            try (InputStream inputStream = new FileInputStream(configFile)) {
              props.load(inputStream);
            }
          }
        }

        props.put(ProducerConfig.ACKS_CONFIG, "all");
        props.put(ProducerConfig.RETRIES_CONFIG, 0);
        props.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, StringSerializer.class);
        props.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, KafkaAvroSerializer.class);

        try (KafkaProducer<String, Payment> producer = new KafkaProducer<String, Payment>(props)) {

            for (long i = 0; i < 10; i++) {
                final String orderId = "id" + Long.toString(i);
                final Payment payment = new Payment(orderId, 1000.00d);
                final ProducerRecord<String, Payment> record = new ProducerRecord<String, Payment>(TOPIC, payment.getId().toString(), payment);
                producer.send(record);
                Thread.sleep(1000L);
            }

            producer.flush();
            System.out.printf("Successfully produced 10 messages to a topic called %s%n", TOPIC);

        } catch (final SerializationException e) {
            e.printStackTrace();
        } catch (final InterruptedException e) {
            e.printStackTrace();
        }

    }

}

发送消息的操作如下:

  1. 进入项目的examples/clients/avro目录下,执行以下命令编译项目。

    mvn clean compile package
  2. 编译完成后,执行以下代码,发送消息。

    mvn exec:java -Dexec.mainClass=io.confluent.examples.clients.basicavro.ProducerExample \
      -Dexec.args="$HOME/.confluent/java.config"

    执行发送命令后,如下结果则表明发送成功。

    ...
    Successfully produced 10 messages to a topic called transactions
    [INFO] ------------------------------------------------------------------------
    [INFO] BUILD SUCCESS
    [INFO] ------------------------------------------------------------------------
    ...

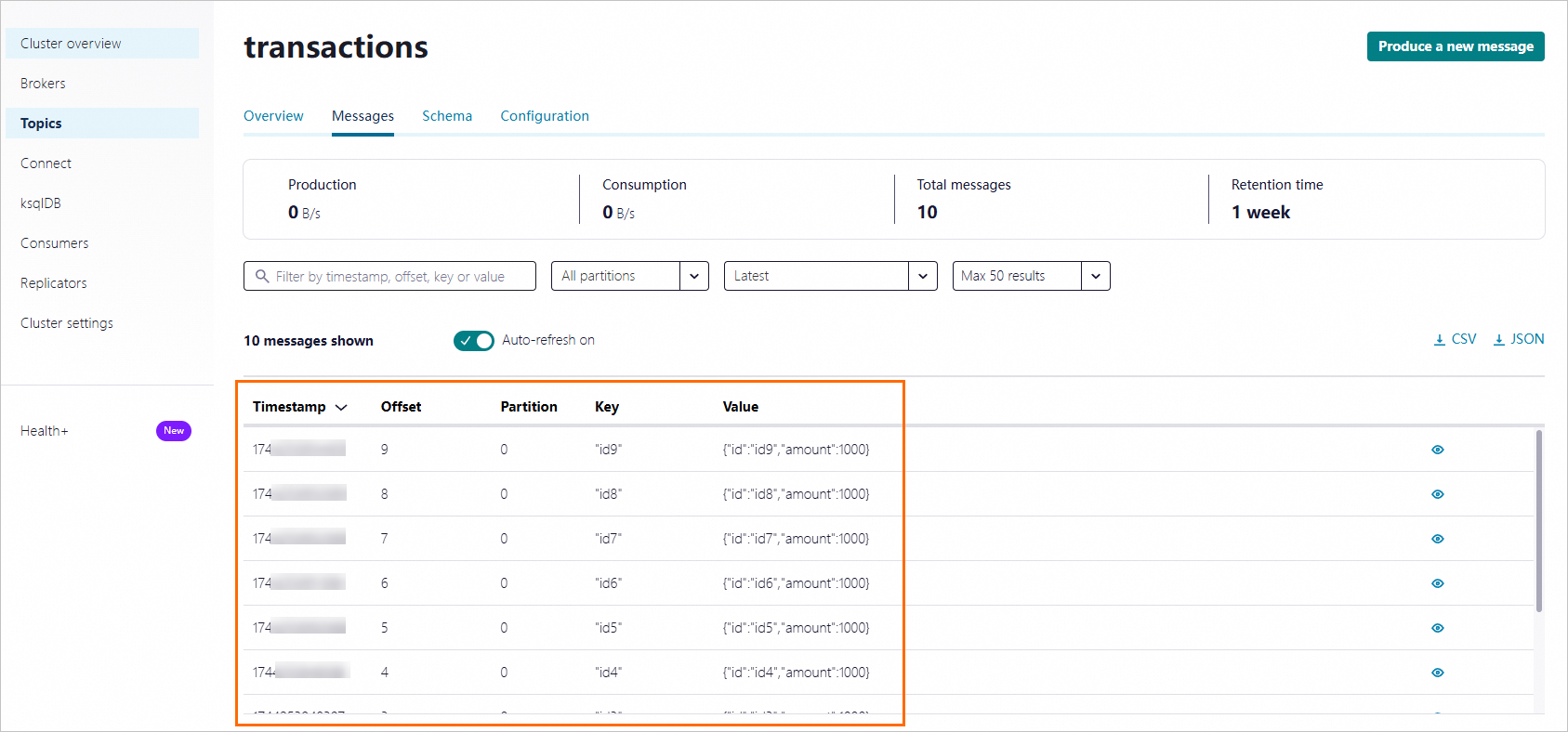

  3. Control Center控制台可以查看到已发送的消息。


消费消息

创建Schema的校验格式为Avro,则需要在消费消息时将消息反序列化方式指定为KafkaAvroDeSerializer类,并将消息值类配置为Payment类。

示例代码如下:

消费消息示例代码

import io.confluent.kafka.serializers.AbstractKafkaSchemaSerDeConfig;
import org.apache.kafka.clients.consumer.ConsumerConfig;
import org.apache.kafka.clients.consumer.ConsumerRecord;
import org.apache.kafka.clients.consumer.ConsumerRecords;
import org.apache.kafka.clients.consumer.KafkaConsumer;
import io.confluent.kafka.serializers.KafkaAvroDeserializer;
import io.confluent.kafka.serializers.KafkaAvroDeserializerConfig;
import org.apache.kafka.common.serialization.StringDeserializer;

import java.time.Duration;
import java.util.Collections;
import java.util.Properties;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.io.FileInputStream;
import java.io.InputStream;

public class ConsumerExample {

    private static final String TOPIC = "transactions";
    private static final Properties props = new Properties();
    private static String configFile;

    @SuppressWarnings("InfiniteLoopStatement")
    public static void main(final String[] args) throws IOException {

        if (args.length < 1) {
          // Backwards compatibility, assume localhost
          props.put(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:9092");
          props.put(AbstractKafkaSchemaSerDeConfig.SCHEMA_REGISTRY_URL_CONFIG, "http://localhost:8081");
        } else {
          // Load properties from a local configuration file
          // Create the configuration file (e.g. at '$HOME/.confluent/java.config') with configuration parameters
          // to connect to your Kafka cluster, which can be on your local host, Confluent Cloud, or any other cluster.
          // Documentation at https://docs.confluent.io/platform/current/tutorials/examples/clients/docs/java.html
          configFile = args[0];
          if (!Files.exists(Paths.get(configFile))) {
            throw new IOException(configFile + " not found.");
          } else {
            try (InputStream inputStream = new FileInputStream(configFile)) {
              props.load(inputStream);
            }
          }
        }

        props.put(ConsumerConfig.GROUP_ID_CONFIG, "test-payments");
        props.put(ConsumerConfig.ENABLE_AUTO_COMMIT_CONFIG, "true");
        props.put(ConsumerConfig.AUTO_COMMIT_INTERVAL_MS_CONFIG, "1000");
        props.put(ConsumerConfig.AUTO_OFFSET_RESET_CONFIG, "earliest");
        props.put(ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG, StringDeserializer.class);
        props.put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG, KafkaAvroDeserializer.class);
        props.put(KafkaAvroDeserializerConfig.SPECIFIC_AVRO_READER_CONFIG, true);

        try (final KafkaConsumer<String, Payment> consumer = new KafkaConsumer<>(props)) {
            consumer.subscribe(Collections.singletonList(TOPIC));

            while (true) {
                final ConsumerRecords<String, Payment> records = consumer.poll(Duration.ofMillis(100));
                for (final ConsumerRecord<String, Payment> record : records) {
                    final String key = record.key();
                    final Payment value = record.value();
                    System.out.printf("key = %s, value = %s%n", key, value);
                }
            }

        }
    }

}

消费消息的操作如下:

  1. 进入项目的examples/clients/avro目录下,执行以下命令编译项目。

    mvn clean compile package
  2. 执行以下代码,消费消息。

    mvn exec:java -Dexec.mainClass=io.confluent.examples.clients.basicavro.ConsumerExample \
      -Dexec.args="$HOME/.confluent/java.config"
  3. 运行消费命令后,如下结果则表明消息已被成功消费。

    ...
    key = id0, value = {"id": "id0", "amount": 1000.0}
    key = id1, value = {"id": "id1", "amount": 1000.0}
    key = id2, value = {"id": "id2", "amount": 1000.0}
    key = id3, value = {"id": "id3", "amount": 1000.0}
    key = id4, value = {"id": "id4", "amount": 1000.0}
    key = id5, value = {"id": "id5", "amount": 1000.0}
    key = id6, value = {"id": "id6", "amount": 1000.0}
    key = id7, value = {"id": "id7", "amount": 1000.0}
    key = id8, value = {"id": "id8", "amount": 1000.0}
    key = id9, value = {"id": "id9", "amount": 1000.0}
    ...

相关文档

更多关于Schema Registry的信息,请参见Schema Registry Overview
