使用自定义镜像快速创建计算巢服务

本文问您介绍通过自定义镜像创建ECS部署物的方式,创建计算巢私有部署服务。

前提条件

您已申请成为软件服务商

操作步骤

一、制作服务镜像

  1. 云服务器ECS-实例页面中,根据您的服务要求创建实例

  2. 将您的服务部署到ECS实例中,并测试。请参见部署自建项目

  3. 测试完成后,根据您的需求使用快照创建自定义镜像使用实例创建自定义镜像

  4. 创建完成后如下图所示。


二、创建计算巢部署物

  1. 进入计算巢-服务部署物页面。根据提示填写部署物信息

  2. 部署物内容区域中,选择ECS镜像,勾选自定义镜像并选择您制作的服务镜像

  3. 根据业务需求设置分发的地域。本节以全部地域为例。

  4. 单击发布部署物,完成创建。


说明

详细操作,请参见ECS镜像部署物

三、使用ECS部署物创建私有部署服务

  1. 进入计算巢-我的服务-创建新服务页面。

  2. 选择自定义创建服务,并在服务类型处,选择私有部署服务,然后单击下一步:配置服务

  3. 基本信息区域,上传服务图标,填写服务名称服务简介版本描述

  4. 服务部署区域,配置服务部署信息。

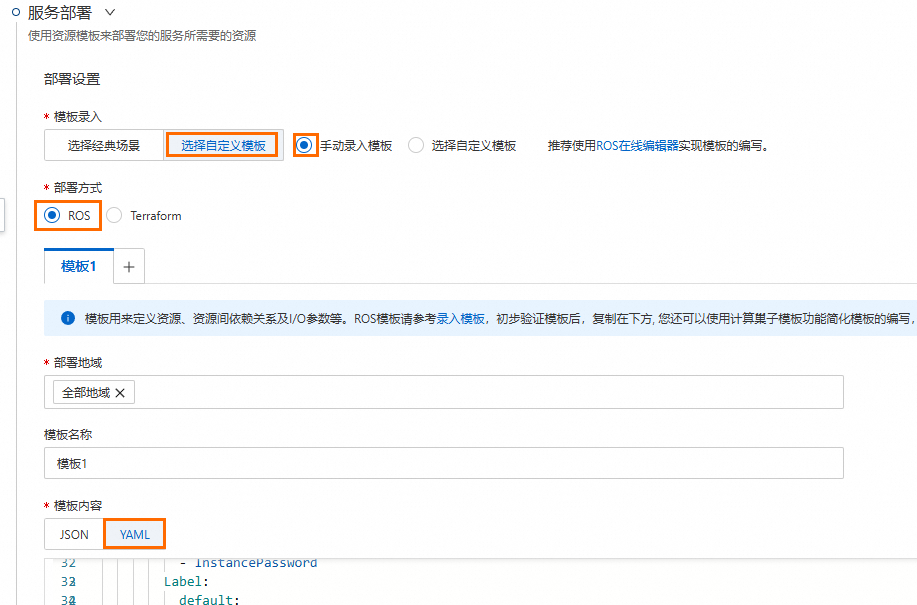

    1. 模板录入处选择经典场景选择自定义模板,对应操作如下所示。

      自定义模板

      1. 选择手动录入模板, 本节的以部署方式选择ROS为例。

      2. 部署地域选择全部地域

      3. 模板内容选择YAML,并填入服务模板,您可以使用如下示例模板。

        示例模板

        ROSTemplateFormatVersion: '2015-09-01'
        Conditions:
          CreateVpcConditions:
            Fn::Equals:
              - NewVPC
              - Ref: VpcOption
        Parameters:
          Model:
            Type: String
            Label:
              en: Model
              zh-cn: 内置模型
            AssociationPropertyMetadata:
              ValueLabelMapping:
                DeepSeek-R1_32b:
                  zh-cn: DeepSeek-R1:32b
                  en: DeepSeek-R1:32b
            AllowedValues:
              - DeepSeek-R1_32b
            Default: DeepSeek-R1_32b
          VpcOption:
            Type: String
            AllowedValues:
              - NewVPC
              - ExistingVPC
            AssociationPropertyMetadata:
              ValueLabelMapping:
                NewVPC:
                  zh-cn: 新建专有网络
                  en: New VPC
                ExistingVPC:
                  zh-cn: 已有专有网络
                  en: Existing VPC
            Label:
              en: Select Existing or New VPC
              zh-cn: 选择已有/新建的专有网络
            Required: true
            Default: NewVPC
          VpcCidrBlock:
            Type: String
            Label:
              en: VPC CIDR IPv4 Block
              zh-cn: 专有网络IPv4网段
            Description:
              zh-cn: VPCip地址段范围,<br>您可以使用以下的ip地址段或其子网:<br><font color='green'>[10.0.0.0/8]</font><br><font color='green'>[172.16.0.0/12]</font><br><font color='green'>[192.168.0.0/16]</font>
              en: 'The ip address range of the VPC in the CidrBlock form; <br>You can use the following ip address ranges and their subnets: <br><font color=''green''>[10.0.0.0/8]</font><br><font color=''green''>[172.16.0.0/12]</font><br><font color=''green''>[192.168.0.0/16]</font>'
            Default: 192.168.0.0/16
            Required:
              Fn::Equals:
                - NewVPC
                - ${VpcOption}
            AssociationProperty: ALIYUN::VPC::VPC::CidrBlock
            AssociationPropertyMetadata:
              Visible:
                Condition:
                  Fn::Equals:
                    - NewVPC
                    - ${VpcOption}
          VSwitchCidrBlock:
            Type: String
            Label:
              en: VSwitch CIDR Block
              zh-cn: 交换机子网网段
            Description:
              zh-cn: 必须属于VPC的子网段。
              en: Must belong to the subnet segment of VPC.
            Default: 192.168.1.0/24
            Required:
              Fn::Equals:
                - NewVPC
                - ${VpcOption}
            AssociationProperty: ALIYUN::VPC::VSwitch::CidrBlock
            AssociationPropertyMetadata:
              VpcCidrBlock: VpcCidrBlock
              Visible:
                Condition:
                  Fn::Equals:
                    - NewVPC
                    - ${VpcOption}
          PayType:
            Type: String
            Label:
              en: ECS Instance Charge Type
              zh-cn: 付费类型
            Default: PostPaid
            AllowedValues:
              - PostPaid
              - PrePaid
            AssociationProperty: ChargeType
            AssociationPropertyMetadata:
              LocaleKey: InstanceChargeType
          PayPeriodUnit:
            Type: String
            Label:
              en: Pay Period Unit
              zh-cn: 购买资源时长周期
            Default: Month
            AllowedValues:
              - Month
              - Year
            AssociationProperty: PayPeriodUnit
            AssociationPropertyMetadata:
              Visible:
                Condition:
                  Fn::Not:
                    Fn::Equals:
                      - ${PayType}
                      - PostPaid
          PayPeriod:
            Type: Number
            Label:
              en: Period
              zh-cn: 购买资源时长
            Default: 1
            AllowedValues:
              - 1
              - 2
              - 3
              - 4
              - 5
              - 6
              - 7
              - 8
              - 9
            AssociationProperty: PayPeriod
            AssociationPropertyMetadata:
              Visible:
                Condition:
                  Fn::Not:
                    Fn::Equals:
                      - ${PayType}
                      - PostPaid
          EcsInstanceType:
            Type: String
            Label:
              en: Instance Type
              zh-cn: 实例类型
            AssociationProperty: ALIYUN::ECS::Instance::InstanceType
            AssociationPropertyMetadata:
              InstanceChargeType: ${PayType}
              AllowedValues:
                - ecs.g9i.48xlarge
            Default: ecs.g9i.48xlarge
          InstancePassword:
            NoEcho: true
            Type: String
            Description:
              en: Server login password, Length 8-30, must contain three(Capital letters, lowercase letters, numbers, ()`~!@#$%^&*_-+=|{}[]:;'<>,.?/ Special symbol in)
              zh-cn: 服务器登录密码,长度8-30,必须包含三项(大写字母、小写字母、数字、 ()`~!@#$%^&*_-+=|{}[]:;'<>,.?/ 中的特殊符号)
            AllowedPattern: '^[a-zA-Z0-9-\(\)\`\~\!\@\#\$\%\^\&\*\_\-\+\=\|\{\}\[\]\:\;\<\>\,\.\?\/]*$'
            Label:
              en: Instance Password
              zh-cn: 实例密码
            ConstraintDescription:
              en: Length 8-30, must contain three(Capital letters, lowercase letters, numbers, ()`~!@#$%^&*_-+=|{}[]:;'<>,.?/ Special symbol in)
              zh-cn: 长度8-30,必须包含三项(大写字母、小写字母、数字、 ()`~!@#$%^&*_-+=|{}[]:;'<>,.?/ 中的特殊符号)
            MinLength: 8
            MaxLength: 30
            AssociationProperty: ALIYUN::ECS::Instance::Password
          ZoneId:
            Type: String
            Label:
              en: Zone ID
              zh-cn: 可用区ID
            AssociationProperty: ALIYUN::ECS::Instance::ZoneId
            AssociationPropertyMetadata:
              DefaultValueStrategy: random
              InstanceChargeType: ${PayType}
              SystemDiskCategory: cloud_essd
              InstanceType: ${EcsInstanceType}
          VpcId:
            Type: String
            Label:
              en: VPC ID
              zh-cn: 专有网络VPC实例ID
            AssociationProperty: 'ALIYUN::ECS::VPC::VPCId'
            Required:
              Fn::Equals:
                - ExistingVPC
                - ${VpcOption}
            Default: ''
            AssociationPropertyMetadata:
              AutoSelectFirst: true
              Visible:
                Condition:
                  Fn::Equals:
                    - ExistingVPC
                    - ${VpcOption}
          VSwitchId:
            Type: String
            Label:
              en: VSwitch ID
              zh-cn: 交换机实例ID
            Default: ''
            AssociationProperty: ALIYUN::ECS::VSwitch::VSwitchId
            Required:
              Fn::Equals:
                - ExistingVPC
                - ${VpcOption}
            AssociationPropertyMetadata:
              AutoSelectFirst: true
              VpcId: ${VpcId}
              ZoneId: ${ZoneId}
              Visible:
                Condition:
                  Fn::Equals:
                    - ExistingVPC
                    - ${VpcOption}
        Resources:
          # 新建vpc
          EcsVpc:
            Type: ALIYUN::ECS::VPC
            Condition: CreateVpcConditions
            Properties:
              VpcName:
                Ref: ALIYUN::StackName
              CidrBlock:
                Ref: VpcCidrBlock
          # 新建vswitch
          EcsVSwitch:
            Condition: CreateVpcConditions
            Type: ALIYUN::ECS::VSwitch
            Properties:
              VSwitchName:
                Ref: ALIYUN::StackName
              VpcId:
                Ref: EcsVpc
              ZoneId:
                Ref: ZoneId
              CidrBlock:
                Ref: VSwitchCidrBlock
          SecurityGroup:
            Type: ALIYUN::ECS::SecurityGroup
            Properties:
              SecurityGroupName:
                Ref: ALIYUN::StackName
              VpcId:
                Fn::If:
                  - CreateVpcConditions
                  - Ref: EcsVpc
                  - Ref: VpcId
              SecurityGroupIngress:
                - PortRange: 8000/8000
                  Priority: 1
                  SourceCidrIp: 0.0.0.0/0
                  IpProtocol: tcp
                  NicType: internet
                - PortRange: 11434/11434
                  Priority: 1
                  SourceCidrIp: 0.0.0.0/0
                  IpProtocol: tcp
                  NicType: internet
          EcsInstanceGroup:
            Type: ALIYUN::ECS::InstanceGroup
            Properties:
              # 付费类型
              InstanceChargeType:
                Ref: PayType
              PeriodUnit:
                Ref: PayPeriodUnit
              Period:
                Ref: PayPeriod
              VpcId:
                Fn::If:
                  - CreateVpcConditions
                  - Ref: EcsVpc
                  - Ref: VpcId
              VSwitchId:
                'Fn::If':
                  - CreateVpcConditions
                  - Ref: EcsVSwitch
                  - Ref: VSwitchId
              ZoneId:
                Ref: ZoneId
              SecurityGroupId:
                Ref: SecurityGroup
              Password:
                Ref: InstancePassword
              InstanceType:
                Ref: EcsInstanceType
              SystemDiskCategory: cloud_essd
              SystemDiskSize: 1024
              MaxAmount: 1
              # 镜像
              ImageId: centos_7
              InternetMaxBandwidthOut: 5
              IoOptimized: optimized
          RunInstallCommand:
            Type: ALIYUN::ECS::RunCommand
            Properties:
              InstanceIds:
                Fn::GetAtt:
                  - EcsInstanceGroup
                  - InstanceIds
              Type: RunShellScript
              Sync: true
              Timeout: 3600
              CommandContent: |-
                bash /root/run.sh

        Metadata:
          ALIYUN::ROS::Interface:
            TemplateTags:
              - 'acs:integrate:计算巢:ModelScope'
            # 分组信息
            ParameterGroups:
              - Parameters:
                  - Model
                Label:
                  default:
                    zh-cn: 选择模型
                    en: Choose Model
              - Parameters:
                  - PayType
                  - PayPeriodUnit
                  - PayPeriod
                Label:
                  default:
                    en: PayType Configuration
                    zh-cn: 付费类型配置
              - Parameters:
                  - EcsInstanceType
                  - InstancePassword
                Label:
                  default:
                    en: Instance
                    zh-cn: ECS实例配置
              - Parameters:
                  - ZoneId
                  - VpcOption
                  - VpcId
                  - VSwitchId
                  - VpcCidrBlock
                  - VSwitchCidrBlock
                Label:
                  default:
                    zh-cn: 选择网络配置
                    en: Choose existing Infrastructure Configuration

        您可根据场景修改示例模板的参数:

        • 服务实例所用规格:修改InstacneType参数限制。

        • 服务在安全组的端口:修改SecurityGroup资源中的端口。

        • 服务启动命令:替换RunInstallCommand属性中的命令。

        • 服务输出:调整Outpus属性中的IP和端口。


      经典场景

      1. 部署地域选择全部地域

      2. 选择自定义镜像创建单实例ECS服务器-支持新建/选择已有专有网络、支持公网访问、不带数据盘场景。


      3. 单击添加套餐,设置两个套餐且不支持自定义套餐。2024-01-30_15-09-30.png

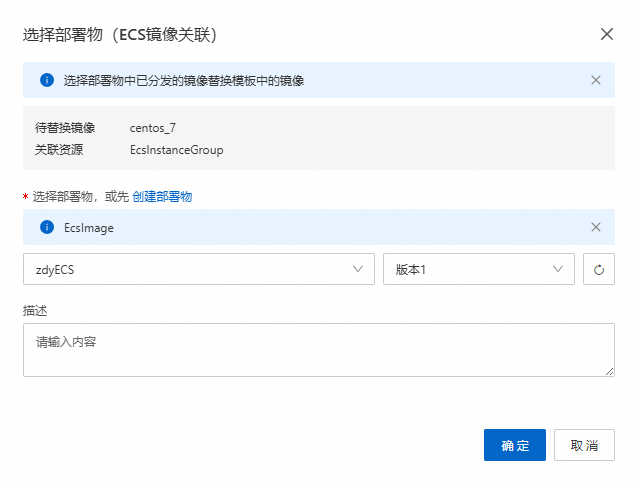

    2. 部署物关联区域中,单击设置ECS镜像关联选择部署物


    3. 在弹框中,选择您已创建的部署物,并单击确定


    4. 不设置应用分组

      若您需要将模板中的资源进行分组,可单击创建应用分组,对资源分组。

    5. 服务运维(选填)区域,设置服务配置运维功能。

      1. 运维处,选择需要用户授予的权限。


      2. 监控处的资源监控处,并在统一设置云监控告警模板处,选择代运维报警模板2024-01-30_15-22-04.png

    6. 单击创建服务

四、后续操作

  1. 测试服务。

    服务创建完成后,您需要对创建的服务进行测试,保证其正常可用。更多信息,请参见测试服务

  2. 上线服务。

    服务测试通过后,再提交审核,审核通过后即可发布上线。更多信息,请参见上线服务

  3. 上传服务文档。

    您需要将服务文档上传至计算巢GitHub文档库中,可供用户查看。具体操作,请参见服务文档上线流程
