本文通过配置 Prometheus 指标采集和导入预制 Grafana 大盘，快速实现对 DNS Cache 核心性能指标的监控。

适用范围

acs-virtual-node 组件版本需 v2.16.0 及以上。
已安装 Alibaba DNS Cache 组件。

使用方式

开启DNS Cache指标采集。

集群维度

为Alibaba DNS Cache组件开启enabledMetrics。

kubectl patch configmap blazing-dns -n kube-system --type merge -p '{"data":{"config":"enabled: true\nenabledMetrics: true\n"}}'

Pod维度

为Pod添加注解，开启enable-dns-cache-metrics。

apiVersion: v1
kind: Pod
metadata:
  annotations:
    network.alibabacloud.com/enable-dns-cache-metrics: "true"
    ...

新增Prometheus采集配置。

开源Prometheus

在开源Prometheus中找到Prometheus的配置文件（通常位于/etc/prometheus/prometheus.yml或者自定义的配置目录下），增加以下指标采集Job。

社区版Prometheus Operator

社区Prometheus Operator方案以及ACK应用市场ack-prometheus-operator组件的相关信息，请参见开源Prometheus监控。关于自定义采集配置，请参见Prometheus Operator进行数据采集配置。

scrape_configs:
# ...其他job配置。
- job_name: _arms-prom/virtual-node/blazing-dns-cache
  honor_labels: true
  scrape_interval: 15s
  scrape_timeout: 15s
  metrics_path: /metrics/cadvisor
  scheme: https
  kubernetes_sd_configs:
  - role: node
    follow_redirects: true
  authorization:
    type: Bearer
    credentials_file: /var/run/secrets/target.kubernetes.io/serviceaccount/token
  tls_config:
    insecure_skip_verify: true
  metric_relabel_configs:
  - source_labels:
    - __name__
    regex: dns_metric_cache_expired_count|dns_metric_cache_hit_count|dns_metric_cache_miss_count|dns_metric_cache_updated_count|dns_metric_request_count|dns_metric_response_count
    action: keep
  relabel_configs:
  - source_labels: [ __meta_kubernetes_node_name ]
    regex: (^virtual-kubelet.*)
    target_label: __param_nodeName
    action: replace
  - separator: ;
    regex: (.*)
    target_label: job
    replacement: _arms/kubelet/cadvisor
    action: replace
  - source_labels:
    - __meta_kubernetes_node_name
    separator: ;
    regex: (.*)
    target_label: node
    replacement: ${1}
    action: replace

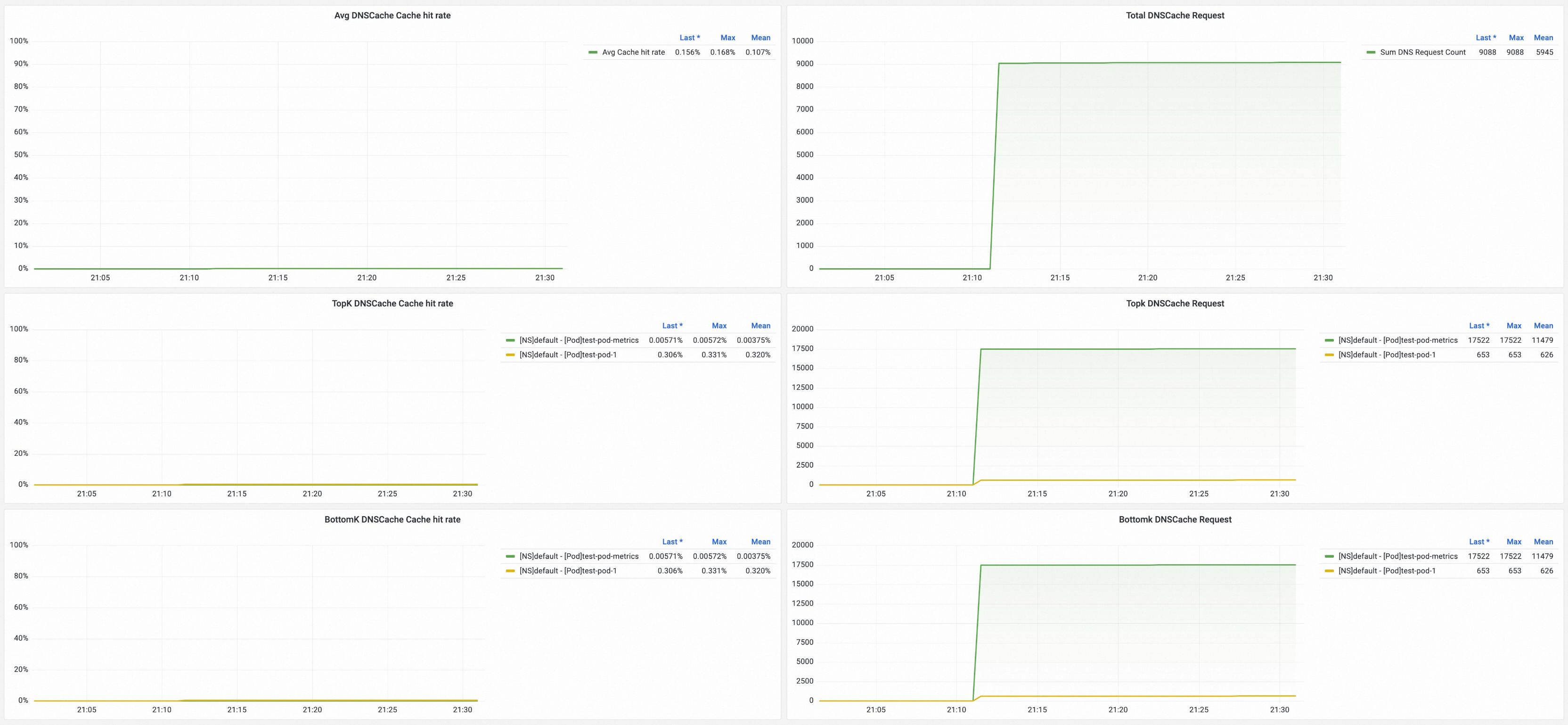

导入Grafana预制大盘。

在对应Prometheus数据源的Grafana系统中，导入DNS Cache功能的预制监控大盘模板，并选择对应Prometheus数据源。详细操作，请参见import-dashboards。

大盘配置JSON文件

{
  "__inputs": [
    {
      "name": "DS_PROM-C22490DD721CC4DE09F97506062E6508D",
      "label": "prom-c22490dd721cc4de09f97506062e6508d",
      "description": "",
      "type": "datasource",
      "pluginId": "prometheus",
      "pluginName": "Prometheus"
    }
  ],
  "__elements": {},
  "__requires": [
    {
      "type": "grafana",
      "id": "grafana",
      "name": "Grafana",
      "version": "9.0.8"
    },
    {
      "type": "datasource",
      "id": "prometheus",
      "name": "Prometheus",
      "version": "1.0.0"
    },
    {
      "type": "panel",
      "id": "timeseries",
      "name": "Time series",
      "version": ""
    }
  ],
  "annotations": {
    "list": [
      {
        "builtIn": 1,
        "datasource": {
          "type": "prometheus",
          "uid": "${DS_PROM-C22490DD721CC4DE09F97506062E6508D}"
        },
        "enable": true,
        "hide": true,
        "iconColor": "rgba(0, 211, 255, 1)",
        "name": "Annotations & Alerts",
        "target": {
          "limit": 100,
          "matchAny": false,
          "tags": [],
          "type": "dashboard"
        },
        "type": "dashboard"
      }
    ]
  },
  "description": "A dashboard for the CoreDNS DNS server.",
  "editable": true,
  "fiscalYearStartMonth": 0,
  "gnetId": 7279,
  "graphTooltip": 0,
  "id": null,
  "links": [
    {
      "icon": "external link",
      "tags": [
        "arms-k8s",
        "coreddns"
      ],
      "targetBlank": true,
      "title": "DNS Cache Doc",
      "type": "link",
      "url": "https://help.aliyun.com/zh/cs/user-guide/use-alibaba-dns-cache-to-improve-dns-performance"
    }
  ],
  "liveNow": false,
  "panels": [
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_PROM-C22490DD721CC4DE09F97506062E6508D}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisLabel": "",
            "axisPlacement": "auto",
            "axisSoftMax": 1,
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 10,
            "gradientMode": "opacity",
            "hideFrom": {
              "graph": false,
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "lineInterpolation": "linear",
            "lineWidth": 2,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "never",
            "spanNulls": true,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "min": 0,
          "noValue": "0",
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "red",
                "value": null
              },
              {
                "color": "green",
                "value": 0.8
              }
            ]
          },
          "unit": "percentunit"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 12,
        "w": 12,
        "x": 0,
        "y": 0
      },
      "id": 21,
      "links": [],
      "options": {
        "graph": {},
        "legend": {
          "calcs": [
            "lastNotNull",
            "max",
            "mean"
          ],
          "displayMode": "table",
          "placement": "right",
          "showLegend": true
        },
        "tooltip": {
          "mode": "multi",
          "sort": "asc"
        }
      },
      "pluginVersion": "7.5.6",
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_PROM-C22490DD721CC4DE09F97506062E6508D}"
          },
          "editorMode": "code",
          "exemplar": true,
          "expr": "avg(max(dns_metric_cache_hit_count{namespace=~\"$Namespace\", pod=~\"$Pod\"}) by (namespace, pod) / max(dns_metric_request_count{namespace=~\"$Namespace\", pod=~\"$Pod\"}) by (namespace, pod))",
          "format": "time_series",
          "hide": false,
          "interval": "",
          "intervalFactor": 2,
          "legendFormat": "Avg Cache hit rate",
          "range": true,
          "refId": "B",
          "step": 60
        }
      ],
      "title": "Avg DNSCache Cache hit rate",
      "type": "timeseries"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_PROM-C22490DD721CC4DE09F97506062E6508D}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisLabel": "",
            "axisPlacement": "auto",
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 10,
            "gradientMode": "opacity",
            "hideFrom": {
              "graph": false,
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "lineInterpolation": "linear",
            "lineWidth": 2,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "never",
            "spanNulls": true,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "min": 0,
          "noValue": "0",
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              }
            ]
          },
          "unit": "none"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 12,
        "w": 12,
        "x": 12,
        "y": 0
      },
      "id": 22,
      "links": [],
      "options": {
        "graph": {},
        "legend": {
          "calcs": [
            "lastNotNull",
            "max",
            "mean"
          ],
          "displayMode": "table",
          "placement": "right",
          "showLegend": true
        },
        "tooltip": {
          "mode": "multi",
          "sort": "desc"
        }
      },
      "pluginVersion": "7.5.6",
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_PROM-C22490DD721CC4DE09F97506062E6508D}"
          },
          "editorMode": "code",
          "exemplar": true,
          "expr": "avg(max(dns_metric_request_count{namespace=~\"$Namespace\", pod=~\"$Pod\"}) by (namespace, pod))",
          "format": "time_series",
          "hide": false,
          "interval": "",
          "intervalFactor": 2,
          "legendFormat": "Sum DNS Request Count",
          "range": true,
          "refId": "B",
          "step": 60
        }
      ],
      "title": "Total DNSCache Request",
      "type": "timeseries"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_PROM-C22490DD721CC4DE09F97506062E6508D}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisLabel": "",
            "axisPlacement": "auto",
            "axisSoftMax": 1,
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 10,
            "gradientMode": "opacity",
            "hideFrom": {
              "graph": false,
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "lineInterpolation": "linear",
            "lineWidth": 2,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "never",
            "spanNulls": true,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "min": 0,
          "noValue": "0",
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "red",
                "value": null
              },
              {
                "color": "green",
                "value": 0.8
              }
            ]
          },
          "unit": "percentunit"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 9,
        "w": 12,
        "x": 0,
        "y": 12
      },
      "id": 23,
      "links": [],
      "options": {
        "graph": {},
        "legend": {
          "calcs": [
            "lastNotNull",
            "max",
            "mean"
          ],
          "displayMode": "table",
          "placement": "right",
          "showLegend": true
        },
        "tooltip": {
          "mode": "multi",
          "sort": "asc"
        }
      },
      "pluginVersion": "7.5.6",
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_PROM-C22490DD721CC4DE09F97506062E6508D}"
          },
          "editorMode": "code",
          "exemplar": true,
          "expr": "topk($topk, max(dns_metric_cache_hit_count{namespace=~\"$Namespace\", pod=~\"$Pod\"}) by (namespace, pod) / max(dns_metric_request_count{namespace=~\"$Namespace\", pod=~\"$Pod\"}) by (namespace, pod)) ",
          "format": "time_series",
          "hide": false,
          "interval": "",
          "intervalFactor": 2,
          "legendFormat": "[NS]{{namespace}} - [Pod]{{pod}}",
          "range": true,
          "refId": "B",
          "step": 60
        }
      ],
      "title": "TopK DNSCache Cache hit rate",
      "type": "timeseries"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_PROM-C22490DD721CC4DE09F97506062E6508D}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisLabel": "",
            "axisPlacement": "auto",
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 10,
            "gradientMode": "opacity",
            "hideFrom": {
              "graph": false,
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "lineInterpolation": "linear",
            "lineWidth": 2,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "never",
            "spanNulls": true,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "min": 0,
          "noValue": "0",
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              }
            ]
          },
          "unit": "none"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 9,
        "w": 12,
        "x": 12,
        "y": 12
      },
      "id": 25,
      "links": [],
      "options": {
        "graph": {},
        "legend": {
          "calcs": [
            "lastNotNull",
            "max",
            "mean"
          ],
          "displayMode": "table",
          "placement": "right",
          "showLegend": true
        },
        "tooltip": {
          "mode": "multi",
          "sort": "desc"
        }
      },
      "pluginVersion": "7.5.6",
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_PROM-C22490DD721CC4DE09F97506062E6508D}"
          },
          "editorMode": "code",
          "exemplar": true,
          "expr": "topk($topk, max(dns_metric_request_count{namespace=~\"$Namespace\", pod=~\"$Pod\"}) by (namespace, pod))",
          "format": "time_series",
          "hide": false,
          "interval": "",
          "intervalFactor": 2,
          "legendFormat": "[NS]{{namespace}} - [Pod]{{pod}}",
          "range": true,
          "refId": "B",
          "step": 60
        }
      ],
      "title": "Topk DNSCache Request",
      "type": "timeseries"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_PROM-C22490DD721CC4DE09F97506062E6508D}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisLabel": "",
            "axisPlacement": "auto",
            "axisSoftMax": 1,
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 10,
            "gradientMode": "opacity",
            "hideFrom": {
              "graph": false,
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "lineInterpolation": "linear",
            "lineWidth": 2,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "never",
            "spanNulls": true,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "min": 0,
          "noValue": "0",
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "red",
                "value": null
              },
              {
                "color": "green",
                "value": 0.8
              }
            ]
          },
          "unit": "percentunit"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 9,
        "w": 12,
        "x": 0,
        "y": 21
      },
      "id": 24,
      "links": [],
      "options": {
        "graph": {},
        "legend": {
          "calcs": [
            "lastNotNull",
            "max",
            "mean"
          ],
          "displayMode": "table",
          "placement": "right",
          "showLegend": true
        },
        "tooltip": {
          "mode": "multi",
          "sort": "asc"
        }
      },
      "pluginVersion": "7.5.6",
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_PROM-C22490DD721CC4DE09F97506062E6508D}"
          },
          "editorMode": "code",
          "exemplar": true,
          "expr": "bottomk($topk, max(dns_metric_cache_hit_count{namespace=~\"$Namespace\", pod=~\"$Pod\"}) by (namespace, pod) / max(dns_metric_request_count{namespace=~\"$Namespace\", pod=~\"$Pod\"}) by (namespace, pod)) ",
          "format": "time_series",
          "hide": false,
          "interval": "",
          "intervalFactor": 2,
          "legendFormat": "[NS]{{namespace}} - [Pod]{{pod}}",
          "range": true,
          "refId": "B",
          "step": 60
        }
      ],
      "title": "BottomK DNSCache Cache hit rate",
      "type": "timeseries"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_PROM-C22490DD721CC4DE09F97506062E6508D}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisLabel": "",
            "axisPlacement": "auto",
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 10,
            "gradientMode": "opacity",
            "hideFrom": {
              "graph": false,
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "lineInterpolation": "linear",
            "lineWidth": 2,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "never",
            "spanNulls": true,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "min": 0,
          "noValue": "0",
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              }
            ]
          },
          "unit": "none"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 9,
        "w": 12,
        "x": 12,
        "y": 21
      },
      "id": 26,
      "links": [],
      "options": {
        "graph": {},
        "legend": {
          "calcs": [
            "lastNotNull",
            "max",
            "mean"
          ],
          "displayMode": "table",
          "placement": "right",
          "showLegend": true
        },
        "tooltip": {
          "mode": "multi",
          "sort": "desc"
        }
      },
      "pluginVersion": "7.5.6",
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_PROM-C22490DD721CC4DE09F97506062E6508D}"
          },
          "editorMode": "code",
          "exemplar": true,
          "expr": "bottomk($topk, max(dns_metric_request_count{namespace=~\"$Namespace\", pod=~\"$Pod\"}) by (namespace, pod))",
          "format": "time_series",
          "hide": false,
          "interval": "",
          "intervalFactor": 2,
          "legendFormat": "[NS]{{namespace}} - [Pod]{{pod}}",
          "range": true,
          "refId": "B",
          "step": 60
        }
      ],
      "title": "Bottomk DNSCache Request",
      "type": "timeseries"
    }
  ],
  "refresh": "",
  "schemaVersion": 36,
  "showAgsLink": "cn",
  "style": "dark",
  "tags": [],
  "templating": {
    "list": [
      {
        "current": {
          "selected": false,
          "text": "prom-c22490dd721cc4de09f97506062e6508d",
          "value": "prom-c22490dd721cc4de09f97506062e6508d"
        },
        "hide": 2,
        "includeAll": false,
        "multi": false,
        "name": "datasource",
        "options": [],
        "query": "prometheus",
        "refresh": 1,
        "regex": "/^prom-c22490dd721cc4de09f97506062e6508d/",
        "skipUrlSync": false,
        "type": "datasource"
      },
      {
        "allValue": ".*",
        "current": {},
        "datasource": {
          "type": "prometheus",
          "uid": "${DS_PROM-C22490DD721CC4DE09F97506062E6508D}"
        },
        "definition": "label_values({__name__=~ \"dns_metric_request_count\"},namespace)",
        "hide": 0,
        "includeAll": true,
        "label": "Namespace",
        "multi": true,
        "name": "Namespace",
        "options": [],
        "query": {
          "query": "label_values({__name__=~ \"dns_metric_request_count\"},namespace)",
          "refId": "StandardVariableQuery"
        },
        "refresh": 1,
        "regex": "",
        "skipUrlSync": false,
        "sort": 3,
        "tagValuesQuery": "",
        "tagsQuery": "",
        "type": "query",
        "useTags": false
      },
      {
        "allValue": ".*",
        "current": {},
        "datasource": {
          "type": "prometheus",
          "uid": "${DS_PROM-C22490DD721CC4DE09F97506062E6508D}"
        },
        "definition": "label_values({__name__=~\"dns_metric_request_count\",namespace=~\"$Namespace\"}, pod)",
        "hide": 0,
        "includeAll": true,
        "label": "Pod",
        "multi": true,
        "name": "Pod",
        "options": [],
        "query": {
          "query": "label_values({__name__=~\"dns_metric_request_count\",namespace=~\"$Namespace\"}, pod)",
          "refId": "StandardVariableQuery"
        },
        "refresh": 1,
        "regex": "",
        "skipUrlSync": false,
        "sort": 0,
        "type": "query"
      },
      {
        "current": {
          "selected": false,
          "text": "100",
          "value": "100"
        },
        "hide": 0,
        "name": "topk",
        "options": [
          {
            "selected": true,
            "text": "100",
            "value": "100"
          }
        ],
        "query": "100",
        "skipUrlSync": false,
        "type": "textbox"
      }
    ]
  },
  "time": {
    "from": "now-30m",
    "to": "now"
  },
  "timepicker": {
    "now": true,
    "refresh_intervals": [
      "5s",
      "10s",
      "30s",
      "1m",
      "5m",
      "15m",
      "30m",
      "1h",
      "2h",
      "1d"
    ],
    "time_options": [
      "5m",
      "15m",
      "1h",
      "6h",
      "12h",
      "24h",
      "2d",
      "7d",
      "30d"
    ]
  },
  "timezone": "",
  "title": "DNSCache",
  "uid": "tLUYqpIvz",
  "version": 5,
  "weekStart": ""
}

在data source下拉框中选择实际的Prometheus实例，点击Import。

指标说明和数据样例

# HELP dns_metric_cache_expired_count request handler found an expired cache
# TYPE dns_metric_cache_expired_count gauge
dns_metric_cache_expired_count{namespace="default",pod="test-pod-1"} 552
dns_metric_cache_expired_count{namespace="default",pod="test-pod-metrics"} 17376
# HELP dns_metric_cache_hit_count request handler respond dns request with dns cache
# TYPE dns_metric_cache_hit_count gauge
dns_metric_cache_hit_count{namespace="default",pod="test-pod-1"} 2
dns_metric_cache_hit_count{namespace="default",pod="test-pod-metrics"} 1
# HELP dns_metric_cache_miss_count request handler unable to find a cache
# TYPE dns_metric_cache_miss_count gauge
dns_metric_cache_miss_count{namespace="default",pod="test-pod-1"} 27
dns_metric_cache_miss_count{namespace="default",pod="test-pod-metrics"} 73
# HELP dns_metric_cache_updated_count response handler updated a local cache
# TYPE dns_metric_cache_updated_count gauge
dns_metric_cache_updated_count{namespace="default",pod="test-pod-1"} 579
dns_metric_cache_updated_count{namespace="default",pod="test-pod-metrics"} 17449
# HELP dns_metric_request_count request handlers handles dns requests
# TYPE dns_metric_request_count gauge
dns_metric_request_count{namespace="default",pod="test-pod-1"} 581
dns_metric_request_count{namespace="default",pod="test-pod-metrics"} 17450
# HELP dns_metric_response_count response handlers handles dns responses
# TYPE dns_metric_response_count gauge
dns_metric_response_count{namespace="default",pod="test-pod-1"} 579
dns_metric_response_count{namespace="default",pod="test-pod-metrics"} 17449
