通过ALB使用Gateway API暴露服务

Gateway APIKubernetes官方项目,是下一代Kubernetes路由和负载均衡API,支持通过Gateway API配置流量规则。本文介绍如何通过ALB使用Gateway API来暴露服务至集群外部。

背景信息

Gateway APIKubernetes中用于对服务网络流量进行建模的一系列资源。目标是建立一套表现力强、易扩展、面向角色的服务网络模型。

ALB Ingress Controllerv2.17.0版本后提供了对Gateway API的支持,您可以安装ALB Ingress Controller来通过ALB使用Gateway API暴露服务。

前提条件

  • 创建ACS集群,且集群版本在1.31及以上。

  • 已在集群中安装ALB Ingress Controller,且版本在2.17及以上。

  • 已在集群中安装Gateway API,且版本在1.3.0及以上。

  • 集群VPC下已创建两个支持ALB产品的虚拟交换机。

环境确认

若您的集群满足前提条件,集群中会自动创建出名为albGatewayClass资源。您可以通过以下方式进行确认。

控制台

  1. 登录容器计算服务控制台,在左侧导航栏选择集群列表

  2. 集群列表页面,单击目标集群名称,然后在左侧导航栏,选择工作负载 > 自定义资源

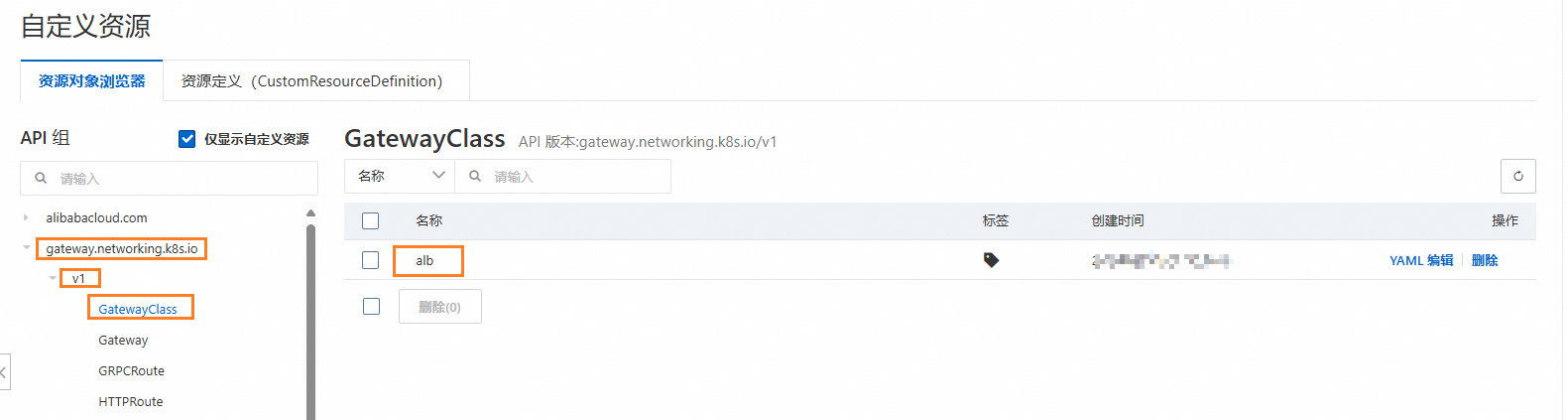

  3. 单击gateway.networking.k8s.io,查看v1下的GatewayClass


kubectl

kubectl get gatewayclass

预期输出:

NAME   CONTROLLER                         ACCEPTED   AGE
alb    gateways.alibabacloud.com/alb/v1   True       1m

部署示例应用

  1. 创建httpbin.yaml。

    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: go-httpbin
      namespace: default
    spec:
      replicas: 1
      selector:
        matchLabels:
          app: go-httpbin
      template:
        metadata:
          labels:
            app: go-httpbin
            version: v1
        spec:
          containers:
            - image: registry.cn-hangzhou.aliyuncs.com/mse/go-httpbin
              args:
                - "--port=8090"
                - "--version=v1"
              imagePullPolicy: Always
              name: go-httpbin
              ports:
                - containerPort: 8090
    ---
    apiVersion: v1
    kind: Service
    metadata:
      name: go-httpbin
      namespace: default
    spec:
      type: ClusterIP
      ports:
        - port: 80
          targetPort: 8090
          protocol: TCP
      selector:
        app: go-httpbin
  2. 部署应用。

    kubectl apply -f httpbin.yaml

部署Gateway和路由

  1. 创建gateway.yaml。

    apiVersion: gateway.networking.k8s.io/v1
    kind: Gateway
    metadata:
      name: alb
      namespace: default
    spec:
      gatewayClassName: alb
      listeners:
        - name: http
          protocol: HTTP
          port: 80
          hostname: "*.ingress.top"
          allowedRoutes:
            namespaces:
              from: Same
    ---
    apiVersion: gateway.networking.k8s.io/v1beta1
    kind: HTTPRoute
    metadata:
      name: demo-route
    spec:
      parentRefs: # 引用Gateway资源
        - group: gateway.networking.k8s.io
          kind: Gateway
          name: alb
      hostnames:
        - demo.ingress.top # host设置为demo.domain.ingress.top
      rules:
        - matches: # 匹配规则为前缀匹配路径
            - path:
                type: PathPrefix
                value: /
          backendRefs: # 后端为类型为Service,名称go-httpbin,端口80
            - kind: Service
              name: go-httpbin
              port: 80
  2. 部署Gateway和路由规则。

    kubectl apply -f gateway.yaml
  3. 等待约2分钟后,确认Gateway创建状态。

    kubectl get gateway alb

    预期输出:

    NAME   CLASS   ADDRESS                                                  PROGRAMMED   AGE
    alb    alb     alb-0mwhq4ck6xxxxxxxxx.cn-hangzhou.alb.aliyuncsslb.com   True         2m12s

    可以看到,Gateway创建成功。

  4. 确认路由创建状态。

    kubectl describe httproute demo-route|grep Status -A 20

    预期输出:

    Status:
      Parents:
        Conditions:
          Last Transition Time:  2025-05-23T08:21:25Z
          Message:               Route is accepted.
          Observed Generation:   1
          Reason:                Accepted
          Status:                True
          Type:                  Accepted
          Last Transition Time:  2025-05-23T08:21:25Z
          Message:               Route is resolved.
          Observed Generation:   1
          Reason:                ResolvedRefs
          Status:                True
          Type:                  ResolvedRefs
        Controller Name:         gateways.alibabacloud.com/alb/v1
        Parent Ref:
          Group:  gateway.networking.k8s.io
          Kind:   Gateway
          Name:   alb
  5. 测试访问应用。

    1. 获取Gateway地址。

      export ALB_DOMAIN=$(kubectl get gateway alb -n default -o jsonpath='{.status.addresses[?(@.type=="Hostname")].value}')
    2. 访问应用。

      curl -H "Host: demo.ingress.top" http://${ALB_DOMAIN}/version

      预期输出:

      version: v1
      hostname: go-httpbin-547xxxxxf6-xxxxx

场景演示

场景一:使用filter修改请求头

通过HTTPRoute中的filter能力,可以在请求或者回复阶段进行额外的处理。以下演示如何使用filter来为发送到后端的请求添加请求头。

  1. 创建httproute-filter.yaml。

    apiVersion: gateway.networking.k8s.io/v1beta1
    kind: HTTPRoute
    metadata:
      name: demo-filter
    spec:
      parentRefs: # 引用Gateway资源
        - group: gateway.networking.k8s.io
          kind: Gateway
          name: alb
      hostnames:
        - filter.ingress.top # host设置为filter.ingress.top
      rules:
        - matches: # 匹配规则为前缀匹配路径
            - path:
                type: PathPrefix
                value: /
          filters:
            - type: RequestHeaderModifier # 添加请求头my-header: foo
              requestHeaderModifier:
                add:
                  - name: my-header
                    value: foo
          backendRefs: # 后端为类型为Service,名称go-httpbin,端口80
            - kind: Service
              name: go-httpbin
              port: 80

    此文件将创建一个名为demo-filterHTTPRoute资源。部署后访问应用go-httpbin时,配置域名为filter.ingress.top,请求将自动添加请求头my-header : foo

  2. 部署路由规则。

    kubectl apply -f httproute-filter.yaml
  3. 访问应用。

    curl -H "Host: filter.ingress.top" http://${ALB_DOMAIN}/header

    预期输出:

    headers: {
        "Accept": [
          "*/*"
        ],
        "Connection": [
          "close"
        ],
        "Host": [
          "filter.ingress.top"
        ],
        "My-Header": [
          "foo"
        ],
        "Path": [
          "/header"
        ],
        "Protocol": [
          "HTTP/1.1"
        ],
        "Remoteip": [
          "118.xx.xx.91"
        ],
        "URL": [
          "/header"
        ],
        "User-Agent": [
          "curl/8.9.1"
        ]
      }
     query param:
    , hostname: go-httpbin-547xxxxxf6-xxxxx

场景二:按照权重对流量进行切分

通过设置后端多个服务的权重,您可以对请求按照流量进行切分。

  1. 创建nginx.yaml。

    展开查看YAML内容

    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: old-nginx
    spec:
      replicas: 1
      selector:
        matchLabels:
          run: old-nginx
      template:
        metadata:
          labels:
            run: old-nginx
        spec:
          containers:
          - image: registry.cn-hangzhou.aliyuncs.com/acs-sample/old-nginx
            imagePullPolicy: Always
            name: old-nginx
            ports:
            - containerPort: 80
              protocol: TCP
          restartPolicy: Always
    ---
    apiVersion: v1
    kind: Service
    metadata:
      name: old-nginx
    spec:
      type: ClusterIP
      ports:
      - port: 80
        protocol: TCP
        targetPort: 80
      selector:
        run: old-nginx
    ---
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: new-nginx
    spec:
      replicas: 1
      selector:
        matchLabels:
          run: new-nginx
      template:
        metadata:
          labels:
            run: new-nginx
        spec:
          containers:
          - image: registry.cn-hangzhou.aliyuncs.com/acs-sample/new-nginx
            imagePullPolicy: Always
            name: new-nginx
            ports:
            - containerPort: 80
              protocol: TCP
          restartPolicy: Always
    ---
    apiVersion: v1
    kind: Service
    metadata:
      name: new-nginx
    spec:
      type: ClusterIP
      ports:
      - port: 80
        protocol: TCP
        targetPort: 80
      selector:
        run: new-nginx

    上述文件将部署两个nginx应用。其中,old-nginx服务会返回old字符串,new-nginx服务会返回new字符串。部署的资源将会放置在default命名空间下。

  2. 创建httproute-weight.yaml。

    apiVersion: gateway.networking.k8s.io/v1beta1
    kind: HTTPRoute
    metadata:
      name: demo-weight
    spec:
      parentRefs: # 引用Gateway资源
        - group: gateway.networking.k8s.io
          kind: Gateway
          name: alb
      hostnames:
        - weight.ingress.top # host设置为weight.ingress.top
      rules:
        - matches: # 匹配规则为前缀匹配路径
            - path:
                type: PathPrefix
                value: /
          backendRefs:
            # 设置后端以及对应权重,权重不为百分比形式,无需等于100
            - kind: Service
              name: old-nginx
              port: 80
              weight: 100 # 设置old-nginx的权重为100
            - kind: Service
              name: new-nginx
              port: 80
              weight: 100 # 设置new-nginx的权重为100

    此路由规则中设置了old-nginx服务和new-nginx服务的权重相同,因此访问应用时new-nginxold-nginx两个服务的流量应该是1:1。

  3. 部署应用和路由规则。

    kubectl apply -f nginx.yaml
    kubectl apply -f httproute-weight.yaml
  4. 访问10次应用。

    for i in {1..10}; do curl -H "Host: weight.ingress.top" http://${ALB_DOMAIN}/; done

    预期输出:

    old
    new
    new
    old
    new
    old
    old
    new
    new
    old

    可以看到,new-nginxold-nginx两个服务的流量是1:1。

相关操作

为应用配置证书

您可以在Gateway资源上为应用配置TLS证书。

  1. 创建域名为ingress.tap的自签名证书。

    openssl req -subj '/CN=ingress.top' -new -newkey rsa:2048 -sha256 \
      -days 365 -nodes -x509 -keyout server.key -out server.crt \
      -addext "subjectAltName = DNS:ingress.top" \
      -addext "keyUsage = digitalSignature" \
      -addext "extendedKeyUsage = serverAuth" 2> /dev/null;
      openssl x509 -in server.crt -subject -noout
  2. 创建TLS Secret。

    kubectl create secret tls ingress.top --key server.key --cert server.crt
  3. 创建gateway-tls.yaml用于更新Gateway。

    apiVersion: gateway.networking.k8s.io/v1
    kind: Gateway
    metadata:
      name: alb
      namespace: default
    spec:
      gatewayClassName: alb
      listeners:
        - name: http
          protocol: HTTP
          port: 80
          hostname: "*.ingress.top"
          allowedRoutes:
            namespaces:
              from: Same
        - name: https
          protocol: HTTPS
          port: 443
          hostname: "*.ingress.top"
          allowedRoutes:
            namespaces:
              from: Same
          tls: # 配置TLS
            mode: Terminate
            certificateRefs: # 引用所创建的secret
              - kind: Secret
                name: ingress.top
  4. 更新Gateway。

    gateway.gateway.networking.k8s.io/alb configured
  5. 等待GatewayProgrammed状态为True后,验证证书配置。

    openssl s_client -servername ingress.top -connect ${ALB_DOMAIN}:443

    预期输出:

    CONNECTED(00000003)
    depth=0 CN = ingress.top
    verify error:num=18:self-signed certificate
    verify return:1
    depth=0 CN = ingress.top
    verify return:1
    ---
    Certificate chain
     0 s:CN = ingress.top
       i:CN = ingress.top
       a:PKEY: rsaEncryption, 2048 (bit); sigalg: RSA-SHA256
       v:NotBefore: Jun 24 10:49:39 2025 GMT; NotAfter: Jun 24 10:49:39 2026 GMT
    ---
    Server certificate
    -----BEGIN CERTIFICATE-----
    ...
    ...
    ...
    -----END CERTIFICATE-----
    subject=CN = ingress.top
    issuer=CN = ingress.top
    ---
    No client certificate CA names sent
    Peer signing digest: SHA256
    Peer signature type: RSA-PSS
    Server Temp Key: X25519, 253 bits
    ---
    SSL handshake has read 1506 bytes and written 410 bytes
    Verification error: self-signed certificate
    ---
    New, TLSv1.2, Cipher is ECDHE-RSA-AES128-GCM-SHA256
    Server public key is 2048 bit
    Secure Renegotiation IS supported
    Compression: NONE
    Expansion: NONE
    No ALPN negotiated
    SSL-Session:
        Protocol  : TLSv1.2
        Cipher    : ECDHE-RSA-AES128-GCM-SHA256
        Session-ID: xxxxxxxxxxxxxxxxxxxxxxxxx
        Session-ID-ctx:
        Master-Key: xxxxxxxxxxxxxxxxxxxxxxxxxxx
        PSK identity: None
        PSK identity hint: None
        SRP username: None
        TLS session ticket lifetime hint: 300 (seconds)
        TLS session ticket:
        ...
        ...
        ...

        Start Time: 1750820008
        Timeout   : 7200 (sec)
        Verify return code: 18 (self-signed certificate)
        Extended master secret: yes
    ---

    出现类似以上输出内容,表明证书已经生效。

    说明

    您可以执行curl -H "Host: demo.ingress.top" -k https://${ALB_DOMAIN}/version来访问应用,预期输出与测试访问应用相同。
