在PAI上使用PPU开发训练模型

更新时间：
复制为 MD 格式
我的收藏

本文为您介绍如何在PAI-DSW上使用PPU训练模型。

前提条件

在您使用PAI开发训练模型之前，请您完成开通PAI并购买PPU资源。

PAI-真武810E镜像

说明

  • 为方便客户快速在PAI Serverless上启用ml.gp7vf.16.40xlarge资源（真武810E），发布PAI Serverless官方镜像，集成PPU、高网、PAI等各层能力，提供开箱即用的体验和最优的性能表现。

  • 本镜像当前处于内测阶段，使用过程中请务必履行保密义务

  • 本镜像仅支持在PAI Serverless平台内（包含DSW、DLC、EAS等模块）使用

训练镜像获取方式及详细说明，请参见训练镜像。

在PAI-DSW中训练模型

PAI-DSW是PAI的云端机器学习开发IDE，集成了Notebook、VSCode、Terminal多种开发环境，免去您手动购买、安装和启动云服务器ECS，使用DSW即可快速开始AI模型代码编写、调试和运行。以下为您介绍PAI-DSW实例创建的基本操作步骤，更多内容请参见PAI-DSW概述。

新建DSW实例

  1. 登录PAI控制台，左上角选择支持PPU资源的地域，本文以乌兰察布为例为您介绍操作步骤。

    说明

    目前支持PPU资源的地域包括：乌兰察布、北京、上海、杭州。

  2. 在左侧菜单栏单击工作空间列表，选择进入具有PPU资源配额的工作空间。

  3. 在左侧菜单栏单击交互式建模（DSW）> 新建实例。

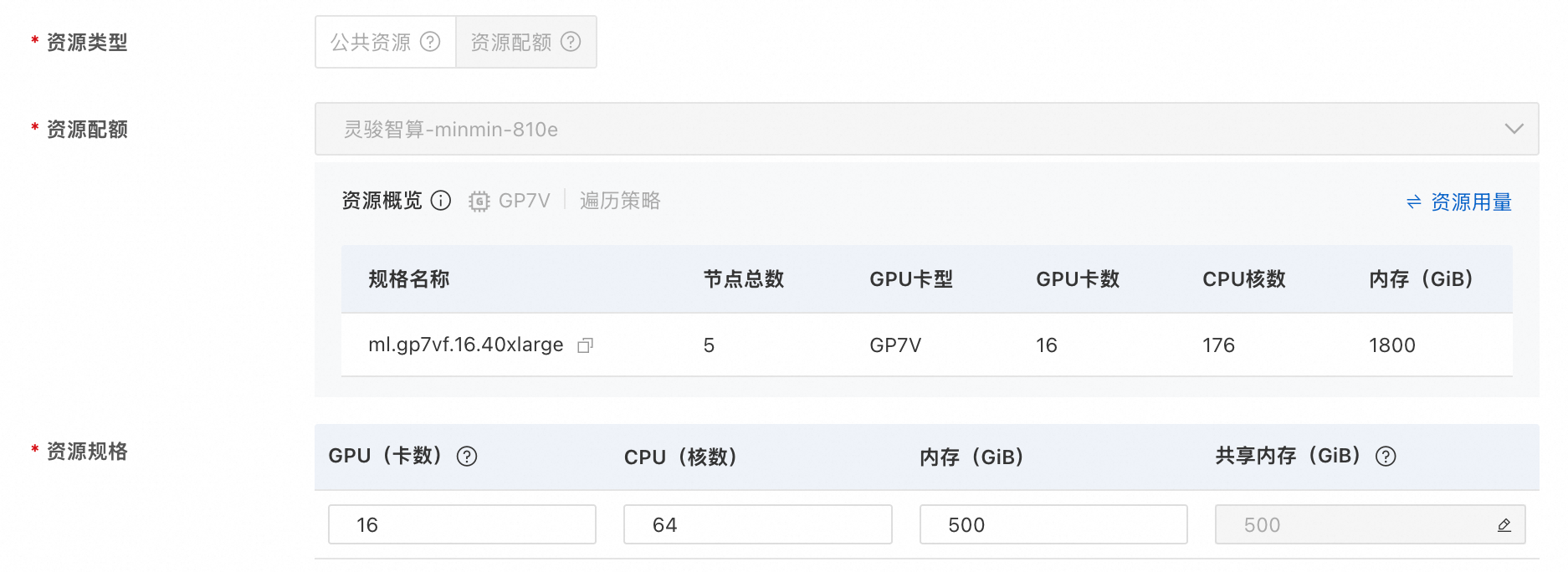

  4. 配置如下关键参数，其他参数按需配置即可，全量参数说明请参见创建DSW实例。

    • 资源类型：选择资源配额。

    • 资源配额：选择创建的PPU资源配额。

    • 资源规格：按需配置GPU、CPU、内存等规格参数。示例如下：


    • 镜像配置：选择官方镜像，搜索并选择ppu-training:1.7.0-pytorch2.8-ppu-py312-cu129-ubuntu24.04。

    完成参数配置后单击确定创建DSW实例。

单机PAI-Magatron-Patch任务训练

1. 登录DSW实例

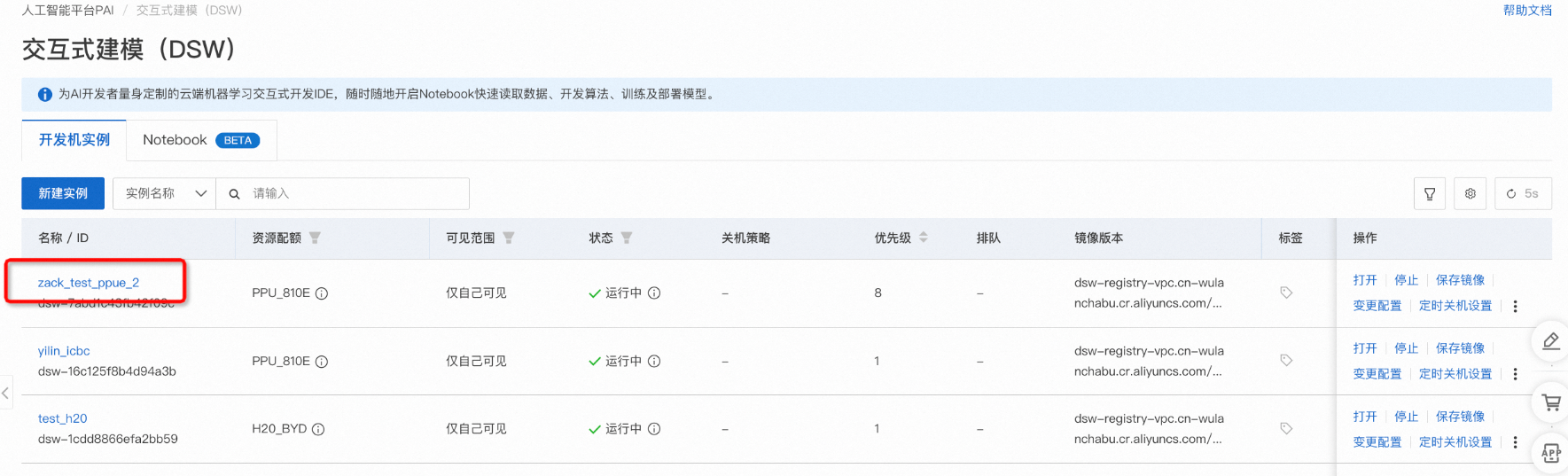

找到相应实例，单击打开按钮进入DSW实例。


登录dsw实例之后，单击选择Terminal页签。

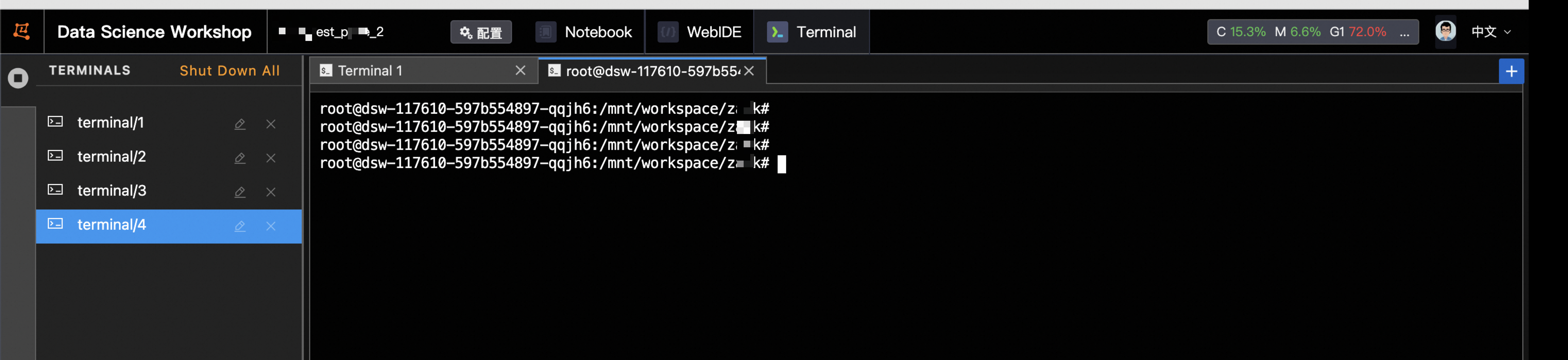

PG1_DSW登录

2. 准备代码、数据集和模型

  1. 执行下列命令，准备PAI-Megatron-Patch代码。

    mkdir /mnt/workspace/megatron-patch
cd /mnt/workspace/megatron-patch
git clone -b v0.9.2 --single-branch --recurse-submodules https://github.com/alibaba/Pai-Megatron-Patch.git

  2. 执行如下命令准备模型需要的数据集。

    cd /mnt/workspace/megatron-patch
mkdir qwen-datasets
cd qwen-datasets
wget https://atp-modelzoo-wlcb-pai.oss-cn-wulanchabu-internal.aliyuncs.com/release/models/pai-megatron-patch/qwen-datasets/wudao_qwenbpe_text_document.bin
wget https://atp-modelzoo-wlcb-pai.oss-cn-wulanchabu-internal.aliyuncs.com/release/models/pai-megatron-patch/qwen-datasets/wudao_qwenbpe_text_document.idx

wget https://atp-modelzoo-wlcb-pai.oss-cn-wulanchabu-internal.aliyuncs.com/release/models/pai-megatron-patch/qwen-datasets/alpaca_zh-qwen-train.json
wget https://atp-modelzoo-wlcb-pai.oss-cn-wulanchabu-internal.aliyuncs.com/release/models/pai-megatron-patch/qwen-datasets/alpaca_zh-qwen-valid.json

  3. 准备模型checkpoints，以QWEN2.5 7。

    mkdir -p /mnt/workspace/megatron-patch/qwen-ckpts/Qwen2.5-7B
cd /mnt/workspace/megatron-patch/qwen-ckpts/Qwen2.5-7B
pip install modelscope
modelscope download --model Qwen/Qwen2.5-7B --local_dir ./

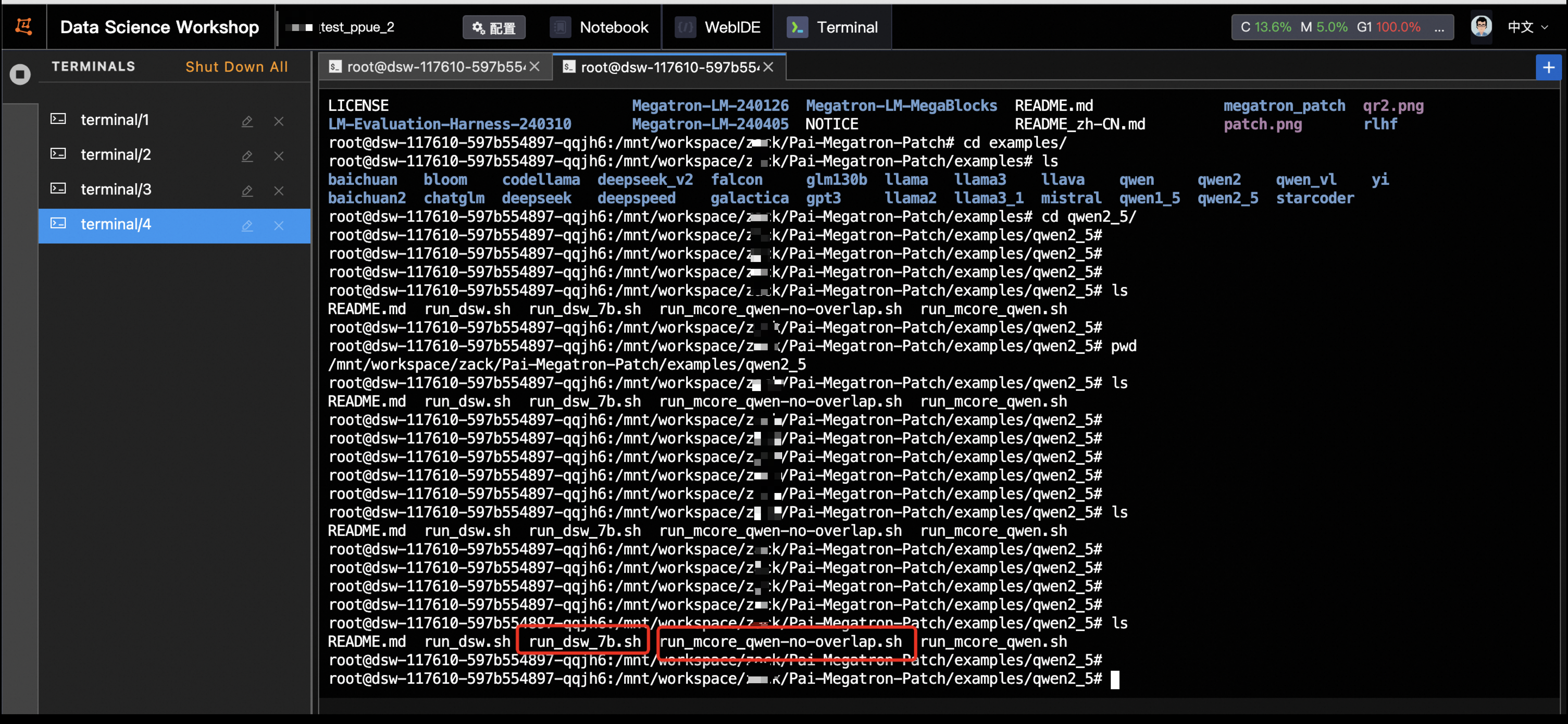

  4. 添加执行任务运行相关代码文件。

    需要做两处修改：

    • 在/mnt/workspace/megatron-patch/Pai-Megatron-Patch/examples/qwen2_5 目录下增加run_mcore_qwen-no-overlap.sh文件。需注意第20行针对真武810E做了修改，均默认使用16卡。

      #!/bin/bash
set -e
ENV=$1
CURRENT_DIR="$( cd "$( dirname "$0" )" && pwd )"
MEGATRON_PATH=$( dirname $( dirname ${CURRENT_DIR}))
export PYTHONPATH=${MEGATRON_PATH}:${MEGATRON_PATH}/PAI-Megatron-LM-240718:$PYTHONPATH
export CUDA_DEVICE_MAX_CONNECTIONS=1
#export PYTORCH_CUDA_ALLOC_CONF=expandable_segments:True

# Here are some configs controled by env
if [ -z ${MP_DATASET_TYPE} ];then
    MP_DATASET_TYPE="idxmap"
fi

if [ -z ${MP_AC_LAYERS} ];then
    MP_AC_LAYERS=1
fi

if [ $ENV = dsw ]; then
# Because it is 810E, we use 16 gpus and GPUS_PER_NODE=16
    export CUDA_VISIBLE_DEVICES=0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15
    MASTER_ADDR=localhost
    MASTER_PORT=$(shuf -n 1 -i 10000-65535)
    NNODES=1
    NODE_RANK=0
    GPUS_PER_NODE=16
elif [ $ENV = dlc ]; then
    NNODES=${WORLD_SIZE}
    NODE_RANK=${RANK}
    GPUS_PER_NODE=16
fi

if [ -z ${MP_VP} ]; then
    vp_options=""
else
    vp_options=" \
        --num-layers-per-virtual-pipeline-stage ${MP_VP}"
fi

if [ -z ${MP_SFT_PACKING} ]; then
    MP_SFT_PACKING=false
fi


DISTRIBUTED_ARGS="--nproc_per_node $GPUS_PER_NODE --nnodes $NNODES --node_rank $NODE_RANK --master_addr $MASTER_ADDR --master_port $MASTER_PORT"

### BASE CONFIG ###
MODEL_SIZE=$2
BATCH_SIZE=$3
GLOBAL_BATCH_SIZE=$4
LR=$5
MIN_LR=$6
SEQ_LEN=$7
PAD_LEN=$8
PR=$9
### BASE CONFIG ###

### PARALLEL / BOOL OPTION ###
TP=${10}
PP=${11}
CP=${12}
SP=${13}
DO=${14}
FL=${15}
SFT=${16}
### PARALLEL / BOOL OPTION ###

### OTHERS ###
AC=${17}
OPTIMIZER_OFFLOAD=${18}
SAVE_INTERVAL=${19}
DATASET_PATH=${20}
VALID_DATASET_PATH=${21}
PRETRAIN_CHECKPOINT_PATH=${22}

# the following two values will not be used when SFT is true
TRAIN_TOKENS=${23}
WARMUP_TOKENS=${24}
###############################

OUTPUT_BASEPATH=${25}
### OTHERS ###

if [ $FL = true ]; then
    export NVTE_FLASH_ATTN=1 NVTE_FUSED_ATTN=0
elif [ $FL = false ]; then
    export NVTE_FLASH_ATTN=0 NVTE_FUSED_ATTN=1
fi

if [ $MODEL_SIZE = 0.5B ]; then

NUM_LAYERS=24
HIDDEN_SIZE=896
NUM_ATTN_HEADS=14
INTERMEDIATE_SIZE=4864
NUM_KEY_VALUE_HEADS=2
MAX_POSITION_EMBEDDINGS=32768
EXTRA_VOCAB_SIZE=293
RMS_NORM_EPS=1e-6
gqa_options=" \
		    --group-query-attention \
		    --num-query-groups ${NUM_KEY_VALUE_HEADS}"


tie_option=""

elif [ $MODEL_SIZE = 1.5B ]; then

NUM_LAYERS=28
HIDDEN_SIZE=1536
NUM_ATTN_HEADS=12
INTERMEDIATE_SIZE=8960
NUM_KEY_VALUE_HEADS=2
MAX_POSITION_EMBEDDINGS=32768
EXTRA_VOCAB_SIZE=293
RMS_NORM_EPS=1e-6
gqa_options=" \
		    --group-query-attention \
		    --num-query-groups ${NUM_KEY_VALUE_HEADS}"

tie_option=""

elif [ $MODEL_SIZE = 3B ]; then

NUM_LAYERS=36
HIDDEN_SIZE=2048
NUM_ATTN_HEADS=16
INTERMEDIATE_SIZE=11008
NUM_KEY_VALUE_HEADS=2
MAX_POSITION_EMBEDDINGS=32768
EXTRA_VOCAB_SIZE=293
RMS_NORM_EPS=1e-6
gqa_options=" \
		    --group-query-attention \
		    --num-query-groups ${NUM_KEY_VALUE_HEADS}"

tie_option=""

elif [ $MODEL_SIZE = 7B ]; then

NUM_LAYERS=28
HIDDEN_SIZE=3584
NUM_ATTN_HEADS=28
INTERMEDIATE_SIZE=18944
NUM_KEY_VALUE_HEADS=4
MAX_POSITION_EMBEDDINGS=131072
EXTRA_VOCAB_SIZE=421
RMS_NORM_EPS=1e-6
gqa_options=" \
		    --group-query-attention \
		    --num-query-groups ${NUM_KEY_VALUE_HEADS}"

tie_option=" \
        --untie-embeddings-and-output-weights \
        "

elif [ $MODEL_SIZE = 14B ]; then

NUM_LAYERS=48
HIDDEN_SIZE=5120
NUM_ATTN_HEADS=40
INTERMEDIATE_SIZE=13824
NUM_KEY_VALUE_HEADS=8
MAX_POSITION_EMBEDDINGS=131072
EXTRA_VOCAB_SIZE=421
RMS_NORM_EPS=1e-5
gqa_options=" \
		    --group-query-attention \
		    --num-query-groups ${NUM_KEY_VALUE_HEADS}"

tie_option=" \
        --untie-embeddings-and-output-weights \
        "
elif [ $MODEL_SIZE = 32B ]; then

NUM_LAYERS=64
HIDDEN_SIZE=5120
NUM_ATTN_HEADS=40
INTERMEDIATE_SIZE=27648
NUM_KEY_VALUE_HEADS=8
MAX_POSITION_EMBEDDINGS=131072
EXTRA_VOCAB_SIZE=421
RMS_NORM_EPS=1e-5
gqa_options=" \
		    --group-query-attention \
		    --num-query-groups ${NUM_KEY_VALUE_HEADS}"

tie_option=" \
        --untie-embeddings-and-output-weights \
        "
elif [ $MODEL_SIZE = 72B ]; then

NUM_LAYERS=80
HIDDEN_SIZE=8192
NUM_ATTN_HEADS=64
INTERMEDIATE_SIZE=29568
NUM_KEY_VALUE_HEADS=8
MAX_POSITION_EMBEDDINGS=131072
EXTRA_VOCAB_SIZE=421
RMS_NORM_EPS=1e-5
gqa_options=" \
		    --group-query-attention \
		    --num-query-groups ${NUM_KEY_VALUE_HEADS}"

tie_option=" \
        --untie-embeddings-and-output-weights \
        "

fi

TP_COMM_OVERLAP=$(( ($TP > 1) ? 1 : 0 ))
comm_overlap_option="\
    --overlap-grad-reduce \
    --overlap-param-gather"


if [ $TP_COMM_OVERLAP -eq 1 ]; then
    comm_overlap_option="\
        --overlap-grad-reduce \
        --overlap-param-gather"
fi

if [ $AC = full ]; then
    _check=$(( ($NUM_LAYERS / $PP) % ${MP_AC_LAYERS} ))
    if [ $_check != 0 ]; then
        echo "the num layers per pp rank must be a multiple of the recompute layers."
        exit -1
    fi
    activation_checkpoint_options=" \
		    --recompute-method uniform \
            --recompute-num-layers ${MP_AC_LAYERS} \
		    --recompute-granularity full"
elif [ $AC = sel ]; then
    activation_checkpoint_options=" \
        --recompute-activations"
elif [ $AC = none ]; then
    activation_checkpoint_options=" \
    "
elif [ $AC = offload ]; then
    activation_checkpoint_options=" \
		    --cpu-offloading \
		    --cpu-offloading-num-layers ${MP_AC_LAYERS}"
    if [ $TP_COMM_OVERLAP -eq 1 ]; then
        echo "Disable --overlap-grad-reduce and --overlap-param-gather when cpu offloading is on..."
        comm_overlap_option="\
            --tp-comm-overlap"
    else
        echo "Disable --overlap-grad-reduce and --overlap-param-gather when cpu offloading is on..."
        comm_overlap_option=""
    fi
fi

if [ $PR = fp16 ]; then
    pr_options=" \
		    --fp16 \
            --apply-query-key-layer-scaling"
    export NVTE_APPLY_QK_LAYER_SCALING=1
elif [ $PR = bf16 ]; then
    pr_options=" \
        --bf16"
elif [ $PR = fp8 ]; then
    pr_options=" \
        --bf16 \
        --fp8-format hybrid \
        --fp8-amax-compute-algo max \
        --fp8-amax-history-len 1024"
fi

if [ $OPTIMIZER_OFFLOAD != false ] && [ $DO = false ]; then
    echo "Offload optimizer is valid only if \$DO=true"
    DO=true
fi

if [ $DO = true ]; then
    do_options=" \
		    --use-distributed-optimizer"

elif [ $DO = false ]; then
    do_options=" \
                    "
fi

te_options=" \
        --transformer-impl transformer_engine"

if [ $SP = true ] && [ $TP -gt 1 ]; then
    sp_options=" \
		    --sequence-parallel"

elif [ $SP = false ]; then
    sp_options=" \
                    "
fi

if [ $PRETRAIN_CHECKPOINT_PATH != none ]; then
    load_options=" \
            --load $PRETRAIN_CHECKPOINT_PATH"
fi

if [ $OPTIMIZER_OFFLOAD = 'static' ]; then
    offload_option=" \
        --optimizer hybridadam \
        --optimizer-offload-policy static \
        --optimizer-offload-fraction 1.0"
elif [ $OPTIMIZER_OFFLOAD = 'auto' ]; then
    offload_option=" \
        --optimizer hybridadam \
        --optimizer-offload-policy auto"
else
    offload_option=""
fi

if [ $SFT = true ]; then
    TRAIN_ITERS=${23}
    LR_WARMUP_ITERS=${24}
    LR_DECAY_ITERS=$(( ${TRAIN_ITERS} - ${LR_WARMUP_ITERS}))
    PREFIX="finetune-mcore-qwen2.5-${MODEL_SIZE}-lr-${LR}-minlr-${MIN_LR}-bs-${BATCH_SIZE}-gbs-${GLOBAL_BATCH_SIZE}-seqlen-${SEQ_LEN}"
    sft_option=" \
         --eod-mask-loss \
         --train-mode finetune"
else
    TRAIN_ITERS=$(( ${TRAIN_TOKENS} / ${GLOBAL_BATCH_SIZE} / ${SEQ_LEN} ))
    LR_WARMUP_ITERS=$(( ${WARMUP_TOKENS}  / ${GLOBAL_BATCH_SIZE} / ${SEQ_LEN} ))
    LR_DECAY_ITERS=$(( ${TRAIN_TOKENS} /  ${GLOBAL_BATCH_SIZE} / ${SEQ_LEN} ))
    PREFIX="pretrain-mcore-qwen2.5-${MODEL_SIZE}-lr-${LR}-minlr-${MIN_LR}-bs-${BATCH_SIZE}-gbs-${GLOBAL_BATCH_SIZE}-seqlen-${SEQ_LEN}"
    sft_option=" \
        --train-mode pretrain"
fi

if [ ${MP_DATASET_TYPE} = "raw" ]; then
    dataset_option=" \
        --train-data-path ${DATASET_PATH} \
        --valid-data-path ${VALID_DATASET_PATH} \
        --dataloader-type cyclic \
        --dataset LLama-SFT-Raw"
else
    dataset_option=" \
        --data-path ${DATASET_PATH} \
        --split 99,1,0 \
        --dataset LLama-Pretrain-Idxmap"
fi

if [ ${MP_SFT_PACKING} = true ]; then
    packing_options=" \
        --reset-position-ids \
        --no-create-attention-mask-in-dataloader
    "
else
    packing_options=""
fi

##### Prepare logdirs #######
NAME="${PREFIX}-pr-${PR}-tp-${TP}-pp-${PP}-cp-${CP}-ac-${AC}-do-${DO}-sp-${SP}-ti-${TRAIN_ITERS}-wi-${LR_WARMUP_ITERS}"
mkdir -p "${OUTPUT_BASEPATH}/tensorboard/"
mkdir -p "${OUTPUT_BASEPATH}/checkpoint/"
mkdir -p "${OUTPUT_BASEPATH}/log/"
current_time=$(date "+%Y.%m.%d-%H.%M.%S")
TENSORBOARD_DIR="${OUTPUT_BASEPATH}/tensorboard/${NAME}_${current_time}"
mkdir -p ${TENSORBOARD_DIR}
SAVED_PRETRAIN_CHECKPOINT_PATH="${OUTPUT_BASEPATH}/checkpoint/${NAME}"

mkdir -p ${SAVED_PRETRAIN_CHECKPOINT_PATH}
find -L ${PRETRAIN_CHECKPOINT_PATH} -maxdepth 1 -type f -name "*.json" -print0 | xargs -0 cp -t ${SAVED_PRETRAIN_CHECKPOINT_PATH}
find -L ${PRETRAIN_CHECKPOINT_PATH} -maxdepth 1 -type f -name "merges.txt" -print0 | xargs -0 cp -t ${SAVED_PRETRAIN_CHECKPOINT_PATH}

megatron_options="  \
        --save ${SAVED_PRETRAIN_CHECKPOINT_PATH} \
        --lr ${LR} \
        --min-lr ${MIN_LR} \
        --lr-decay-style cosine \
        --weight-decay 0.1 \
        --adam-beta1 0.9 \
        --adam-beta2 0.95 \
        --clip-grad 1.0 \
        --init-method-std 0.008 \
        --attention-dropout 0.0 \
        --hidden-dropout 0.0 \
        --lr-decay-iters ${LR_DECAY_ITERS} \
        --lr-warmup-iters ${LR_WARMUP_ITERS} \
        --train-iters ${TRAIN_ITERS} \
        --micro-batch-size ${BATCH_SIZE} \
        --global-batch-size ${GLOBAL_BATCH_SIZE} \
        --num-layers ${NUM_LAYERS} \
        --hidden-size ${HIDDEN_SIZE} \
        --num-attention-heads ${NUM_ATTN_HEADS} \
        --ffn-hidden-size ${INTERMEDIATE_SIZE} \
        --seq-length ${SEQ_LEN} \
        --max-position-embeddings ${MAX_POSITION_EMBEDDINGS} \
        --max-padding-length ${PAD_LEN} \
        --log-interval 1 \
        --log-throughput \
        --eval-interval 10000 \
        --eval-iters 10 \
        --save-interval ${SAVE_INTERVAL} \
        --tensorboard-queue-size 1 \
        --tensorboard-dir ${TENSORBOARD_DIR} \
        --log-timers-to-tensorboard \
        --log-batch-size-to-tensorboard \
        --log-validation-ppl-to-tensorboard \
        --tensor-model-parallel-size ${TP} \
        --pipeline-model-parallel-size ${PP} \
        --context-parallel-size ${CP} \
        --no-load-optim \
        --no-load-rng \
        --num-workers 8 \
        --extra-vocab-size ${EXTRA_VOCAB_SIZE} \
        --patch-tokenizer-type Qwen2Tokenizer \
        --swiglu \
        --normalization RMSNorm \
        --norm-epsilon ${RMS_NORM_EPS} \
        --use-rotary-position-embeddings \
        --position-embedding-type rope \
        --disable-bias-linear \
        --add-qkv-bias \
        --rotary-percent 1.0 \
        --rotary-base 1000000 \
        --rotary-seq-len-interpolation-factor 1 \
        --no-save-optim \
        --timing-log-level 2 \
        --timing-log-option minmax \
        "

run_cmd="torchrun $DISTRIBUTED_ARGS ../qwen2/pretrain_qwen.py
 ${megatron_options} ${dataset_option} ${pr_options} ${load_options} ${te_options} ${activation_checkpoint_options} \
 ${do_options} ${sp_options} ${gqa_options} ${offload_option} ${sft_option}  ${tie_option} ${vp_options} ${packing_options}"

echo ${run_cmd}
eval ${run_cmd}
set +x

    • 在/mnt/workspace/megatron-patch/Pai-Megatron-Patch/examples/qwen2_5 目录下增加run_dsw_7b.sh文件，内容如下。

      unset NCCL_QUADRUPLE_CHANNELS
#export CUDA_VISIBLE_DEVICES=4,5,1,0,9,8,12,13,7,6,2,3,10,11,15,14
#export CUDA_VISIBLE_DEVICES=4,5,7,6,0,1,3,2,9,8,10,11,13,12,14,15
# export CUDA_VISIBLE_DEVICES=4,7,5,6,1,2,0,3,12,15,13,14,9,10,8,11
# export NCCL_SOCKET_IFNAME=eth0
#export MP_VP=2
sh run_mcore_qwen-no-overlap.sh \
dsw  \
7B   \
1    \
256 \
1e-5   \
1e-6   \
4096  \
4096  \
bf16  \
1  \
1 \
1 \
true \
true   \
true \
false \
false   \
false \
100000  \
/mnt/workspace/megatron-patch/qwen-datasets/wudao_qwenbpe_text_document  \
/mnt/workspace/megatron-patch/qwen-datasets/wudao_qwenbpe_text_document  \
/mnt/workspace/megatron-patch/qwen-ckpts/Qwen2.5-7B  \
10000000000  \
1000000   \
/mnt/workspace/megatron-patch/test_qwen2_5

      相应参数说明

      ENV=$1                          # 运行环境配置开关: dsw单机训练，dlc表示多机训练环境
MODEL_SIZE=$2                   # 模型结构参数量级: 8B, 70B
BATCH_SIZE=$3                   # 一次迭代一个数据并行内的样本数
GLOBAL_BATCH_SIZE=$4            # 一次迭代多个数据并行的总样本数
LR=$5                           # 学习率
MIN_LR=$6                       # 最小学习率
SEQ_LEN=$7                      # 序列长度
PAD_LEN=$8                      # Padding长度
PR=${9}                         # 训练精度: fp16, bf16, fp8
TP=${10}                        # 模型并行度
PP=${11}                        # 流水并行度
CP=${12}                        # 上下文并行度
SP=${13}                        # 是否使用序列并行: true, false
DO=${14}                        # 是否使用Megatron版Zero-1降显存优化器: true, false
FL=${15}                        # 是否优先使用Flash Attention: true, false
SFT=${16}                       # 是否执行微调训练: true, false
AC=${17}                        # 激活检查点模式: sel, full, offload, false
OPTIMIZER_OFFLOAD=${18}         # 是否启用Offload optimizer: false, static, auto
SAVE_INTERVAL=${19}             # 保存ckpt的间隔
DATASET_PATH=${20}              # 训练数据集路径
VALID_DATASET_PATH=${21}        # 验证数据集路径
PRETRAIN_CHECKPOINT_PATH=${22}  # 预训练模型路径
TRAIN_TOKENS_OR_ITERS=${23}     # 训练TOKEN或者Iter数
WARMUP_TOKENS_OR_ITERS=${24}    # 预热TOKEN或者Iter数
OUTPUT_BASEPATH=${25}           # 训练输出日志文件路径

      增加文件如下图所示。

      PG1_DSW_增加日志

3. 执行训练任务

执行如下命令运行训练任务。

cd /mnt/workspace/megatron-patch/Pai-Megatron-Patch/examples/qwen2_5
sh run_dsw_7b.sh

4. 查看结果

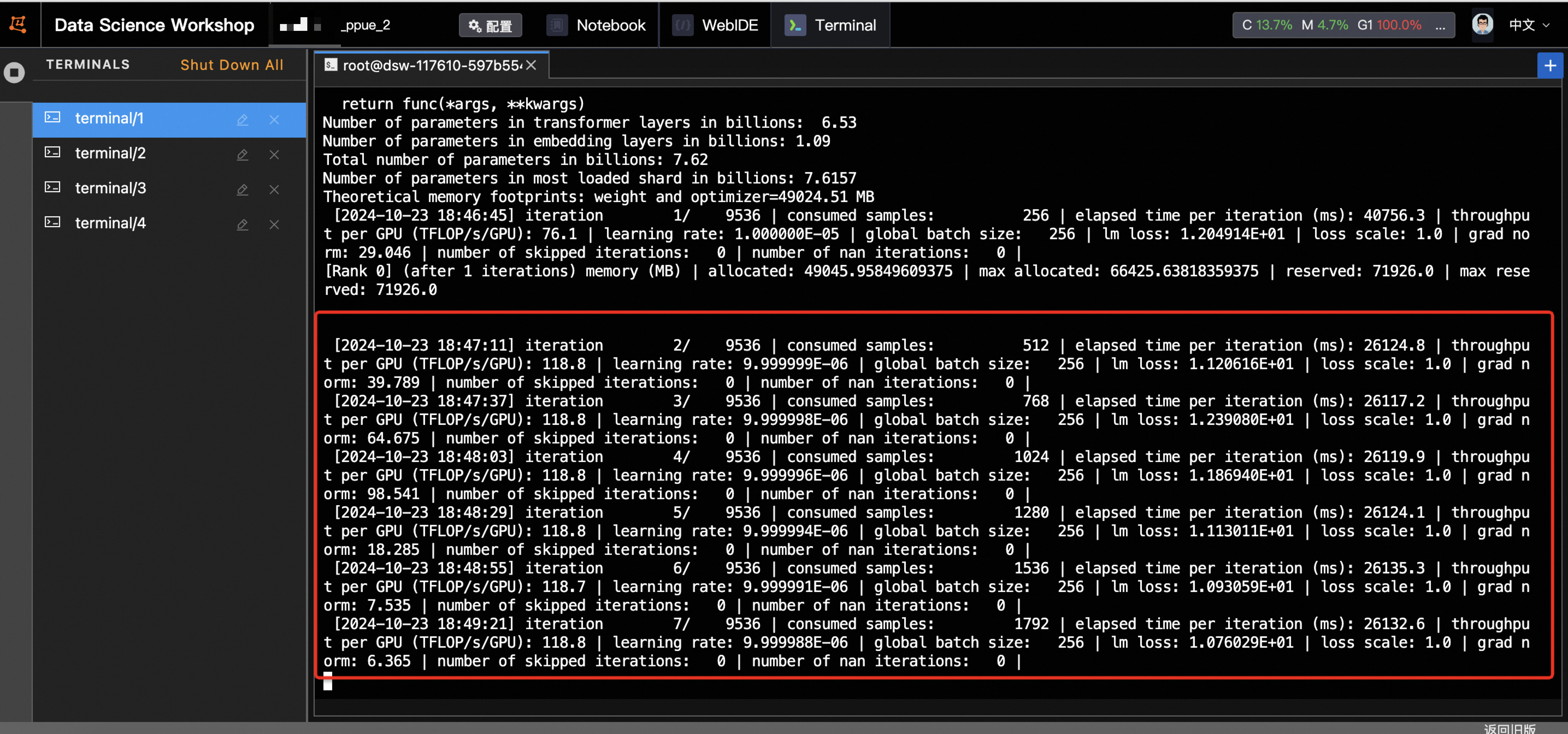

  1. 查看日志。有相应日志展示，则说明任务正常执行。

    PG1_DSW_日志

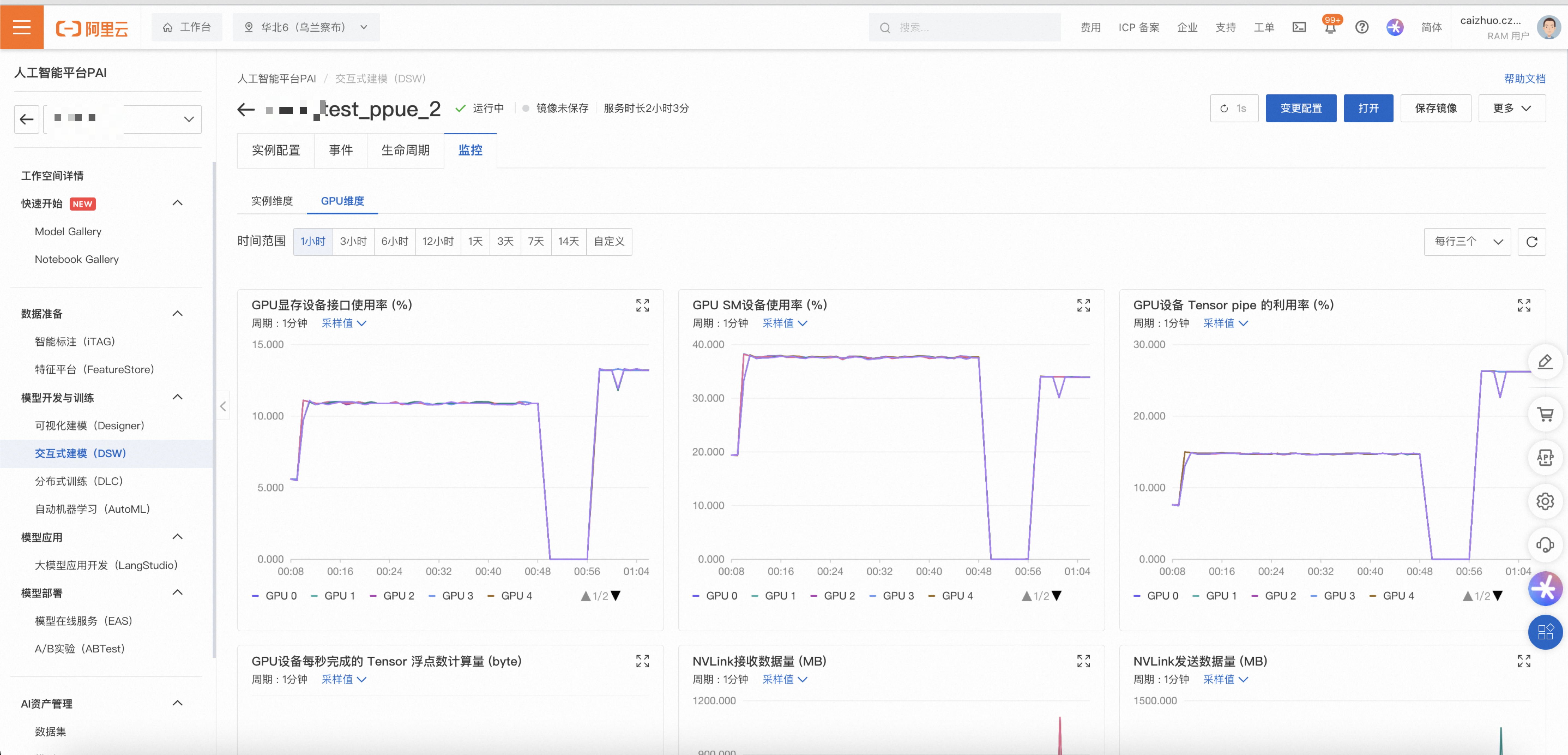

  2. 查看监控。有相应数据展示，则说明任务在运行中。

    PG1——DSW_任务监控

性能指标

LLaMA-3.1-8B/70B、Qwen2.5 72B

注：需要关闭训练脚本中的--tp-comm-overlap选项

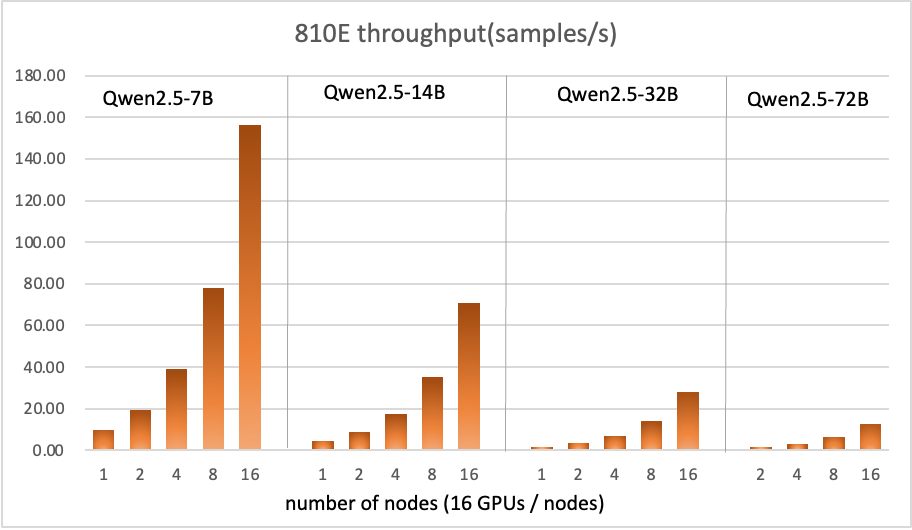

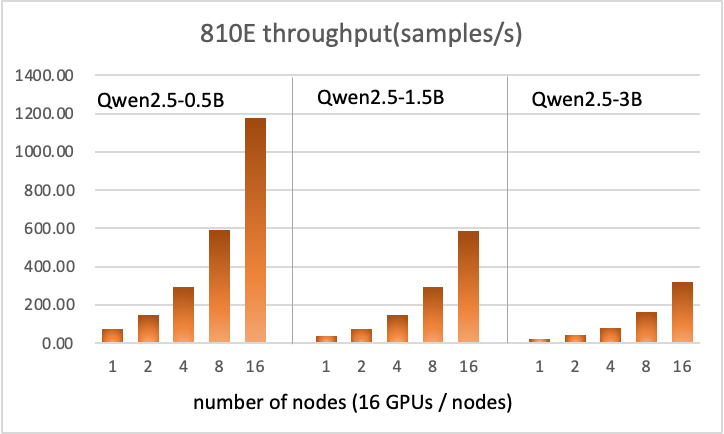

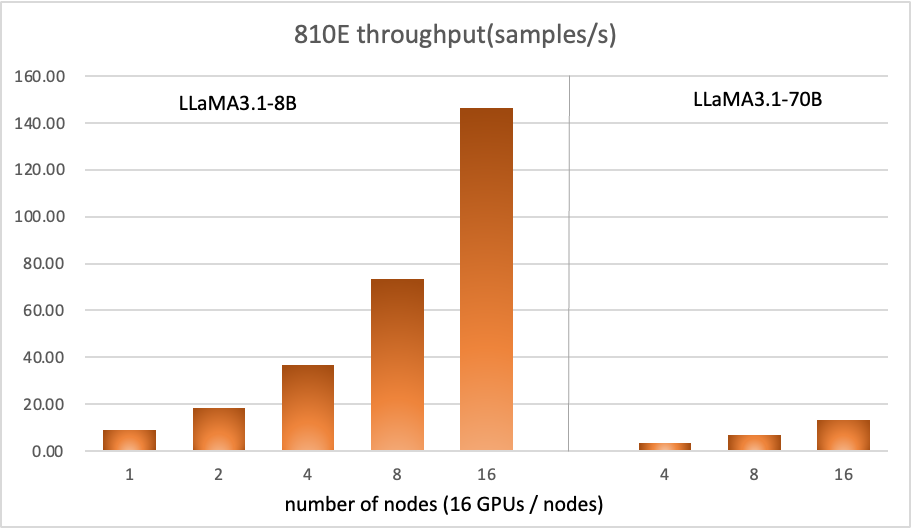

以下为LLaMA3.1和Qwen2.5系列模型性能测试结果




Qwen-VL

  • 开源代码库地址：https://github.com/QwenLM/Qwen-VL

  • 训练配置文件：finetune/finetune_lora_ds.sh

  • 参数配置：mbs 2 / ga 4 / seqlen 2048 / zero 2 / bf16 / lora

节点数

卡数

参考吞吐 (samples/sec)

MFU(TFLOPS / 规格值123)

1

16

9.64

58.40%

2

32

19.38

55.40%

4

64

36.05

57.60%

8

128

77.46

55.30%

16

256

152.39

54.40%

Bunny-LLaMA-3-V

  • 开源代码库地址：https://github.com/BAAI-DCAI/Bunny

  • 训练配置文件：https://github.com/BAAI-DCAI/Bunny/blob/main/script/train/tutorials/Bunny-Llama-3-8B-V.md

  • 数据集：https://huggingface.co/datasets/BoyaWu10/Bunny-v1_1-data/tree/main/pretrain

节点数

卡数

参考吞吐 (samples/sec)

MFU(TFLOPS / 规格值123)

1

16

37.01

78.54%

2

32

68.71

73.80%

4

64

130.86

71.80%

8

128

260.32

69.70%

16

256

522.48

73.20%

32

512

1043.8

70.40%

上一篇：PAI下一篇：ACS
