使用企业版转发路由器实现流量安全互访

控制台

Terraform

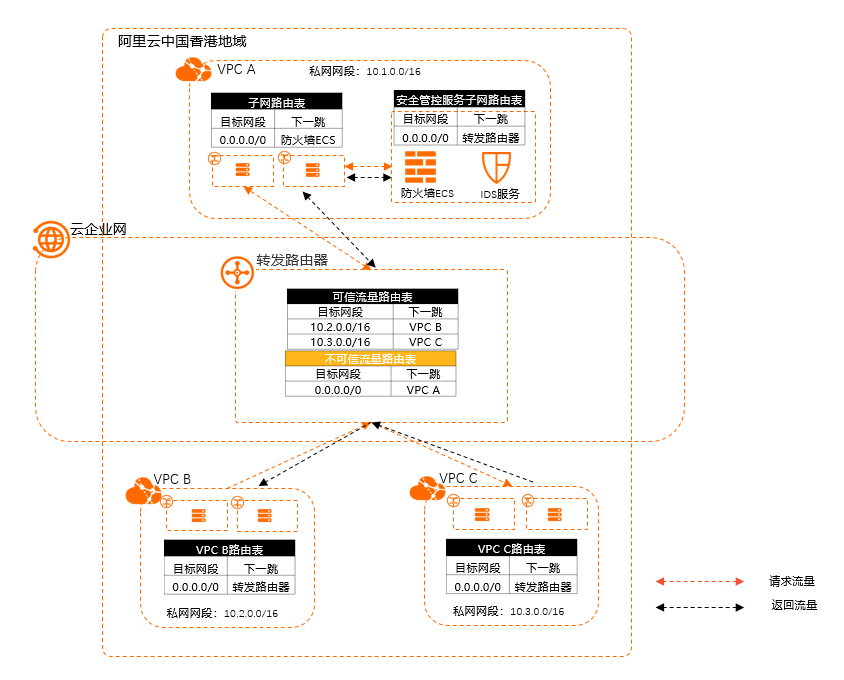

您可以使用Terraform搭建本文示例环境，关于Terraform的安装和配置，请参考Provider 使用。

下面步骤以Linux主机运行Terraform v1.9.8为例进行介绍，操作前请确保您已经完成Terraform 身份认证。

第一步：创建资源

1. 为本文的实践场景创建一个目录，并进入该目录。

   mkdir tf-CenSec && cd tf-CenSec

2. 创建一个main.tf文件，用于定义资源信息。

   touch main.tf

3. 打开main.tf文件，复制如下代码，粘贴到文件中并保存。此文件包含了本文实践场景中需要用到的资源和对应配置。

   variable "pname" {
     description = "The prefix name for the resources"
     type        = string
     default     = "tf-CenSec"
   }

   variable "default_region" {
     description = "Default region"
     type        = string
     default     = "cn-hangzhou"
   }

   variable "az" {
     description = "List of availability zones to use"
     type        = list(string)
     default     = ["cn-hangzhou-i", "cn-hangzhou-j", "cn-hangzhou-k"]
   }

   variable "vpc_count" {
     description = "Number of VPCs to create"
     type        = number
     default     = 3
   }

   provider "alicloud" {
     region = var.default_region
   }

   # vpc
   resource "alicloud_vpc" "main" {
     count      = var.vpc_count
     vpc_name   = "${var.pname}-vpc${count.index + 1}"
     cidr_block = "10.${count.index}.0.0/16"
   }

   # vsw
   resource "alicloud_vswitch" "main" {
     count        = var.vpc_count * length(var.az)
     vpc_id       = alicloud_vpc.main[floor(count.index / length(var.az))].id
     cidr_block   = "10.${floor(count.index / length(var.az))}.${count.index % length(var.az)}.0/24"
     zone_id      = var.az[count.index % length(var.az)]
     vswitch_name = "${var.pname}-vsw${count.index + 1}"
   }

   # ecs
   resource "alicloud_instance" "main" {
     count                = var.vpc_count
     instance_name        = "${var.pname}-ecs${count.index + 1}"
     instance_type        = "ecs.e-c1m1.large"
     security_groups      = [alicloud_security_group.main[count.index].id]
     vswitch_id           = alicloud_vswitch.main[count.index * length(var.az)].id
     image_id             = "aliyun_3_x64_20G_qboot_alibase_20230727.vhd"
     system_disk_category = "cloud_essd"
     private_ip           = "10.${count.index}.0.1"
     instance_charge_type = "PostPaid"
     user_data = base64encode(<<-EOT
       #!/bin/bash
       ${count.index == 0 ? "echo 1 > /proc/sys/net/ipv4/ip_forward" : ""}
       yum install -y traceroute
       yum install -y mtr
     EOT
     ) # ecs1 enable ip_forward
   }

   # sg
   resource "alicloud_security_group" "main" {
     count  = var.vpc_count
     name   = "${var.pname}-${count.index + 1}"
     vpc_id = alicloud_vpc.main[count.index].id
   }

   resource "alicloud_security_group_rule" "allow_inbound_ssh" {
     count             = var.vpc_count
     type              = "ingress"
     ip_protocol       = "tcp"
     nic_type          = "intranet"
     policy            = "accept"
     port_range        = "22/22"
     priority          = 1
     security_group_id = alicloud_security_group.main[count.index].id
     cidr_ip           = "0.0.0.0/0"
   }

   resource "alicloud_security_group_rule" "allow_inbound_icmp" {
     count             = var.vpc_count
     type              = "ingress"
     ip_protocol       = "icmp"
     nic_type          = "intranet"
     policy            = "accept"
     port_range        = "-1/-1"
     priority          = 1
     security_group_id = alicloud_security_group.main[count.index].id
     cidr_ip           = "0.0.0.0/0"
   }

   resource "alicloud_security_group_rule" "allow_all_outbound" {
     count             = var.vpc_count
     type              = "egress"
     ip_protocol       = "tcp"
     nic_type          = "intranet"
     policy            = "accept"
     port_range        = "1/65535"
     priority          = 1
     security_group_id = alicloud_security_group.main[count.index].id
     cidr_ip           = "0.0.0.0/0"
   }

   # cen
   resource "alicloud_cen_instance" "cen1" {
     cen_instance_name = var.pname
   }

   # tr
   resource "alicloud_cen_transit_router" "tr1" {
     transit_router_name = var.pname
     cen_id              = alicloud_cen_instance.cen1.id
   }

   # attach1  to vsw2 vsw3 in vpc1
   resource "alicloud_cen_transit_router_vpc_attachment" "attach1" {
     cen_id            = alicloud_cen_instance.cen1.id
     transit_router_id = alicloud_cen_transit_router.tr1.transit_router_id
     vpc_id            = alicloud_vpc.main[0].id
     zone_mappings {
       zone_id    = var.az[1]
       vswitch_id = alicloud_vswitch.main[1].id # vsw2, vpc1-2
     }
     zone_mappings {
       zone_id    = var.az[2]
       vswitch_id = alicloud_vswitch.main[2].id # vsw3, vpc1-3
     }
     transit_router_vpc_attachment_name = "attach1"
   }

   # attach2 to vsw1 vsw2 in vpc2
   resource "alicloud_cen_transit_router_vpc_attachment" "attach2" {
     cen_id            = alicloud_cen_instance.cen1.id
     transit_router_id = alicloud_cen_transit_router.tr1.transit_router_id
     vpc_id            = alicloud_vpc.main[1].id
     zone_mappings {
       zone_id    = var.az[0]
       vswitch_id = alicloud_vswitch.main[3].id # vsw4, vpc2-1
     }
     zone_mappings {
       zone_id    = var.az[1]
       vswitch_id = alicloud_vswitch.main[4].id # vsw5, vpc2-2
     }
     transit_router_vpc_attachment_name = "attach2"
   }


   # attach3 to vsw1 vsw2 in vpc3
   resource "alicloud_cen_transit_router_vpc_attachment" "attach3" {
     cen_id            = alicloud_cen_instance.cen1.id
     transit_router_id = alicloud_cen_transit_router.tr1.transit_router_id
     vpc_id            = alicloud_vpc.main[2].id
     zone_mappings {
       zone_id    = var.az[0]
       vswitch_id = alicloud_vswitch.main[6].id # vsw6, vpc3-1
     }
     zone_mappings {
       zone_id    = var.az[1]
       vswitch_id = alicloud_vswitch.main[7].id # vsw7, vpc3-2
     }
     transit_router_vpc_attachment_name = "attach3"
   }

   # 3 rt for vpc1
   resource "alicloud_route_table" "rt" {
     count            = 3
     vpc_id           = alicloud_vpc.main[0].id
     route_table_name = "${var.pname}-rt${count.index}"
     associate_type   = "VSwitch"
   }

   # 3 rt attach to vsw1 2 3
   resource "alicloud_route_table_attachment" "rt_attach" {
     count          = 3
     vswitch_id     = alicloud_vswitch.main[count.index].id
     route_table_id = alicloud_route_table.rt[count.index].id
   }

   # rt entry, vpc1
   resource "alicloud_route_entry" "rt-entry1" { # nexthop tr
     route_table_id        = alicloud_route_table.rt[0].id
     destination_cidrblock = "0.0.0.0/0"
     nexthop_type          = "Attachment"
     nexthop_id            = alicloud_cen_transit_router_vpc_attachment.attach1.transit_router_attachment_id
   }
   resource "alicloud_route_entry" "rt-entry2" { # nexthop ecs1
     route_table_id        = alicloud_route_table.rt[1].id
     destination_cidrblock = "0.0.0.0/0"
     nexthop_type          = "Instance"
     nexthop_id            = alicloud_instance.main[0].id # ecs1
   }
   resource "alicloud_route_entry" "rt-entry3" { # nexthop ecs1
     route_table_id        = alicloud_route_table.rt[2].id
     destination_cidrblock = "0.0.0.0/0"
     nexthop_type          = "Instance"
     nexthop_id            = alicloud_instance.main[0].id # ecs1
   }

   # rt entry, vpc2 vpc3
   resource "alicloud_route_entry" "rt-entry4" {
     route_table_id        = alicloud_vpc.main[1].route_table_id
     destination_cidrblock = "0.0.0.0/0"
     nexthop_type          = "Attachment"
     nexthop_id            = alicloud_cen_transit_router_vpc_attachment.attach2.transit_router_attachment_id
   }
   resource "alicloud_route_entry" "rt-entry5" {
     route_table_id        = alicloud_vpc.main[2].route_table_id
     destination_cidrblock = "0.0.0.0/0"
     nexthop_type          = "Attachment"
     nexthop_id            = alicloud_cen_transit_router_vpc_attachment.attach3.transit_router_attachment_id
   }

   # new 2 tr_rt
   resource "alicloud_cen_transit_router_route_table" "tr_rt1" {
     transit_router_id               = alicloud_cen_transit_router.tr1.transit_router_id
     transit_router_route_table_name = "tr_rt1"
   }

   resource "alicloud_cen_transit_router_route_table" "tr_rt2" {
     transit_router_id               = alicloud_cen_transit_router.tr1.transit_router_id
     transit_router_route_table_name = "tr_rt2"
   }

   # ass rt1 attach2 3
   resource "alicloud_cen_transit_router_route_table_association" "ass1" {
     transit_router_route_table_id = alicloud_cen_transit_router_route_table.tr_rt1.transit_router_route_table_id
     transit_router_attachment_id  = alicloud_cen_transit_router_vpc_attachment.attach2.transit_router_attachment_id
   }
   resource "alicloud_cen_transit_router_route_table_association" "ass2" {
     transit_router_route_table_id = alicloud_cen_transit_router_route_table.tr_rt1.transit_router_route_table_id
     transit_router_attachment_id  = alicloud_cen_transit_router_vpc_attachment.attach3.transit_router_attachment_id
   }
   # ass rt2 attach1
   resource "alicloud_cen_transit_router_route_table_association" "ass3" {
     transit_router_route_table_id = alicloud_cen_transit_router_route_table.tr_rt2.transit_router_route_table_id
     transit_router_attachment_id  = alicloud_cen_transit_router_vpc_attachment.attach1.transit_router_attachment_id
   }

   # tr_rt_entry
   resource "alicloud_cen_transit_router_route_entry" "tr_rt1_entry1" {
     transit_router_route_table_id                     = alicloud_cen_transit_router_route_table.tr_rt1.transit_router_route_table_id
     transit_router_route_entry_destination_cidr_block = "0.0.0.0/0"
     transit_router_route_entry_next_hop_type          = "Attachment"
     transit_router_route_entry_next_hop_id            = alicloud_cen_transit_router_vpc_attachment.attach1.transit_router_attachment_id
   }
   resource "alicloud_cen_transit_router_route_entry" "tr_rt2_entry1" {
     transit_router_route_table_id                     = alicloud_cen_transit_router_route_table.tr_rt2.transit_router_route_table_id
     transit_router_route_entry_destination_cidr_block = "10.1.0.0/16"
     transit_router_route_entry_next_hop_type          = "Attachment"
     transit_router_route_entry_next_hop_id            = alicloud_cen_transit_router_vpc_attachment.attach2.transit_router_attachment_id
   }
   resource "alicloud_cen_transit_router_route_entry" "tr_rt2_entry2" {
     transit_router_route_table_id                     = alicloud_cen_transit_router_route_table.tr_rt2.transit_router_route_table_id
     transit_router_route_entry_destination_cidr_block = "10.2.0.0/16"
     transit_router_route_entry_next_hop_type          = "Attachment"
     transit_router_route_entry_next_hop_id            = alicloud_cen_transit_router_vpc_attachment.attach3.transit_router_attachment_id
   }

   output "ecs1_login_address" {
     value = "https://ecs-workbench.aliyun.com/?from=EcsConsole&instanceType=ecs&regionId=${var.default_region}&instanceId=${alicloud_instance.main[0].id}"
   }

   output "ecs2_login_address" {
     value = "https://ecs-workbench.aliyun.com/?from=EcsConsole&instanceType=ecs&regionId=${var.default_region}&instanceId=${alicloud_instance.main[1].id}"
   }

   output "ecs3_login_address" {
     value = "https://ecs-workbench.aliyun.com/?from=EcsConsole&instanceType=ecs&regionId=${var.default_region}&instanceId=${alicloud_instance.main[2].id}"
   }

4. 初始化目录，完成Terraform的初始化配置。

   terraform init

5. 创建资源。执行后Terraform会先预览将要创建的资源，确认无误后，输入yes正式开始创建。

   terraform apply

第二步：验证测试

1. 登录ECS2实例（名称为tf-CenSec-ecs2）：

   您可以在Terraform的Outputs输出中，找到ECS2的登录地址并复制到浏览器打开，登录时注意认证方式选择临时SSH密钥认证。



2. 在ECS2执行mtr命令，测试ECS2到ECS3的流量路径：

   mtr 10.2.0.1 -i 5

   参数说明：-i 5指的是每5秒发送一次ping请求。



   如图结果显示，从ECS2发往ECS3的报文，经过了10.0.0.1（ECS1）转发，表明VPC2和VPC3之间互访的流量已经绕行ECS1（安全ECS）。

第三步：释放资源

验证完毕后，如果您不再使用资源，请执行以下命令释放资源，防止继续计费。

terraform destroy --auto-approve
