Application resource planning
Background

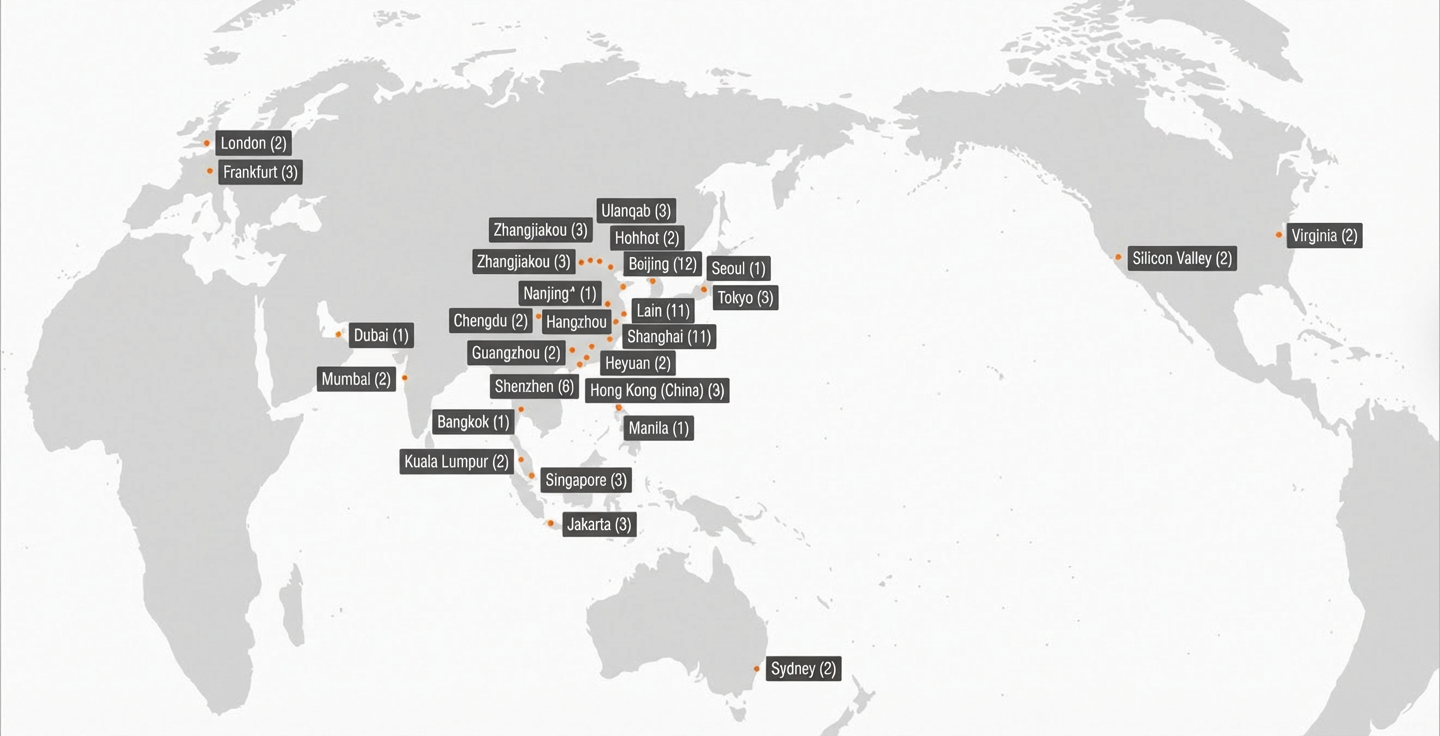

Alibaba Cloud offers a wide range of products across multiple regions, each divided into several availability zones. Product support, instance types, and availability can vary significantly between zones. When deploying an application on the cloud, you often use many cloud products. You must select products and their specific instance types based on your business requirements, and then find availability zones that support your entire selection, making effective resource planning essential.
Solution
CADT addresses these challenges with its application resource planning feature. Based on your selected products and instance types, CADT quickly finds which availability zones support your entire configuration, significantly improving planning efficiency. In the Application Resource Planning dialog box, set Region to China (Hangzhou), and set both Region Source and VPC Source to create. Select the same-region dual-AZ checkbox. For the ECS-1 configuration, set Payment Method to pay-as-you-go, set Instance Type to ecs.c5.xlarge (4c 8g), and set System Disk Type to Ultra Disk. After you click Calculate Availability Zones, select a target zone from the Selectable primary availability zone drop-down list (for example, China (Hangzhou) Zone I or China (Hangzhou) Zone G), and then click Generate Architecture Diagram.
Supported products
The application resource planning feature in CADT currently supports the following products:
|
1 |
ECS |
RDS |
Elastic IP Address (EIP) |
NAT Gateway |
|
2 |
Classic Load Balancer (CLB) (internal) |
Application Load Balancer (ALB) |
Network Load Balancer (NLB) (pay-as-you-go) |
Cloud Storage Gateway (CSG) (subscription) |
|
3 |
ApsaraDB for Redis |
ApsaraDB for Redis |
Tair |
Lindorm |
|
4 |
Apsara File Storage NAS (General-purpose) |
Apsara File Storage NAS (Extreme) |
Cloud Paralleled File System (CPFS) |
ApsaraDB Dedicated Cluster host |
|
5 |
Bastion Host |
OSS |
Quick BI (for general users) |
ApsaraDB for MongoDB (sharded cluster edition) |
|
6 |
PolarDB compute package |
Platform for AI (PAI) |
Tablestore |
ApsaraDB for MongoDB (replica set edition) |
|
7 |
ApsaraMQ for RabbitMQ |
ApsaraMQ for MQTT |
PolarDB |
Hologres |
|
8 |
Elasticsearch |
ApsaraDB for HBase |
Microservices Engine (MSE) |
Graph Database (GDB) |
|
9 |
ApsaraMQ for Kafka |
Realtime Compute for Apache Flink |
