Use Terraform to create a VPC firewall to protect traffic between two VPCs connected by using an Express Connect circuit

Step 1: Write the configuration

Create a working directory and a main.tf file inside it. The following configuration provisions all required resources in sequence: two VPCs with vSwitches, a peering connection, route entries, and the VPC firewall.

Provider and VPCs

The configuration targets the cn-heyuan region. It creates two VPCs with non-overlapping CIDR blocks and two vSwitches in each VPC across two availability zones.

variable "region" {
  default = "cn-heyuan"
}
provider "alicloud" {
  region = var.region
}
# Retrieve the current Alibaba Cloud account ID.
data "alicloud_account" "current" {
}
# VPC 1 (initiator)
resource "alicloud_vpc" "vpc" {
  vpc_name   = "dd-tf-vpc-01"
  cidr_block = "192.168.0.0/16"
}
# VPC 2 (acceptor)
resource "alicloud_vpc" "vpc1" {
  vpc_name   = "dd-tf-vpc-02"
  cidr_block = "172.16.0.0/12"
}
# vSwitches for VPC 1
resource "alicloud_vswitch" "vsw" {
  vpc_id       = alicloud_vpc.vpc.id
  cidr_block   = "192.168.10.0/24"
  zone_id      = "cn-heyuan-a"
  vswitch_name = "dd-tf-vpc-01-example-1"
}
resource "alicloud_vswitch" "vsw1" {
  vpc_id       = alicloud_vpc.vpc.id
  cidr_block   = "192.168.20.0/24"
  zone_id      = "cn-heyuan-b"
  vswitch_name = "dd-tf-vpc-01-example-2"
}
# vSwitches for VPC 2
resource "alicloud_vswitch" "vsw2" {
  vpc_id       = alicloud_vpc.vpc1.id
  cidr_block   = "172.16.10.0/24"
  zone_id      = "cn-heyuan-a"
  vswitch_name = "dd-tf-vpc-02-example-11"
}
resource "alicloud_vswitch" "vsw3" {
  vpc_id       = alicloud_vpc.vpc1.id
  cidr_block   = "172.16.20.0/24"
  zone_id      = "cn-heyuan-b"
  vswitch_name = "dd-tf-vpc-02-example-22"
}

VPC peering connection

The peering connection links VPC 1 (initiator) to VPC 2 (acceptor). Both VPCs are in the same region, so accepting_region_id matches the provider region.

resource "alicloud_vpc_peer_connection" "default" {
  peer_connection_name = "terraform-example-vpc-peer-connection"
  vpc_id               = alicloud_vpc.vpc.id
  accepting_ali_uid    = data.alicloud_account.current.id
  accepting_region_id  = "cn-heyuan"
  accepting_vpc_id     = alicloud_vpc.vpc1.id
  description          = "terraform-example"
  force_delete         = true
}
resource "alicloud_vpc_peer_connection_accepter" "default" {
  instance_id  = alicloud_vpc_peer_connection.default.id
  force_delete = true
}

Route entries

Each VPC needs a route entry that directs traffic destined for the peer's CIDR block through the peering connection.

# Route from VPC 1 toward VPC 2
resource "alicloud_route_entry" "foo" {
  route_table_id        = alicloud_vpc.vpc.route_table_id
  destination_cidrblock = "1.2.3.4/32"
  nexthop_type          = "VpcPeer"
  nexthop_id            = alicloud_vpc_peer_connection.default.id
}
# Route from VPC 2 toward VPC 1
resource "alicloud_route_entry" "foo1" {
  route_table_id        = alicloud_vpc.vpc1.route_table_id
  destination_cidrblock = "4.3.X.X/32"
  nexthop_type          = "VpcPeer"
  nexthop_id            = alicloud_vpc_peer_connection.default.id
}

Wait resources

The VPC firewall API requires the peering connection and route entries to be fully propagated before the firewall can be created. The time_sleep resource introduces a 12-minute wait (720 seconds) for propagation. Adjust create_duration based on your network conditions.

resource "time_sleep" "wait_before_firewall" {
  depends_on = [
    alicloud_route_entry.foo,
    alicloud_route_entry.foo1
  ]
  create_duration = "720s"
}
resource "null_resource" "wait_for_firewall" {
  provisioner "local-exec" {
    command = "echo waiting for firewall to be ready"
  }
  depends_on = [time_sleep.wait_before_firewall]
}

VPC firewall

The alicloud_cloud_firewall_vpc_firewall resource creates the firewall. It references both VPCs, their route tables, and the peering connection as the next hop. Setting status = "open" enables the firewall immediately after creation.

resource "alicloud_cloud_firewall_vpc_firewall" "default" {
  depends_on = [null_resource.wait_for_firewall]
  timeouts {
    create = "30m"
  }
  vpc_firewall_name = "tf-test"
  member_uid        = data.alicloud_account.current.id
  local_vpc {
    vpc_id    = alicloud_vpc.vpc.id
    region_no = "cn-heyuan"
    local_vpc_cidr_table_list {
      local_route_table_id = alicloud_vpc.vpc.route_table_id
      local_route_entry_list {
        local_next_hop_instance_id = alicloud_vpc_peer_connection.default.id
        local_destination_cidr     = alicloud_route_entry.foo.destination_cidrblock
      }
    }
  }
  peer_vpc {
    vpc_id    = alicloud_vpc.vpc1.id
    region_no = "cn-heyuan"
    peer_vpc_cidr_table_list {
      peer_route_table_id = alicloud_vpc.vpc1.route_table_id
      peer_route_entry_list {
        peer_destination_cidr      = alicloud_route_entry.foo1.destination_cidrblock
        peer_next_hop_instance_id  = alicloud_vpc_peer_connection.default.id
      }
    }
  }
  # open: enable the firewall immediately after creation
  # close: create the firewall in a disabled state
  status = "open"
}

Outputs

output "vpc_id" {
  value = alicloud_vpc.vpc.id
}
output "vpc1_id" {
  value = alicloud_vpc.vpc1.id
}
output "route_table_id_vpc" {
  value = alicloud_vpc.vpc.route_table_id
}
output "route_table_id_vpc1" {
  value = alicloud_vpc.vpc1.route_table_id
}
output "foo_nexthop_id" {
  value = alicloud_vpc_peer_connection.default.id
}
output "foo1_nexthop_id" {
  value = alicloud_vpc_peer_connection.default.id
}
output "cidrblock" {
  value = alicloud_route_entry.foo.destination_cidrblock
}
output "cidrblock1" {
  value = alicloud_route_entry.foo1.destination_cidrblock
}

Step 2: Initialize Terraform

terraform init

Terraform downloads the aliyun/alicloud provider and initializes the working directory. A successful run ends with:

Terraform has been successfully initialized!

For Terraform 0.13 and later, the provider source has moved to aliyun/alicloud. Update required_providers in your configuration if you see a registry warning.

Step 3: Preview the execution plan

terraform plan

Review the list of resources Terraform will create before applying changes.

Step 4: Apply the configuration

terraform apply

When prompted, enter yes and press Enter. The process takes approximately 25 minutes because of the 12-minute propagation wait and the firewall creation. A successful run ends with:

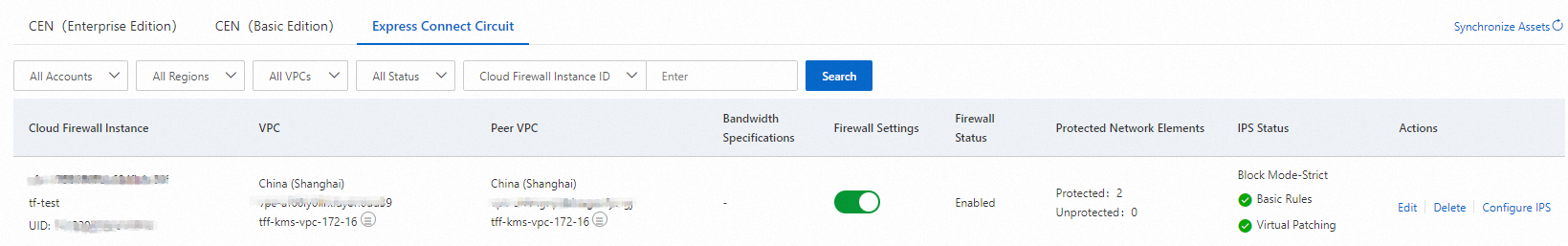

Apply complete! Resources: 13 added, 0 changed, 0 destroyed.
