LLM and CV model training on ACK clusters

更新时间：
复制 MD 格式
产品详情
我的收藏

This topic shows you how to use an ACS AI container image to create a workload in an ACS cluster and quickly build an LLM/CV model training environment.

Prerequisites

  • You have created an ACS cluster.

  • You have created a NAS storage volume that contains the model files.

    Procedure

    1. You have activated Alibaba Cloud NAS.

    2. Prepare a NAS file system. Large language models (LLMs) require significant disk space for their model files. We recommend creating a NAS storage volume to persistently store these files. For more information, see Use a dynamic NAS storage volume. This guide uses a statically mounted NAS storage volume as an example. A storage capacity of 20 GiB is recommended.

      Create a persistent volume claim (PVC) with the following configurations. For more information, see Create a PVC.

      Parameter

      Example

      Name

      nas-test

      Allocation mode

      Select Create by Using Mount Target.

      Total capacity

      20Gi

      Mount target domain name

      08cxxxxxxec-wxxxxxxcn-wulanchabu.nas.aliyuncs.com

    3. Mount the NAS file system to an ECS instance. For more information, see Mount an NFS file system with one click.

      Run the following commands to download the model to the NAS file system:

      cd /mnt
pip install modelscope
modelscope download --model Qwen/Qwen2.5-7B-Instruct --local_dir ./Qwen2.5-7B-Instruct
      Note

      • The Qwen2.5-7B-Instruct model used in this guide is approximately 15 GB. It takes about 20 minutes to download over a 100 Mbps connection. You can use a more lightweight model, such as Qwen2.5-3B or Qwen2.5-0.5B, based on your requirements.

      • Because modelscope requires Python version ≥ 3.10 to run properly, we recommend using Ubuntu 22.04 as the ECS instance image, which has a default Python version of 3.10. You can also use other public or custom images, as long as the Python version is ≥ 3.10.

ACS AI container images

ACS AI container images are specialized container images for ACS clusters with GPU instances. These images provide a reliable, flexible, portable, efficient, and manageable environment for AI workloads.

ACS AI container images include mainstream open-source AI frameworks, operator and networking libraries, distributed training frameworks, Python virtual machines, and other tools. They also integrate multiple in-house optimization technologies from Alibaba Cloud to help model developers accelerate their training workflows.

Use the following example to obtain an ACS AI container image to configure workloads on your ACS clusters.

Note

Name

Tag

Public address

VPC address

Description

training-xpu-pytorch

25.03

egslingjun-registry.cn-wulanchabu.cr.aliyuncs.com/egslingjun/training-xpu-pytorch:25.03

  • Example for China (Beijing) region:

    acs-registry-vpc.cn-beijing.cr.aliyuncs.com/egslingjun/training-xpu-pytorch:25.03

  • Example for China (Ulanqab) region:

    acs-registry-vpc.cn-wulanchabu.cr.aliyuncs.com/egslingjun/training-xpu-pytorch:25.03

  • The base image is upgraded to PPU SDK 1.4.3-hotfix.

  • ACCL-P is upgraded to v1.4.3-8 and EIC is upgraded to 1.3.7.1-v2503 to incorporate new features and bug fixes.

  • vLLM is upgraded to v0.7.3, Ray is upgraded to v2.43, FlashInfer support is added for 0.2.1.post1, Accelerate is upgraded to v1.5.2, and Transformers is upgraded to 4.49.0+ali to incorporate new features and bug fixes.

Note

  • You can build custom images by extending this base image and store them in your ACR repository to increase pull speeds. Additional fees may apply.

  • For a list of the core AI libraries in the image, see the latest List of Image Components.

Create a training or fine-tuning task

Single-node multi-GPU training

Follow these steps to create a custom resource workload. The procedure is similar for other task types.

  1. Log on to the ACS console. In the left navigation pane, click Clusters.

  2. On the Clusters page, click the name of the target cluster. In the left navigation pane, choose Workloads > Custom Resources.

  3. On the CustomResourceDefinition tab, click Create by using YAML.

    Paste the following orchestration template to quickly create a model training task.

    apiVersion: v1
kind: Pod
metadata:
  name: cv-demo # Modify the name as required.
  labels:
    alibabacloud.com/compute-class: gpu-hpn
    alibabacloud.com/hpn-type: "rdma"
spec:
  imagePullSecrets:
    - name: acs-image-secret # Must match the name of the Secret that you created.
  containers:
    - name: ssd-demo
      image: egslingjun-registry.cn-wulanchabu.cr.aliyuncs.com/egslingjun/training-xpu-pytorch:24.09
      env:
      - name: USE_PRETRAIN
        value: "true"
      - name: PRETRAIN_PATH
        value: "/opt/ljperf/benchmark/models/mmdetection/model_configs/ssd/"
      command: ["/bin/bash"]
      args: ["-c", "ljperf benchmark --model cv/ssd"]
      resources:
        limits: # Adjust the values based on the arguments used to run the model.
          cpu: 90
          memory: 500G
          alibabacloud.com/ppu: 16
        requests: # Adjust the values based on the arguments used to run the model.
          cpu: 90
          memory: 500G
          alibabacloud.com/ppu: 16
      volumeMounts: # Prepare the network storage (e.g., PV/NAS) and the model/data files in advance. Adjust the following mount directories as required.
        - name: dshm
          mountPath: /dev/shm
        - name: data
          mountPath: /opt/ljperf/benchmark/models/mmdetection/model_configs/ssd/
          subPath: shared/public/model_configs/ssd
        - name: data
          mountPath: /opt/ljperf/benchmark/models/mmdetection/data/coco
          subPath: shared/public/dataset/coco
  volumes:
    - emptyDir:
        medium: Memory
        sizeLimit: 1000Gi
      name: dshm
    - name: data
      persistentVolumeClaim:
        claimName: cnp

  4. Click Create. The console shows the deployment status.

Note

  • The image does not contain the checkpoint files or datasets required for model training. You must mount them to the pod by using a volume. In the sample YAML file, the mount paths are as follows:

    • /opt/ljperf/benchmark/models/mmdetection/model_configs/ssd/ is the path to the SSD model checkpoint file. You can download the checkpoint file from model_configs.tar.gz.

    • /opt/ljperf/benchmark/models/mmdetection/data/coco is the path to the dataset required for training the SSD model. You can download the dataset from datasets.tar.gz.

  • The args field contains the command to start model training. The core command is ljperf benchmark --model cv/ssd. This command quickly starts the benchmark models built into the image. The 24.09 image supports CV models such as cv/ssd, cv/mask_rcnn, cv/fcn, and cv/mask2former. For more information about how to use ljperf, see Usage of the ljperf demo application in the container image.

Multi-node multi-GPU training

Note

  • A multi-node multi-GPU training task requires scheduling and orchestration support. If you have your own orchestration solution, you can use it for the training task.

  • If you do not have special requirements for orchestration and scheduling, you can deploy the Kubeflow community edition. The community edition of Kubeflow must be deployed for each new cluster. For deployment instructions, see Deploy the community edition of Kubeflow on ACK.

After you confirm that the platform supports the Kubeflow PyTorchJob CRD, create a PyTorchJob multi-node training task. The procedure is similar to that described in the Single-node multi-GPU training section.

  1. The following is a sample YAML file.

    apiVersion: "kubeflow.org/v1"
kind: PyTorchJob
metadata:
  name: pytorchjob-llama3-8b
  namespace: llm-training
  labels:
    alibabacloud.com/compute-class: gpu-hpn
    alibabacloud.com/hpn-type: "rdma"
spec:
  pytorchReplicaSpecs:
    Master:
      replicas: 1
      restartPolicy: Never
      template:
        metadata:
          labels:
            alibabacloud.com/compute-class: gpu-hpn
            alibabacloud.com/hpn-type: "rdma"
          annotations:
            sidecar.istio.io/inject: "false"
        spec:
          imagePullSecrets:
          - name: acs-image-secret # Must match the name of the Secret that you created.
          containers:
            - name: pytorch
              imagePullPolicy: Always
              image: egslingjun-registry.cn-wulanchabu.cr.aliyuncs.com/egslingjun/training-xpu-pytorch:24.09
              securityContext:
                privileged: true
                capabilities:
                    add:
                      - IPC_LOCK
              command: ["/bin/bash"]
              args: ["-c", "ljperf benchmark --model deepspeed/llama3-8b"]
              resources:
                limits:
                  alibabacloud.com/ppu: 16
                  cpu: "90"
                  memory: 1000Gi
                  ephemeral-storage: 1000Gi
              volumeMounts:
                - mountPath: /dev/shm
                  name: dshm
              env:
                - name: KUBERNETES_POD_NAME
                  valueFrom:
                    fieldRef:
                       apiVersion: v1
                       fieldPath: metadata.name
          hostNetwork: true
          hostIPC: true
          dnsPolicy: ClusterFirstWithHostNet
          volumes:
              - emptyDir:
                  medium: Memory
                  sizeLimit: 1000Gi
                name: dshm

    Worker:
      replicas: 1
      restartPolicy: Never
      template:
        metadata:
          labels:
            alibabacloud.com/compute-class: gpu-hpn
            alibabacloud.com/hpn-type: "rdma"
          annotations:
            sidecar.istio.io/inject: "false"
        spec:
          imagePullSecrets:
          - name: acs-image-secret # Must match the name of the Secret that you created.
          containers:
            - name: pytorch
              imagePullPolicy: Always
              image: egslingjun-registry.cn-wulanchabu.cr.aliyuncs.com/egslingjun/training-xpu-pytorch:24.09
              securityContext:
                privileged: true
                capabilities:
                    add:
                      - IPC_LOCK
              command: ["/bin/bash"]
              args: ["-c", "ljperf benchmark --model deepspeed/llama3-8b"]
              resources:
                limits:
                  alibabacloud.com/ppu: 16
                  cpu: "90"
                  memory: 1000Gi
                  ephemeral-storage: 1000Gi
              volumeMounts:
                - mountPath: /dev/shm
                  name: dshm
              env:
                - name: KUBERNETES_POD_NAME
                  valueFrom:
                    fieldRef:
                       apiVersion: v1
                       fieldPath: metadata.name
          hostNetwork: true
          hostIPC: true
          dnsPolicy: ClusterFirstWithHostNet
          volumes:
              - emptyDir:
                  medium: Memory
                  sizeLimit: 1000Gi
                name: dshm

  2. View the successfully submitted PyTorchJob task.

    kubectl get PyTorchJob -n llm-training
    In the expected output, a STATE of Running means the task is in progress, and Succeeded means the task is complete.

Results

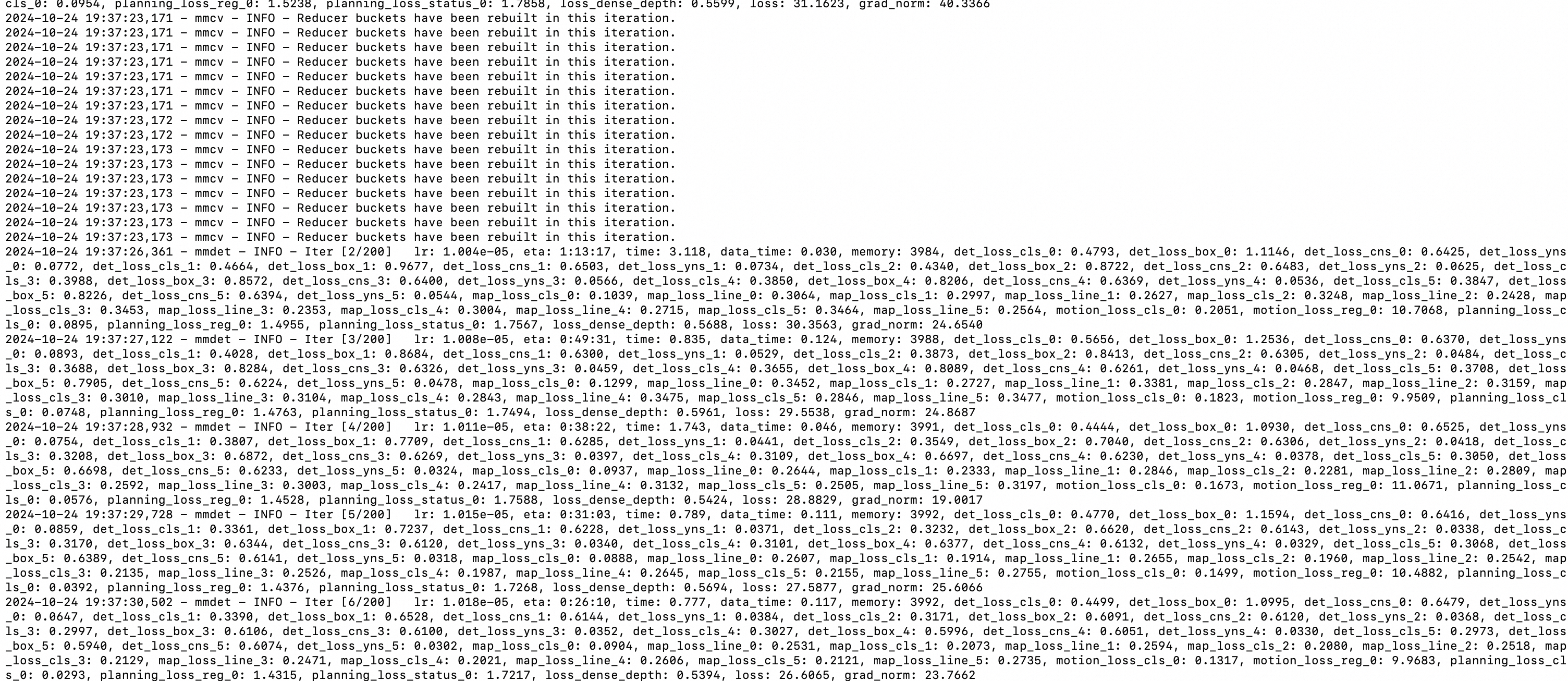

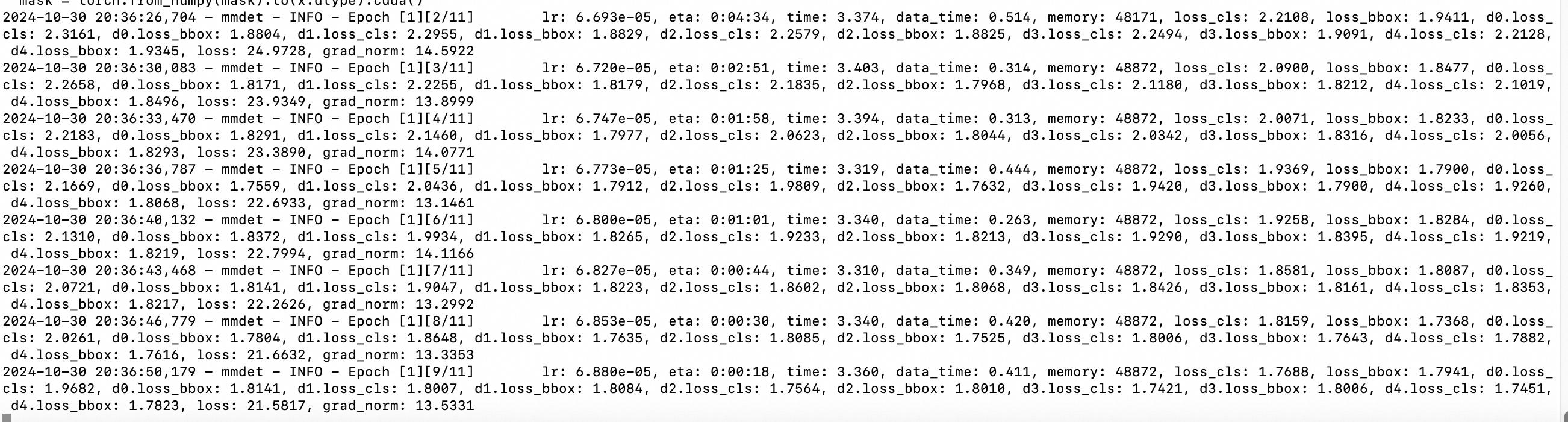

After the training task completes successfully, view the logs in the Alibaba Cloud console under Workloads > Container Groups > Logs.

FAQ

Configure model checkpoints and datasets

  1. In the NAS console, purchase a NAS file system.

    Purchase the file system in the same VPC as your ACS cluster. Otherwise, the cluster cannot connect to the NAS file system.

  2. In the Container Service console, create a PVC.

    1. In the left-side navigation pane of the cluster management page, choose Volumes > Persistent Volume Claims.

    2. Select the namespace where your training task is located and click Create.

    3. Select NAS, enter a name, specify the mount target domain, and then click Create.

      Name: Must match the claimName in the task YAML file. For the mount target domain, select the domain of the purchased NAS file system.

      Mount target domain: Select the purchased NAS, choose the option to mount it, and copy the mount target address.

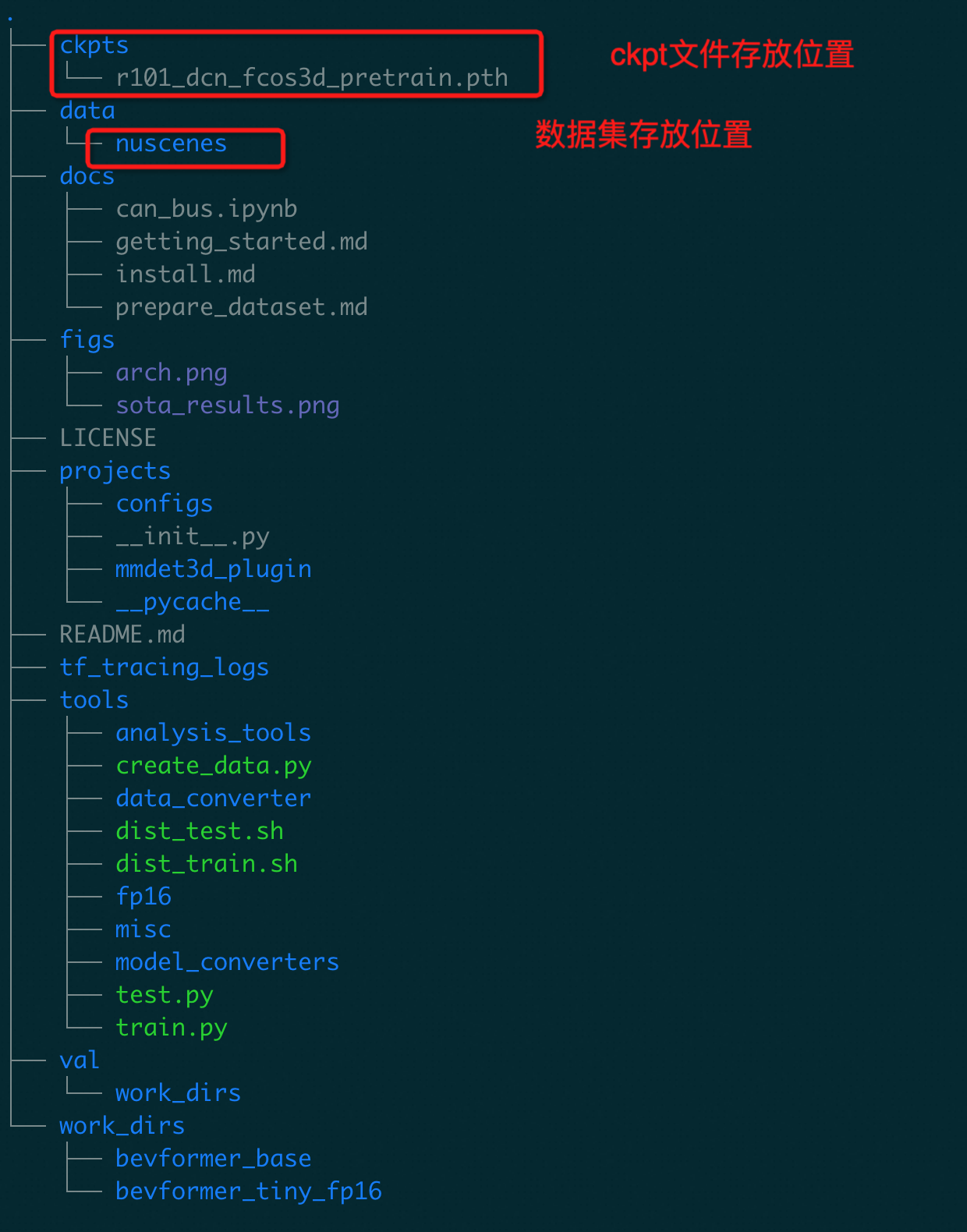

  3. Copy the model checkpoint and dataset to the NAS file system. The file path on the NAS file system must match the subPath in the YAML file.

    1. Purchase an ECS instance in the same VPC.

    2. Mount the NAS file system to the ECS instance. For more information, see Mount an NFS file system with one click.

    3. If the file system is mounted to the /mnt directory, copy the model checkpoint and dataset to their corresponding paths in the /mnt directory on the ECS instance.

      Checkpoint: /mnt/shared/public/model_configs/ssd

      Dataset: /mnt/shared/public/dataset/coco

Ljperf demo application

Note

When submitting a task, adjust the model to match the selected xPU type to prevent issues such as out-of-memory (OOM) errors.

  1. The container image includes core AI libraries such as Transformers, Accelerate, Diffusers, OpenCV, and vLLM. If you are familiar with these libraries, you can use them directly.

  2. For demonstrations, quick starts, or cluster performance testing, the image includes a proprietary application named ljperf. This tool is for testing purposes only. For production scenarios, you must provide your own models. By default, you only need to add the positional argument benchmark and specify a model to test using the --model cv/ssd flag. The simplest command is ljperf benchmark --model cv/ssd. You can also specify other training parameters as needed. For details about the parameters, see the sample help information below.

    Note

    The following help information is for version 24.10. Newer versions may support more models. The available models depend on your image version.

    usage: ljperf [-h]
              [--model {deepspeed/llama3-8b, deepspeed/llama2-7b, deepspeed/llama2-70b, deepspeed/qwen2-7b, deepspeed/qwen-7b, deepspeed/qwen-72b, megatron/llama3-8b, megatron/llama2-70b, megatron/mixtral-8*7b, megatron/mixtral-8*22b, megatron/mixtral-310b, cv/mask_rcnn, cv/ssd, cv/fcn, cv/yolo, cv/open-clip, cv/bevformer}]
              [--mbs MBS] [--seqlen SEQLEN] [--iters ITERS] [--dataset DATASET] [--overlap-comm] [--grad-ckpt] [--ga GA] [--zero ZERO] [--zeropp ZEROPP] [--zero-offload] [--use-pretrain]
              [--attn-impl {flash_attention_2,eager}] [--bf16] [--fp16] [--tc] [--enable-lora] [--sp SP] [--tprof] [--tprof-skip TORCH_PROFILE_SKIP] [--tprof-warmup TORCH_PROFILE_WARMUP]
              [--tprof-wait TORCH_PROFILE_WAIT] [--tprof-active TORCH_PROFILE_ACTIVE] [--tprof-dir TORCH_PROFILE_OUTPUT_DIR] [--fsdp] [--gbs GBS] [--tp TP] [--pp PP] [--ep EP] [--cp CP] [--te] [--do]
              [--ac {full,selective}]
              {benchmark}

lingjun perf toolkit command tool for AI performance testing, diagnose and profiling.
positional arguments:
  {benchmark}           Specify ljperf action, you can choose from action benchmark or healthcheck.
options:
  -h, --help            show this help message and exit
Group benchmark:
  --model {deepspeed/llama3-8b, deepspeed/llama2-7b, deepspeed/llama2-70b, deepspeed/qwen2-7b, deepspeed/qwen7b, deepspeed/qwen-72b, megatron/llama3-8b, megatron/llama2-70b, megatron/mixtral-8*7b, megatron/mixtral-8*22b, megatron/mixtral-310b, cv/mask_rcnn, cv/ssd, cv/fcn, cv/yolo, cv/open-clip, cv/bevformer}
  --mbs MBS
  --seqlen SEQLEN
  --iters ITERS
  --dataset DATASET
  --overlap-comm
  --grad-ckpt
  --ga GA
  --zero ZERO
  --zeropp ZEROPP
  --zero-offload
  --use-pretrain
  --attn-impl {flash_attention_2,eager}
  --bf16
  --fp16
  --tc
  --enable-lora
  --sp SP
  --tprof
  --tprof-skip TORCH_PROFILE_SKIP
  --tprof-warmup TORCH_PROFILE_WARMUP
  --tprof-wait TORCH_PROFILE_WAIT
  --tprof-active TORCH_PROFILE_ACTIVE
  --tprof-dir TORCH_PROFILE_OUTPUT_DIR
  --fsdp
  --gbs GBS
  --tp TP
  --pp PP
  --ep EP
  --cp CP
  --te
  --do
  --ac {full,selective}

Reducing long image pull times

  1. The provided images, such as egslingjun-registry.cn-wulanchabu.cr.aliyuncs.com/egslingjun/training-xpu-pytorch:24.12, use a public endpoint. Pulling images from a public endpoint is slower than pulling them over a VPC network. To improve pull speeds, create a Container Registry (ACR) instance in the ACR console, pull the public training-xpu-pytorch image, and push it to your ACR instance. You can then pull the image at high speed over the VPC network.

  2. Building on this image for incremental development and storing the result in your ACR repository also improves pull speeds.

Note

For information about ACR pricing, see Pricing.

Best-practice YAML

DeepSpeed Llama3-70B

Item

Description

Configuration

mbs 2 / gradient_accumulation_steps 1 / seqlen 4096 / zero 3 / flash-attn 2 / bf16

Package dependencies

Package                           Version
--------------------------------- ------------------------
datasets                          2.21.0
deepspeed                         0.14.4.post3+ali
diffusers                         0.29.2
flash_attn                        2.4.2+pputorch2.4
torch                             2.4.0.5.post1+ppu
transformer-engine                1.10.0+08a85d3
transformers                      4.43.1
transformers-stream-generator     0.0.4
triton                            3.0.0+ppu
xformers                          0.0.25+aad543a.d20240813

Model

https://huggingface.co/meta-llama/Meta-Llama-3-70B

Dataset

oss://lingjun-public/deepspeed/WuDaoCorpus2.0_selected_proc-llama/

Code

Image directory: /opt/ljperf/benchmark/models/transformers-model

Execution command (torchrun)

torchrun --nproc_per_node gpu --nnodes $WORLD_SIZE --node_rank $RANK --master_addr $MASTER_ADDR --master_port $MASTER_PORT --nproc_per_node gpu main.py \
--micro_batch_size 2 \
--model_path models/meta-llama/Meta-Llama-3-70B/ \
--block_size 4096 \
--seq_len 4096 \
--dataset_path ${your_dataset_path} \
--overlap_comm true \
--grad_ckpt true \
--gradient_accumulation_steps 1 \
--task text-generation \
--zero_stage 3 \
--zero_offload false \
--max_steps 30 \
--warmup_steps 0 \
--use_pretrain false \
--attn_impl flash_attention_2 \
--te 0 \
--torch_compile false \
--sequence_parallel_size 1 \
--bf16 true

YAML example

apiVersion: "kubeflow.org/v1"
kind: PyTorchJob
metadata:
  name: llama3-70b-4node
  namespace: llm-training
  labels:
    alibabacloud.com/compute-class: gpu-hpn
    alibabacloud.com/hpn-type: "rdma"
spec:
  pytorchReplicaSpecs:
    Master:
      replicas: 1
      restartPolicy: Never
      template:
        metadata:
          labels:
            alibabacloud.com/compute-class: gpu-hpn
            alibabacloud.com/hpn-type: "rdma"
          annotations:
            sidecar.istio.io/inject: "false"
        spec:
          imagePullSecrets:
          - name: acs-image-secret # Must match the name of the created secret.
          containers:
            - name: pytorch
              imagePullPolicy: Always
              image: egslingjun-registry.cn-wulanchabu.cr.aliyuncs.com/egslingjun/training-xpu-pytorch:24.10-nightly-20241023
              securityContext:
                privileged: true
                capabilities:
                    add:
                      - IPC_LOCK
              command: ["/bin/bash"]
              args: ["-c", "ljperf benchmark --model deepspeed/llama3-70b --dataset randomDataset --iters 30 --mbs 2 --ga 1 --seqlen 4096 --zero 3 --attn-impl flash_attention_2 --bf16  --overlap-comm --grad-ckpt"]
              resources:
                limits:
                  alibabacloud.com/ppu: 16
                  cpu: "90"
                  memory: 800Gi
                  ephemeral-storage: 800Gi
              volumeMounts:
                - mountPath: /dev/shm
                  name: dshm
              env:
                - name: KUBERNETES_POD_NAME
                  valueFrom:
                    fieldRef:
                       apiVersion: v1
                       fieldPath: metadata.name
          hostNetwork: true
          hostIPC: true
          dnsPolicy: ClusterFirstWithHostNet
          volumes:
              - emptyDir:
                  medium: Memory
                  sizeLimit: 800Gi
                name: dshm

    Worker:
      replicas: 3
      restartPolicy: Never
      template:
        metadata:
          labels:
            alibabacloud.com/compute-class: gpu-hpn
            alibabacloud.com/hpn-type: "rdma"
          annotations:
            sidecar.istio.io/inject: "false"
        spec:
          imagePullSecrets:
          - name: acs-image-secret # Must match the name of the created secret.
          containers:
            - name: pytorch
              imagePullPolicy: Always
              image: egslingjun-registry.cn-wulanchabu.cr.aliyuncs.com/egslingjun/training-xpu-pytorch:24.10-nightly-20241023
              securityContext:
                privileged: true
                capabilities:
                    add:
                      - IPC_LOCK
              command: ["/bin/bash"]
              args: ["-c", "ljperf benchmark --model deepspeed/llama3-70b --dataset randomDataset --iters 30 --mbs 2 --ga 1 --seqlen 4096 --zero 3 --attn-impl flash_attention_2 --bf16  --overlap-comm --grad-ckpt"]
              resources:
                limits:
                  alibabacloud.com/ppu: 16
                  cpu: "90"
                  memory: 800Gi
                  ephemeral-storage: 800Gi
              volumeMounts:
                - mountPath: /dev/shm
                  name: dshm
              env:
                - name: KUBERNETES_POD_NAME
                  valueFrom:
                    fieldRef:
                       apiVersion: v1
                       fieldPath: metadata.name
          hostNetwork: true
          hostIPC: true
          dnsPolicy: ClusterFirstWithHostNet
          volumes:
              - emptyDir:
                  medium: Memory
                  sizeLimit: 800Gi
                name: dshm

Megatron Mixtral-8x7B

Item

Description

Configuration

mbs 1 / gradient_accumulation_steps 64 / seqlen 2048 / tp 1 / pp 4 / expert-parallel 8 / context-parallel 1 / flash-attn2 / transformer-engine / recompute-activations(selective) / bf16 (Stable throughput is typically reached after 200 iterations.)

Package dependencies

Package                           Version
--------------------------------- ------------------------
accelerate                        0.33.0
bitsandbytes                      0.43.1
deepspeed                         0.14.4.post3+ali
diffusers                         0.29.2
grouped-gemm                      1.1.4
onnx                              1.17.0
onnxruntime-training              1.18.0+cu123
torch                             2.4.0.5.post1+ppu
transformer-engine                1.10.0+08a85d3
transformers                      4.43.1
transformers-stream-generator     0.0.4
triton                            3.0.0+ppu
xformers                          0.0.25+aad543a.d20240813

Code

Image directory: /opt/ljperf/benchmark/models/megatron-model

Dataset

oss://lingjun-public/megatron/enwiki-llama2/

Execution command (torchrun)

torchrun --nproc_per_node gpu --nnodes $WORLD_SIZE --node_rank $RANK --master_addr $MASTER_ADDR --master_port $MASTER_PORT pretrain_gpt.py \
--disable-bias-linear \
--num-layers 32 \
--hidden-size 4096 \
--ffn-hidden-size 14336 \
--num-attention-heads 32 \
--init-method-std 0.01 \
--attention-dropout 0.0 \
--hidden-dropout 0.0 \
--normalization RMSNorm \
--position-embedding-type rope \
--swiglu \
--untie-embeddings-and-output-weights \
--group-query-attention \
--num-query-groups 8 \
--no-masked-softmax-fusion \
--num-experts 8 \
--expert-model-parallel-size 8 \
--moe-router-load-balancing-type aux_loss \
--moe-router-topk 2 \
--moe-aux-loss-coeff 1e-2 \
--moe-grouped-gemm \
--seq-length 2048 \
--max-position-embeddings 2048 \
--tensor-model-parallel-size 1 \
--pipeline-model-parallel-size 4 \
--context-parallel-size 1 \
--micro-batch-size 1 \
--global-batch-size ${gradient_accumulation_steps} * ${dp} * ${micro-batch-size} \
--distributed-backend nccl \
--train-iters 30 \
--eval-iters 0 \
--log-interval 1 \
--timing-log-level 0 \
--recompute-activations \
--bf16 \
--use-distributed-optimizer \
--use-flash-attn \
--transformer-impl transformer_engine \
--overlap-grad-reduce \
--attention-softmax-in-fp32 \
--optimizer adam \
--lr-decay-iters 10000 \
--lr-warmup-iters 100 \
--adam-beta1 0.9 \
--adam-beta2 0.95 \
--lr 1e-5 \
--lr-decay-style cosine \
--min-lr 1e-6 \
--weight-decay 1e-2 \
--clip-grad 1.0 \
--data-path ${your_text_document_path} \
--split 100,0,0 \
--tokenizer-model ${your_tokenizer_path} \
--tokenizer-type Llama2Tokenizer \
--use-mcore-models \
--overlap-param-gather

YAML example

apiVersion: "kubeflow.org/v1"
kind: PyTorchJob
metadata:
  name: mixtral8-7b-4node
  namespace: llm-training
  labels:
    alibabacloud.com/compute-class: gpu-hpn
    alibabacloud.com/hpn-type: "rdma"
spec:
  pytorchReplicaSpecs:
    Master:
      replicas: 1
      restartPolicy: Never
      template:
        metadata:
          labels:
            alibabacloud.com/compute-class: gpu-hpn
            alibabacloud.com/hpn-type: "rdma"
          annotations:
            sidecar.istio.io/inject: "false"
        spec:
          imagePullSecrets:
          - name: acs-image-secret # Must match the name of the created secret.
          containers:
            - name: pytorch
              imagePullPolicy: Always
              image: egslingjun-registry.cn-wulanchabu.cr.aliyuncs.com/egslingjun/training-xpu-pytorch:24.10-nightly-20241023
              securityContext:
                privileged: true
                capabilities:
                    add:
                      - IPC_LOCK
              command: ["/bin/bash"]
              args: ["-c", "ljperf benchmark --model megatron/mixtral-8*7b --mbs 1 --gbs 1024 --seqlen 2048 --tp 1 --pp 4 --ep 8 --cp 1 --attn-impl flash_attention_2 --te  --ac selective --bf16 --do --sp 1"]
              resources:
                limits:
                  alibabacloud.com/ppu: 16
                  cpu: "90"
                  memory: 800Gi
                  ephemeral-storage: 800Gi
              volumeMounts:
                - mountPath: /dev/shm
                  name: dshm
              env:
                - name: KUBERNETES_POD_NAME
                  valueFrom:
                    fieldRef:
                       apiVersion: v1
                       fieldPath: metadata.name
          hostNetwork: true
          hostIPC: true
          dnsPolicy: ClusterFirstWithHostNet
          volumes:
              - emptyDir:
                  medium: Memory
                  sizeLimit: 800Gi
                name: dshm

    Worker:
      replicas: 3
      restartPolicy: Never
      template:
        metadata:
          labels:
            alibabacloud.com/compute-class: gpu-hpn
            alibabacloud.com/hpn-type: "rdma"
          annotations:
            sidecar.istio.io/inject: "false"
        spec:
          imagePullSecrets:
          - name: acs-image-secret # Must match the name of the created secret.
          containers:
            - name: pytorch
              imagePullPolicy: Always
              image: egslingjun-registry.cn-wulanchabu.cr.aliyuncs.com/egslingjun/training-xpu-pytorch:24.10-nightly-20241023
              securityContext:
                privileged: true
                capabilities:
                    add:
                      - IPC_LOCK
              command: ["/bin/bash"]
              args: ["-c", "ljperf benchmark --model megatron/mixtral-8*7b --mbs 1 --gbs 1024 --seqlen 2048 --tp 1 --pp 4 --ep 8 --cp 1 --attn-impl flash_attention_2 --te  --ac selective --bf16 --do --sp 1"]
              resources:
                limits:
                  alibabacloud.com/ppu: 16
                  cpu: "90"
                  memory: 800Gi
                  ephemeral-storage: 800Gi
              volumeMounts:
                - mountPath: /dev/shm
                  name: dshm
              env:
                - name: KUBERNETES_POD_NAME
                  valueFrom:
                    fieldRef:
                       apiVersion: v1
                       fieldPath: metadata.name
          hostNetwork: true
          hostIPC: true
          dnsPolicy: ClusterFirstWithHostNet
          volumes:
              - emptyDir:
                  medium: Memory
                  sizeLimit: 800Gi
                name: dshm

StableDiffusion XL

Item

Description

Package dependencies

Package                           Version
--------------------------------- ------------------------
accelerate                        0.33.0
diffusers                         0.29.2
flash_attn                        2.4.2+pputorch2.4
mdurl                             0.1.2
mmcv                              2.1.0
mmdet                             3.3.0
mmengine                          0.10.3
onnx                              1.17.0
onnxruntime-training              1.18.0+cu123
torch                             2.4.0.5.post1+ppu
torchaudio                        2.4.0.5+ppu
torchtext                         0.18.0.5+ppu
torchvision                       0.19.0.5+ppu

Code

https://github.com/huggingface/diffusers/blob/main/examples/text_to_image/train_text_to_image_sdxl.py

Model and dataset

Download from oss://lingjun-public/sdxl (publicly accessible)

Execution command (torchrun)

  torchrun --nnodes=$nnodes --node_rank=$node_rank --master_addr=$master_addr --master_port=$master_port  --nproc_per_node gpu train_text_to_image_sdxl.py \
    --pretrained_model_name_or_path=${model_name} \
    --pretrained_vae_model_name_or_path=${vae_name} \
    --resolution=512 --center_crop --random_flip \
    --proportion_empty_prompts=0.2 \
    --train_batch_size=${batch_size:-1} \
    --gradient_accumulation_steps=${ga:-1} --gradient_checkpointing \
    --max_train_steps=${train_iter:-200} \
    --learning_rate=1e-06 --lr_scheduler="constant" --lr_warmup_steps=0 \
    --mixed_precision="fp16" \
    --checkpointing_steps=5000 \
    --output_dir="sdxl-pokemon-model" \
    --dataset_name=${dataset_path}

YAML example

apiVersion: v1
kind: Pod
metadata:
  name: sdxl-demo # Modify the name as needed.
  labels:
    alibabacloud.com/compute-class: gpu-hpn
    alibabacloud.com/hpn-type: "rdma"
spec:
  imagePullSecrets:
    - name: acs-image-secret # Must match the name of the created secret.
  containers:
    - name: ssd-demo
      image: egslingjun-registry.cn-wulanchabu.cr.aliyuncs.com/egslingjun/training-xpu-pytorch:24.10-nightly-20241025
      env:
      - name: PRETRAIN_PATH
        value: "/mnt/sdxl/model_configs"
      command: ["/bin/bash"]
      args: ["-c", "ljperf benchmark --model dit/sdxl --dataset /mnt/sdxl/dataset/pokemon-blip-captions"]
      resources:
        limits: # Adjust as needed, based on the model's runtime arguments.
          cpu: 90
          memory: 500G
          alibabacloud.com/ppu: 16
        requests: # Adjust as needed, based on the model's runtime arguments.
          cpu: 90
          memory: 500G
          alibabacloud.com/ppu: 16
      volumeMounts: # Pre-provision network storage (PV, NAS) with the model and data. Adjust the mount paths below accordingly.
        - name: dshm
          mountPath: /dev/shm
        - name: data
          mountPath: /mnt/sdxl
          subPath: shared/public/sdxl
  volumes:
    - emptyDir:
        medium: Memory
        sizeLimit: 1000Gi
      name: dshm
    - name: data
      persistentVolumeClaim:
        claimName: lingjun-ai

BEVformer

Item

Description

Package dependencies

Package                           Version
--------------------------------- ------------------------
datasets                          2.21.0
deepspeed                         0.14.4.post1+ali
mmcv                              2.1.0
mmcv-full                         1.7.2
mmdet                             2.26.0
mmdet3d                           1.0.0rc4
mmengine                          0.10.3
mmsegmentation                    0.30.0
torch                             2.4.0.5+ppu
torchaudio                        2.4.0.5+ppu
torchtext                         0.18.0.5+ppu
torchvision                       0.19.0.5+ppu

Model checkpoint

https://lingjun-public.oss-cn-wulanchabu.aliyuncs.com/cv-models/model_configs/bevformer/

Dataset

https://lingjun-public.oss-cn-wulanchabu.aliyuncs.com/cv-models (Subdirectory: /datasets/nuscenes/)

Code repository

https://github.com/fundamentalvision/BEVFormer

Parameter configuration file

BEVFormer/projects/configs/bevformer/bevformer_base.py

  1. After downloading, arrange the files according to the directory structure shown in the image.


  2. After placing the dataset and model weight files, mount the BEVFormer directory to the container. This example uses the mount path /mnt/BEVFormer.

    apiVersion: v1
kind: Pod
metadata:
  name: bevformer-demo # Modify the name as needed.
  labels:
    alibabacloud.com/compute-class: gpu-hpn
    alibabacloud.com/hpn-type: "rdma"
spec:
  imagePullSecrets:
    - name: acs-image-secret # Must match the name of the created secret.
  containers:
    - name: bevformer-demo
      image: egslingjun-registry.cn-wulanchabu.cr.aliyuncs.com/egslingjun/training-xpu-pytorch:24.10-nightly-20241030
      command: ["/bin/bash"]
      args: ["-c", "cd /mnt/BEVFormer;bash tools/dist_train.sh ./projects/configs/bevformer/bevformer_base.py 16"]
      resources:
        limits: # Adjust as needed, based on the model's runtime arguments.
          cpu: 90
          memory: 500G
          alibabacloud.com/ppu: 16
        requests: # Adjust as needed, based on the model's runtime arguments.
          cpu: 90
          memory: 500G
          alibabacloud.com/ppu: 16
      volumeMounts: # Pre-provision network storage (PV, NAS) with the model and data. Adjust the mount paths below accordingly.
        - name: dshm
          mountPath: /dev/shm
        - name: data
          mountPath: /mnt/BEVFormer
          subPath: shared/public/BEVFormer
  volumes:
    - emptyDir:
        medium: Memory
        sizeLimit: 1000Gi
      name: dshm
    - name: data
      persistentVolumeClaim:
        claimName: lingjun-ai

  3. Check the logs to verify a successful run.


SparseDrive

Item

Description

Package dependencies

torch                             2.4.0.5.post1+ppu
numba                             0.60.0
numpy                             1.23.5
mmcv-full                         1.7.2
mmdet                             2.26.0
mmengine                          0.10.3

Code repository

https://github.com/swc-17/SparseDrive

Parameter configuration file

https://github.com/swc-17/SparseDrive/blob/main/projects/configs/sparsedrive_small_stage2.py

Dataset

nuscenes-v1.0-mini

Execution command

# script
bash scripts/train.sh

# torchrun
## stage2
PORT=28652 bash ./tools/dist_train.sh \
   projects/configs/sparsedrive_small_stage2.py \
   16

YAML example

apiVersion: v1
kind: Pod
metadata:
  name: sparsedrive-demo # Modify the name as needed.
  namespace: llm-training
  labels:
    alibabacloud.com/compute-class: gpu-hpn
    alibabacloud.com/hpn-type: "rdma"
spec:
  imagePullSecrets:
    - name: acs-image-secret # Must match the name of the created secret.
  containers:
    - name: sparsedrive-demo
      image: egslingjun-registry.cn-wulanchabu.cr.aliyuncs.com/egslingjun/training-xpu-pytorch:24.10-nightly-20241024
      command:
        - "/bin/sh"
        - "-c"
      args:
        - cd /w/SparseDrive; bash scripts/train.sh;
      resources:
        limits: # Adjust as needed, based on the model's runtime arguments.
          cpu: 50
          memory: 500G
          alibabacloud.com/ppu: 16
        requests: # Adjust as needed, based on the model's runtime arguments.
          cpu: 50
          memory: 500G
          alibabacloud.com/ppu: 16
      volumeMounts:
        - name: dshm
          mountPath: /dev/shm
  volumes:
    - emptyDir:
        medium: Memory
        sizeLimit: 1000Gi
      name: dshm

  1. Check the logs to verify a successful run.


Known issues

This section describes the differences in usage, ecosystem support, and default behavior of the Zhenwu 810E compared to NVIDIA GPUs.

Modules requiring patches

  1. The following modules require additional patches from PPU A910E. We recommend using the versions pre-installed in the image. Manually installing other versions may not function correctly.

    • ONNX Runtime

    • vLLM

    • xformers

    • CuPy

    • Grouped_Gemm

    • Transformer Engine

    • cutlass

Transformer Engine

  1. The test_fused_attn.py unit test for Transformer Engine Fused Attention fails.

    FAILED test_fused_attn.py::test_dot_product_attention[False-None-True-False-base_1_0-model_configs0-dtype0] - RuntimeError: /root/TransformerEngine/transformer_engine/common/fused_attn/fused_attn_f16_max512_seqlen.cu:836 in function fused_attn_max_512_fwd_impl: CUDNN_BAC...
FAILED test_fused_attn.py::test_dot_product_attention[False-None-True-False-base_1_0-model_configs0-dtype1] - RuntimeError: /root/TransformerEngine/transformer_engine/common/fused_attn/fused_attn_f16_max512_seqlen.cu:836 in function fused_attn_max_512_fwd_impl: CUDNN_BAC...
FAILED test_fused_attn.py::test_dot_product_attention[False-None-True-False-base_1_1-model_configs0-dtype0] - RuntimeError: /root/TransformerEngine/transformer_engine/common/fused_attn/fused_attn_f16_max512_seqlen.cu:836 in function fused_attn_max_512_fwd_impl: CUDNN_BAC...
FAILED test_fused_attn.py::test_dot_product_attention[False-None-True-False-base_1_1-model_configs0-dtype1] - RuntimeError: /root/TransformerEngine/transformer_engine/common/fused_attn/fused_attn_f16_max512_seqlen.cu:836 in function fused_attn_max_512_fwd_impl: CUDNN_BAC...
....

    Failure analysis: The xPU-compatible version of CuDNN does not currently support the FMA feature. As a result, the xPU-compatible Transformer Engine cannot use FusedAttention (CuDNN). As a workaround, prioritize FlashAttention by running: export NVTE_FLASH_ATTN=1 && export NVTE_FUSED_ATTN=0;.

  2. The Transformer Engine numerics unit test fails.

    FAILED test_numerics.py::test_gpt_checkpointing[126m-1-dtype0] - RuntimeError: /root/TransformerEngine/transformer_engine/common/gemm/cublaslt_gemm.cu:207 in function cublas_gemm: cuBLAS Error: an ...
FAILED test_numerics.py::test_gpt_checkpointing[126m-1-dtype1] - RuntimeError: /root/TransformerEngine/transformer_engine/common/gemm/cublaslt_gemm.cu:207 in function cublas_gemm: cuBLAS Error: an ...
FAILED test_numerics.py::test_gpt_checkpointing[126m-1-dtype2] - RuntimeError: /root/TransformerEngine/transformer_engine/common/gemm/cublaslt_gemm.cu:207 in function cublas_gemm: cuBLAS Error: an ...
FAILED test_numerics.py::test_gpt_checkpointing[126m-2-dtype0] - RuntimeError: /root/TransformerEngine/transformer_engine/common/gemm/cublaslt_gemm.cu:207 in function cublas_gemm: cuBLAS Error: an ...
.....

    Failure analysis: The input data type combination for this test case is not currently supported.

    FAILED test_numerics.py::test_gpt_full_activation_recompute[True-False-False-126m-1-dtype1] - AssertionError: Output mismatches in:
FAILED test_numerics.py::test_gpt_full_activation_recompute[True-False-False-126m-1-dtype2] - AssertionError: Output mismatches in:
FAILED test_numerics.py::test_gpt_full_activation_recompute[True-False-False-126m-2-dtype1] - AssertionError: Output mismatches in:
FAILED test_numerics.py::test_gpt_full_activation_recompute[True-False-False-126m-2-dtype2] - AssertionError: Output mismatches in:
......

    Failure analysis: The corresponding test cases also produce output mismatches on A100 GPUs.

Bitsandbytes

Test

Pass/total (xPU)

Pass rate

Failure reason

Pass/total (GPU)

test_functional.py

142/632

23%

The cutlass gemm operator library does not support the INT n,n configuration and throws a CUDA error: unspecified launch fail.

620/632 (precision differences slightly exceed the threshold.)

test_autograd.py

2176/2240

97.1%

Precision issue. The operator library does not support int8 gemm for n&n, n&t, and t&t transpose combinations.

2239/2240 (precision differences slightly exceed the threshold.)

CuPy

The PPU version of CuPy has not undergone full continuous integration (CI) testing. It has been primarily tested in three scenarios:

  1. NVIDIA DeepLearning Examples for the TF1 NCF model.

  2. vLLM 0.3.3.

  3. API unit tests.

import cupy as cp

cp.cuda.Device(0).use()
x_gpu_0 = cp.array([1, 2, 3])
l2_gpu = cp.linalg.norm(x_gpu)
sorted_test = cp.sort(x_gpu_0)
sort_indices = cp.argsort(x_gpu_0)
x_gpu_1 = cp.asarray(x_gpu_0)
cp.repeat(x_gpu_1, 2)
cp.logical_not(x_gpu_0)

cp.random.permutation(2)
cp.random.randint(0, high=3, size=4)
cp.get_default_memory_pool().free_all_blocks()
Important

CuPy may call APIs in CUDA computation libraries such as CuDNN, CuBlas, and CuRand that are not currently supported by the xPU. This can result in errors.

ONNX Runtime

  1. Unit test failures

    1. test_parity_huggingface_gpt_attention.py

      With TF32 precision, the Attention operator (unfused backend) produces acblas gemm precision errors that exceed the threshold. It meets precision standards with FP32 and FP16.

    2. test_flash_attn.py::TestGQA::test_gqa_no_past

      The test_gqa_no_past test sequentially evaluates the efficient backend and the FlashAttention backend. When run consecutively, the preceding test case affects the FlashAttention test, causing it to produce incorrect results. If the order is reversed or the FlashAttention test is run independently, the results are correct. No precision issues have been found with FlashAttention itself.

    3. onnxruntime_test_distributed.py::TestDistributed::test_slice_rs_axis1

      PCCL does not currently support mixing different streams within a group call.

  2. SparseAttention is only implemented with TRT cubin kernels and cannot be executed on the xPU.

  3. The standard FlashAttention has not yet been replaced with the xPU-specific FlashAttention, which may impact performance.

Grouped_Gemm

  1. The permute and sinkhorn operators are not currently supported but will be added in a future update.

Previous：TrainingNext：Container Image
