A border is a media widget that adds a decorative frame to a dashboard or a specific module, enhancing the overall visual presentation.

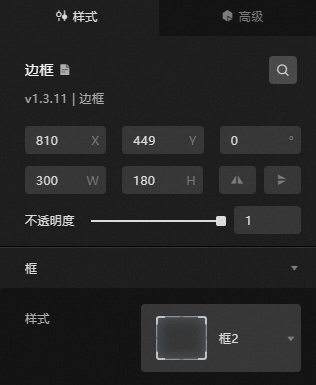

Style Panel

• Search Configuration: Click the icon in the upper-right corner of the Style panel to search for a configuration item by name. Fuzzy match is supported. For more information, see Search configuration items.

  • Size: The width and height of the widget, in pixels.

  • Positioning: The x-axis and y-axis coordinates of the widget, in pixels. X-coordinate is the pixel distance from the upper-left corner of the widget to the left edge of the canvas. Y-coordinate is the pixel distance from the upper-left corner of the widget to the top edge of the canvas.

  • Rotate: Rotates the widget around its center, in degrees.

    • Enter a value in the Rotation Angle spin box, or click the plus (+) or minus (-) sign to adjust the angle.

    • Click the icon to flip the widget style.

    • Click the icon to flip the widget style.

  • Opacity: Valid values: 0 to 1. A value of 0 hides the widget, and a value of 1 fully displays it. Default value: 1.

• Frame: The border style. Select from 18 predefined styles. A thumbnail preview is displayed in the drop-down list.

Data Sources panel

This component does not support data configuration.

Advanced Panel

This widget does not support interaction events.

Blueprint Interaction

1. Click the icon in the upper-left corner to go to the Blueprint page.

2. On the Layer Nodes tab, add the widget to the main canvas.

3. View blueprint configuration parameters.

   • Event: This widget does not support events.

   • Action

     Action	Notes
     Move	Moves the widget to a specified location. See the following data example. { // The positioning type. to indicates absolute positioning, whereas by indicates relative positioning. The default value is to. "positionType": "to", // The location, which is indicated by the x and y coordinates. "attr": { "x": 0, "y": 0 }, // The animation type. "animation": { "enable": false, // The duration in which animation is displayed. "animationDuration": 1000, // The animation curve, which can be set to linear|easeInOutQuad|easeInOutExpo. "animationEasing": "linear" } }
     Switch Display /Display	Toggles widget visibility. No parameters are required.
     Display	Displays the widget. See the following data example. { "animationType": "",// The animation method. Valid value: fade. If you do not set this parameter, no animation is available. "animationDuration": 1000,// The animation delay. Unit: ms. "animationEasing": ""// animation curve }
     Hide	Hides the widget. See the following data example. { "animationType": "",// The animation method. Valid value: fade. If you do not set this parameter, no animation is available. "animationDuration": 1000,// The animation delay. Unit: ms. "animationEasing": ""// animation curve }
     Update component configurations	Dynamically updates widget style configurations. In the Style panel, click Copy Configuration to Clipboard to obtain the widget configuration data, then modify the style field in the data processing node of the Blueprint Editor.
