This topic describes the chart style and configuration panel of a bubble chart in a mobile widget.

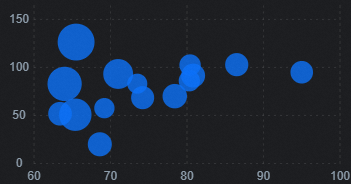

Chart style
A bubble chart is a type of scatter chart in the mobile widget. Compared with a scatter chart, a bubble chart uses bubbles to display data. You can customize the size of bubbles to visually and vividly display the differences between discrete data at multiple time points.
Configuration Panel
Search Configuration: Click Search Configuration in the upper-right corner of the Configuration panel. In the Search Configuration panel, enter the name of the configuration items that you want to search for to quickly locate the configuration items. Fuzzy match is supported. For more information, see Search for asset configurations.
Chart name
Custom Margins: the distance between the bubble chart area and the upper, lower, left, and right borders of the widget. The default unit is px. You can click the
icon to specify the custom margins. Bubble Size: the minimum and maximum radius of the bubble. Default value: px.
NoteSet the bubble size and use it to map the r field in the data, that is, the smallest r value will be drawn as the bubble with the smallest radius, the largest r value will be drawn as the bubble with the largest radius, and the rest of the data will be proportionally distributed.
Stroke: the color and width of the bubble.
Legend: the legend style of the bubble chart. You can click the
icon to display the legend. Parameter
Description
Click to filter
If you turn on the switch, when the widget is configured with multiple series data, use a mobile device in the preview or publish state of the widget, and click a legend of a series in the widget to switch the current series to the selected or unselected state, thus filtering and displaying data of different series in the visualization application. If you turn off the switch, data of different series cannot be filtered and displayed, and legend data of all series is displayed at the same time.
No Color Selected
The legend color of each series when it is not selected.
Layout
The layout style of the legend. You can adjust the position and alignment of the legend layout.
Marker shape
The shape of the legend. Valid values: Round and Square.
Text
The text style of the legend.
Font Size: the size of the legend text.
Text Width: the weight of the legend text.
Color: the color of the legend text.
Alignment: the alignment of the legend text. Valid values: Center, Left, and Right.
Axis: You can select x-axis or y-axis.
X Axis
Show: If you turn on the switch, the x-axis style in the widget is visible. If you turn off the switch, the x-axis style in the widget is invisible.
Type: the type of the x-axis label data. Valid values: Number, Category, and Time.
NoteIf the data format and specified data types are not consistent, the widget is displayed abnormally.
Parameter
Description
Numerical Type
Supports numeric data such as integers and floating-point numbers.
Category Type
Data of category types such as character and string is supported.
Time Type
The data of the time type needs to be configured data format.
Number of Scales: the number of scales on the x-axis of the widget.
Scale Optimization: If you turn on the switch, the scale on the x-axis of the widget is automatically optimized. If you turn off the switch, you need to customize the maximum and minimum values of the scale on the x-axis of the widget. This parameter is displayed only when you set the X-Axis Type parameter to Numerical.
Leave White: the ratio of white space between the two sides of the x-axis. Valid values: 0 to 1.
Axis Label: the style of the x-axis label of the bubble chart. You can click the
icon to display or hide the x-axis label. Parameter
Description
Display Format
The display format of the x-axis label content. If the x-axis type is numeric, you can select Original, 11 (integer), 11.1 (floating point), or 11.11 (floating point). If the x-axis type is time, you can select different time display styles. This parameter is displayed only when you set the X-Axis Type parameter to Numerical or Time.
Label Offset
The up-down displacement distance of the x-axis labels. Unit: px.
Text
The font size, text weight, color, and alignment style of the x-axis label text.
Grid: the style of the x-axis gridlines. You can click the
icon to display or hide the x-axis gridlines. Parameter
Description
Color
The color of the x-axis grid lines.
Width
The width value of the x-axis grid lines.
Linetype
The shape of the x-axis grid line. Valid values: Solid, Dashed, and Dotted.
Axis: the style of the x-axis. You can click the
icon to display the x-axis. Parameter
Description
Color
The color of the x axis.
Width
The width value of the x-axis.
Linetype
The shape of the x-axis line. Valid values: Solid, Dashed, and Dotted.
Tick mark: the style of the tick mark on the x-axis. You can click the
icon to show or hide the tick mark on the x-axis. Parameter
Description
Color
The color of the x-axis tick marks.
Linetype
The shape of the scale line on the x-axis. You can select solid lines, dashed lines, or dotted lines.
Width
The width value of the x-axis tick mark.
Length
The length value of the x-axis tick mark.
Y-axis
Display: If you turn on the switch, the y-axis style in the widget is visible. If you turn off the switch, the y-axis style in the widget is invisible.
Type: the type of the y-axis tag. Valid values: Number, Category, and Time.
NoteIf the data format and setting formats are not uniform, the widget will be displayed abnormally.
Parameter
Description
Numerical Type
Supports numeric data such as integers and floating-point numbers.
Category Type
Data of category types such as character and string is supported.
Time Type
The data of the time type needs to be configured data format.
Number of ticks: the number of ticks on the y-axis of the widget.
Scale Optimization: If you turn on the switch, the scale in the y-axis of the widget is automatically optimized. If you turn off the switch, you need to customize the maximum and minimum values of the scale in the y-axis of the widget.
Custom: Specify the maximum and minimum values.
Leave White: the ratio of white space between the two ends of the y-axis. Valid values: 0 to 1.
Axis Label: the style of the y-axis label of the bubble chart. You can click the
icon to display or hide the y-axis label. Parameter
Description
Display Format
The display format of the y-axis label value. Valid values: Original, 11 (integer), 11.1 (floating-point number), and 11.11 (floating-point number).
Label Offset
The up-down displacement distance of the y-axis label. Unit: px.
Text
The font size, text weight, color, and alignment style of the y-axis label text.
Grid: the style of the grid lines in the y-axis. You can click the
icon to display or hide the grid lines in the y-axis. Parameter
Description
Color
The color of the y-axis grid lines.
Width
The width value of the y-axis gridlines.
Linetype
The shape of the line in the y-axis grid. You can select Solid, Dashed, or Dotted.
Axis: the style of the y-axis. You can click the
icon to display or hide the y-axis. Parameter
Description
Color
The color of the y-axis.
Width
The width value of the y-axis.
Linetype
The shape of the line along the y-axis. You can select solid, dashed, or dotted.
Tick Mark: the style of the tick mark in the y-axis. You can click the
icon to display the tick mark. Parameter
Description
Color
The color of the tick marks on the y-axis.
Linetype
The shape of the scale line on the y-axis. You can select solid lines, dashed lines, or dotted lines.
Width
The width value of the y-axis tick mark.
Length
The length value of the y-axis tick mark.
Edition
data series: Click the
or icon on the right to add or delete a data series. Click the or icon on the right to configure the arrangement style of multiple data series. Click the icon to copy the selected data series configuration and add a data series with the same configuration. Point Style: the style of the bubble point.
Parameter
Description
Color
The color of the bubble point.
Shape
The shape of the bubble. You can select solid circle or square.
Remarks

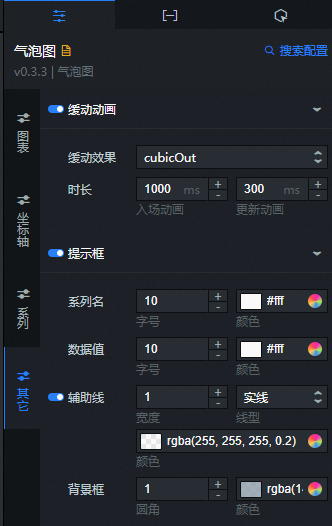

Easing Animation: the animation effect style of the chart. You can click the
icon to enable or disable the animation effect. Parameter
Description
Easing Effect
The easing effect of animation. The system provides a variety of common easing effects for you to choose from.
Admission Animation
The duration of the first animation rendered by the component. Unit: ms.
Update Animation
The duration of the animation when the component data is updated. Unit: ms.
dialog box: the style of the dialog box that appears when you move the pointer over or click a polyline dot in a bubble chart on the preview or publish page. You can click
the icon to turn the dialog box effect on or off. Parameter
Description
Series Name
dialog box the font size and name color of the displayed series names.
Value
dialog box the font size and color of the displayed values.
Gridlines
You can click
the icon to turn on or off the dialog box guide line effect. Width: dialog box a value for the width of the guide line.
Line Type: dialog box the line shape of the auxiliary line, which can be solid, dotted, or dotted.
Color: dialog box the color of the auxiliary line.
Background Box
The background box style of the dialog box.
Fillet: the fillet size of the dialog box background frame. Unit: pixels. When the value is 0, there is no rounded corner, and the background box is square. The larger the setting value, the larger the radian value of the rounded corner.
Color: The background color of the dialog box.
or
icon on the right to add or delete a data series. Click the
or
icon on the right to configure the arrangement style of multiple data series. Click the
icon to copy the selected data series configuration and add a data series with the same configuration. Data dashboard

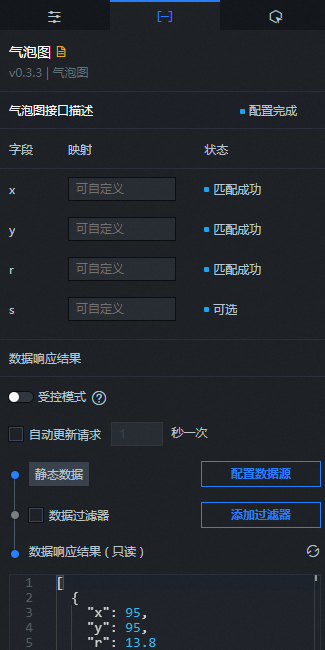

Column | Description |
| The x-axis data of each bubble in the bubble chart. The field type and format must be consistent with the label data type and format on the x-axis in the configuration items. |
| The y-axis data of each bubble in the bubble chart. The field type and format must be consistent with the type and format of the label data on the y-axis in the configuration items. |
| The mapping value of the radius of each bubble in the bubble chart. The actual radius value is proportional to the value of the bubble size configuration items in the configuration panel. |
| Optional. The series values of the bubble chart. |
Parameter | Description |
Controlled Mode | If you turn on the switch, data is not requested when a widget is initialized. Data requests are triggered only based on callback IDs or the method configured in Blueprint Editor. If you turn off the switch, data requests are automatically triggered. By default, the switch is turned off. |
Auto Data Request | After you select the Auto Data Request check box, you can enable dynamic polling, and manually specify the polling interval. If you clear the check box, the data is not automatically updated. You must manually refresh the page or use the Blueprint Editor and callback ID events to trigger a request to update the data. |
Data source | Click Configure Data Source. In the Configure Data Source panel, modify the data source type and query code, preview the response of the data source, and view the response results. For more information, see Configure a component data source. |
Data Filter | If you select the Data Filter check box, you can convert the data structure, filter data, and perform simple calculations. Click Add Filter. In the Set Data Source panel, configure a data filter script. For more information, see Use a data filter. |
Data Response Result | The response to a data request. If the data source changes, you can click the |

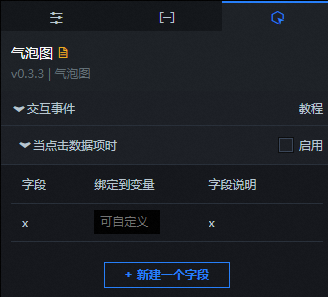

icon on the right to view the response results in real time. Interactive Panel
Select the Enable check box to enable interactions between widgets. When you click a dot in the bubble chart, a data request is triggered, a callback value is thrown, and data of different dots is dynamically loaded. By default, the x value in the data is returned. For more information, see Component interaction configuration.
Blueprint Interaction
In the canvas editor, right-click a widget in the layer pane and select Export to Blueprint Editor.
Click the
icon in the upper-left corner of the page. In Blueprint Editor, click the Bubble Chart widget in the Added Nodes pane. You can view the parameters of the Bubble Chart widget on the canvas, as shown in the following figure.
Event
Event
Description
When the bubble chart interface description request is completed
The event is triggered with the processed JSON data after a data interface request is responded and processed by a filter. For more information about specific data examples, see the Data Response Result section of the Data tab in the right-side configuration panel of the canvas editor.
When a bubble chart interface description request fails
When a data interface request fails (the request failure may be: network problems or interface errors, etc.), the event is returned and thrown after being processed by the filter, and the processed JSON format data is also thrown. For more information about specific data examples, see the Data Response Result section of the Data tab in the right-side configuration panel of the canvas editor.
When a data item is clicked
The event that is raised when a dot in a bubble chart is clicked, and the data item corresponding to the dot is also raised.
Action
Action
Description
API description of a request bubble chart
This action is performed to request the server data again. The data sent by an upstream data processing node or layer node is used as a parameter. For example, if the API data source is
https://api.testand the data passed to the Request Bubble Chart API Description action is{ id: '1'}, the final request interface ishttps://api.test?id=1.Import bubble chart interface description
After data of a widget is processed in accordance with its drawing format, the widget is imported for redrawing. You do not need to request server data again. For more information about specific data examples, see the Data Response Result section of the Data tab in the right-side configuration panel of the canvas editor.
icon in the upper-left corner of the page.
