Grouped Column Chart

Chart style

A grouped column chart is a type of column chart that automatically groups and displays data by category. It clearly highlights data differences both between and within categories, but occupies more space on a data dashboard.

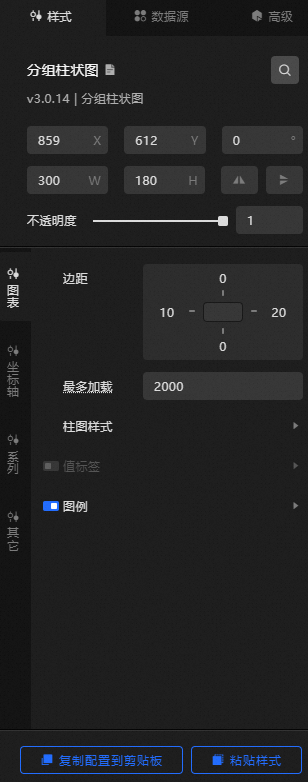

Style Panel

• Search Configuration: Click the Search configuration items icon in the upper-right corner of the Style panel. In the Search Configuration panel, enter the name of the configuration item to locate it. Fuzzy match is supported. For more information, see Search configuration items.

• Size: the width and height of the widget, in pixels.

• Positioning: the x-axis and y-axis coordinates of the widget, in pixels. X-coordinate is the pixel distance between the upper-left corner of the widget and the left border of the canvas. Y-coordinate is the pixel distance between the upper-left corner of the widget and the upper border of the canvas.

• Rotate: the rotation angle of the widget, in degrees.

  • Enter the degrees in the Rotation Angle spin box or click the plus sign (+) or minus sign (-) to adjust the value.

  • Click the icon to flip the widget style.

  • Click the icon to flip the widget style.

• Opacity: valid values: 0 to 1. A value of 0 hides the widget. A value of 1 fully displays the widget. Default value: 1.

• Chart name

  • Margin: the distance between the column chart area and the four boundaries of the widget, in pixels. Default value: px.

  • Maximum Load: the maximum number of input data records to load. The system uses this limit for layout, drawing, and computing to ensure optimal visual performance.

  • column chart Style: the style of each column in the chart.

    Decoration

    Parameter	Description
    Decorative line	The color of the decorative line.
    decorative shape	The fill color and border color of the decorative pentagon shape.

  • Value Label: the style of the value label of each column. You can click the icon to display or hide the value label.

    Parameter	Description
    Text	The font style, text weight, font size, and color of the value label text.
    Location	The position of the value label text. Valid values: Left, Middle, and Right.
    Nullable data	If you turn on the switch, the value tag data is still displayed in the widget column. If you turn off the switch, the value tag data is not displayed in the widget column.

  • Legend: the legend style of the column chart. You can click the icon to display or hide the legend.

    Parameter	Description
    Text	The font style, text weight, font size, and color of the legend text.
    Layout	The positional layout of the legends. Spacing Left and Right Spacing: the horizontal distance between adjacent legends. This parameter takes effect only when multiple series exist. Distance: the vertical distance between the legend and the upper and lower boundaries of the widget and column chart. Position: the position of the legend relative to the start coordinates of the widget. Valid values: Top Left, Top Center, Top Right, Bottom Left, Bottom Center, and Bottom Right.

• Axis: You can specify two axes: x-axis and y-axis.

  • X Axis

    • X Axis Visible: toggle to show or hide the x-axis in the widget.

    • Range: the range of the minimum and maximum values on the x-axis.

      Item	Example value
      Minimum value	The minimum value of the x-axis. You can enter a custom value or select from the following options: Automatic Rounding: automatically calculates the maximum value, minimum value, and the number of metric points from the data. Minimum Data Value: the minimum value in the data.
      Maximum value	The maximum value of the x-axis. You can enter a custom value or select from the following options: Automatic Rounding: automatically calculates the maximum value, minimum value, and the number of metric points from the data. Maximum Data Value: the maximum value in the data.

    • Axis Label: the style of the x-axis label. You can click the icon to show or hide the x-axis label.

      Parameter	Description
      Display Format	The display format of the x-axis label value. You can select Default, 11 (integer), 11.1 (floating-point), 11.11 (floating-point), 11%, 11.1%, or 11.11%. For more information about data display formats, see Data display formats.
      Text	The font style, weight, font size, and color of the x-axis label text.
      Axis Label Display	The number and units of the x-axis labels.

    • Axis: the style of the x-axis. You can click the icon to show or hide the x-axis.

      Color: the color of the x-axis.

    • Gridlines: the style of the x-axis gridlines. You can click the icon to show or hide the x-axis gridlines.

      Color: the color of the x-axis grid lines.

  • Y-axis

    • Y Axis Visible: toggle to show or hide the y-axis in the widget.

    • White Space: the distance between the upper and lower sides of the y-axis. Valid values: 0 to 1.

    • interval: the spacing between columns on the y-axis. A larger value produces thinner columns and wider gaps. Valid values: 0 to 0.95.

    • Axis Label: the style of the y-axis label. You can click the icon to show or hide the y-axis label.

      Parameter	Description
      Text	The font style, text weight, font size, and color of the y-axis label text.
      Axis Label Display	The angle of the y-axis label. You can select Horizontal, Tilt, or Vertical. The number and units of the y-axis labels.

    • Axis: the style of the y-axis. You can click the icon to show or hide the y-axis.

      Color: the color of the y-axis.

    • Gridlines: the style of the y-axis gridlines. You can click the icon to show or hide the y-axis gridlines.

      Color: the color of the grid lines on the y-axis.

• Edition

  • Series value mapping: toggle to enable or disable field mapping value for the series. When disabled, the field mapping value is not applied.

  • data series: Click the or icon on the right to add or delete a data series. Click the or icon to configure the arrangement style of multiple data series. Click the icon to copy the selected data series configurations and add a data series with the same configurations.

    Parameter	Description
    field mapping value	The mapping value of the data series. You can enter a custom value. If not specified, the system uses the value of the s field in the component data. If specified, you must ensure the data is returned in the correct order.
    Name	The display name of the data series. You can enter a custom value.
    Color	The column colors for this series.

• Remarks

  • Emotion Animation: the animation effect of the column chart. You can click the icon to enable or disable the animation.

    Parameter	Description
    Animation Settings	EASING: the easing effect of the animation. Multiple common easing effects are available. Sequential animation of each series: when enabled, each series plays the animation in sequence; when disabled, all columns play the animation simultaneously.
    Admission Animation	The duration of the initial animation when the widget first renders, in milliseconds.
    Update Animation	Update Animation Duration: the animation duration when the widget data is updated, in milliseconds. Start From Previous Position: when enabled, the animation starts from the previous position on data update. When disabled, the animation starts from the initial position.

  • dialog box: the style of the dialog box that appears when you hover over or click a column on the preview or publish page. Click the icon to enable or disable the dialog box.

    Parameter	Description
    Disappearing Delay Time	The delay before the dialog box disappears after the trigger condition is no longer met, in milliseconds.
    Trigger	Trigger Type: the type of target that triggers the dialog box. Valid values: Data Item and Axis. Trigger Action: the action that triggers the dialog box. Valid values: Hover and Click.
    Text Style	The font style, weight, font size, and color of the dialog box text.
    Background Box Style	The background box style of the dialog box. Background Color: the background color of the dialog box. Custom: the width and height of the dialog box, in pixels. Click the icon to enable or disable custom sizing. Pin: the inner margin of the dialog box, in pixels. Offset Horizontal Offset: the horizontal offset of the dialog box relative to the mouse arrow. Unit: px. Vertical Offset: the vertical offset of the dialog box relative to the mouse arrow. Unit: px. Borders Border: the border thickness of the dialog box, in pixels. Border Color: The border color of the dialog box.

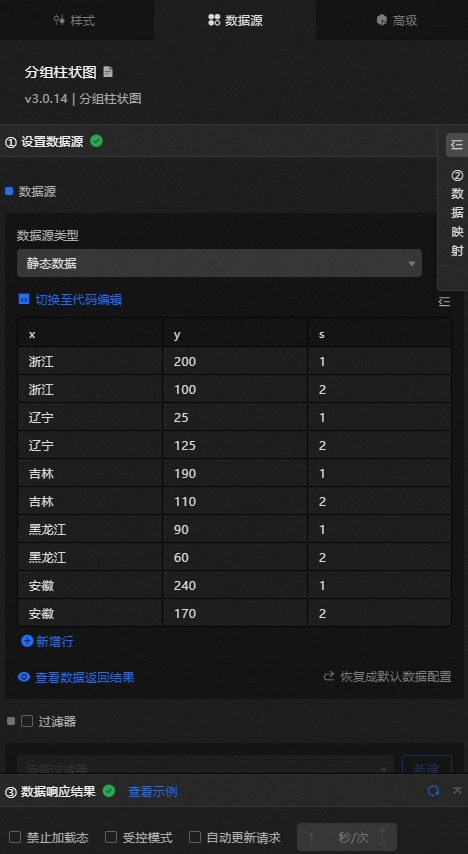

Data Sources panel

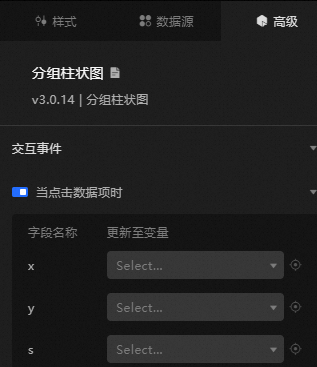

Advanced Panel

When you click a data item: toggle to enable widget interaction. When you click a column in the grouped column chart, a data request is triggered and a temporary variable is passed to dynamically load different column data. By default, the x, y, and s values in the data are displayed. For more information, see Component interaction configuration.

Blueprint Interaction

1. Click the icon in the upper-left corner to go to the Blueprint page.

2. On the Layer Nodes tab, add the widget to the main canvas.

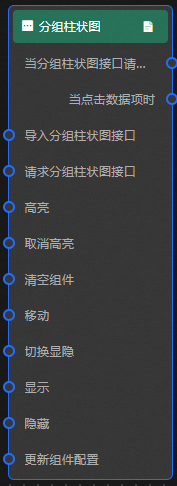

3. View blueprint configuration parameters.

   • Event

     Event	Description
     When the request for the group bar interface is completed	The event is triggered with the processed JSON data after a data interface request is responded to and processed by a filter. For specific data examples, see the Data Response Result section of the Data Source tab in the right-side configuration panel of the canvas editor.
     When a data item is clicked	The event that is raised when a column of the grouped column chart is clicked, along with the data item corresponding to that column.

   • Action

     Action	Description
     Import a group bar chart	After widget data is processed in its drawing format, the widget is imported for redrawing without requesting server data again. For specific data examples, see the Data Response Result section of the Data Source tab in the right-side configuration panel of the canvas editor.
     Request Group Histogram API	Requests server data again, using data from an upstream data processing node or layer node as parameters. For example, if the API data source is https://api.test and the data passed to request group histogram interface is { id: '1'}, the final request URL is https://api.test?id=1.
     Highlight	data: the data item to be highlighted. { x: 'Zhejiang' } Reference data example { "data": {}, "options": {} }
     Unhighlight	data: the data item that needs to be unhighlighted. If the data field is not specified, all highlighted data is unhighlighted. { x: 'Zhejiang' } Reference data example { "data": {}, "options": {} }
     Clear components	Clears the widget data. No parameters are required.
     Move	Moves the widget to a specified location. See the data example below. { // The positioning type. to indicates absolute positioning, whereas by indicates relative positioning. The default value is to. "positionType": "to", // The location, which is indicated by the x and y coordinates. "attr": { "x": 0, "y": 0 }, // The animation type. "animation": { "enable": false, // The animation delay. Unit: milliseconds. "animationDuration": 1000, // The animation curve, which can be set to linear|easeInOutQuad|easeInOutExpo. "animationEasing": "linear" } }
     Switch Display /Hide	Toggles the widget between displayed and hidden states. No parameters are required.
     Display	Displays the widget. See the data example below. { "animationType": "",// The animation method. Valid value: fade. If you do not set this parameter, no animation is available. "animationDuration": 1000,// The animation delay. Unit: ms. "animationEasing": ""// animation curve }
     Hide	Hides the widget. See the data example below. { "animationType": "",// The animation method. Valid value: fade. If you do not set this parameter, no animation is available. "animationDuration": 1000,// The animation delay. Unit: ms. "animationEasing": ""// animation curve }
     Update component configurations	Dynamically updates widget style configurations. On the Style tab of the widget, click Copy Configurations to Clipboard to obtain the configuration data. Then, modify the style field for the data processing node in Blueprint Editor.
