Configure a sliding range selector to let users select a numeric range by dragging handles along a track.

Chart style

A sliding range selector is an advanced widget that supports custom global styles and slider bar styles for selecting a value range by sliding. image

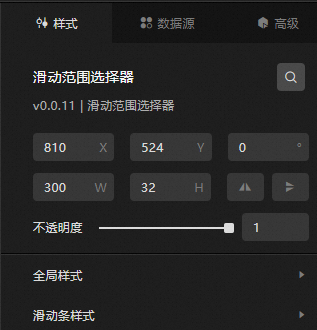

Style Panel image.png

  • Search Configuration: Click the Search configuration items icon imagein the upper-right corner of the Style panel. In the Search Configuration panel, enter the name of the configuration items that you want to search for and locate the configuration items. Fuzzy match is supported. For more information, see Search configuration items.

    • Size: the width and height of the widget. Unit: pixels.

    • Positioning: the x-axis and y-axis of the component. Unit: pixels. X-coordinate indicates the pixel distance between the upper-left corner of the widget and the left border of the canvas. Y-coordinate indicates the pixel distance between the upper-left corner of the widget and the upper border of the canvas.

    • Rotate: The widget is rotated around the center of the widget. Unit: degrees.

      • Directly enter the degrees in the Rotation Angle spin box or click the plus sign (+) or minus sign (-) to increase or decrease the value in the Rotation Angle spin box.

      • Click the imageicon to flip the widget style.

      • Click the imageicon to flip the widget style.

    • Opacity: Valid values: 0 to 1. If this parameter is set to 0, the widget is hidden. If this parameter is set to 1, the widget is completely displayed. Default value: 1.

  • Global Style

    Metric

    description

    Minimum Runtime Duration

    The minimum value of the sliding range selector.

    Maximum Runtime Duration

    The maximum value of the sliding range selector.

    stride

    The sliding step value for the slider. Default value: 0.5.

    Default Transparency

    The overall opacity of the selector in its default state. Valid values: 0 to 1.

    Default Transparency

    The opacity of the selector on hover. Valid values: 0 to 1.

    Alignment Mode

    The layout direction: Horizontal or Vertical.

  • Slider Style

    Metric

    description

    Track Style

    The style of the track bar.

    • Border Style: the border style of the track bar, including the border width, border color, and border corner.

    • Background Color: the background color of the track bar.

    Selected Bar Style

    The background color of the selected range bar.

    Handle Style

    The style of the drag handles.

    • Size: the size of the handle.

    • Background Color: the background color of the handle.

    • Border Style: the border style of the handle, including the border width, border color, and border corner.

    Current Value

    The display style of the currently selected range values.

    • Background Color: the background color of the current value.

    • Offset Value: the offset value of the current value.

    • Inner Spacing: the value of the inner spacing between the current values.

    • Border Style: the border style of the current value, including the border width, border color, border corner, and border line type.

    • Text Style: Set the text style of the current value, including the text color, font style, text weight, and font size.

    Value from beginning to end

    The display style of the start and end boundary values.

    • Background Color: the background color of the values.

    • Offset Value: the offset value of the start and end values.

    • Inner Spacing: The inner spacing value between the beginning and end values.

    • Border Style: the border style of the values, including the border width, border color, border corner, and border line type.

    • Text Style: Specify the text style of the values, including the color, font, weight, and font size of the text.

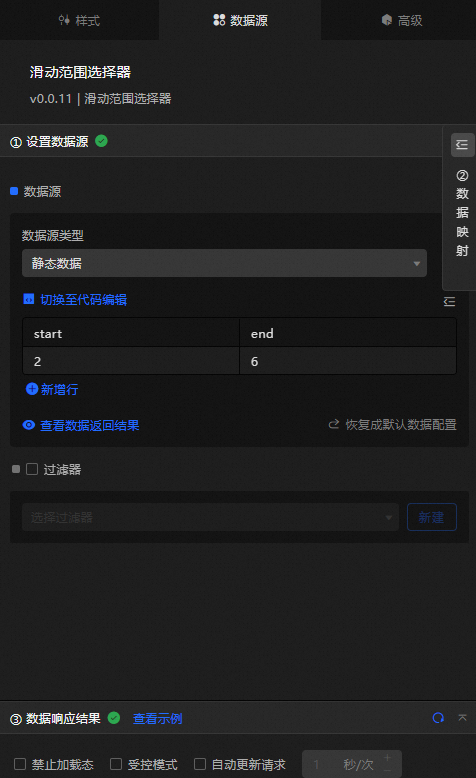

Data Sources panel image.png

Column

Description

start

The start value of the selected range.

end

The end value of the selected range.

Configure data items

Description

Data sources

You can use the code editor or visual editor to view the data fields contained in the widget. You can also modify the data type to flexibly configure the component data.

Data Mapping

If you need to customize chart field configurations, you can set different field mapping content in the Data Mapping module and field mapping these content to the corresponding fields of the widget. This allows you to match data without modifying the fields in the data source. You can also click the imageicon to configure the field style.

Configure a filter

Turn on Filter, select an existing data filter or create a data filter, and configure a data filter script to filter data. For more information, see Manage data filters.

Data Response Result

The Data Response Result section displays widget data in real time. If the data source of the widget changes, this section displays the latest data. If the system response is delayed, you can click the imageicon on the right to view the data response result. You can also click the imageicon on the right to obtain the latest data of the widget. You can also click View Example to view an example of the response result of the current component.

Forbid Loading

If you select the check box, you will not see the loaded content during component initialization when you update the component and preview the data kanban. If you select the check box, the opposite is true. By default, the status is deselected.

Controlled Mode

If you select the check box, the component does not request data in the initialized state, and only requests data by using global variables or the method configured in Blueprint Editor. If you clear the check box, you can use automatic update to request data. By default, the status is deselected.

Auto Data Request

Select the check box to manually enter the time frequency of polling to set dynamic polling. If you clear the page, the page is not automatically updated. You need to manually refresh the page or use Blueprint Editor and global variable events to trigger a request to update data.

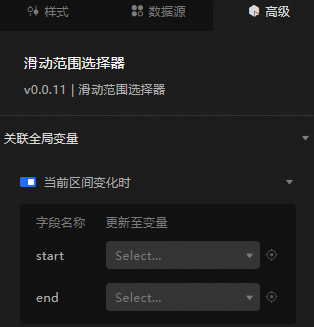

Advanced Panel image

Enable this switch to associate global variables. When the slider interval changes, a data request is triggered and a temporary variable is emitted for use in other components. By default, the start and end values configured in the Data Source panel are displayed. For more information, see Component interaction configuration.

Blueprint Interaction

  1. Click the imageicon in the upper-left corner to go to the Blueprint page.

  2. On the Layer Nodes tab, add the widget to the main canvas.

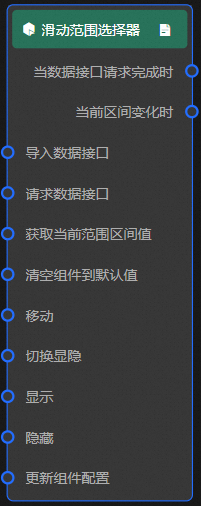

  3. View blueprint configuration parameters. image.png

    • Event

      Event

      Description

      When the data interface request is completed

      The event is triggered with the processed JSON data after a data interface request is responded and processed by a filter. For more information about specific data examples, see the Data Response Result section of the Data Source tab in the right-side configuration panel of the canvas editor.

      When the current interval changes

      The event that is thrown when the value of the current interval range changes, and the data item corresponding to the value. For more information, see the data example.

      {
  "start": 2,
  "end": 6.5
}

    • Action

      Action

      Description

      Import data

      After data of a widget is processed in accordance with its drawing format, the widget is imported for redrawing. You do not need to request server data again. For more information, see the data example.

      [
  {
    "start": 1,
    "end": 4.5
  }
]

      Request Data Interface

      This action is performed to request the server data again. The data sent by an upstream data processing node or layer node is used as a parameter. For example, if the API data source is https://api.test and the data transferred to the request data interface is { id: '1'}, the final request interface is https://api.test?id=1.

      Obtain the value of the current range

      Gets the value of the interval in the current range. No parameters are required.

      Clear a component to its default value

      Clear the component data to the default value. No parameters are required.

      Move

      Move a widget to a specified location. For more information, see the data example.

          {
      // The positioning type. to indicates absolute positioning, whereas by indicates relative positioning. The default value is to.
        "positionType": "to",
      // The location, which is indicated by the x and y coordinates.
      "attr": {
        "x": 0,
        "y": 0
      },
      // The animation type.
      "animation": {
        "enable": false,
        // The duration in which animation is displayed.
        "animationDuration": 1000,
        // The animation curve, which can be set to linear|easeInOutQuad|easeInOutExpo.
        "animationEasing": "linear"
      }
    }

      Switch Display /Display

      Toggles whether the widget is displayed or hidden. No parameters are required.

      Display

      Display the widget. For more information, see Data example.

      {
  "animationType": "",// The animation method. Valid value: fade. If you do not specify this parameter, no animation is generated.
  "animationDuration": 1000,// The animation delay. Unit: ms.
  "animationEasing": ""// animation curve
}

      Hide

      Hide the component. For more information, see Data example.

      {
  "animationType": "",// The animation method. Valid value: fade. If you do not specify this parameter, no animation is generated.
  "animationDuration": 1000,// The animation delay. Unit: ms.
  "animationEasing": ""// animation curve
}

      Update component configurations

      Style configurations of widgets are dynamically updated. In the Style panel, click Copy Configuration to Clipboard to obtain the configuration data of the widget. After that, change the style field for the data processing node in Blueprint Editor.
