A plan is a pre-configured display solution in the visualization studio that lets you quickly switch between different data views, theme styles, or interaction patterns for various demonstration scenarios. You can create, cast, and manage plans as needed.

Note

The visualization studio feature is newly added to version 7.0 products. Perform operations based on the Visualization Application Center environment.

Create a plan

Note

If you receive a message indicating insufficient quota when creating a plan, click Manage Quotas to configure plan quota.

  1. In the Presentation Studio module of the Visualization Application Center, check whether plan information exists.

    • If not, click Create a presentation to go to the Presentation Studio page.image

    • If yes, move your mouse over any plan, click Details or View All to go to the Presentation Studio page.image

  2. Click Create a presentation in the visualization studio to enter the configuration page.

  3. In the My Dashboard section on the left, search for or directly select the data dashboard you want to add, and click Add to Sequence.


  4. In the Set Playback Sequence section below, you can drag dashboards to change their order, or click the {F5B3FA41-5DF3-4BD3-8936-3C6CE2FDBDB8} icon to remove dashboards from the sequence.image

  5. Optional: Click Carousel Settings or Security Settings on the right to set the interval time for dashboard carousel in seconds, or add a control terminal password for the current demo plan.

  6. After confirmation, click Create in the upper right corner, enter the Plan Name in the popup window, and confirm.

  7. Click Back in the upper right corner to return to the Visualization Application Center and view the newly created plan.

Screen casting plan

You can cast plans on the web or client. Before you start, make sure you have created a plan.

In the Presentation Studio module of the Visualization Center, select the plan you want to cast and click the image icon to go to the casting control page.

Web version

  1. On the casting control page, click Open Player in the upper right corner of the page to open the casting page, which will display the Screen mirroring code.


  2. Enter the screen mirroring code on the casting control page, then click Start Screen Mirroring. Click OK again to initiate the casting request.

  3. Click Accept on the casting page to start casting.

  4. Return to the casting control page. You can control the content displayed on the casting page by setting Autoplay and Next operations. You can also share the Control QR Code with other users.

  5. (Optional) To end casting, click End Casting in the upper right corner of the page, and click Confirm again in the popup window.

Client version

  1. On the casting control page, click Open Casting Player in the upper right corner of the page to open the casting page.

  2. Click Download Casting Player in the upper right corner of the casting page to download the casting client.

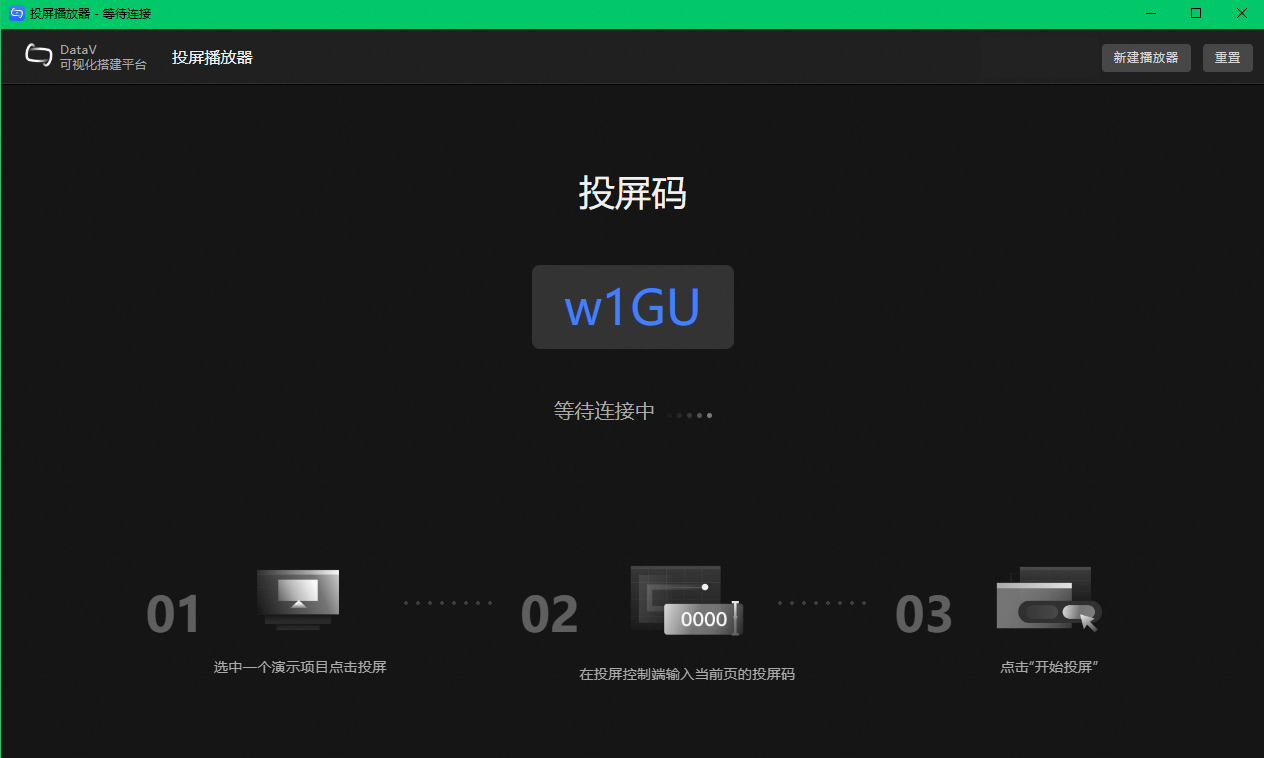

  3. After the download is complete, double-click to open the DataV_Player.exe file. You can perform the following operations.1

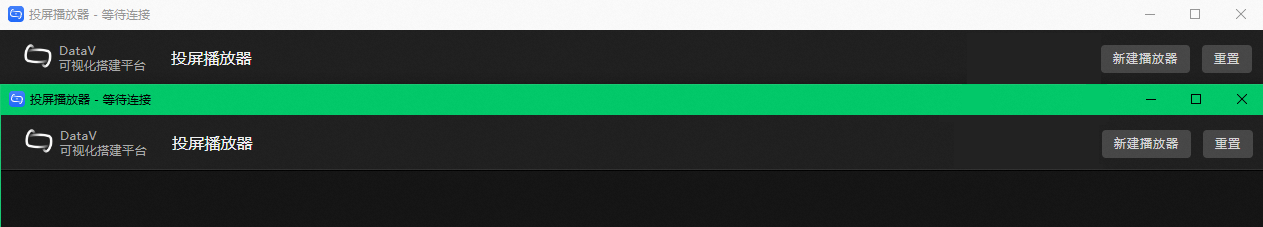

    • Click New Player to create a new player window. You can cast multiple plans simultaneously without affecting each other.2

    • Click Reset to reset the casting code of the current casting window.

      Important

      Resetting the player will update the casting code. If a plan is currently being demonstrated, it will exit casting. Please use this operation with caution.

  4. Enter The Casting Code on the casting control page, then click Start Casting. Click Confirm again to start casting.

  5. On the casting player page, click Accept to start casting.

  6. Return to the casting control page. You can control the content displayed on the casting page by setting Autoplay and Page Up/Down operations. You can also share the Control Terminal QR Code with other users.

    • PC control terminal exampleimage

    • Mobile control terminal example3e78c78d58c7b2f6fa78506c3d192392

  7. When the client is in the Playing state, move your mouse to the left side of the window and click to display the operation panel. You can perform the following operations.imageimage

    • Scan the Control Terminal QR Code to view the plan on a mobile device.

    • Click Enter Full Screen/Exit Full Screen to switch between window view and full-screen view of the demo plan.

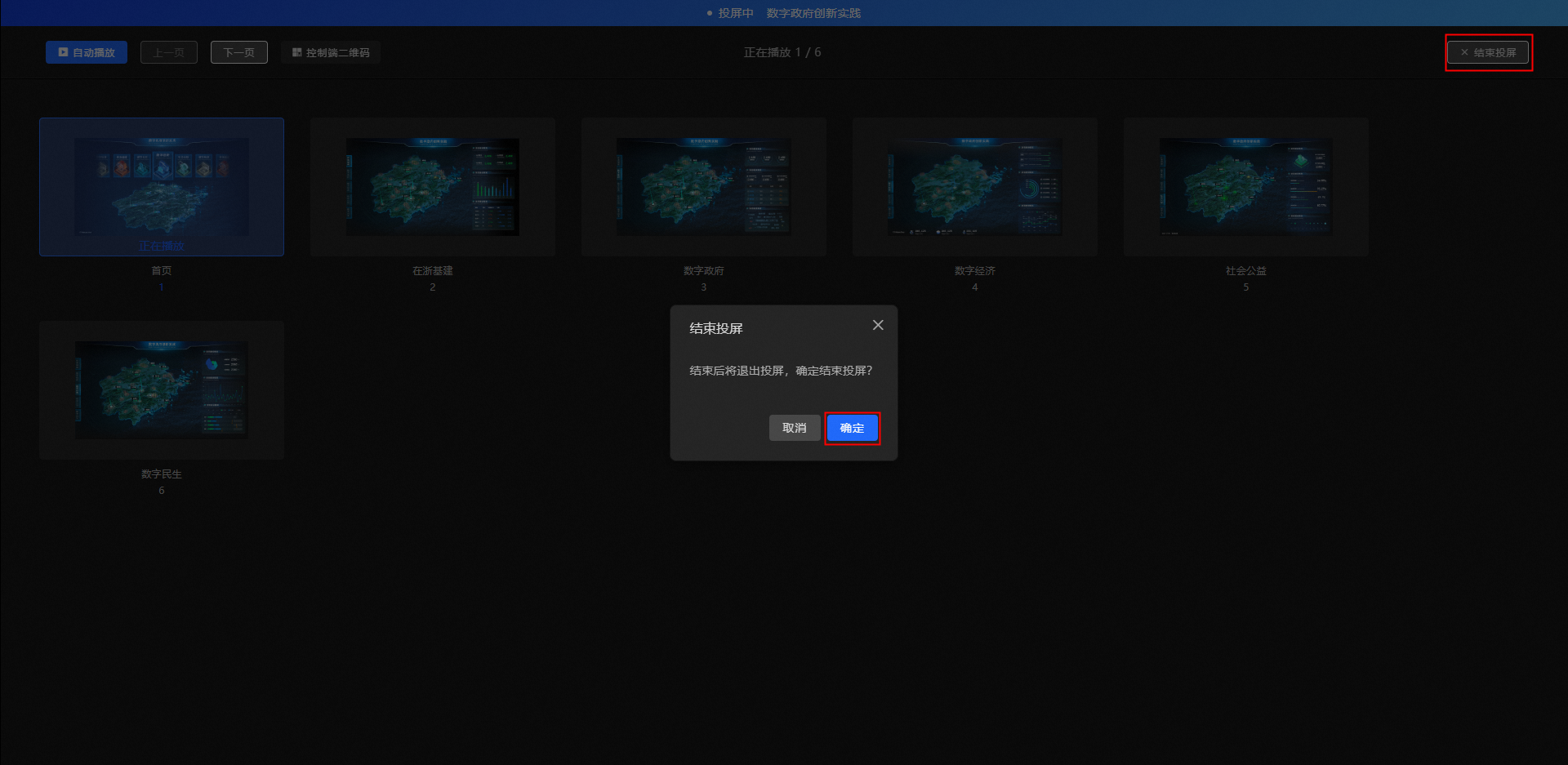

    • Click End Casting, and click Confirm again in the popup window to exit the current casting.

  8. (Optional) To end casting, you can click Stop Screen Mirroring on the PC or mobile control terminal, and click OK again in the popup window to exit casting.

Manage plans

In the Presentation Studio module of the Visualization Center, select a plan and click Details to open the details page, where you can perform the following operations.{4010131F-2E0A-4760-8BB2-CF749289E13E}

  • Search for plans: Enter a plan name in the search box. The system performs fuzzy matching automatically.

  • Rename a plan: Click the image icon below the plan to rename it.

  • Preview a plan: Hover over a plan and click the image icon in the upper-right corner to preview it.

  • Edit a plan: Hover over a plan and click Edit.

  • Delete a plan: Hover over a plan and click the image icon in the upper-right corner to delete it.

  • Manage plan quota: Click Manage Quotas to configure plan quota.
