PCCL: NCCL APIs及环境变量支持情况（v2.0）

API 名称

NCCL

PCCL

PCCL 支持版本

备注

ncclGetVersion

✅

✅

ncclGetUniqueId

✅

✅

ncclCommInitRank

✅

✅

ncclCommInitAll

✅

✅

ncclCommDestroy

✅

✅

ncclCommAbort

✅

✅

ncclGetErrorString

✅

✅

ncclGetLastError

✅

✅

ncclCommGetAsyncError

✅

✅

ncclCommCount

✅

✅

ncclCommCuDevice

✅

✅

ncclCommUserRank

✅

✅

ncclReduce

✅

✅

ncclBroadcast

✅

✅

ncclAllReduce

✅

✅

ncclReduceScatter

✅

✅

ncclAllGather

✅

✅

ncclSend

✅

✅

ncclRecv

✅

✅

ncclGroupStart

✅

✅

ncclGroupEnd

✅

✅

ncclCommInitRankConfig

✅

✅

Since PCCL 1.4.0

ncclCommFinalize

✅

✅

Since PCCL 1.4.0

ncclCommSplit

✅

✅

Since PCCL 1.4.0

Only support 'splitShare=0' & 'blocking' configs from pcclConfig_t on 1.4.0, Fully enabled and support on 1.5.0

ncclCommRegister

✅

✅

Since PCCL 1.4.0

API compatible only, doesn't take effect due to HW limitation

ncclCommDeregister

✅

✅

Since PCCL 1.4.0

API compatible only, doesn't take effect due to HW limitation

ncclMemAlloc

✅

✅

Since PCCL 1.4.0

Fallback to cudaMalloc() due to HW limitation

ncclMemFree

✅

✅

Since PCCL 1.4.0

Fallback to cudaFree() due to HW limitation

ncclCommWindowRegister

✅

✅

since PCCL 1.7.0

ncclCommWindowDeregister

✅

✅

since PCCL 1.7.0

ncclCommInitRankScalable

✅

✅

since PCCL 1.7.0

ncclRedOpCreatePreMulSum

✅

❌

ncclRedOpDestroy

✅

❌

ncclGroupSimulateEnd

✅

❌

ncclCommRevoke

✅

❌

ncclCommShrink

✅

❌

ncclAlltoAll

✅

❌

ncclGather

✅

❌

ncclScatter

✅

❌

ncclResetDebugInit

✅

❌

Deprecated and will be removed in the future

环境变量名称

NCCL

PCCL

PCCL 支持版本

备注

NCCL_SOCKET_IFNAME

✅

✅

NCCL_SOCKET_FAMILY

✅

✅

NCCL_SOCKET_NTHREADS

✅

✅

NCCL_NSOCKS_PERTHREAD

✅

✅

NCCL_CROSS_NIC

✅

✅

NCCL_IB_HCA

✅

✅

NCCL_IB_TIMEOUT

✅

✅

NCCL_IB_RETRY_CNT

✅

✅

NCCL_IB_GID_INDEX

✅

✅

NCCL_IB_ADDR_FAMILY

✅

✅

NCCL_IB_ADDR_RANGE

✅

✅

NCCL_IB_ROCE_VERSION_NUM

✅

✅

NCCL_IB_PKEY

✅

✅

NCCL_IB_USE_INLINE

✅

✅

NCCL_IB_SL

✅

✅

NCCL_IB_TC

✅

✅

NCCL_TUNER_PLUGIN

✅

✅

NCCL_IGNORE_CPU_AFFINITY

✅

✅

NCCL_DEBUG

✅

✅

NCCL_DEBUG_SUBSYS

✅

✅

NCCL_COLLNET_ENABLE

✅

✅

NCCL_TOPO_FILE

✅

✅

NCCL_TOPO_DUMP_FILE

✅

✅

NCCL_P2P_DISABLE

✅

✅

NCCL_P2P_LEVEL

✅

✅

NCCL_SHM_DISABLE

✅

✅

NCCL_BUFFSIZE

✅

✅

NCCL_NTHREADS

✅

✅

NCCL_MAX_NCHANNELS

✅

✅

NCCL_MIN_NCHANNELS

✅

✅

NCCL_CHECK_POINTERS

✅

✅

NCCL_LAUNCH_MODE

✅

✅

NCCL_IB_DISABLE

✅

✅

NCCL_IB_AR_THRESHOLD

✅

✅

NCCL_IB_QPS_PER_CONNECTION

✅

✅

NCCL_NET_GDR_LEVEL (formerly NCCL_IB_GDR_LEVEL)

✅

✅

NCCL_NET_SHARED_BUFFERS

✅

✅

NCCL_NET_SHARED_COMMS

✅

✅

NCCL_ALGO

✅

✅

NCCL_PROTO

✅

✅

NCCL_NVB_DISABLE

✅

✅

NCCL_PXN_DISABLE

✅

✅

NCCL_P2P_PXN_LEVEL

✅

✅

NCCL_NET_GDR_READ

✅

✅

NCCL_MIN_P2P_NCHANNELS

✅

✅

NCCL_MAX_P2P_NCHANNELS

✅

✅

NCCL_TOPO_DUMP_FILE_RANK

✅

✅

NCCL_GRAPH_DUMP_FILE_RANK

✅

✅

NCCL_PROXY_DUMP_SIGNAL

✅

✅

NCCL_GDRCOPY_SYNC_ENABLE

✅

✅

NCCL_GDRCOPY_FLUSH_ENABLE

✅

✅

NCCL_GDR_FLUSH_DISABLE

✅

✅

NCCL_LL128_NTHREADS

✅

✅

NCCL_P2P_READ_ENABLE

✅

✅

NCCL_P2P_DIRECT_DISABLE

✅

✅

Since PCCL 1.4.0

NCCL_NET_PLUGIN

✅

✅

Since PCCL 1.4.0

NCCL_COMM_BLOCKING

✅

✅

Since PCCL 1.4.0

NCCL_LOCAL_REGISTER

✅

✅

Since PCCL 1.4.0

NCCL_REPORT_CONNECT_PROGRESS

✅

✅

Since PCCL 1.4.0

NCCL_SET_STACK_SIZE

✅

✅

Since PCCL 1.4.3

NCCL_NET

✅

✅

Since PCCL 1.5.0

NCCL_U2MM_LOG_LEVEL

❌

✅

Since PCCL 1.5.0

EIC 网卡平台的支持

NCCL_P2P_USE_CUDA_MEMCPY

✅

✅

Since PCCL 1.5.0

NCCL_COMM_SPLIT_SHARE_RESOURCES

✅

✅

Since PCCL 1.5.0

NCCL_IB_SPLIT_DATA_ON_QPS

✅

✅

Since PCCL 1.6.0

NCCL_GDRCOPY_ENABLE

✅

✅

Since PCCL 1.6.1

NCCL_GDRCOPY_FIFO_ENABLE

✅

✅

Since PCCL 1.6.1

NCCL_RAS_ENABLE

✅

✅

Since PCCL 1.7.0

NCCL_RAS_ADDR

✅

✅

Since PCCL 1.7.0

NCCL_RAS_TIMEOUT_FACTOR

✅

✅

Since PCCL 1.7.0

NCCL_SOCKET_RETRY_SLEEP_MSEC

✅

✅

Since PCCL 1.7.0

NCCL_GRAPH_REGISTER

✅

✅

Since PCCL 1.7.0

NCCL_WIN_ENABLE

✅

✅

Since PCCL 1.7.0

NCCL_WIN_STRIDE

✅

✅

Since PCCL 1.7.0

NCCL_SOCKET_RETRY_CNT

✅

✅

Since PCCL 1.7.0

NCCL_UID_STAGGER_THRESHOLD

✅

✅

Since PCCL 1.7.0

NCCL_UID_STAGGER_RATE

✅

✅

Since PCCL 1.7.0

NCCL_CUMEM_ENABLE

✅

✅

Since PCCL 1.7.0

NCCL_LEGACY_CUDA_REGISTER

✅

✅

Since PCCL 1.7.0

NCCL_CREATE_THREAD_CONTEXT

✅

✅

Since PCCL 1.7.0

NCCL_CTA_POLICY

✅

✅

Since PCCL 1.7.0

NCCL_CONF_FILE

✅

✅

Since PCCL 1.7.0

NCCL_SYM_CTAS

✅

✅

Since PCCL 1.7.0

NCCL_SYM_KERNEL

✅

✅

Since PCCL 1.7.0

NCCL_COLLNET_NODE_THRESHOLD

✅

❌

NCCL_NVB_PRECONNECT

✅

❌

NCCL_GRAPH_HELPER_DISABLE

✅

❌

NCCL_SET_THREAD_NAME

✅

❌

NCCL_IB_PCI_RELAXED_ORDERING

✅

❌

NCCL_IGNORE_DISABLED_P2P

✅

❌

NCCL_NCHANNELS_PER_NET_PEER

✅

❌

NCCL_GRAPH_MIXING_SUPPORT

✅

❌

NCCL_DMABUF_ENABLE

✅

❌

NCCL_SHM_USE_CUDA_MEMCPY

✅

❌

NCCL_SHM_MEMCPY_MODE

✅

❌

NCCL_SHM_LOCALITY

✅

❌

NCCL_P2P_NET_CHUNKSIZE

✅

❌

NCCL_NET_DISABLE_INTRA

✅

❌

NCCL_P2P_LL_THRESHOLD

✅

❌

NCCL_ALLOC_P2P_NET_LL_BUFFERS

✅

❌

NCCL_NET_FORCE_FLUSH

✅

❌

NCCL_IB_ADAPTIVE_ROUTING

✅

❌

NCCL_MEM_SYNC_DOMAIN

✅

❌

NCCL_CGA_CLUSTER_SIZE

✅

❌

NCCL_P2P_PCI_CHUNKSIZE

✅

❌

NCCL_P2P_NVL_CHUNKSIZE

✅

❌

NCCL_PROXY_APPEND_BATCH_SIZE

✅

❌

NCCL_PROGRESS_APPENDOP_FREQ

✅

❌

NCCL_L1_SHARED_MEMORY_CARVEOUT

✅

❌

NCCL_MAX_CTAS

✅

❌

NCCL_MIN_CTAS

✅

❌

NCCL_NVLS_ENABLE

✅

❌

NCCL_NVLS_NCHANNELS

✅

❌

NCCL_NET_OVERHEAD

✅

❌

NCCL_CUMEM_HOST_ENABLE

✅

❌

since nccl 2.23

NCCL_IB_MERGE_VFS

✅

❌

NCCL_CONNECT_ROUND_MAX_PEERS

✅

❌

NCCL_IB_MERGE_NICS

✅

❌

since nccl 2.20

NCCL_MNNVL_ENABLE

✅

❌

since nccl 2.21

NCCL_NVLS_CHUNKSIZE

✅

❌

NCCL_CHUNK_SIZE

✅

❌

NCCL_NVLSTREE_MAX_CHUNKSIZE

✅

❌

NCCL_UNPACK_DOUBLE_NCHANNELS

✅

❌

NCCL_RUNTIME_CONNECT

✅

❌

since nccl 2.22

NCCL_WORK_FIFO_BYTES

✅

❌

NCCL_WORK_ARGS_BYTES

✅

❌

NCCL_IB_ROUTABLE_FLID_GID_INDEX

✅

❌

NCCL_IB_FIFO_TC

✅

❌

since nccl 2.22

NCCL_IB_RETURN_ASYNC_EVENTS

✅

❌

since nccl 2.23

NCCL_OOB_NET_ENABLE

✅

❌

since nccl 2.23

NCCL_OOB_NET_IFNAME

✅

❌

since nccl 2.23

NCCL_IB_ECE_ENABLE

✅

❌

since nccl 2.23

NCCL_PROFILER_PLUGIN

✅

❌

NCCL_ENV_PLUGIN

✅

❌

NCCL_DEBUG_TIMESTAMP_FORMAT

✅

❌

NCCL_DEBUG_TIMESTAMP_LEVELS

✅

❌

NCCL_NETDEVS_POLICY

✅

❌

NCCL_NET_GDR_C2C

✅

❌

NCCL_PXN_C2C

✅

❌

NCCL_MNNVL_UUID

✅

❌

NCCL_MNNVL_CLIQUE_ID

✅

❌

NCCL_LAUNCH_ORDER_IMPLICIT

✅

❌

NCCL_LAUNCH_RACE_FATAL

✅

❌

环境变量名称

PCCL 支持版本

备注

PCCL_ICN_SCALE_OUT_DISABLE

PCCL_NET_BYPASS

PCCL_FORCE_ICN_SCALE_OUT

PCCL_DISABLE_ADJUST_SYSTEM

PCCL_DUMP_CONN_INFO

PCCL_CU_MASK

PCCL_BLOCKS_PER_FC_LINK

PCCL_P2P_NCHANNELS_FACTOR_NPATHS

PCCL_DISABLE_ABORT

PCCL_CHANNEL_SHUFFLE

PCCL_DUMP_WORK_ELEMS

Dump each active ncclWork's ncclWorkElem information within the channel

PCCL_REVERSE_RING_INTERLEAVE

PCCL_ONEBATCH_PER_CE

PCCL_IB_DISABLE_ACC_BONDING_PORT

PCCL_BOOTSTRAP_DEBUG

PCCL_USE_STATIC_LAUNCH_GRID

PCCL_RING_DUMP_FILE

PCCL_DISABLE_TORUS_GRAPH

PCCL_CE_MASK

PCCL_GRAPH_TREE_PATTERN

PCCL_PROXY_DUMP_FILE

PCCL_DISP_MODE

PCCL_QUADRUPLE_CHANNELS

PCCL_PER_COMM_HASH_DEBUG_FILE

PCCL_COMM_DUMP_SIGNAL

PCCL_GLOBAL_TOPO_FILE

PCCL_PERFMODEL_SPEEDUP

PCCL_IGNORE_TOPO_DETECTION

PCCL_SINGLE_HOST_CROSS_NODE_TEST

PCCL_BLOCKING_BOOTSTRAP

PCCL_NO_MEMSET

PCCL_GET_MIN_PATH_NUM_BY_DRIVER

PCCL_MULTI_HOSTS_BULK_MODE

PCCL_GROUP_HGGC_STREAM

PCCL_DISABLE_FC_GRAPH

PCCL_ADJUST_SYSTEM_MIN_NET_NUM

PCCL_TB_PER_CU

PCCL_TRAVERSE_Y

PCCL_IGNORE_INTEL_P2P_OVERHEAD

PCCL_GRAPH_SEARCH_START_INTER_TYPE

configure the cross node start inter type, like PXN to speed up graph search

PCCL_INJECTION64_PATH

PCCL_DEBUG_DEV

PCCL_ERROR_YIELD

PCCL_GRAPH_SPEEDS

PCCL_COMM_DUMP_FILE

PCCL_ENABLE_ABORT_DUMP

PCCL_ENABLE_EXT_KERNEL

Since PCCL 1.4.0

PCCL_EXT_KERNEL_PLUGIN

Since PCCL 1.4.0

PCCL_COMM_DUMP_LEVEL

Since PCCL 1.4.0

PCCL_STATE_MONITOR_DISABLE

Since PCCL 1.4.0

PCCL feature to monitor kernel execution state

PCCL_STATE_MONITOR_TRIGGER_PIPE

Since PCCL 1.4.0

PCCL_STATE_MONITOR_SLEEP_US

Since PCCL 1.4.0

PCCL_STATE_MONITOR_QUIT_WHEN_EXCEPTION

Since PCCL 1.4.0

PCCL_STATE_MONITOR_DUMP_WHEN_EXCEPTION_DISABLE

Since PCCL 1.4.0

PCCL_STATE_SYNC_POLL_INTERVAL_MS

Since PCCL 1.4.0

PCCL_STATE_MONITOR_LOG_EVERY_MS

Since PCCL 1.4.0

PCCL_GDR_USE_DEV_MEM_FOR_RX_TAIL

Since PCCL 1.4.0

Use device memory for tail pointer during GDR path communication

PCCL_GDR_CPU_FLUSH

Since PCCL 1.4.0

Use CPU memory PCI-e read for GDR flush operation

PCCL_DEBUG_DUMP_DIR

Since PCCL 1.4.3

Configure debug dump foler path

PCCL_IB_NIC_SPEED_SCALING_FACTOR

Since PCCL 1.4.3

Configure IB NIC bandwidth factor if missing the bonding information and cause real speed mismatch with sys information

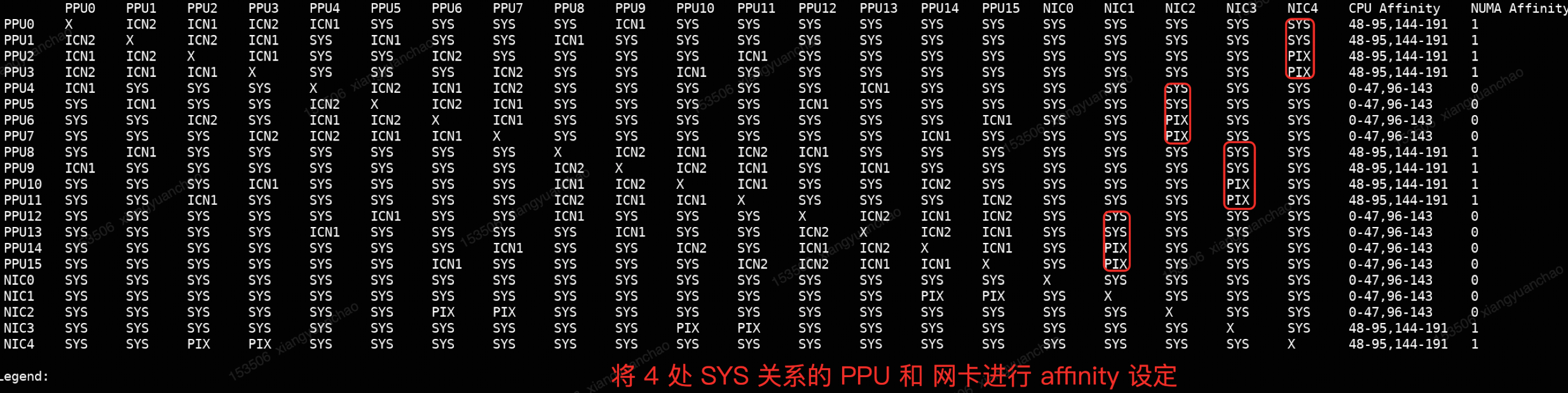

PCCL_NET_AFFINITY

Since PCCL 1.5.0

Configure PPU affinity NET id, format: "hgml_dev_id:net_id,hgml_dev_id:net_id"

PCCL_CHECK_ITEMS_ENABLE

Since PCCL 1.5.0

Configure if enable internal check for potential topo or environment problems

PCCL_DOUBLE_EIC_PCI_WIDTH_DISABLE

Since PCCL 1.5.0

Configure to 0 if run on EIC platform, and default is 0

PCCL_STATE_MONITOR_LEVEL

Since PCCL 1.5.0

Configure the monitor level

PCCL_D2D_DISP_PING_PONG_EN

Since PCCL 1.6.0

PCCL_JUMP_DIM

Since PCCL 1.6.0

PCCL_LAST_ROUND_EN

Since PCCL 1.6.0

PCCL_ONE_BATCH_PER_CE

Since PCCL 1.6.0

PCCL_SKEW_EN

Since PCCL 1.6.0

PCCL_TRAVERSE_Y_STEP

Since PCCL 1.6.0

PCCL_FB_STALL_ST_TYPE

Since PCCL 1.6.0

PCCL_TRAVERSE_X_STEP

Since PCCL 1.6.0

PCCL_LAST_ROUND_TB_PER_CE

Since PCCL 1.6.0

PCCL_TUNING_FALL_BACK

Since PCCL 1.6.0

PCCL_FB_STALL_ST_EN

Since PCCL 1.6.0

PCCL_FORCE_DEFAULT_DISP

Since PCCL 1.6.0

PCCL_START_CE_ID

Since PCCL 1.6.0

PCCL_LAST_ROUND_ONETB_PER_CE

Since PCCL 1.6.0

PCCL_WAIT_EN

Since PCCL 1.6.0

PCCL_LAST_ROUND_BEGIN_NUMBER

Since PCCL 1.6.0

PCCL_PRE_ALLOC_EN

Since PCCL 1.6.0

PCCL_BLOCK_AGE_EN

Since PCCL 1.6.0

PCCL_NDIES

Since PCCL 1.6.0

PCCL_START_CE_EN

Since PCCL 1.6.0

PCCL_FORCE_DEFAULT_CE_MASK

Since PCCL 1.6.0

NCCL 2.22.3 + Net V8

PCCL 1.5 + Net V6

备注

const char* name

const char* name

Name of the network

ncclResult_t (*init)(ncclDebugLogger_t logFunction);

pcclResult_t (*init)(pcclDebugLogger_t logFunction);

Initialize the network.

ncclResult_t (*devices)(int* ndev);

pcclResult_t (*devices)(int* ndev);

Return the number of adapters.

ncclResult_t (*getProperties)(int dev, ncclNetProperties_v8_t* props);

pcclResult_t (*getProperties)(int dev, pcclNetProperties_v6_t* props);

Get various device properties.

ncclResult_t (*listen)(int dev, void* handle, void** listenComm);

pcclResult_t (*listen)(int dev, void* handle, void** listenComm);

Create a receiving object and provide a handle to connect to it.

ncclResult_t (*connect)(int dev, void* handle, void** sendComm, ncclNetDeviceHandle_v8_t** sendDevComm);

pcclResult_t (*connect)(int dev, void* handle, void** sendComm);

Connect to a handle and return a sending comm object for that peer.

ncclResult_t (*accept)(void* listenComm, void** recvComm, ncclNetDeviceHandle_v8_t** recvDevComm);

pcclResult_t (*accept)(void* listenComm, void** recvComm);

Finalize connection establishment after remote peer has called connect.

ncclResult_t (*regMr)(void* comm, void* data, size_t size, int type, void** mhandle);

pcclResult_t (*regMr)(void* comm, void* data, int size, int type, void** mhandle);

Register/Deregister memory.

ncclResult_t (*regMrDmaBuf)(void* comm, void* data, size_t size, int type, uint64_t offset, int fd, void** mhandle);

pcclResult_t (*regMrDmaBuf)(void* comm, void* data, size_t size, int type, uint64_t offset, int fd, void** mhandle);

DMA-BUF support

ncclResult_t (*deregMr)(void* comm, void* mhandle);

pcclResult_t (*deregMr)(void* comm, void* mhandle);

Register/Deregister memory.

ncclResult_t (*isend)(void* sendComm, void* data, int size, int tag, void* mhandle, void** request);

pcclResult_t (*isend)(void* sendComm, void* data, int size, int tag, void* mhandle, void** request);

Asynchronous send to a peer.

ncclResult_t (*irecv)(void* recvComm, int n, void** data, int* sizes, int* tags, void** mhandles, void** request);

pcclResult_t (*irecv)(void* recvComm, int n, void** data, int* sizes, int* tags, void** mhandles, void** request);

Asynchronous recv from a peer.

ncclResult_t (*iflush)(void* recvComm, int n, void** data, int* sizes, void** mhandles, void** request);

pcclResult_t (*iflush)(void* recvComm, int n, void** data, int* sizes, void** mhandles, void** request);

Perform a flush/fence to make sure all data received

ncclResult_t (*test)(void* request, int* done, int* sizes);

pcclResult_t (*test)(void* request, int* done, int* size);

Test whether a request is complete.

ncclResult_t (*closeSend)(void* sendComm);

pcclResult_t (*closeSend)(void* sendComm);

Close and free send/recv comm objects

ncclResult_t (*closeRecv)(void* recvComm);

pcclResult_t (*closeRecv)(void* recvComm);

ncclResult_t (*closeListen)(void* listenComm);

pcclResult_t (*closeListen)(void* listenComm);

ncclResult_t (*getDeviceMr)(void* comm, void* mhandle, void** dptr_mhandle);

❌

Copy the given mhandle to a dptr

ncclResult_t (*irecvConsumed)(void* recvComm, int n, void* request);

❌

Notify the plugin that a recv has completed by the device

NCCL 2.22.3 + Coll Net V8

PCCL 1.5 + Coll Net V6

备注

const char* name

const char* name

Name of the network

ncclResult_t (*init)(ncclDebugLogger_t logFunction);

pcclResult_t (*init)(pcclDebugLogger_t logFunction);

Initialize the network.

ncclResult_t (*devices)(int* ndev);

pcclResult_t (*devices)(int* ndev);

Return the number of adapters.

ncclResult_t (*getProperties)(int dev, ncclNetProperties_v8_t* props);

pcclResult_t (*getProperties)(int dev, pcclNetProperties_v4_t* props);

Get various device properties.

ncclResult_t (*listen)(int dev, void* handle, void** listenComm);

pcclResult_t (*listen)(int dev, void* handle, void** listenComm);

Create a receiving object and provide a handle to connect to it.

ncclResult_t (*connect)(void* handles[], int nranks, int rank, void* listenComm, void** collComm);

pcclResult_t (*connect)(void* handles[], int nranks, int rank, void* listenComm, void** collComm);

Create a group for collective operations.

ncclResult_t (*reduceSupport)(ncclDataType_t dataType, ncclRedOp_t redOp, int* supported);

pcclResult_t (*reduceSupport)(pcclDataType_t dataType, pcclRedOp_t redOp, int* supported);

Returns whether a reduction operation on a data type is supported.

ncclResult_t (*regMr)(void* collComm, void* data, size_t size, int type, void** mhandle);

pcclResult_t (*regMr)(void* collComm, void* data, int size, int type, void** mhandle);

Register/Deregister memory.

ncclResult_t (*regMrDmaBuf)(void* collComm, void* data, size_t size, int type, uint64_t offset, int fd, void** mhandle);

pcclResult_t (*regMrDmaBuf)(void* collComm, void* data, size_t size, int type, uint64_t offset, int fd, void** mhandle);

DMA-BUF support

ncclResult_t (*deregMr)(void* collComm, void* mhandle);

pcclResult_t (*deregMr)(void* collComm, void* mhandle);

Register/Deregister memory.

ncclResult_t (*iallreduce)(void* collComm, void* sendData, void* recvData, int count,

ncclDataType_t dataType, ncclRedOp_t redOp, void* sendMhandle, void* recvMhandle, void** request);

pcclResult_t (*iallreduce)(void* collComm, void* sendData, void* recvData, int count,

pcclDataType_t dataType, pcclRedOp_t redOp, void* sendMhandle, void* recvMhandle, void** request);

Performs an asynchronous allreduce operation on the collective group.

ncclResult_t (*iallgather)(void* collComm, void* sendData, int nRecvParts, ncclNetSGE_v8_t* recvParts,

size_t bytesPerRank, size_t windowOffset, size_t windowBytes,

void* sendMhandle, void** request);

❌

Performs an asynchronous allgather operation on the collective group.

ncclResult_t (*ireducescatter)(void* collComm, int nSendParts, ncclNetSGE_v8_t* sendParts, void* recvData,

size_t bytesPerRank, size_t windowOffset, size_t windowBytes,

ncclDataType_t dataType, ncclRedOp_t redOp,

void* recvMhandle, void** request);

❌

Performs an asynchronous reduce_scatter operation on the collective group.

ncclResult_t (*iflush)(void* collComm, void* data, int size, void* mhandle, void** request);

pcclResult_t (*iflush)(void* collComm, void* data, int size, void* mhandle, void** request);

Perform a flush/fence to make sure all data received

ncclResult_t (*test)(void* request, int* done, int* size);

pcclResult_t (*test)(void* request, int* done, int* size);

Test whether a request is complete.

ncclResult_t (*closeColl)(void* collComm);

pcclResult_t (*closeColl)(void* collComm);

Close and free collective comm objects

ncclResult_t (*closeListen)(void* listenComm);

pcclResult_t (*closeListen)(void* listenComm);
