本文主要介绍如何通过调用三方RTC 链路，与百炼多模态交互开发套件集成，实现视频通话的流程。
在音视频交互场景，您可能在您的项目中使用了成熟的技术方案。如第三方的RTC 服务来实现音视频的转发和处理。为了方便您通过最小的改动接入阿里云百炼多模交互开发套件，我们提供了提交图片序列的方式实现视频通话（LiveAI） 功能。
调用流程
在典型的方案中，我们推荐您的客户端（网页或者APP）通过RTC与您的服务端建立连接，传输视频和音频。然后您将服务端采集到的视频帧以 500ms/张 的速度发送给多模交互SDK，同时保持实时的音频输入。
注意：LiveAI发送图片只支持base64编码，每张图片的大小在180K以下。

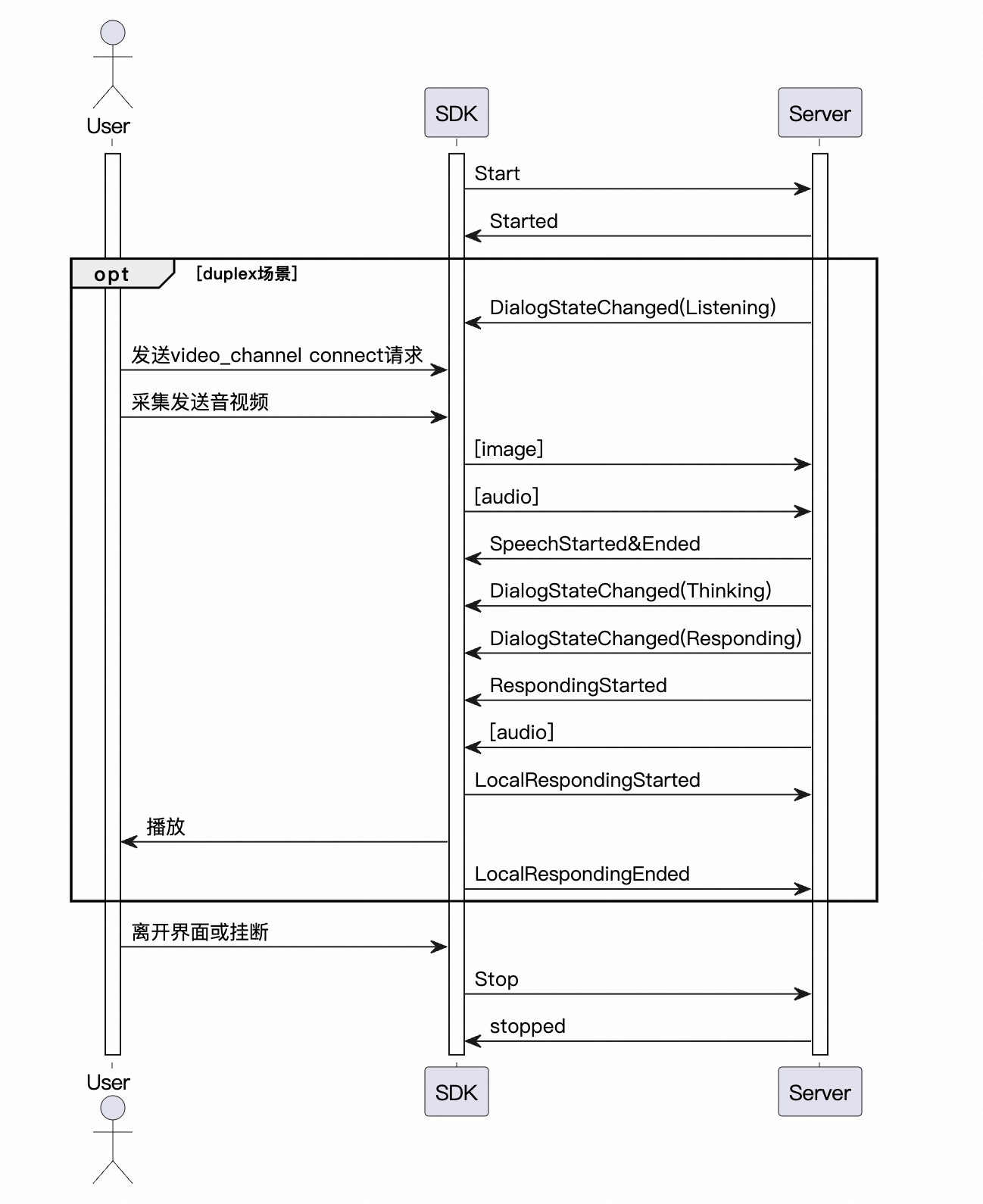

LiveAI调用时序
调用示例
我们在各语言的 SDK 文档中提供了通过 Websocket 链路接入 LiveAI 的示例，以下是通过服务端接入LiveAI 功能的简单示例。更多调用说明请参考SDK安装。
public void testMultimodalLiveAI() {
log.info("############ Starting LiveAI Test ############");
try {
// Build request parameters for duplex mode
MultiModalRequestParam params = buildBaseRequestParams("duplex");
log.info("Request parameters: {}", JsonUtils.toJson(params));
// Initialize conversation
conversation = new MultiModalDialog(params, getCallback());
conversation.start();
// Start send video frame loop
startVideoFrameStreaming();
// Wait for listening state
waitForListeningState();
conversation.sendHeartBeat();
// Send video channel connect request, will response command : switch_video_call_success
conversation.requestToRespond("prompt", "", connectVideoChannelRequest());
// Send audio data directly (no manual start needed for duplex)
sendAudioFromFile("./src/main/resources/what_in_picture.wav");
// Wait for listening state twice
waitForListeningState();
sendAudioFromFile("./src/main/resources/what_color.wav");
// Wait for conversation completion
waitForConversationCompletion(3);
// Clean up
stopConversation();
isVideoStreamingActive = false;
if (videoStreamingThread != null && videoStreamingThread.isAlive()) {
videoStreamingThread.interrupt();
}
} catch (Exception e) {
log.error("Error in LiveAI test: ", e);
} finally {
log.info("############ LiveAI Test Completed ############");
}
}
/**
* Build video channel connection request for LiveAI
*
* @return UpdateParams containing video channel connection configuration
*/
private MultiModalRequestParam.UpdateParams connectVideoChannelRequest(){
Map<String, String> video = new HashMap<>();
video.put("action", "connect");
video.put("type", "voicechat_video_channel");
ArrayList<Map<String, String>> videos = new ArrayList<>();
videos.add(video);
MultiModalRequestParam.BizParams bizParams = MultiModalRequestParam.BizParams.builder().videos(videos).build();
return MultiModalRequestParam.UpdateParams.builder().bizParams(bizParams).build();
}
/**
* Start continuous video frame streaming for LiveAI
*/
private void startVideoFrameStreaming() {
log.info("Starting continuous video frame streaming for LiveAI...");
vqaUseUrl = false;
isVideoStreamingActive = true;
videoStreamingThread = new Thread(() -> {
try {
while (isVideoStreamingActive && !Thread.currentThread().isInterrupted()) {
Thread.sleep(VIDEO_FRAME_INTERVAL_MS);
MultiModalRequestParam.UpdateParams videoUpdate =
MultiModalRequestParam.UpdateParams.builder()
.images(getMockImageRequest())
.build();
if (conversation != null && isVideoStreamingActive) {
conversation.updateInfo(videoUpdate);
log.debug("Video frame sent to LiveAI");
}
}
} catch (InterruptedException e) {
log.info("Video streaming thread interrupted - stopping video stream");
Thread.currentThread().interrupt();
} catch (Exception e) {
log.error("Error in video streaming thread: ", e);
} finally {
log.info("Video streaming thread terminated");
}
});
videoStreamingThread.setDaemon(true);
videoStreamingThread.setName("LiveAI-VideoStreaming");
videoStreamingThread.start();
log.info("Video streaming thread started successfully");
}# 1. 设置请求模式为AudioAndVideo
up_stream = Upstream(type="AudioAndVideo", mode="duplex", audio_format="pcm")
...
# 2. 发送连接到视频对话Agent请求
# {"action":"connect", "type":"voicechat_video_channel"}
def send_connect_video_command(self):
"""发送切换到视频模式的指令"""
logger.info("Sending connect video command")
try:
video_connect_command = [{"action":"connect", "type":"voicechat_video_channel"}]
self.conversation.request_to_respond("prompt","", RequestToRespondParameters(biz_params=BizParams(videos=video_connect_command)))
# 标记视频模式已激活
self.video_mode_active = True
logger.info("Video mode activated")
except Exception as e:
logger.error(f"Failed to send connect video command: {e}")
# 3. 间隔500ms 发送一张180KB以下的视频帧图片
def send_video_frame_data_loop(self):
"""循环发送视频帧数据"""
logger.info("Starting video frame data loop")
self.video_thread_running = True
# 获取示例图片数据
image_data = self._get_sample_images()
try:
while self.video_thread_running and self.video_mode_active:
# 发送图片数据
self._send_video_frame(image_data)
logger.debug(f"Sent video frame, sleeping for {VIDEO_FRAME_INTERVAL}s")
# 等待500ms
time.sleep(VIDEO_FRAME_INTERVAL)
...
# 其他调用过程省略，可参考完整示例。 // 发送图片base64数据的示例
// 这里base64encode可借用SDK的辅助接口也可自行实现
ConversationUtils utils;
std::string base64_content = utils.Base64EncodeFromFilePath(path/*图片路径*/);
if (!base64_content.empty()) {
Json::Value root;
root["type"] = "update_info";
Json::Value parameters;
parameters["biz_params"] = Json::objectValue;
Json::Value client_info;
Json::Value status;
Json::Value bluetooth_announcement;
bluetooth_announcement["status"] = "stopped";
status["bluetooth_announcement"] = bluetooth_announcement;
client_info["status"] = status;
parameters["client_info"] = client_info;
Json::Value image;
image["type"] = "base64";
image["value"] = base64_content;
image["width"] = 480;
image["height"] = 720;
Json::Value images(Json::arrayValue);
images.append(image);
parameters["images"] = images;
root["parameters"] = parameters;
Json::StreamWriterBuilder writer;
writer["indentation"] = "";
conversation->UpdateMessage(Json::writeString(writer, root).c_str());
}该文章对您有帮助吗？
