基于RDS Custom AI节点部署DeepSeek-R1模型

RDS Custom提供了已经部署DeepSeek-R1模型的镜像,您可以在RDS Custom实例上快速且便捷地构建DeepSeek-R1的推理服务,无需进行额外配置,即可实现开箱即用。

操作步骤

步骤一:创建RDS Custom AI节点实例

重要

RDS Custom AI节点目前仅对白名单用户开放,如需使用,请联系我们

创建RDS Custom实例请参见创建RDS Custom实例。关键参数说明如下。

参数

说明

实例规格

架构选择AI 节点,实例规格选择:

  • rds.nv8.8xlarge.8cm:GPU卡型号为NVIDIA H20,适合于部署70B以上参数量级的LLM模型,推荐部署满血版DeepSeek-R1模型(671B参数)。

  • rds.ns8.8xlarge.8cm:GPU卡型号为NVIDIA L20,适合于部署70B以下参数量级的LLM模型,推荐部署蒸馏版DeepSeek-R1模型(32B参数)。

说明

在部署DeepSeek-R1模型时,建议您购买两台RDS Custom实例以构建主从集群,并采用eRDMA进行互联。

镜像

选择默认镜像中的DeepSeek R1

RDS Custom提供了部署DeepSeek-R1及其所需所有资源的镜像包。

系统盘

选择容量至少为200 GiB,性能级别为PL0PL1ESSD云盘。

数据盘

选择容量至少为1000 GiB,性能级别为PL1ESSD云盘。

部署DeepSeek-R1模型至少需要1000 GiBESSD PL1云盘,以确保充足的存储空间和良好的IO性能。在存储空间不足时,可以通过扩容现有云盘挂载新的数据盘来实现空间扩展。

安全组

所选安全组需开放8000端口,以便后续获取DeepSeek服务。创建及配置安全组请参见管理安全组管理安全组规则

步骤二:获取RDS Custom实例数据盘的盘符和eth1网卡的IP地址

  1. 连接RDS Custom实例

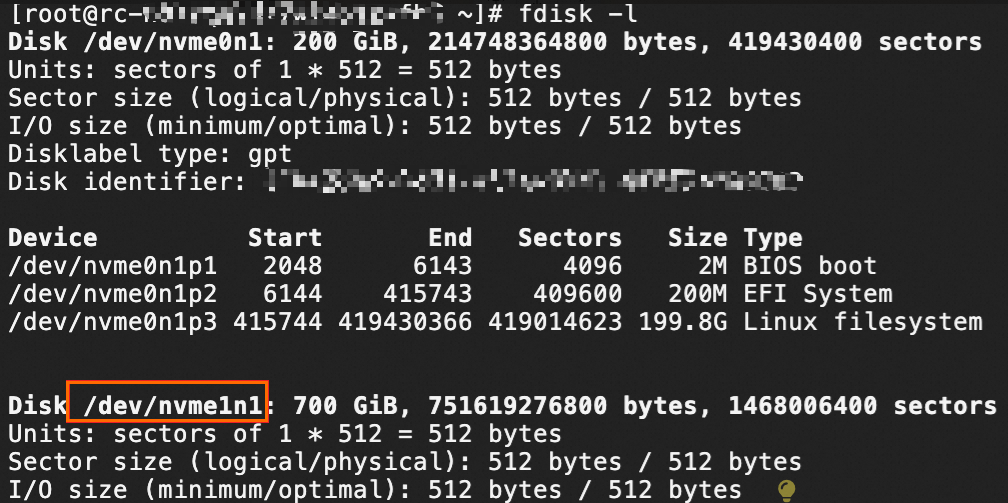

  2. 执行以下命令,获取数据盘的盘符。

    fdisk -l

    返回示例:

    如果仅挂载一块数据盘,通常其盘符为/dev/nvme1n1。

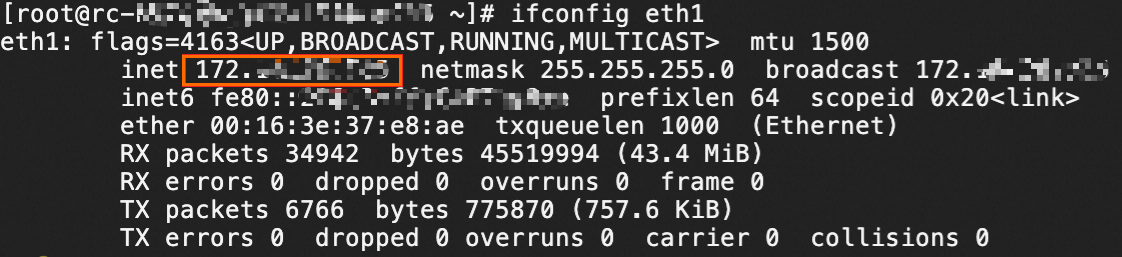

  3. (可选)如果是主从集群,请执行以下命令,获取主节点eth1网卡IP地址。

    ifconfig eth1

    返回示例:


步骤三:启动DeepSeek-R1模型

说明

主从集群与单节点实例的启动方式存在差异,请根据实际情况进行选择。

主从集群

  1. 在主节点上启动DeepSeek-R1模型。

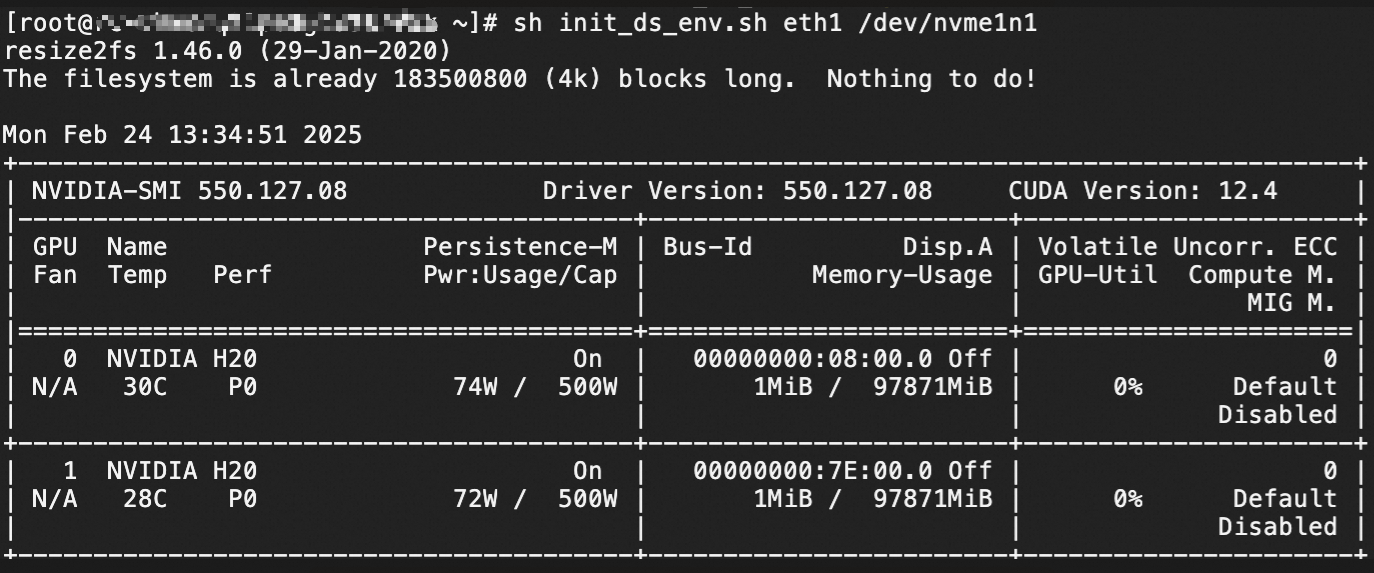

    1. 执行以下命令,初始化环境。

      sh init_ds_env.sh eth1 /dev/nvme1n1

      返回示例:


    2. 执行以下命令,启动DeepSeek-R1模型。

      docker run \
          --entrypoint sh -dit \
          --network host \
          --name ds-node \
          --device nvidia.com/gpu=all \
          --ipc host \
           -e NCCL_DEBUG=TRACE \
          -e NCCL_SOCKET_IFNAME=eth1 -e SGLANG_SET_CPU_AFFINITY=1 \
          -e NCCL_IB_DISABLE=0 -e NCCL_IB_HCA=erdma_0:1 -e SGL_ENABLE_JIT_DEEPGEMM=1 \
          --privileged \
          --pids-limit 65535 --restart unless-stopped \
          -v "/mnt/deepseek-ai/DeepSeek-R1:/sgl-workspace/deepseek-ai/DeepSeek-R1" \
          "docker.io/lmsysorg/sglang:v0.4.4.post1" \
          -c "python3 sglang/scripts/export_deepseek_nextn.py --input-dir /sgl-workspace/deepseek-ai/DeepSeek-R1 --output-dir /sgl-workspace/deepseek-ai/DeepSeek-R1-NextN && python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-R1 --tp 16 --dist-init-addr $主节点eth1网卡IP:5000 --nnodes 2 --node-rank 0 --trust-remote-code --port 8000 --context-length 163840 --enable-metrics --enable-torch-compile --torch-compile-max-bs 8  --speculative-algo EAGLE --speculative-draft /sgl-workspace/deepseek-ai/DeepSeek-R1-NextN --speculative-num-steps 3 --speculative-eagle-topk 1 --speculative-num-draft-tokens 4 --enable-flashinfer-mla  --reasoning-parser deepseek-r1 --host 0.0.0.0 2>&1 | tee /sgl-workspace/server.log "
      说明

      使用步骤一获取的主节点eth1网卡IP,替换命令中的$主节点eth1网卡IP

  2. 在从节点上启动DeepSeek-R1模型。

    1. 执行以下命令,初始化环境。

      sh init_ds_env.sh eth1 /dev/nvme1n1

      返回示例:


    2. 执行以下命令,启动DeepSeek-R1模型。

      docker run \
          --entrypoint sh -dit \
          --network host \
          --name ds-node \
          --device nvidia.com/gpu=all \
          --ipc host \
           -e NCCL_DEBUG=TRACE \
          -e NCCL_SOCKET_IFNAME=eth1 -e SGLANG_SET_CPU_AFFINITY=1 \
          -e NCCL_IB_DISABLE=0 -e NCCL_IB_HCA=erdma_0:1 -e SGL_ENABLE_JIT_DEEPGEMM=1 \
          --privileged \
          --pids-limit 65535 --restart unless-stopped \
          -v "/mnt/deepseek-ai/DeepSeek-R1:/sgl-workspace/deepseek-ai/DeepSeek-R1" \
          "docker.io/lmsysorg/sglang:v0.4.4.post1" \
          -c "python3 sglang/scripts/export_deepseek_nextn.py --input-dir /sgl-workspace/deepseek-ai/DeepSeek-R1 --output-dir /sgl-workspace/deepseek-ai/DeepSeek-R1-NextN && python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-R1 --tp 16 --dist-init-addr $主节点eth1网卡IP:5000 --nnodes 2 --node-rank 1 --trust-remote-code --port 8000 --context-length 163840 --enable-metrics --enable-torch-compile --torch-compile-max-bs 8  --speculative-algo EAGLE --speculative-draft /sgl-workspace/deepseek-ai/DeepSeek-R1-NextN --speculative-num-steps 3 --speculative-eagle-topk 1 --speculative-num-draft-tokens 4 --enable-flashinfer-mla --reasoning-parser deepseek-r1 2>&1 | tee /sgl-workspace/server.log "
      说明

      使用步骤一获取的主节点eth1网卡IP,替换命令中的$主节点eth1网卡IP

单节点实例

  1. 执行以下命令,初始化环境。

    sh init_ds_env.sh eth1 /dev/nvme1n1

    返回示例:


  2. 执行以下命令,启动DeepSeek-R1模型。

    docker run \
        --replace\
        --entrypoint sh -dit \
        --network host \
        --name ds-node \
        --device nvidia.com/gpu=all \
        --ipc host \
         -e NCCL_DEBUG=TRACE \
        -e NCCL_SOCKET_IFNAME=eth1 -e SGLANG_SET_CPU_AFFINITY=1 \
        -e NCCL_IB_DISABLE=0 -e NCCL_IB_HCA=erdma_0:1 -e SGL_ENABLE_JIT_DEEPGEMM=1 \
        --privileged \
        --pids-limit 65535 --restart unless-stopped \
        -v "/mnt/deepseek-ai/DeepSeek-R1:/sgl-workspace/deepseek-ai/DeepSeek-R1" \
        "docker.io/lmsysorg/sglang:v0.4.4.post1" \
        -c "python3 sglang/scripts/export_deepseek_nextn.py --input-dir /sgl-workspace/deepseek-ai/DeepSeek-R1 --output-dir /sgl-workspace/deepseek-ai/DeepSeek-R1-NextN && python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-R1 --tp 8 --trust-remote-code --port 8000 --context-length 163840 --enable-metrics --enable-torch-compile --torch-compile-max-bs 8  --speculative-algo EAGLE --speculative-draft /sgl-workspace/deepseek-ai/DeepSeek-R1-NextN --speculative-num-steps 3 --speculative-eagle-topk 1 --speculative-num-draft-tokens 4 --enable-flashinfer-mla  --reasoning-parser deepseek-r1  --mem-fraction-static 0.9 --host 0.0.0.0  2>&1 | tee /sgl-workspace/server.log "

步骤四:查询模型启动日志

执行以下命令以查询DeepSeek-R1模型的启动日志。如为主从实例,请在主节点上执行。

docker exec -it ds-node  bash -c "tail -f server.log"

返回示例:


模型验证

执行以下命令验证模型。如为主从集群,请在主节点上执行。

curl http://localhost:8000/v1/chat/completions     -H "Content-Type: application/json"     -d '{
        "model": "deepseek-ai/DeepSeek-R1",
        "messages": [
            {"role": "system", "content": "You are a helpful assistant."},
            {"role": "user", "content": "What is the capital of France?"}
        ],
        "stream": false
    }'

返回示例:


(可选)满血版DeepSeek-R1模型性能测试

性能测试

重要

压测工具及其参数对最终数据具有显著影响,因此在分析数据时应综合考虑压测工具和压测参数。

本文使用sglang.bench_serving进行测试。在测试过程中,指定参数--backend sglang将会清空kvcache缓存,压力测试将在完全无缓存命中的条件下进行。

  1. RDS Custom实例绑定弹性公网IP,并通过弹性公网IP连接实例,详情请参见连接RDS Custom实例

  2. 在安装了DeepSeek-R1模型的容器(本文以ds-node为例)中执行以下命令,运行压测脚本。

    说明

    如为主从集群,请在主节点上执行。

    重要

    以下提供了从4K128K的数据集测试脚本,请根据实际情况进行相应的修改。

    压测脚本

    echo "start bench 4k 1"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=3072     --random-output=1024     --max-concurrency=1     --num-prompts=2     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./4k_1.json

    echo "start bench 4k 10"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=3072     --random-output=1024     --max-concurrency=10     --num-prompts=20     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./4k_10.json

    echo "start bench 4k 15"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=3072     --random-output=1024     --max-concurrency=15     --num-prompts=30     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./4k_15.json

    echo "start bench 4k 20"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=3072     --random-output=1024     --max-concurrency=20     --num-prompts=40     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./4k_20.json

    echo "start bench 4k 30"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=3072     --random-output=1024     --max-concurrency=30     --num-prompts=60     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./4k_30.json

    echo "start bench 8k 1"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=7168     --random-output=1024     --max-concurrency=1     --num-prompts=2     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./8k_1.json

    echo "start bench 8k 10"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=7168     --random-output=1024     --max-concurrency=10     --num-prompts=20     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./8k_10.json

    echo "start bench 8k 15"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=7168     --random-output=1024     --max-concurrency=15     --num-prompts=30     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./8k_15.json

    echo "start bench 8k 20"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=7168     --random-output=1024     --max-concurrency=20     --num-prompts=40     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./8k_20.json

    echo "start bench 8k 30"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=7168     --random-output=1024     --max-concurrency=30     --num-prompts=60     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./8k_30.json

    echo "start bench 16k 1"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=15360     --random-output=1024     --max-concurrency=1     --num-prompts=2     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./16k_1.json

    echo "start bench 16k 10"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=15360     --random-output=1024     --max-concurrency=10     --num-prompts=20     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./16k_10.json

    echo "start bench 16k 15"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=15360     --random-output=1024     --max-concurrency=15     --num-prompts=30     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./16k_15.json

    echo "start bench 16k 20"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=15360     --random-output=1024     --max-concurrency=20     --num-prompts=40     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./16k_20.json

    echo "start bench 16k 30"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=15360     --random-output=1024     --max-concurrency=30     --num-prompts=60     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./16k_30.json

    echo "start bench 32k 1"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=31744     --random-output=1024     --max-concurrency=1     --num-prompts=2     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./32k_1.json

    echo "start bench 32k 10"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=31744     --random-output=1024     --max-concurrency=10     --num-prompts=20     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./32k_10.json

    echo "start bench 32k 15"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=31744     --random-output=1024     --max-concurrency=15     --num-prompts=30     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./32k_15.json

    echo "start bench 32k 20"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=31744     --random-output=1024     --max-concurrency=20     --num-prompts=40     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./32k_20.json

    echo "start bench 32k 30"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=31744     --random-output=1024     --max-concurrency=30     --num-prompts=60     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./32k_30.json

    echo "start bench 64k 1"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=64512     --random-output=1024     --max-concurrency=1     --num-prompts=2     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./64k_1.json

    echo "start bench 64k 10"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=64512     --random-output=1024     --max-concurrency=10     --num-prompts=20     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./64k_10.json

    echo "start bench 64k 15"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=64512     --random-output=1024     --max-concurrency=15     --num-prompts=30     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./64k_15.json

    echo "start bench 64k 20"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=64512     --random-output=1024     --max-concurrency=20     --num-prompts=40     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./64k_20.json

    echo "start bench 64k 30"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=64512     --random-output=1024     --max-concurrency=30     --num-prompts=60     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./64k_30.json

    echo "start bench 128k 1"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=130048     --random-output=1024     --max-concurrency=1     --num-prompts=2     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./128k_1.json

    echo "start bench 128k 10"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=130048     --random-output=1024     --max-concurrency=10     --num-prompts=20     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./128k_10.json

    echo "start bench 128k 15"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=130048     --random-output=1024     --max-concurrency=15     --num-prompts=30     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./128k_15.json

    echo "start bench 128k 20"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=130048     --random-output=1024     --max-concurrency=20     --num-prompts=40     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./128k_20.json

    echo "start bench 128k 30"
    python3 -m sglang.bench_serving --backend sglang     --model deepseek-ai/DeepSeek-R1   --port 8000     --dataset-name=random --random-input=130048     --random-output=1024     --max-concurrency=30     --num-prompts=60     --random-range-ratio 0.9     --dataset-path ~/ShareGPT_V3_unfiltered_cleaned_split.json --output-file ./128k_30.json
