Key concepts

Workqueue

Workqueue terminology

Controllers managed by kube-controller-manager, such as the Node Controller, StatefulSet Controller, and Deployment Controller, use a Workqueue to process resource updates. When an event occurs, such as Pod creation, update, or deletion, the controller places the resource identifier (for example, Pod name and namespace) into the Workqueue. A work loop retrieves and processes these identifiers.

Before you begin

Access the dashboard

See View monitoring dashboards for cluster control plane components.

Metric list

The following table lists kube-controller-manager metrics.

Metric	Type	Description
workqueue_adds_total	Counter	Total events added to the Workqueue.
workqueue_depth	Gauge	Current Workqueue depth. A sustained high value indicates the controller cannot process tasks fast enough, causing a backlog.
workqueue_queue_duration_seconds_bucket	Histogram	Time an item waits in the Workqueue. Bucket thresholds: {10^-8, 10^-7, 10^-6, 10^-5, 10^-4, 10^-3, 10^-2, 10^-1, 1, 10}. Unit: seconds.
memory_utilization_byte	Gauge	Memory utilization. Unit: bytes.
cpu_utilization_core	Gauge	CPU utilization. Unit: cores.
resource_utilization_level	Gauge	Resource utilization level. resource: The resource type. Valid values: `cpu` and `memory`. utilization_level: The utilization level. Valid values: `high` (utilization ≥ 80%) and `normal` (utilization < 80%). container: The target container. Valid values: `kube-apiserver`, `kube-scheduler`, `kube-controller-manager`, `cloud-controller-manager`, and `etcd`.
rest_client_requests_total	Counter	Total HTTP requests by status code, method, and host.
rest_client_request_duration_seconds_bucket	Histogram	HTTP request latency by verb and URL.

Note

The following resource utilization metrics are no longer in use. Remove any alerts or monitoring rules that rely on these metrics:

cpu_utilization_ratio: CPU utilization.
memory_utilization_ratio: Memory utilization.

Dashboard usage

Configure the request quantile and PromQL sampling interval on the dashboard. The following sections describe each chart and its PromQL query.

Workqueue

Dashboard view

Charts

Name	PromQL	Description
Workqueue Add Rate	sum(rate(workqueue_adds_total{job="ack-kube-controller-manager"}[$interval])) by (name)	Rate of events added to the Workqueue.
Workqueue Depth	sum(rate(workqueue_depth{job="ack-kube-controller-manager"}[$interval])) by (name)	Average rate of change in Workqueue depth.
Workqueue Processing Latency	histogram_quantile($quantile, sum(rate(workqueue_queue_duration_seconds_bucket{job="ack-kube-controller-manager"}[5m])) by (name, le))	Time an item waits in the Workqueue.

Resources

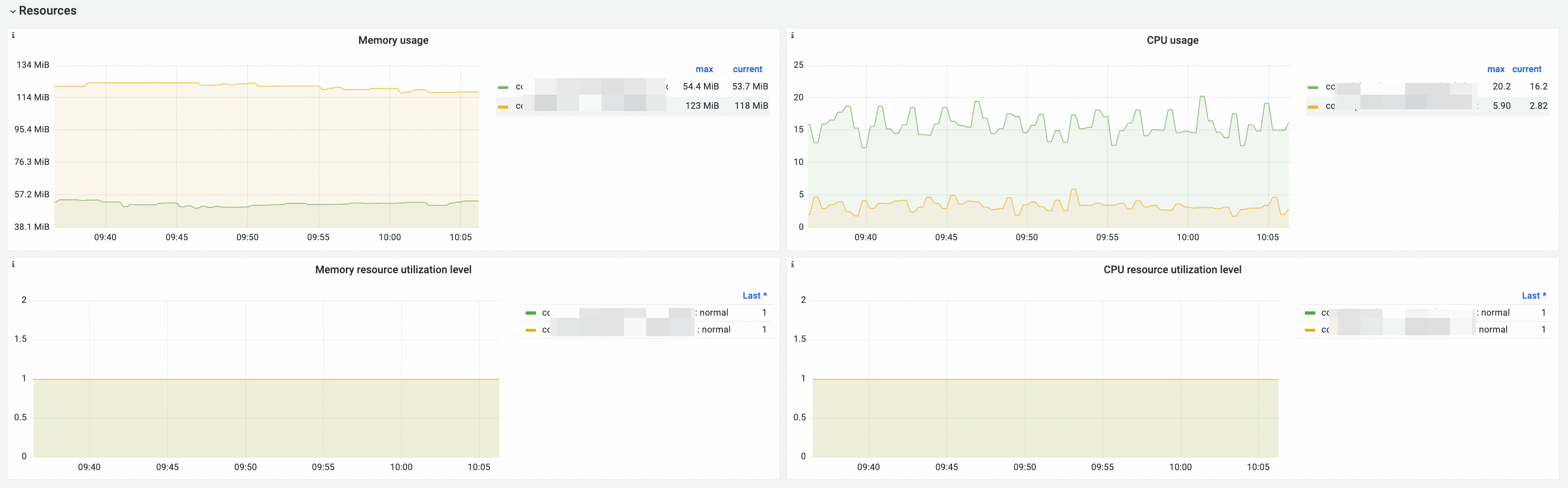

Dashboard view

Charts

Chart name	PromQL	Description
Memory Utilization	memory_utilization_byte{container="kube-controller-manager"}	Memory utilization. Unit: bytes.
CPU Utilization	cpu_utilization_core{container="kube-controller-manager"}*1000	CPU utilization. Unit: millicore.
Memory Resource Utilization Level	resource_utilization_level{resource="memory",container="kube-controller-manager",utilization_level="high"} resource_utilization_level{resource="memory",container="kube-controller-manager",utilization_level="normal"}	If `resource_utilization_level{utilization_level="high",...}` is 1, the container resource utilization level is ≥ 80%. If `resource_utilization_level{utilization_level="normal",...}` is 1, the container resource utilization level is < 80%.
CPU Resource Utilization Level	resource_utilization_level{resource="cpu",container="kube-controller-manager",utilization_level="high"} resource_utilization_level{resource="cpu",container="kube-controller-manager",utilization_level="normal"}

Kube API

Dashboard view

Charts

Chart name	PromQL	Description
Kube API Request QPS	sum(rate(rest_client_requests_total{job="ack-kube-controller-manager",code=~"2.."}[$interval])) by (method,code) sum(rate(rest_client_requests_total{job="ack-kube-controller-manager",code=~"3.."}[$interval])) by (method,code) sum(rate(rest_client_requests_total{job="ack-kube-controller-manager",code=~"4.."}[$interval])) by (method,code) sum(rate(rest_client_requests_total{job="ack-kube-controller-manager",code=~"5.."}[$interval])) by (method,code)	QPS of HTTP requests from kube-controller-manager to kube-apiserver, by method and status code.
Kube API Request Latency	histogram_quantile($quantile, sum(rate(rest_client_request_duration_seconds_bucket{job="ack-kube-controller-manager"}[$interval])) by (verb,url,le))	Latency of HTTP requests from kube-controller-manager to kube-apiserver, by verb and URL.

References

For metrics and dashboards of other control plane components, see Monitoring metrics for the kube-apiserver component, Monitoring metrics for the etcd component, Monitoring metrics for the kube-scheduler component, and Monitoring metrics for the cloud-controller-manager component.
