DMS MLflow

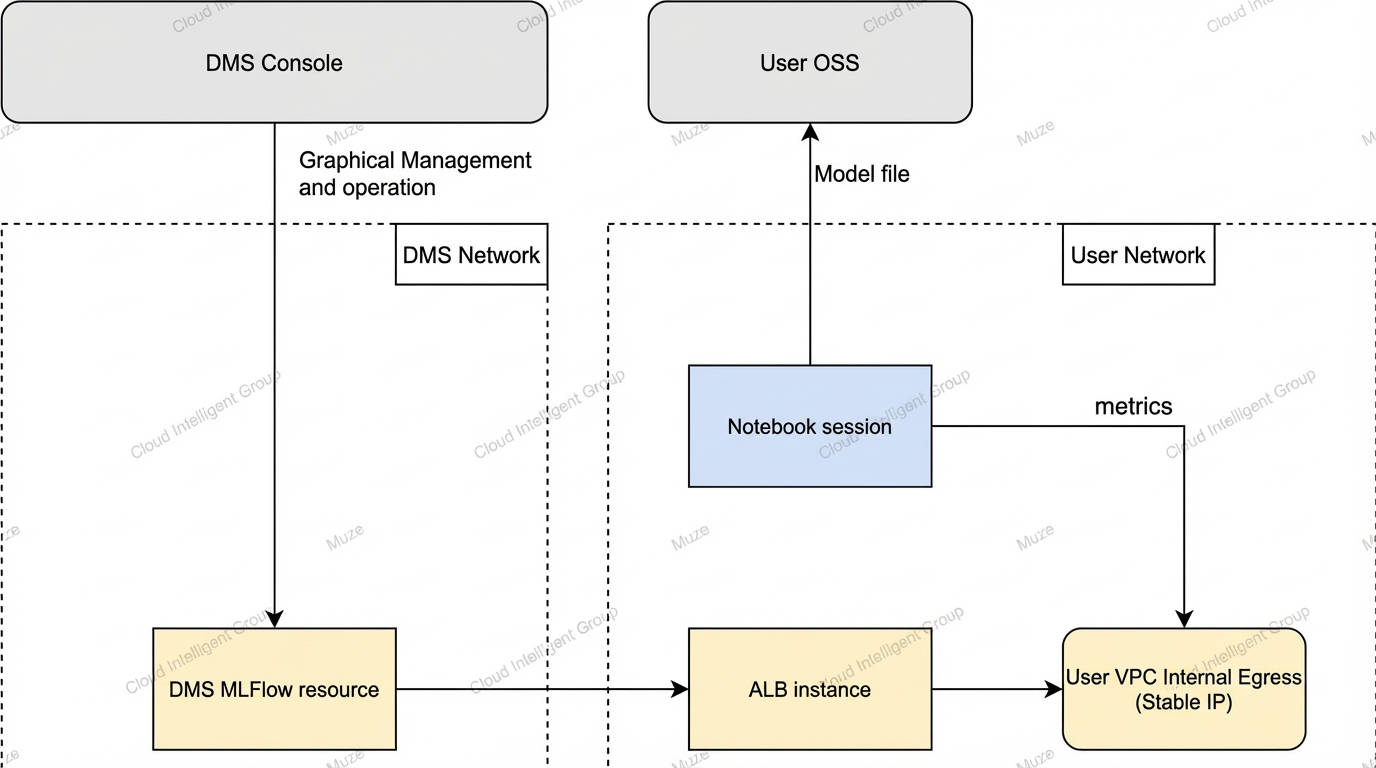

Core architecture

• Managed service: DMS manages the lifecycle of your MLflow instance and the maintenance of its underlying resources.

• Native VPC integration: The MLflow service is exposed securely within your VPC through an Application Load Balancer (ALB), ensuring network isolation and security.

• Pay-as-you-go: Seamlessly integrates with environments like DMS Notebook, with billing based on actual compute resource consumption.

Supported regions

China (Beijing), China (Shanghai), and China (Hangzhou). (This service is currently in limited preview. Availability is subject to the visibility of the service entry in the console.)

Prerequisites

Before you create an MLflow instance, complete the following prerequisites.

• Network resources

  • Virtual Private Cloud (VPC): An existing VPC is required.

  • vSwitch: At least two vSwitches are required in the VPC, in different availability zones to ensure high availability.

  • Security group: A security group is required. Network access to the MLflow service is controlled by the inbound rules of this security group.

  • Procedure: VPCs and vSwitches, Use security groups

• Object Storage Service (OSS)

  • Purpose: Store model training artifacts (such as model files and datasets). DMS MLflow only records metadata (including training process metrics and artifact storage location metadata), while artifacts must be stored in an OSS bucket that you provide.

  • Procedure: Create a bucket

• Workspace

  • Purpose: A workspace is a collaborative unit in DMS. The creation, management, and visualization of DMS MLflow instances must be performed within a workspace.

  • Procedure: Prepare a workspace

• ALB service-linked role

  • Purpose: DMS MLflow provides access within your VPC through an Application Load Balancer (ALB). If your account has never used ALB, the required service-linked role does not exist, and MLflow instance creation will fail.

  • Procedure: Refer to Create a service-linked role. In the Create Service Linked Role panel, select ALB for Select Service.

Create a Notebook

1. Log in to DMS 5.0.

2. From the top menu bar, select Data+AI > Workspace, or in Simplified Mode, click the icon in the upper-left corner and select All Features > Data+AI > Workspace.

3. On the workspace list page, find the target workspace and click its ID to enter.

4. Within the workspace, navigate to the Notebook session management page.



5. Click the create session button. In the dialog box that appears, fill in the required information, and then click Finish and Create.



   Parameter	Description	Example
   Session name	A unique name for the Notebook session to distinguish between different tasks. The name can contain letters, digits, and underscores, and should be 64 characters or less.	new_session_20250401
   Cluster	The compute cluster on which the Notebook runs. By default, the shared cluster provided by DMS is used. You can also select an authorized dedicated cluster.	DMS default cluster
   Image	The base container image for the runtime environment. It includes a pre-installed Python version and common AI and data science libraries, such as pandas, numpy, and dashscope.	Python3.9:1.0.9
   Specifications	The compute resources allocated to the Notebook instance, formatted as "CPU cores + memory size." More resources provide higher processing power but also increase costs.	1C4G (1 CPU core, 4 GB memory)
   Development mode	Controls whether to enable enhanced debugging and interactive features such as auto-save and hot-reloading. Enabling this mode slightly increases resource consumption and is suitable for development and debugging. We recommend disabling it for production environments.	Off / On
   Configuration	A preset runtime configuration template that can include network policies, mount points, and security contexts. default_profile is the system's default security configuration.	default_profile
   Resource release	The idle timeout period in minutes after which the session is automatically released. After the timeout, the instance is reclaimed to save resources. Unsaved content may be lost, so be sure to persist your data.	1440 (24 hours)
   Data storage	Specifies whether to mount a persistent storage volume. If you select "None," all data is stored in the temporary container and is lost when the session stops or restarts. To persist data, bind an OSS or NAS volume.	None / oss://my-bucket/notebook
   PyPI-managed packages	A list of additional third-party Python packages to install via pip. Separate multiple packages with commas. You can specify versions, for example, dashscope==1.19.0.	None / dashscope, pandas==2.1.0
   Environment variables	Custom runtime environment variables, often used to configure API keys, regions, or log levels. Use the format KEY=VALUE. Separate multiple variables with newlines or semicolons.	None / DASHSCOPE_API_KEY=sk-xxx

6. In the Notebook Session list, find the target session and click Start in the Actions column.

Create and configure an MLflow instance

Use MLflow in a Notebook

Before you start, ensure your MLflow instance is running and its ALB access control policy is configured to allow connections from your Notebook environment.

• Create a new file: In the Explorer, right-click within the CODE section and select New Notebook File.



• Install the MLflow Python SDK: In a cell of a new Notebook file, enter the !pip install mlflow command and click the Run button.



• Write the training code: In the code, use the VPC Address from the MLFlow instance details page to replace SERVER_URL.

  import mlflow
  import mlflow.sklearn
  from sklearn import datasets
  from sklearn.model_selection import train_test_split
  from sklearn.ensemble import RandomForestClassifier
  from sklearn.metrics import accuracy_score, precision_score, recall_score, f1_score
  import pandas as pd

  def main():
      # Set the remote tracking URI (for metadata logging only)
      mlflow.set_tracking_uri("http://SERVER_URL")
      # Set the MLflow experiment name
      mlflow.set_experiment("Iris Classification")

      # Load the Iris dataset
      iris = datasets.load_iris()
      X = iris.data
      y = iris.target

      # Create a DataFrame for feature names (optional, for easier logging)
      feature_names = iris.feature_names
      target_names = iris.target_names

      # Split data into training and test sets
      X_train, X_test, y_train, y_test = train_test_split(
          X, y, test_size=0.2, random_state=42, stratify=y
      )

      # Define hyperparameters
      n_estimators = 100
      max_depth = 3
      random_state = 42

      # Start an MLflow run
      with mlflow.start_run(run_name="RandomForest_Iris"):
          # Log hyperparameters
          mlflow.log_param("n_estimators", n_estimators)
          mlflow.log_param("max_depth", max_depth)
          mlflow.log_param("random_state", random_state)
          mlflow.log_param("test_size", 0.2)

          # Create and train the model
          model = RandomForestClassifier(
              n_estimators=n_estimators,
              max_depth=max_depth,
              random_state=random_state
          )
          model.fit(X_train, y_train)

          # Make predictions
          y_pred = model.predict(X_test)

          # Calculate evaluation metrics
          accuracy = accuracy_score(y_test, y_pred)
          precision = precision_score(y_test, y_pred, average='weighted')
          recall = recall_score(y_test, y_pred, average='weighted')
          f1 = f1_score(y_test, y_pred, average='weighted')

          # Log evaluation metrics
          mlflow.log_metric("accuracy", accuracy)
          mlflow.log_metric("precision", precision)
          mlflow.log_metric("recall", recall)
          mlflow.log_metric("f1_score", f1)

          # Log feature and target names as tags
          mlflow.set_tag("features", ", ".join(feature_names))
          mlflow.set_tag("targets", ", ".join(target_names))
          mlflow.set_tag("algorithm", "RandomForestClassifier")

          print(f"Model trained successfully!")
          print(f"Accuracy: {accuracy:.4f}")
          print(f"Precision: {precision:.4f}")
          print(f"Recall: {recall:.4f}")
          print(f"F1 Score: {f1:.4f}")

          # Log the model
          mlflow.sklearn.log_model(model, "iris_model")

          # Get information about the current run
          run_id = mlflow.active_run().info.run_id
          experiment_id = mlflow.active_run().info.experiment_id
          print(f"Run ID: {run_id}")
          print(f"Experiment ID: {experiment_id}")

  if __name__ == "__main__":
      main()


FAQ

• Q: Why can't I access DMS MLflow using its IP address?
  A: Troubleshoot the issue by checking the following in order:


  1. Access control: Confirm that you have added a rule to the ALB's access control policy that allows traffic from your current device or the Notebook's CIDR block.

  2. Security group: Verify that the inbound rules of the security group associated with your MLflow instance allow traffic on port 80 from your source IP address.

  3. Network connectivity: Ensure that your client environment (such as a local PC or an ECS instance) has a network path to the MLflow instance's VPC (for example, via a VPN or Cloud Enterprise Network).

• Q: Where are my trained model files stored?
  A: DMS MLflow does not store binary artifacts like model files. The Alibaba Cloud OSS bucket and path you configure become the default artifact root. You can also explicitly specify an artifact root when you create an experiment. Your execution environment (for example, a Notebook) must have the necessary credentials to upload artifacts to OSS. If you use Alibaba Cloud OSS for artifact storage, we recommend using the MLflow plugin: https://mlflow.org/docs/latest/ml/plugins/#storage--persistence


• Q: Will the associated ALB and RDS resources be automatically deleted after I release a DMS MLflow instance?
  A: Under normal circumstances, when you release a DMS MLflow instance, the system automatically cleans up and releases both the associated ALB instance and the backend RDS database instance. No manual deletion is required.


  If the ALB instance is not automatically cleaned up after the MLflow instance is released, and manual deletion fails with an error, this indicates a residual underlying resource issue. In this case, please submit a ticket to contact Alibaba Cloud technical support for assistance.

• Q: Does DMS MLflow support public network access? How do I configure it?
  A: For data security reasons, we do not recommend accessing the MLflow service directly over the public internet. We recommend using it within your VPC.


  If your workload requires public network access, you can configure a DNAT rule on a NAT Gateway to map a public IP address on a specified port (such as port 80) to the private IP address of the ALB instance associated with your MLflow instance.

  Warning

  Exposing MLflow over the public internet increases security risks. Ensure that you configure strict security group policies and access control whitelists.
