API reference and parameter descriptions
SOFAStack Message Queue provides a Java software development kit (SDK) to send and subscribe to messages. This topic describes the parameters for the message sending and subscription APIs.
Common parameters
Parameter | Description |
ENDPOINT | The TCP protocol endpoint. Obtain this from the Overview > Endpoint Configuration page in the Message Queue console. |
INSTANCE_ID | The instance ID. Obtain this from the Overview > Endpoint Configuration page in the Message Queue console. |
ACCESS_KEY | The AccessKeyId that you create in the Alibaba Cloud account management console. It is used for identity authentication. |
SECRET_KEY | The AccessKeySecret that you create in the Alibaba Cloud account management console. It is used for identity authentication. |

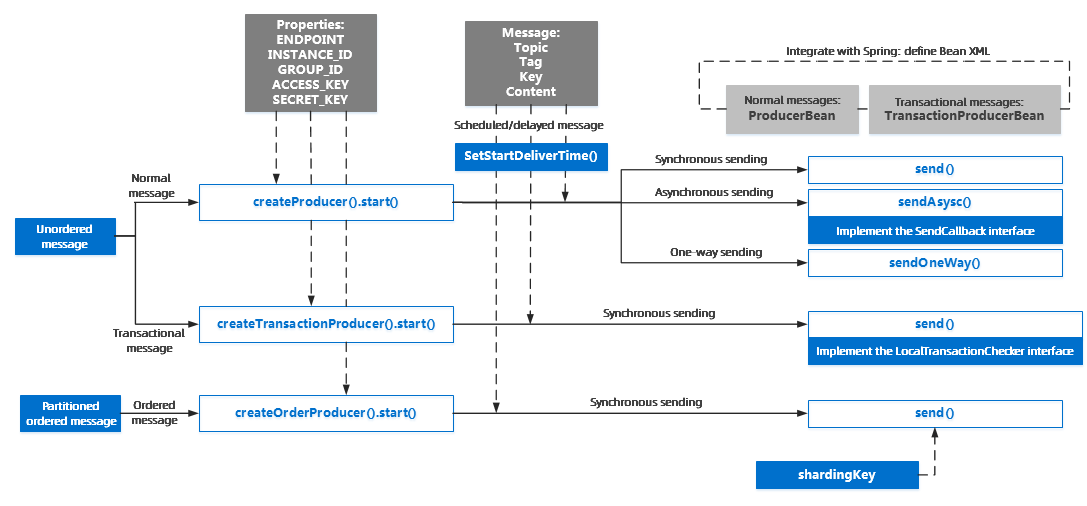

Message sending API
Message sending parameters
Parameter name | Description |
SEND_MSG_TIMEOUT_MILLIS | The timeout period for sending a message, in milliseconds. The default value is 3000. |
shardingKey (ordered message) | For ordered messages, this is the value used to calculate the partition. |
Message sending return values
SendResult for sync messages
Struct parameter
Description
messageId
The message ID. You can use the message ID to query the message trace in the console. If the message fails to be sent, no message ID is returned.
topic
The message topic.
SendResult for asynchronous messages
Struct parameter
Description
onSuccess
If the message is sent successfully, the method implemented in `onSuccess` is executed.
onException
If an exception is thrown when sending the message, the method implemented in `onException` is executed.

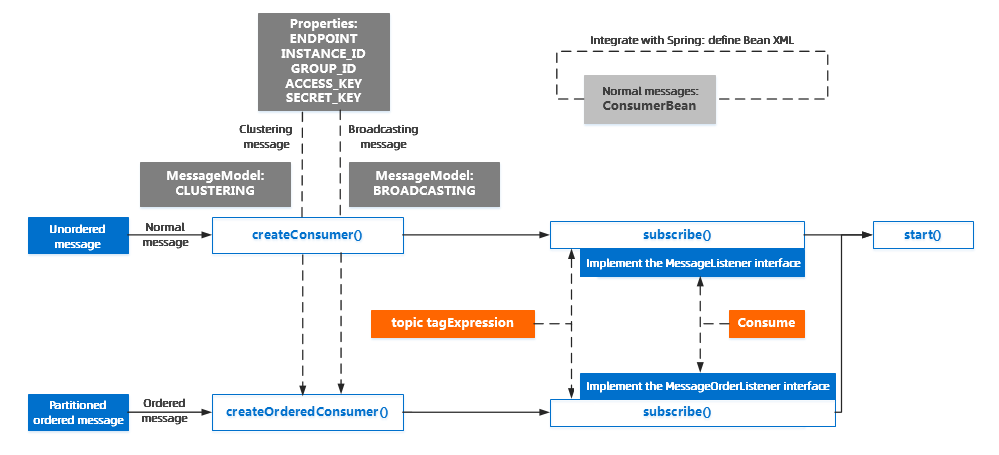

Message subscription API
Message subscription parameters
Parameter name | Description |
GROUP_ID | The Group ID that you create in the Message Queue console. For more information, see Glossary. |
MESSAGE_MODEL | The consumption mode of the consumer. Valid values:
|
CONSUME_THREAD_NUMS | The number of consumer threads. The default value is 20. |
MAX_RECONSUME_TIMES | The maximum number of retries for a failed message consumption. The default value is 16. |
CONSUME_TIMEOUT | The maximum timeout period for consuming a single message. If this period is exceeded, the consumption is considered failed, and the message is redelivered for consumption. Set a reasonable value based on your service needs. Unit: minutes. The default value is 15. |
SUSPEND_TIME_MILLIS (ordered message) | This parameter applies only to ordered messages. It specifies the retry interval for a failed message consumption. |
MAX_CACHED_MESSAGE_AMOUNT | The maximum number of messages that can be cached on the client. The default value is 1000. |
MAX_CACHED_MESSAGE_SIZE_IN_MI_B | The maximum size of messages that can be cached on the client. The default value is 512 MB. The value can range from 16 MB to 2 GB. |
More information
Code examples for sending and receiving messages
