Web integration

Prerequisites

The development environment must meet the following requirements:

Procedure

1. Download artvc-web-sdk.

2. Save the artvc-web-sdk package to your local project.

3. Import the required dependency files for your project based on the following table.

   Dependency type	Dependency file	Description
   Required dependency	meeting_api.js adapter.js	-
   Optional dependency	remote_record.js	For server-side recording.
   	client_record.js RecordRTC.min.js (https://gw.alipayobjects.com/os/lib/recordrtc/5.5.9/RecordRTC.min.js) EBML.js	For browser-based recording.
   	meeting_camera_stream.js	To use the camera or microphone.
   	meeting_desk_stream.js	For the desktop screen sharing feature. Important If you want to use the desktop screen sharing feature, upgrade Chrome to version 72 or later.
   	meeting_file_stream.js pdf.js pdf.worker.js (must be in the ./lib/pdf.worker.js path relative to meeting_api.js)	For file screen sharing. If the file is in PDF format, you must also import the pdf.js and pdf.worker.js files.
   	meeting_html_stream.js	For custom area screen sharing.
   	meeting_im.js	To use the instant messaging (IM) feature.
   	meeting_invite.js	To use the invitation feature. Only online agents can be invited.
   	dialogue.css getMediaInfo.js jquery.min.js (https://gw.alipayobjects.com/os/lib/jquery/3.5.1/dist/jquery.min.js) iconfont.js eruda.js	Do not import the dependencies for the demo into your application.

4. Add the following code to instantiate the SDK.

   let test_controller = new MeetingController();  // Instantiate the SDK

API reference

The entire API is encapsulated in the MeetingController class. The APIs are divided into the following two types:

• Calling APIs: APIs that are actively called by your service.

• Callback APIs: Callbacks that are triggered by API calls and provide service notifications.

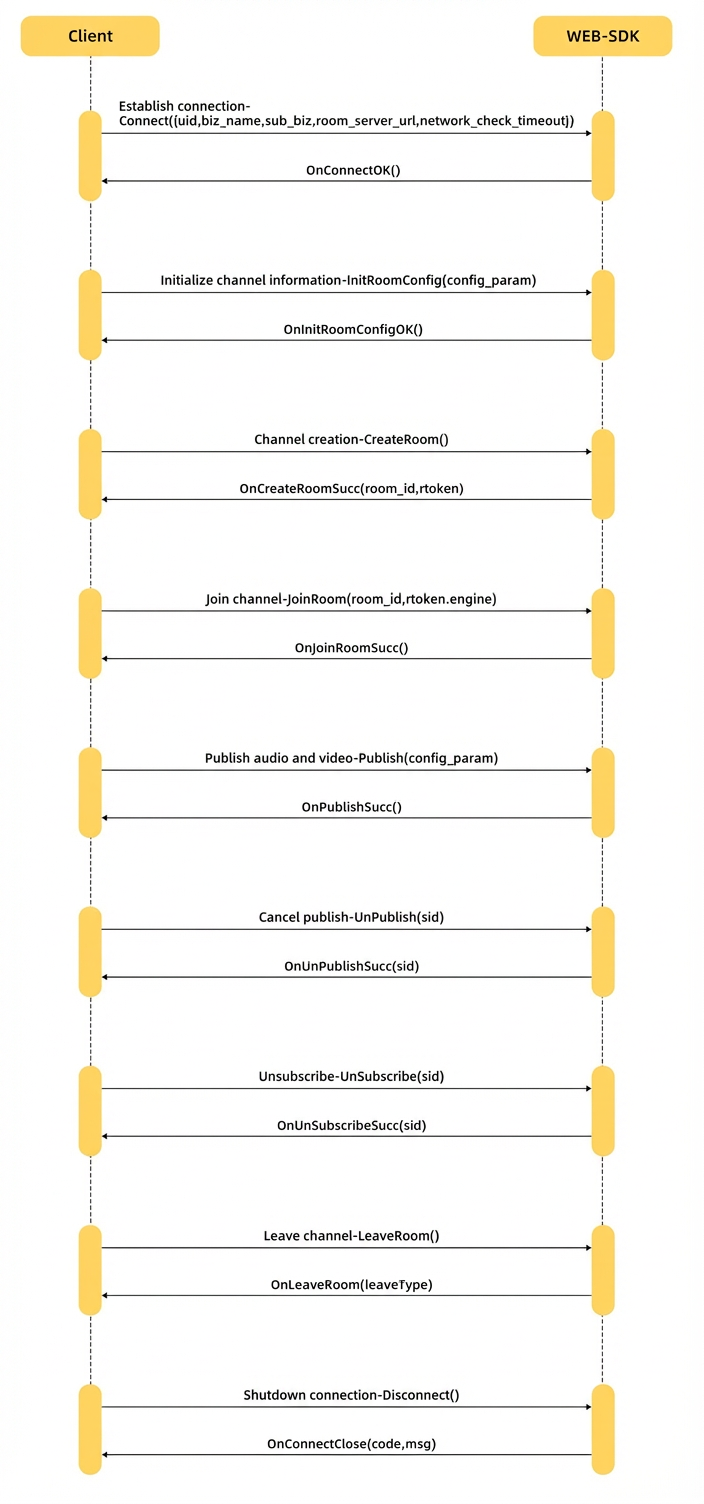

Workflow
