A pop-up selection menu that appears when a user taps a card on the client page. In iOS, replace beeviews:BEEPopMenuView with AUCardMenu.h.
Previews
-
Pop-up menu / Multi-line style
-
Pop-up menu / Pressed effect
-

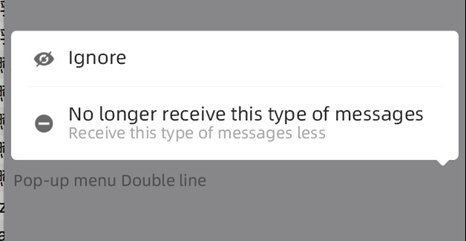

Pop-up menu / Double line
-
Pop-up menu + Option buttons
API reference
-
AUCardMenu.h
// // AUCardMenu.h // AntUI // @class AUMultiStyleCellView; @class AUWindow; /*! @class AUCardMenu @abstract AUWindow @discussion A pop-up menu with a mask layer and a directional arrow. */ @interface AUCardMenu : AUWindow { } /** * To respond to click events, implement the AUMultiStyleCellDelegate protocol for cellView. * In your view controller, assign popMenuView.cellView.delegate = self; */ @property (nonatomic, strong) AUMultiStyleCellView *cellView; /** * Initialization method (recommended). * * @param data An array that stores CellDataModel object models. * @param location The base point of the directional arrow. * @param offset The offset of the directional arrow relative to the base point. * * @return self */ - (instancetype)initWithData:(NSArray *)data location:(CGPoint)location offset:(CGFloat)offset; /** * Displays the pop-up menu. * * @param superView The superview of PopMenuView. */ - (void)showPopMenu:(UIView *)superView; // Hides the pop-up menu. Also call this in the dealloc method. - (void)hidePopMenu; // Note: Animated show and hide methods must be used in pairs. If you show the menu with an animation, you must hide it with an animation. If you show it without an animation, you must hide it without one. // Shows the menu with an animation. - (void)showPopMenu:(UIView *)superView animation:(BOOL) isAnimation; // Hides the menu with an animation. - (void)hidePopMenuWithAnimation:(BOOL)isAnimation; @end -
AUCellDataModel.h
// // AUCellDataModel.h // AntUI // #import <Foundation/Foundation.h> /*! @class AUMultiStyleCellView @abstract UIView @discussion A subview in the menu. */ @interface AUCellDataModel : NSObject @property (nonatomic, strong) NSString *iconUrl; @property (nonatomic, strong) NSString *titleText; @property (nonatomic, strong) NSString *descText; @property (nonatomic, strong) NSString *checkMarkUrl; // Check mark @property (nonatomic, strong) NSString *indicatorUrl; // Right indicator arrow @property (nonatomic, strong) NSArray *buttonsArray; // NSArray<NSString> @property (nonatomic, strong) NSDictionary *extendDic; // Extension field for business use. @property (nonatomic, assign) BOOL selectedState; // The selected state of the current model. The default value is NO, which indicates that the model is not selected. @end -
AUMultiStyleCellView.h
// // AUMultiStyleCellView.h // AntUI // #import <UIKit/UIKit.h> #import "AUCellDataModel.h" @class AUMultiStyleCellView; @protocol AUMultiStyleCellDelegate <NSObject> @optional /** * Click event callback. * * @param dataModel The data model that corresponds to the clicked view. * @param indexPath The index of the clicked view in CellDataModel. If CellDataModel.buttonsArray == nil, the default value of row is -1. */ - (void)DidClickCellView:(AUCellDataModel *)dataModel ForRowAtIndexpath:(NSIndexPath *)indexPath; - (void)DidClickCellButton:(AUCellDataModel *)dataModel ForRowAtIndexpath:(NSIndexPath *)indexPath; - (void)DidClickCellView:(AUCellDataModel *)dataModel ForRowAtIndexpath:(NSIndexPath *)indexPath cellView:(AUMultiStyleCellView *)cellView; @end /** * A cell view that combines multiple styles. * 1. Icon + Main title * 2. Icon + Main title + Subtitle below the main title * 3. Icon + Main title + Multi-row, multi-column button controls with borders */ @interface AUMultiStyleCellView : UIView @property (nonatomic, weak) id<AUMultiStyleCellDelegate> delegate; @property (nonatomic, strong) NSArray *cellDataArray; // If cellDataArray is empty, this is the same as calling the initWithFrame method. - (instancetype)initWithFrame:(CGRect)frame cellDataArray:(NSArray *)cellDataArray isUpward:(BOOL)isUpward; // Handles the selected state of the current cellView. - (void)updateSelectedState; @end
Code example
//
// cardMenuController.m
// AntUI
//
#import "cardMenuController.h"
#import "AUCardMenu.h"
#import "AUCellDataModel.h"
#import "AUMultiStyleCellView.h"
@interface cardMenuController ()<AUMultiStyleCellDelegate>
@property (nonatomic,strong) AUCardMenu * popMenuView;
@end
@implementation cardMenuController
- (void)viewDidLoad {
[super viewDidLoad];
// Do any additional setup after loading the view.
self.view.backgroundColor = RGB(0xF5F5F9);
UIButton * button = [UIButton buttonWithType:UIButtonTypeCustom];
[button setFrame:CGRectMake(0, 100, self.view.width, 100)];
[button setTitle:@"Pop-up menu/Multi-line combination style" forState:UIControlStateNormal];
[button setTitleColor:RGB(0x888888) forState:UIControlStateNormal];
[button addTarget:self
action:@selector(handleButton:)
forControlEvents:UIControlEventTouchUpInside];
[button.titleLabel setTextAlignment:NSTextAlignmentLeft];
[button.titleLabel setFont:[UIFont systemFontOfSize:14]];
[button setTitleEdgeInsets:UIEdgeInsetsMake(0, 5, 0, 0)];
[button setContentHorizontalAlignment:UIControlContentHorizontalAlignmentLeft];
[self.view addSubview:button];
UIButton * button2 = [UIButton buttonWithType:UIButtonTypeCustom];
[button2 setFrame:CGRectMake(0, 220, self.view.width, 100)];
[button2 setTitle:@"Pop-up menu/Press effect" forState:UIControlStateNormal];
[button2 addTarget:self
action:@selector(handleButton2:)
forControlEvents:UIControlEventTouchUpInside];
[button2.titleLabel setTextAlignment:NSTextAlignmentLeft];
[button2 setTitleEdgeInsets:UIEdgeInsetsMake(0, 5, 0, 0)];
[button2 setContentMode:UIViewContentModeLeft];
[button2 setContentHorizontalAlignment:UIControlContentHorizontalAlignmentLeft];
[button2 setTitleColor:RGB(0x888888) forState:UIControlStateNormal];
[button2.titleLabel setFont:[UIFont systemFontOfSize:14]];
[self.view addSubview:button2];
UIButton * button3 = [UIButton buttonWithType:UIButtonTypeCustom];
[button3 setFrame:CGRectMake(0, 320, self.view.width, 100)];
[button3 setTitle:@"Pop-up menu/Double-line" forState:UIControlStateNormal];
[button3 addTarget:self
action:@selector(handleButton3:)
forControlEvents:UIControlEventTouchUpInside];
[button3.titleLabel setTextAlignment:NSTextAlignmentLeft];
[button3 setTitleEdgeInsets:UIEdgeInsetsMake(0, 5, 0, 0)];
[button3 setContentHorizontalAlignment:UIControlContentHorizontalAlignmentLeft];
[button3.titleLabel setFont:[UIFont systemFontOfSize:14]];
[button3 setTitleColor:RGB(0x888888) forState:UIControlStateNormal];
[self.view addSubview:button3];
UIButton * button4 = [UIButton buttonWithType:UIButtonTypeCustom];
[button4 setFrame:CGRectMake(0, 420, self.view.width, 100)];
[button4 setTitle:@"Pop-up menu + Selection button" forState:UIControlStateNormal];
[button4 addTarget:self
action:@selector(handleButton4:)
forControlEvents:UIControlEventTouchUpInside];
[button4.titleLabel setTextAlignment:NSTextAlignmentLeft];
[button4 setTitleEdgeInsets:UIEdgeInsetsMake(0, 5, 0, 0)];
[button4 setContentHorizontalAlignment:UIControlContentHorizontalAlignmentLeft];
[button4.titleLabel setFont:[UIFont systemFontOfSize:14]];
[button4 setTitleColor:RGB(0x888888) forState:UIControlStateNormal];
[self.view addSubview:button4];
}
- (void)handleButton4:(UIButton *)button
{
AUCellDataModel * model = [[AUCellDataModel alloc] init];
model.iconUrl = @"APCommonUI_ForDemo.bundle/hc_popmenu_dislike.png";
model.titleText = @"I'm not interested";
model.buttonsArray = @[@"Outdated",@"Already seen",@"Poor quality"];
model.extendDic = @{@"type":@"reject",@"cardId":@"201609261515032720200000091128291606950000902688",@"CCard":@""};
AUCardMenu *tmpView=[[AUCardMenu alloc]initWithData:@[model] location:CGPointMake(button.width - 20, button.centerY) offset:13];
tmpView.cellView.delegate=self;
[tmpView showPopMenu:button animation:YES];
self.popMenuView=tmpView;
}
- (void)handleButton3:(UIButton *)button
{
AUCellDataModel * model = [[AUCellDataModel alloc] init];
model.iconUrl = @"APCommonUI_ForDemo.bundle/hc_popmenu_ignore.png";
model.titleText = @"Ignore";
// model.buttonsArray = @[@"Hello",@"Do you stutter?",@"I'm not hungry",@"How are you?",@"I'm fine"];
model.extendDic = @{@"type":@"reject",@"cardId":@"201609261515032720200000091128291606950000902688",@"CCard":@""};
AUCellDataModel * model4 = [[AUCellDataModel alloc] init];
model4.iconUrl = @"APCommonUI_ForDemo.bundle/hc_popmenu_reject.png";
model4.titleText = @"Stop receiving this type of message";
model4.descText = @"Receive fewer messages of this type";
model4.extendDic = @{@"type":@"reject",@"cardId":@"201609261515032720200000091128291606950000902688",@"CCard":@""};
AUCardMenu *tmpView=[[AUCardMenu alloc]initWithData:@[model,model4] location:CGPointMake(button.width - 20, button.centerY) offset:13];
tmpView.cellView.delegate=self;
[tmpView showPopMenu:button animation:YES];
self.popMenuView=tmpView;
}
- (void)handleButton2:(UIButton *)button
{
AUCellDataModel * model = [[AUCellDataModel alloc] init];
model.iconUrl = @"APCommonUI_ForDemo.bundle/hc_popmenu_ignore.png";
model.titleText = @"Ignore";
// model.buttonsArray = @[@"Hello",@"Do you stutter?",@"I'm not hungry",@"How are you?",@"I'm fine"];
model.extendDic = @{@"type":@"reject",@"cardId":@"201609261515032720200000091128291606950000902688",@"CCard":@""};
AUCellDataModel * model2 = [[AUCellDataModel alloc] init];
model2.iconUrl = @"APCommonUI_ForDemo.bundle/hc_popmenu_dislike.png";
model2.titleText = @"I'm not interested";
model2.extendDic = @{@"type":@"reject",@"cardId":@"201609261515032720200000091128291606950000902688",@"CCard":@""};
model2.highlightState = YES;
AUCellDataModel * model3 = [[AUCellDataModel alloc] init];
model3.iconUrl = @"APCommonUI_ForDemo.bundle/hc_popmenu_inform.png";
model3.titleText = @"Report";
model3.extendDic = @{@"type":@"reject",@"cardId":@"201609261515032720200000091128291606950000902688",@"CCard":@""};
AUCellDataModel * model4 = [[AUCellDataModel alloc] init];
model4.iconUrl = @"APCommonUI_ForDemo.bundle/hc_popmenu_reject.png";
model4.titleText = @"Stop receiving this type of message";
model4.descText = @"Receive fewer messages of this type";
model4.extendDic = @{@"type":@"reject",@"cardId":@"201609261515032720200000091128291606950000902688",@"CCard":@""};
AUCardMenu *tmpView=[[AUCardMenu alloc]initWithData:@[model,model2,model3,model4] location:CGPointMake(button.width - 20, button.centerY) offset:13];
tmpView.cellView.delegate=self;
[tmpView showPopMenu:button animation:YES];
self.popMenuView=tmpView;
}
- (void)handleButton:(UIButton *)button
{
AUCellDataModel * model = [[AUCellDataModel alloc] init];
model.iconUrl = @"APCommonUI_ForDemo.bundle/hc_popmenu_ignore.png";
model.titleText = @"Ignore";
// model.buttonsArray = @[@"Hello",@"Do you stutter?",@"I'm not hungry",@"How are you?",@"I'm fine"];
model.extendDic = @{@"type":@"reject",@"cardId":@"201609261515032720200000091128291606950000902688",@"CCard":@""};
AUCellDataModel * model2 = [[AUCellDataModel alloc] init];
model2.iconUrl = @"APCommonUI_ForDemo.bundle/hc_popmenu_dislike.png";
model2.titleText = @"I'm not interested";
model2.extendDic = @{@"type":@"reject",@"cardId":@"201609261515032720200000091128291606950000902688",@"CCard":@""};
AUCellDataModel * model3 = [[AUCellDataModel alloc] init];
model3.iconUrl = @"APCommonUI_ForDemo.bundle/hc_popmenu_inform.png";
model3.titleText = @"Report";
model3.extendDic = @{@"type":@"reject",@"cardId":@"201609261515032720200000091128291606950000902688",@"CCard":@""};
AUCardMenu *tmpView=[[AUCardMenu alloc]initWithData:@[model,model2,model3] location:CGPointMake(button.width - 20, button.centerY) offset:13];
tmpView.cellView.delegate=self;
[tmpView showPopMenu:button animation:YES];
self.popMenuView=tmpView;
}
- (void)didReceiveMemoryWarning {
[super didReceiveMemoryWarning];
// Dispose of any resources that can be recreated.
}
- (void)hidePopMenu
{
if (self.popMenuView) {
[self.popMenuView hidePopMenuWithAnimation:YES];
self.popMenuView.cellView.delegate = nil;
self.popMenuView = nil;
}
}
#pragma mark --- AUMultiStyleCellDelegate
/**
* Click event callback.
*
* @param dataModel The data model that corresponds to the clicked view.
* @param indexPath The index of the clicked view in CellDataModel. If CellDataModel.buttonsArray == nil, the default value of row is -1.
*/
- (void)DidClickCellView:(AUCellDataModel *)dataModel ForRowAtIndexpath:(NSIndexPath *)indexPath
{
[self hidePopMenu];
}
- (void)DidClickCellButton:(AUCellDataModel *)dataModel ForRowAtIndexpath:(NSIndexPath *)indexPath
{
[self hidePopMenu];
}
- (void)DidClickCellView:(AUCellDataModel *)dataModel ForRowAtIndexpath:(NSIndexPath *)indexPath cellView:(AUMultiStyleCellView *)cellView
{
[self hidePopMenu];
}
- (void)dealloc
{
self.popMenuView = nil;
}
/*
#pragma mark - Navigation
// In a storyboard-based application, you will often want to do a little preparation before navigation
- (void)prepareForSegue:(UIStoryboardSegue *)segue sender:(id)sender {
// Get the new view controller using [segue destinationViewController].
// Pass the selected object to the new view controller.
}
*/
@end该文章对您有帮助吗？
