Configure tag-based routing

更新时间：
复制 MD 格式
产品详情
我的收藏

Tag-based routing works by tagging traffic and nodes, then adding routing capabilities to direct traffic with specific characteristics to nodes with corresponding tags. This method provides a foundation for advanced deployment strategies like blue-green deployment and canary release.

Prerequisites

Limitations

Note

This feature is available in the MSE Governance Center and requires your applications to be connected to it.

For a list of Java versions and frameworks that support tag-based routing, see Java frameworks supported by Microservices Governance.

Use cases

Multi-version development and testing

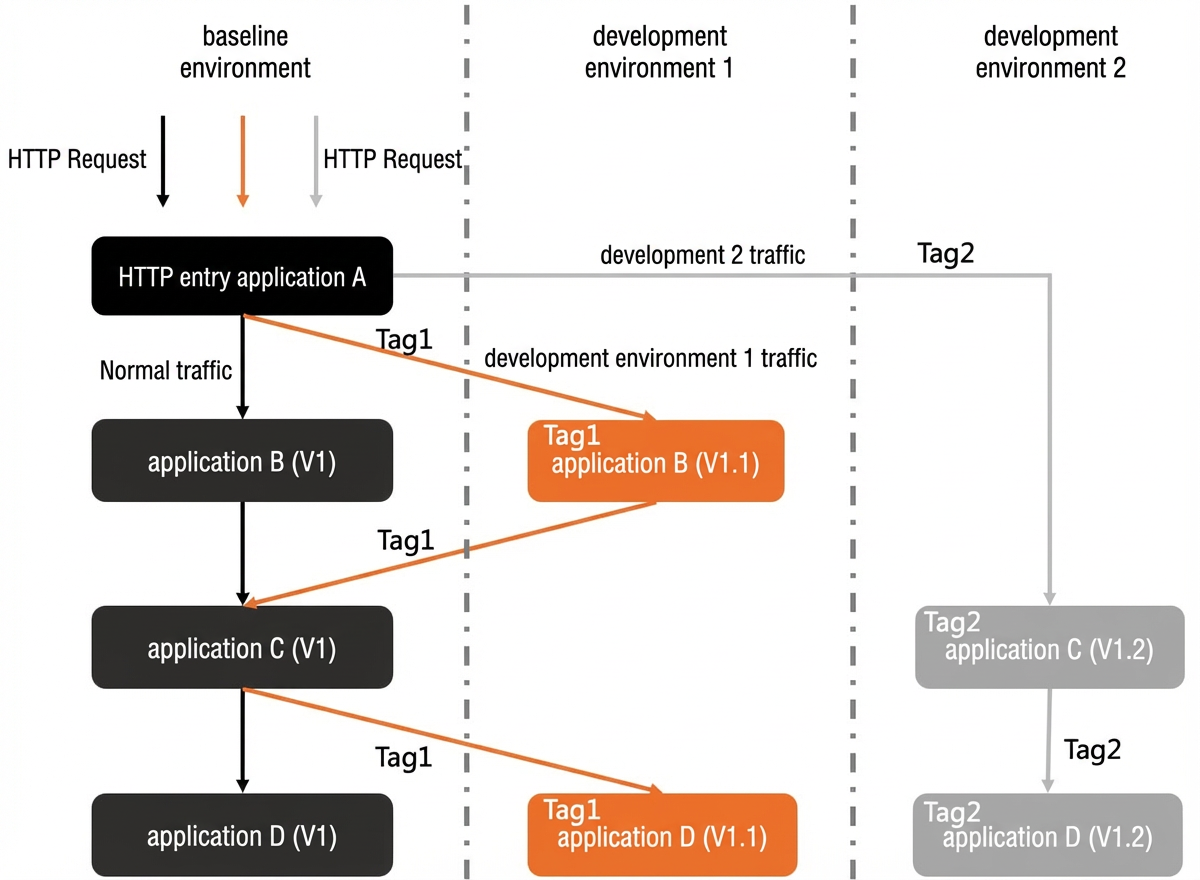

Developing multiple application versions in parallel requires a separate development environment for each version, leading to high resource costs. A traffic isolation strategy can significantly reduce these costs. By using end-to-end traffic isolation based on tag-based routing, you can direct specific traffic to a designated development environment. For example, in Development Environment 1, you can apply the Tag1 tag to version V1.1 of Application B and Application D and configure a corresponding routing rule. When Application A calls Application B, the system checks if the traffic matches the routing rule. If it does, the traffic is routed to the V1.1 instance of Application B in Development Environment 1. Otherwise, it is routed to the V1 instance in the baseline environment. Similarly, when Application C calls Application D, traffic is routed to either the V1 or V1.1 instance of Application D based on the traffic characteristics.

多版本开发测试

Multi-version traffic isolation

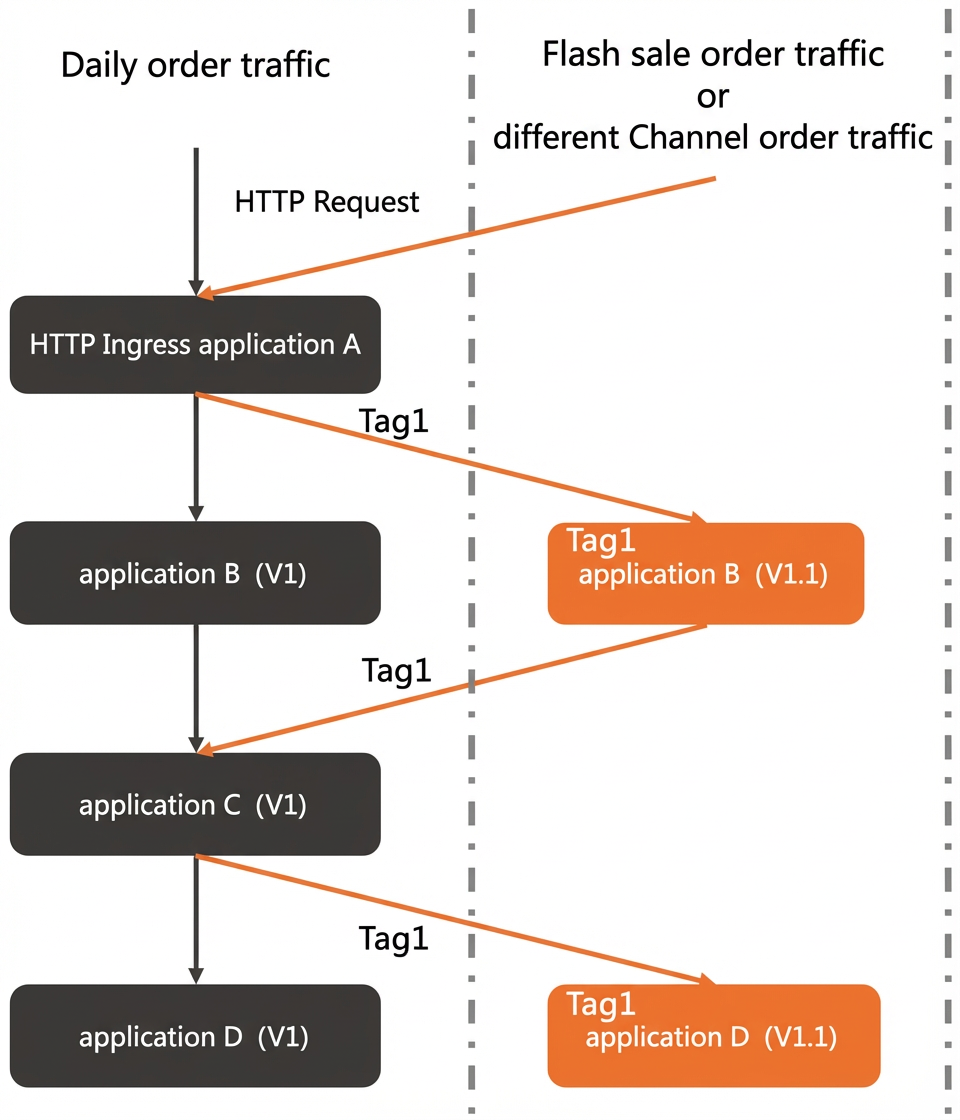

If multiple versions of an application run online in different environments, such as a regular environment and a special-purpose one, you can use tag-based routing to isolate traffic between them. For example, you can route traffic from flash sales or specific channels to the special-purpose environment, while directing normal traffic to the regular environment. This ensures that even if the special-purpose environment fails, traffic intended for it will not be routed to the regular environment, preventing any impact on the regular environment.

相同应用的多版本间流量隔离

A/B testing

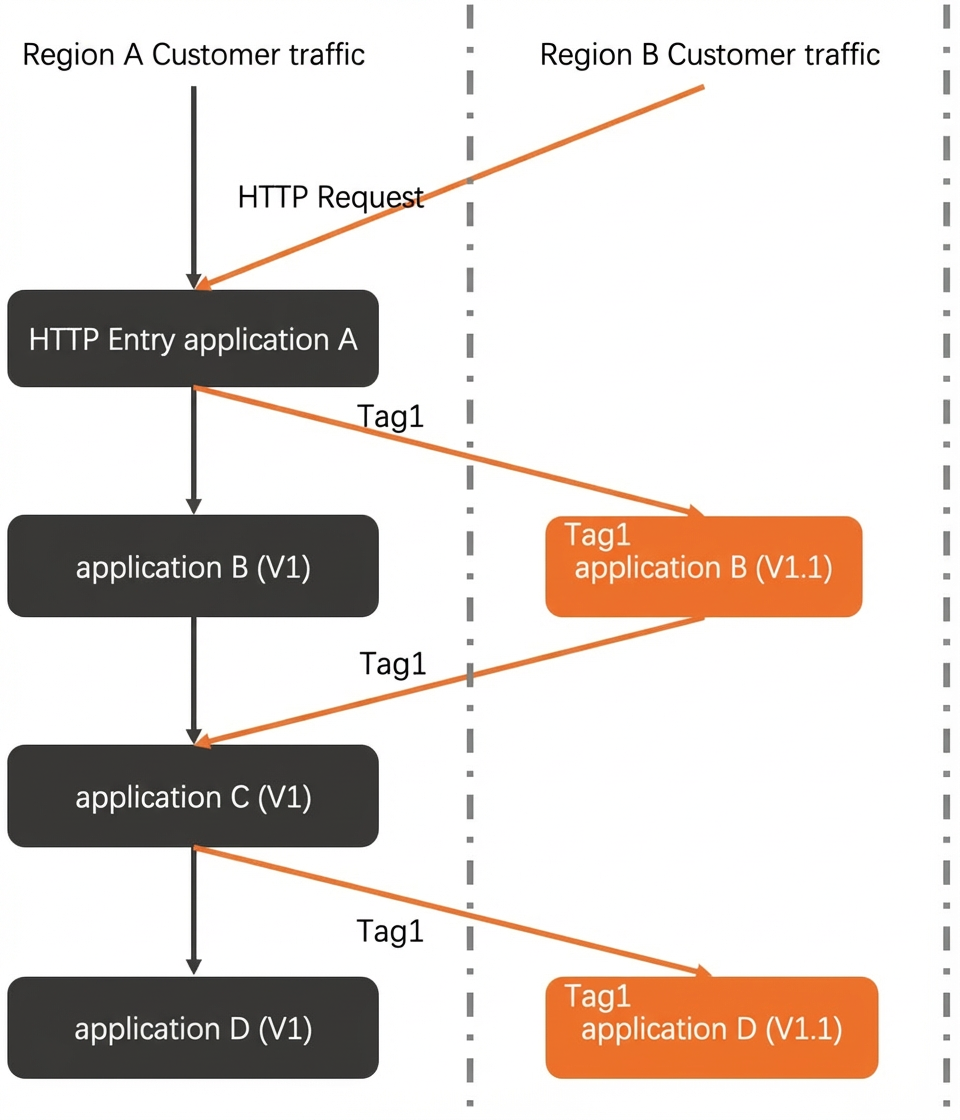

To perform A/B testing on multiple application versions, you can use tag-based routing for end-to-end traffic control. For example, you can route customer traffic from Region A to the V1 version and traffic from Region B to the V1.1 version. By validating different versions, you can reduce the risks associated with launching new products or features.

A/B Testing

Enable Microservices Governance and set tags

This topic uses an application named spring-cloud-a as an example. You will apply tag1 and tag2 to create two groups of application instances. If a request matches the conditions you configure, it is routed to an instance with the specified tag. If no rules are matched, traffic is distributed to instances based on the configured traffic distribution percentages.

  1. Log on to the Container Service for Kubernetes (ACK) console.

  2. In the navigation pane on the left, choose Clusters, and then click the name of the target cluster.

  3. In the navigation pane on the left, choose .

  4. Click Create from Image to create two Deployment workloads named spring-cloud-a-tag1 and spring-cloud-a-tag2. For more information, see Create a stateless workload Deployment.

    Parameter

    Description

    Replicas

    Set the value to 1.

    Type

    Select Deployment.

    Image name

    Select your built image or use the pre-built image registry.cn-hangzhou.aliyuncs.com/mse-governance-demo/spring-cloud-a:3.0.1.

  5. Follow these steps to connect spring-cloud-a-tag1 and spring-cloud-a-tag2 to Microservices Governance and set their tags.

    1. Return to the Deployments page. Select a Namespaces and find the applications you created (spring-cloud-a-tag1 and spring-cloud-a-tag2). In the Actions column, choose More > View in YAML.

    2. In the Edit YAML dialog box, add the following labels under for both spring-cloud-a-tag1 and spring-cloud-a-tag2 to connect them to Microservices Governance.

      labels:
  msePilotAutoEnable: "on"
  msePilotCreateAppName: <your-app-name>
  alicloud.service.tag: <tag>
      Note

      • Replace <your-app-name> with your application's name in Microservices Governance. In this example, the name is spring-cloud-a.

      • Replace <tag> with tag1 or tag2.

    3. Click Update.

Create a tag-based routing rule

  1. Log on to the MSE Governance Center console, and select a region in the top navigation bar.

  2. In the left-side navigation pane, choose Microservices Governance > Application Governance.

  3. On the Application list page, select the desired microservice namespace, search for the application spring-cloud-a that you created in ACK, and then click its name.

  4. In the left navigation pane, click Traffic Management, and then click the Tag-based Routing tab to view the current routing configuration.

  5. In the Tag-based Routing list, click Traffic Distribution, set the traffic percentage for each tag, and then click Save.

    For example, set the traffic percentage for tag1 to 100%, and the percentages for tag2 and untagged instances to 0%.

  6. Under Traffic Rules, click Add. In the Create Tag-based Routing panel, configure the parameters and click OK to create the routing rule.

    Note

    Tag-based routing prioritizes conditions defined in a traffic rule. If a request matches a traffic rule, it is routed to a pod with the corresponding tag. Otherwise, the request is routed to a pod based on the specified traffic distribution percentages.

    Parameter

    Description

    Routing rule name

    The name of the tag-based routing rule. Example: test-springcloud.

    Application

    The name of the application. Example: spring-cloud-a.

    Tag

    The tag that you set for the application in ACK. Example: tag2.

    Application instance

    The IP address and port of the spring-cloud-a application instance that has this tag.

    Traffic rules

    Framework type

    Select your application's framework: Spring Cloud or Dubbo.

    • For Spring Cloud, you can only set the URL path, such as /getIp.

    • For Dubbo, you can select a service and an interface.

    Condition mode

    Select a condition mode based on your requirements: Meet all of the following conditions or Meet any of the conditions.

    Condition list

    • If Framework Type is Spring Cloud, you can set conditions based on Parameter, Cookie, Header, or Body Content. For example, a Parameter condition could be name=xiaoming, and a Cookie condition could be hello = "world" or "world2".

    • If Framework Type is Dubbo, you must specify an expression to retrieve parameter values.

Verification

Verify the results based on your business requirements.

  • By default, 100% of the traffic is routed to the node with the tag1 tag.

    Atag1[192.168.0.122][config=base] -> B[192.168.0.147] -> C[192.168.0.115]

  • Traffic that matches the rule is routed to the node with the corresponding tag.

    Atag2[192.168.0.156][config=base] -> B[192.168.0.120] -> C[192.168.0.115]

Related documentation

To learn how to implement an end-to-end canary release, see End-to-end canary release.
