Create an address book

Before you begin

• An Alibaba Cloud account has all permissions on resources within the account. If an Alibaba Cloud account is leaked, the resources are exposed to major risks. We recommend that you use a Resource Access Management (RAM) user and create an AccessKey pair for the RAM user. For more information, see Create a RAM user and Create an AccessKey pair.

• The following sample code provides a policy that grants the required permissions on Cloud Firewall to a RAM user. For more information, see Grant permissions to RAM users.

  {
      "Version": "1",
      "Statement": [
          {
              "Effect": "Allow",
              "Action": [
                  "yundun-cloudfirewall:*",
                  "yundun-ndr:*"
              ],
              "Resource": "*"
          }
      ]
  }

• Prepare a Terraform runtime environment. You can use one of the following methods to run Terraform.

  Use Terraform in Explorer: Alibaba Cloud provides an online Terraform runtime environment that does not require you to install Terraform. You can log on to use and test Terraform online. This method is suitable for scenarios where you want to quickly and easily test Terraform at no cost.

  Cloud Shell: Cloud Shell has Terraform components pre-installed and identity credentials pre-configured. You can run Terraform commands directly in Cloud Shell. This method is suitable for scenarios where you want to quickly and easily access and use Terraform at a low cost.

  Install and configure Terraform on your computer: This method is suitable for scenarios where you have poor network connectivity or need a custom developer environment.

  Important

  You must install Terraform 0.12.28 or later. You can run the terraform --version command to query the Terraform version.

使用的资源

alicloud_cloud_firewall_address_book：云防火墙地址簿。

This section describes how to create an address book.

1. Create a working directory and a configuration file named main.tf in the directory. main.tf is the main file of Terraform and defines the resources that you want to deploy.

   resource "alicloud_cloud_firewall_address_book" "example" {
     # The description.
     description      = "Created_by_terraform"
     # The name of the address book.
     group_name       = "IPListExample"
     # The type of the address book. Valid values: ip, ipv6, domain, port, and tag.
     group_type       = "ip"
     # The addresses.
     address_list     = ["192.0.X.X/32", "192.0.X.X/32"]
   }

2. Run the following command to initialize Terraform:

   terraform init

   If the following information is returned, Terraform is initialized:

   Initializing provider plugins...
   - Finding latest version of hashicorp/alicloud...
   - Installing hashicorp/alicloud v1.231.0...
   - Installed hashicorp/alicloud v1.231.0 (signed by HashiCorp)

   Terraform has created a lock file .terraform.lock.hcl to record the provider
   selections it made above. Include this file in your version control repository
   so that Terraform can guarantee to make the same selections by default when
   you run "terraform init" in the future.

   Terraform has been successfully initialized!

   You may now begin working with Terraform. Try running "terraform plan" to see
   any changes that are required for your infrastructure. All Terraform commands
   should now work.

   If you ever set or change modules or backend configuration for Terraform,
   rerun this command to reinitialize your working directory. If you forget, other
   commands will detect it and remind you to do so if necessary.

3. Create an execution plan and preview the changes.

   terraform plan

4. Run the following command to create a VPC firewall.

   terraform apply

   During the execution, enter yes as prompted and press the Enter key. Wait until the command is successfully executed. If the following information appears, the operation is successful:

   Plan: 1 to add, 0 to change, 0 to destroy.

   Do you want to perform these actions?
     Terraform will perform the actions described above.
     Only 'yes' will be accepted to approve.

     Enter a value: yes

   alicloud_cloud_firewall_address_book.example: Creating...
   alicloud_cloud_firewall_address_book.example: Creation complete after 1s [id=d41518ef-0437-44e9-9dd6-86d62f3d0***]

   Apply complete!  Resources: 1 added, 0 changed, 0 destroyed.

5. Verify the result.

   Run the terraform show command

   You can run the following command to view the details of the created address book:

   terraform show

   # alicloud_cloud_firewall_address_book.example:
   resource "alicloud_cloud_firewall_address_book" "example" {
       address_list     = [
           "192.0.X.X/32",
           "192.0.X.X/32",
       ]
       auto_add_tag_ecs = 0
       description      = "Created_by_terraform"
       group_name       = "IPListExample"
       group_type       = "ip"
       id               = "d41518ef-0437-44e9-9dd6-86d62f3d****"
   }

   Log on to the Cloud Firewall console

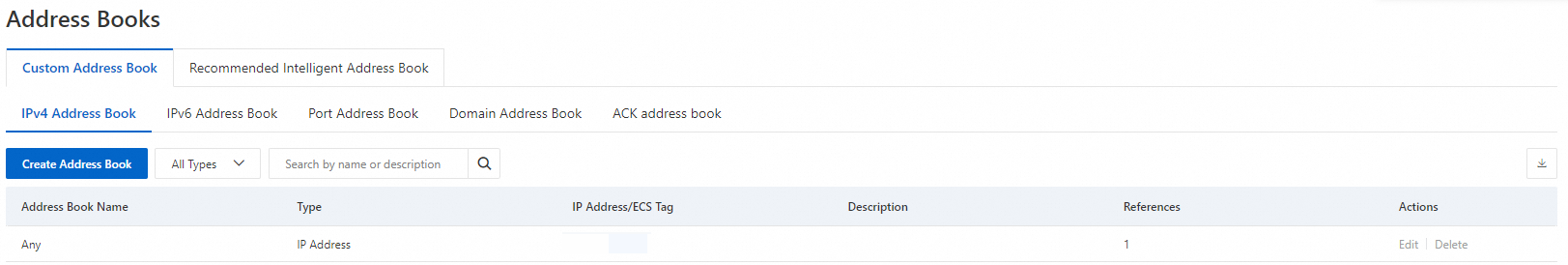

   Log on to the Cloud Firewall console. Go to the Prevention Configuration > Address Books page. On the Address Books page, search for the address book by using the name of the address book and view the details of the address book.



Resource release

If you no longer require the preceding resources that are created or managed by using Terraform, run the following command to release the resources. For more information about the terraform destroy command, see Common commands.

terraform destroy

resource "alicloud_cloud_firewall_address_book" "example" {
  # The description.
  description      = "Created_by_terraform"
  # The name of the address book.
  group_name       = "IPListExample"
  # The type of the address book. Valid values: ip, ipv6, domain, port, and tag.
  group_type       = "ip"
  # The addresses.
  address_list     = ["192.0.2.1/32", "192.0.2.2/32"]
}
