Bar chart

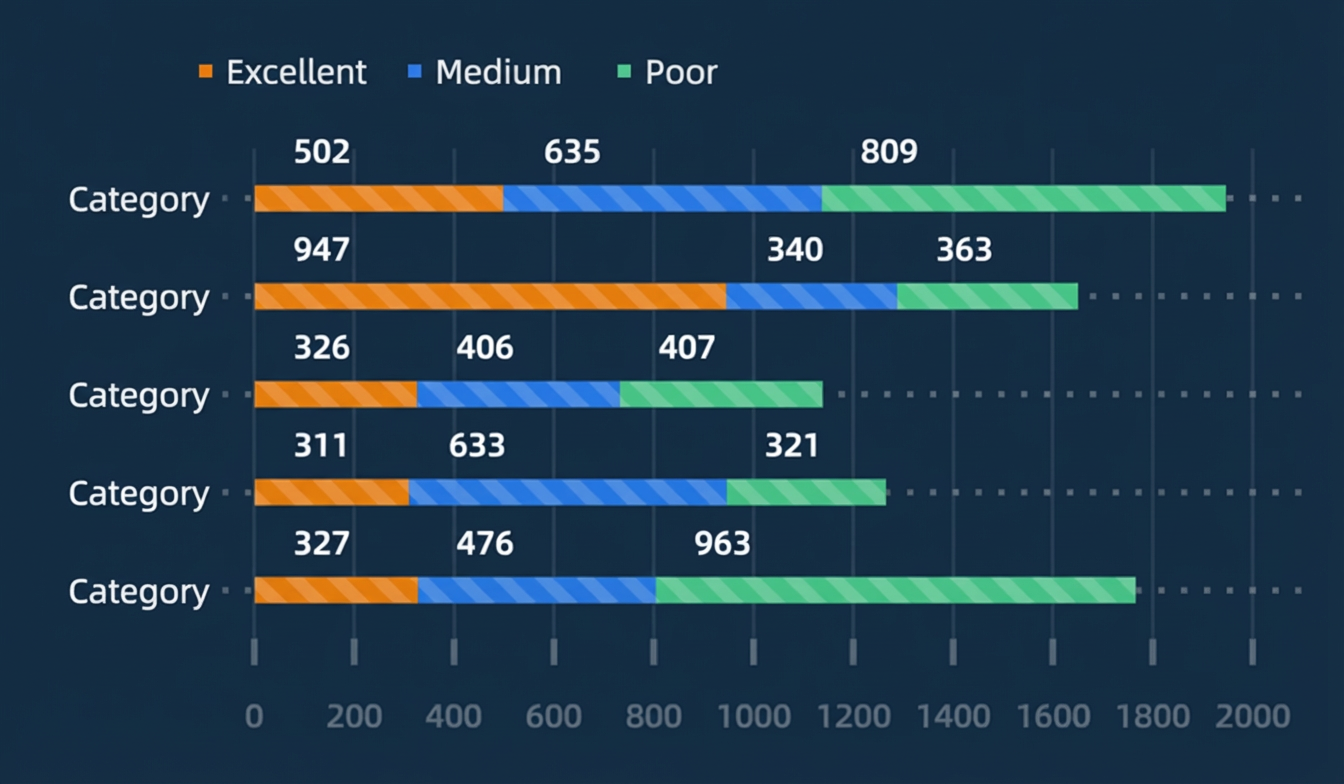

Chart style

A bar chart displays differences across multiple data dimensions in a compact space. You can select dataset fields and configure data mapping styles.

Configuration panel

• Size: indicates the size of a widget, including its pixel width and height. You can click the icon to proportionally adjust the width and height of a widget. After you click this icon again, you can adjust the width and height as needed.
• Position: the position of a widget, which is indicated by pixel X and Y coordinates. X-coordinate indicates the pixel distance between the upper-left corner of the widget and the left border of the canvas. Y-coordinate indicates the pixel distance between the upper-left corner of the widget and the upper border of the canvas.
• Rotation Angle: the angle of a rotation that uses the center point of a widget as the rotation point. The unit is degrees (°). You can use one of the following methods to control the rotation angle of a widget:
  • Directly enter the degrees in the Rotation Angle spin box or click the plus sign (+) or minus sign (-) to increase or decrease the value in the Rotation Angle spin box.
  • Drag the black dot in the icon.
  • Click the icon to horizontally flip a widget.
  • Click the icon to vertically flip a widget.
• Opacity: the opacity of a widget. Valid values: 0 and 1. If this parameter is set to 0, the widget is hidden. If this parameter is set to 1, the widget is completely displayed. Default value: 1.

• Graphic

  Parameter	Description
  Chart Margin	Click the icon to show or hide the chart margin settings. When enabled, you can configure the distance between the bar chart area and the top, bottom, left, and right borders of the widget. The default unit is px.
  Custom Grouping	Enable this option to split the data into finer granularities based on the trace field in the data panel. After the data is split, it is displayed as a stacked group. If this option is disabled, the data is grouped by the colorField by default.
  Intra-group Spacing	Enable this option to set the spacing in pixels (px) between bars within the same category after the data is split. This option is available in the following cases: When Custom Grouping is enabled. When Custom Grouping is disabled and Display Mode is set to Group.
  Inter-group Spacing	Enable this option to set the spacing in pixels (px) between bars of different categories after the data is split. This option is available in the following cases: When Custom Grouping is enabled. When Custom Grouping is disabled and Display Mode is set to Group.
  Display Mode	The display format when bars are grouped by the colorField in the data panel. Options include Stacking and Group. This option is available only when Custom Grouping is disabled.
  Bar Width	The width of the bars in pixels (px). Click the icon to show or hide this setting.
  Bar Color	The color of the bars. For more information, see Use the color mapper to configure the color mapping style for different bars.
  Connected Area	The style of the connected area between data points of the same series across different categories. This is triggered by Hover or Click. Click the icon to show or hide this setting.
  Bar Label	The style of the bar labels. Click the icon to show or hide this setting. Label Field: The content of the label. This must correspond to a field in the data panel. By default, the content of the x field is used. Number Format: The number format for the label. Options include Default, 11 (Integer), 11.1 (Floating-point Number), 11.11 (Floating-point Number), 11% (Percentage), 11.1% (Percentage), 1,111 (Thousands Separator), and 1,111.1 (Thousands Separator). For more information, see Data display formats. This option is available only when the label field is set to x. Prefix and Suffix: The prefix and suffix for the bar label. Label Position: The display position of the label. Options include Left, Center, and Right. Relative Offset: The vertical and horizontal offset of the bar label relative to the bar, in pixels (px). Text Style: The text style of the bar label, including font, weight, size, and color. Text Outline: The text outline style of the bar label, including outline width and color.
  Texture	The texture style of the bars. Click the icon to show or hide this setting. Type: The type of texture. Options include Point, Line, and Square. Fill Style: The fill style of the texture. For more information, see Color picker to configure the texture color. Outline Style: The outline style of the texture. For more information, see Color picker to configure the texture color. This option is available when Type is set to Point or Square. Additional Styles: Other texture styles, including Graphic Size, Graphic Spacing, Line Spacing, Rotation Angle, and the Interlaced switch.

• Coordinate: The widget coordinate system includes an x-axis and a y-axis.

  • X-axis

    • Show X-axis: You can enable this option to show the x-axis in the widget or disable it to hide the x-axis.

    • Display Range: The display range of the minimum and maximum values on the x-axis.

      Parameter	Description
      Minimum	The minimum value for the x-axis. You can enter a custom value or select Data minimum to use the minimum value from the data.
      Maximum	The maximum value for the y-axis. You can enter a custom value or select Data maximum to use the maximum value from the data.

    • Axis Line: The style of the x-axis line, including its shape, width, and color. You can click the icon to show or hide this setting.

      Note

      If you set the line type to Dashed Line or Dotted Line, you can also configure the dash length and the spacing between dashes.

    • Axis Title: The style of the x-axis title. You can click the icon to show or hide this setting.

      Parameter	Description
      Title Display	The text content of the x-axis title.
      Display Method	The display method of the x-axis title, including the angle and offset of the title.
      Text Style	The font, weight, size, and color of the x-axis title text.

    • Tick Line: The style of the x-axis tick lines, including their length, width, and color. You can click the icon to show or hide this setting.

    • Axis Label: The style of the x-axis labels. You can click the icon to show or hide this setting.

      Parameter	Description
      Display Format	The number format for the x-axis labels. Options include Default, 11 (Integer), 11.1 (Floating-point Number), 11.11 (Floating-point Number), 11% (Percentage), 11.1% (Percentage), 1,111 (Thousands Separator), and 1,111.1 (Thousands Separator). For more information, see Data display formats.
      End Spacing	The distance between the x-axis labels and the two ends of the axis, in percentage (%).
      Label Display	The display style of the labels, including the desired number of ticks for the x-axis labels, the prefix and suffix, angle, offset, and alignment of the labels.
      Text Style	The font, weight, size, and color of the x-axis label text.

    • Gridline: The style of the x-axis gridlines, including their line type, width, and color. You can click the icon to show or hide this setting.

      Note

      If you set the line type to Dashed Line or Dotted Line, you can also configure the dash length and the spacing between dashes.

  • Y-axis

    • Show Y-axis: You can enable this option to show the y-axis in the widget or disable it to hide the y-axis.

    • Data Type: The data type for the y-axis. Options include Numeric, Categorical, and Time.

    • Display Range: The display range of the minimum and maximum values on the y-axis. This option is available only when Data Type for the y-axis is set to Numeric.

      Parameter	Description
      Minimum	The minimum value of the y-axis. You can enter a custom value or select Data Minimum to use the minimum value from the data.
      Maximum	The maximum value of the y-axis. You can enter a custom value or select Data Maximum to use the maximum value from the data.

    • Axis Line: The style of the y-axis line, including its shape, width, and color. You can click the icon to show or hide this setting.

      Note

      If you set the line type to Dashed Line or Dotted Line, you can also configure the dash length and the spacing between dashes.

    • Axis Title: The style of the y-axis title. You can click the icon to show or hide this setting.

      Parameter	Description
      Title Display	The text content of the y-axis title.
      Display Method	The display method of the y-axis title, including the angle and offset of the title.
      Text Style	The font, weight, size, and color of the y-axis title text.

    • Tick Line: The style of the y-axis tick lines, including their length, width, and color. You can click the icon to show or hide this setting.

    • Axis Label: The style of the y-axis labels. You can click the icon to show or hide this setting.

      Parameter	Description
      Display Format	The number format for the y-axis labels. Options include Default, 11 (Integer), 11.1 (Floating-point Number), 11.11 (Floating-point Number), 11% (Percentage), 11.1% (Percentage), 1,111 (Thousands Separator), and 1,111.1 (Thousands Separator). For more information, see Data display formats.
      End Spacing	The distance between the y-axis labels and the two ends of the axis, in percentage (%).
      Label Display	The display style of the labels, including the number of y-axis labels, the prefix and suffix, angle, offset, and alignment of the labels.
      Text Style	The font, weight, size, and color of the y-axis label text.

    • Gridline: The style of the y-axis gridlines, including their line type, width, and color. You can click the icon to show or hide this setting.

      Note

      If you set the line type to Dashed Line or Dotted Line, you can also configure the dash length and the spacing between dashes.

• Animation: The animation effect for the bar chart.

  Parameter	Description
  Enable Animation	Enable this option to configure animation effects for the bar chart.
  Animation Effect	The type of animation effect. The system provides various common animation effects, such as Grow Horizontally, Grow Vertically, Zoom In, and Slide In. This option is available only after you enable animation.
  Animation Duration	The duration of the animation effect in milliseconds (ms). This option is available only after you enable animation.

• Interaction: The interaction effects for the bar chart widget.

  • Tooltip: The style of the tooltip that appears when you hover over or click a bar in preview or publish mode. You can click the icon to enable or disable the tooltip.

    Parameter	Description
    Mode	The mode of the tooltip. Options include Simple and General.
    Trigger Method	The method to trigger the tooltip. Options include Hover and Click.
    Display Position	The display position of the tooltip. Options include Top, Bottom, Left, and Right.
    Title Spacing	The spacing between titles in the tooltip, in pixels (px).
    Title Text	The style of the title text in the tooltip, including font, weight, size, and color.
    Content Display	Click the icon to add a content display series or click the icon to delete one. Click the or icon to arrange multiple content display series. Click the icon to copy the current content display series configuration and create a new one with the same settings. Field Name: The field name for the tooltip content. This must match a field in the data panel. Display Name: The display name for the tooltip content. Suffix: The suffix for the tooltip content.
    Content Spacing	The spacing between content text items in the tooltip, in pixels (px).
    Content Text	The style of the content text in the tooltip, including font, weight, size, and color.
    Popup Background	The background style of the tooltip popup. Background Margin: The horizontal and vertical margins of the tooltip background. Background Color: The background color of the tooltip. Border Style: The border style of the tooltip, including border line type, border radius, line width, and border color.
    Axis Pointer	The style of the axis pointer for the tooltip, including its type, width, and color. Click the icon to enable or disable the axis pointer. Note If you set the line type to Dashed Line or Dotted Line, you can also configure the dash length and the spacing between dashes.

• Selected State: The style that is applied when a bar is selected. You can click the icon to enable or disable this style.

  Parameter	Description
  Trigger Method	The method to trigger the selected state. Options include Hover and Click.
  Selection Method	The method to select bars. Options include Single Select and Multi-select. If you select Single Select, the click event emits data for only one item as an object, and only one bar can be highlighted. If you select Multi-select, the click event can emit data for multiple items as an array, and multiple bars can be highlighted.
  Column Color	The color of the bar in the selected state.
  Bar Outline	The style of the bar outline, including the line type, width, and color. Note If you set the line type to Dashed Line or Dotted Line, you can also configure the dash length and the spacing between dashes.

• Enhanced Interaction: If the bar chart contains a large amount of data, you can configure an enhanced interaction style. You can click the icon to enable or disable this effect.

  Parameter	Description
  Interaction Method	The data interaction method. Options include Thumbnail Axis and Scrollbar. The enhanced interaction feature is not supported for Time data types. Note Time-based data does not support enhanced interaction for large datasets.
  Default Range	The data range displayed by the thumbnail axis. The value ranges from 0 to 1. This option is available only when the thumbnail axis style is enabled.
  Slider Style	The style of the thumbnail axis slider, including its height, foreground color, and background color. This option is available only when the thumbnail axis style is enabled.
  Text Style	The style of the text on the thumbnail axis, including font, weight, size, and color. This option is available only when the thumbnail axis style is enabled.
  Handle Style	The style of the handles at both ends of the thumbnail axis, including handle width and height, default and highlighted background colors, border radius, and border color. This option is available only when the thumbnail axis style is enabled.
  Scrollbar Width	The width of the scrollbar in pixels (px). This option is available only when the scrollbar style is enabled.
  Scrollbar Color	The color of the scrollbar, including its foreground and background colors. This option is available only when the scrollbar style is enabled.

• Legend: The style of the bar chart legend.

  Parameter	Description
  Enable Legend	You can configure the legend style only when the switch is on.
  Legend Position	The position of the legend relative to the widget's starting coordinate. Options include Top Left, Top Center, Top Right, Bottom Left, Bottom Center, Bottom Right, Left Top, Left Center, Left Bottom, Right Top, Right Center, and Right Bottom.
  Text Style	The font, weight, size, and color of the legend text.
  Chart Spacing	The horizontal and vertical spacing between the legend and the chart.
  Categorical Legend	This section describes the style of a categorical legend. A legend is displayed as a categorical legend only when Graphics > Bar Color > Mapping Type in the component style panel is set to Categorical. Legend Marker: The shape and size of the legend markers. Legend Spacing: The horizontal and vertical distance between different legend categories. Maximum Width: The maximum width of the legend in pixels (px). Allow Paging: Enable this option to allow paging for the legend. You can configure the page number and arrow styles for when the number of legend items exceeds the display limit. If this option is disabled, all legend items are displayed on a single page. Maximum Rows: The maximum number of rows for the legend. If the number of rows exceeds this value, the legend will be paginated. Page Number Style: The style of the page numbers, including font, weight, size, and color. Arrow Style: The size, default color, and disabled color of the pagination arrows.
  Continuous Legend	The style of the continuous legend. The legend is displayed as a continuous legend only when Mapping Type under Graphic > Bar Color in the widget's style panel is set to Continuous or Partitioned. Slider Style Type: The type of the legend slider track. Options include Rectangle and Triangle. Length: The length of the legend slider track. Height: The height of the legend slider track. Background Color: The background color of the legend slider track. Handle Style: The style of the handles on the legend slider. Minimum: The minimum value of the slider. You can enter a custom value or select Auto to use the minimum value from the data. Maximum: The maximum value of the slider. You can enter a custom value or select Auto to use the maximum value from the data. Size: The size of the slider handles. Color: The color of the slider handles. Label Style: The style of the text labels on the legend. Alignment: The alignment of the legend text labels relative to the slider track. Options include Top, Center, and Bottom. Spacing: The distance between the legend text labels and the slider track.

• Condition: Describes the conditional styles.



  Conditional Style: You can click the icon to add a conditional style or click the icon to delete one. You can click the or icon to arrange multiple conditional styles. You can click the icon to copy the current conditional style configuration and create a new one with the same settings. For more information about the configuration, see Use the condition tree.

• Bar Color: You can enable this option to configure the bar color for this conditional style. If this option is disabled, you cannot configure the bar color for this conditional style.

Data panel (default mode)

Field configuration

Data panel (BI analysis mode)

For more information about the operations in the BI analysis data configuration panel, see BI analysis mode data panel.

Field configuration

Interaction panel

Interaction description

Blueprint Editor interaction configuration

1. In Canvas Editor, right-click a widget in the Layer panel and select Add to Blueprint Editor.
2. Click the icon in the upper-left corner of the page.

3. On the Blueprint Editor configuration page, click the Bar Chart widget in the Imported Nodes pane. The configuration parameters for the bar chart in the Blueprint Editor are displayed on the canvas.

   • Events

     Event	Description
     When a request to the bar chart API is successful	An event that is triggered when the data API request is successfully returned and processed by the filter. The processed data is in JSON format. For a data example, see the Data Response section on the Data tab of the widget's configuration panel in the canvas editor.
     When a request to the bar chart API fails	An event that is triggered when the data API request fails because of a network issue or an API error. The processed data is in JSON format. For a data example, see the Data Response section on the Data tab of the widget's configuration panel in the canvas editor.
     When a data item is selected	An event that is triggered when you click a bar in the bar chart. The data item that corresponds to the bar is emitted.
     When a legend item is clicked	An event that is triggered when you click a legend item in the bar chart. The data item that corresponds to the legend item is emitted.

   • Actions

     Action	Description
     Request bar chart API	Requests data from the server again. Data from upstream data processing nodes or layer nodes is used as a parameter. For example, if a bar chart's API data source is https://api.test and the data passed to the Request bar chart API action is { id: '1'}, the final API request is https://api.test?id=1.
     Import bar chart API	Processes data based on the component's drawing format, then imports the data to redraw the component. This action does not request new data from the server. For a data example, see the Data Response area on the Data tab in the component's configuration pane on the right side of the canvas editor.
     Highlight	Highlights the element corresponding to a data item. The following code shows a data example. return { "data": { "x": data.x, // The data item to highlight "colorField": data.colorField }, "style": { "fillStyle": "#f00" // Fill color } }
     Reset selections	Clears the selected items in the component. This action requires no parameters.
     Update component configuration	Dynamically updates the component's style configuration. First, go to the component's Configuration pane and click Copy Configuration to Clipboard to get the configuration data. Then, change the field values for the styles in the data processing node of the blueprint editor as needed.
     Show	Shows the component. The following code shows a data example. return{ "animationType": "", "animationDuration": 1000, "animationEasing": "linear" }
     Hide	Hides the component. The following code shows a data example. return{ "animationType": "", "animationDuration": 1000, "animationEasing": "linear" }
     Toggle visibility	Shows or hides the component. The following code shows a data example. return { "animationIn": { "animationType": "", "animationDuration": 1000, "animationEasing": "linear" }, "animationOut": { "animationType": "", "animationDuration": 1000, "animationEasing": "linear" } }
     Move	Moves the component to a specified position. The following code shows a data example. return{ // The move method. Absolute positioning: to. Relative positioning: by. Default value: to. "positionType": "to", // The target position. x-coordinate, y-coordinate. "attr": { "x": 0, "y": 0 }, // The animation method. "animation": { "enable": false, // The animation duration. "animationDuration": 1000, // The animation curve. Valid values: linear, easeInOutQuad, or easeInOutExpo. "animationEasing": "linear" } }
