Area chart

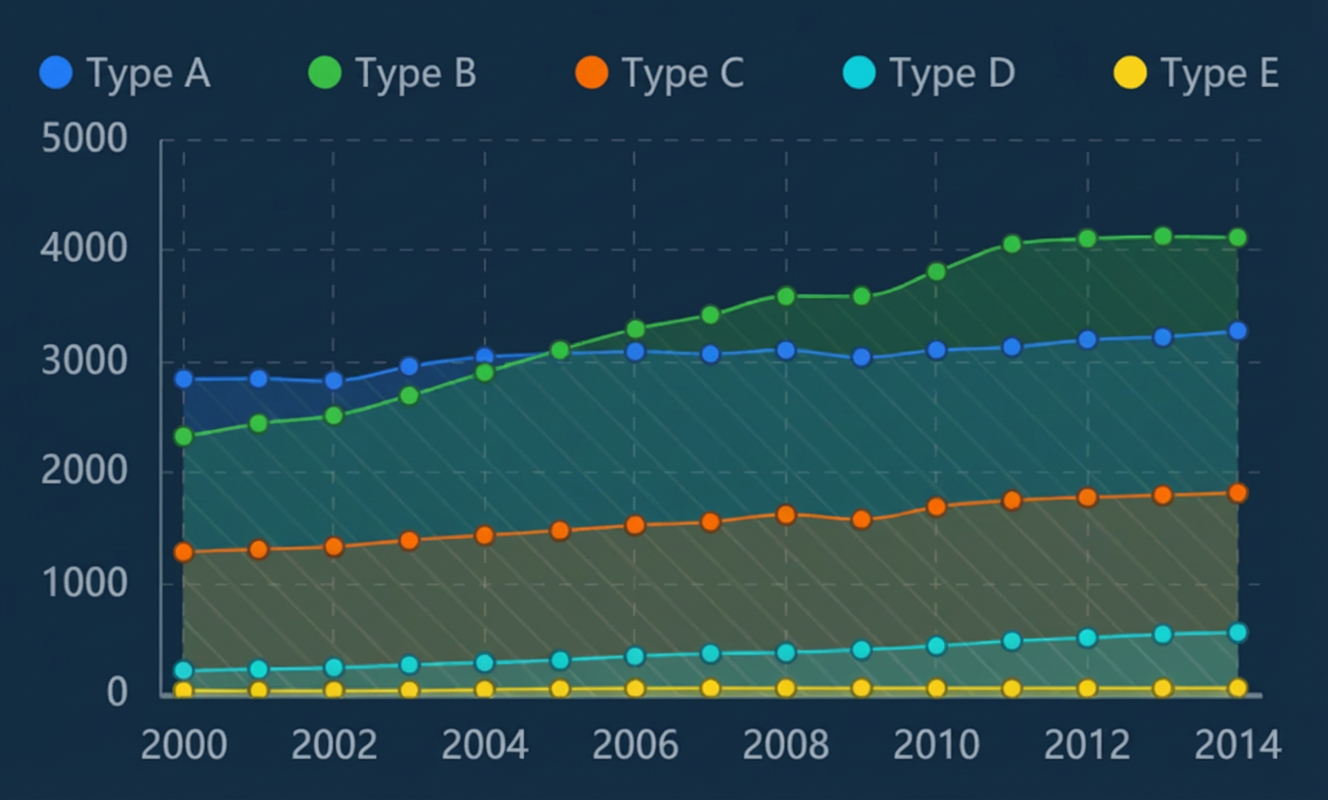

Chart style

An area chart is a type of line chart that combines lines and shaded areas to show the change trends of multi-dimensional, real-time data. You can customize the y-axis range, configure multiple data series, and display a specific series as a ticker board.

Configuration panel

• Search for Configurations: In the right-side panel of Canvas Editor, click the Settings tab, and click Search for Configurations in the upper-right corner. Enter the required configuration item in the search box, and click the search icon to quickly locate the configuration item. Fuzzy match is supported. For more information, see Search for Configurations.
• Size: indicates the size of a widget, including its pixel width and height. You can click the icon to proportionally adjust the width and height of a widget. After you click this icon again, you can adjust the width and height as needed.
• Position: the position of a widget, which is indicated by pixel X and Y coordinates. X-coordinate indicates the pixel distance between the upper-left corner of the widget and the left border of the canvas. Y-coordinate indicates the pixel distance between the upper-left corner of the widget and the upper border of the canvas.
• Rotation Angle: the angle of a rotation that uses the center point of a widget as the rotation point. The unit is degrees (°). You can use one of the following methods to control the rotation angle of a widget:
  • Directly enter the degrees in the Rotation Angle spin box or click the plus sign (+) or minus sign (-) to increase or decrease the value in the Rotation Angle spin box.
  • Drag the black dot in the icon.
  • Click the icon to horizontally flip a widget.
  • Click the icon to vertically flip a widget.
• Opacity: the opacity of a widget. Valid values: 0 and 1. If this parameter is set to 0, the widget is hidden. If this parameter is set to 1, the widget is completely displayed. Default value: 1.

• Chart

  Parameter	Description
  Chart Margin	Click the icon to show or hide the chart margin. If this option is enabled, you can set the distance between the chart area and the top, bottom, left, and right borders of the widget. The default unit is px.
  Area Type	The type of the area chart. Options: Basic and Stacking.
  Display Type	The display type of the area chart. Options: Line and Curve.
  Line Type	The type of the line. Options: Solid line, Dashed line, and Dotted line.
  Line Width	The width of the line in px.
  Area Color	The color of the area. For more information, see Color picker. You can map colors to different data series.
  Fill Color	The fill color of the area. For more information, see Color picker. You can map colors to different data series. This option is available when Sync Fill Color is set to Do not sync.
  Point Color	The color of the data points. For more information, see Color picker. You can map colors to different data series. This option is available when Sync Point Color is set to Do not sync.
  Sync Fill Color	Specifies whether the fill color is the same as the area color. Options: Sync and Do not sync.
  Sync Point Color	Specifies whether the point color is the same as the area color. Options: Sync and Do not sync.
  Opacity	The opacity of the line and area. A larger value indicates higher opacity.
  Marker Symbol	The style of the markers for data points in the area chart. You can set the shape and size of the markers. Click the icon to show or hide this option.
  Marker Outline	The outline style of the markers for data points. You can set the line type, width, and color of the outline. Click the icon to show or hide this option.
  Line Label	The style of the line labels. Click the icon to show or hide the line label options. Label Field: The content of the label. The content must correspond to a field in the data panel. By default, the value of the y field is used. Number Format: The number format for the labels. Options: Default, 11 (integer), 11.1 (floating-point number), 11.11 (floating-point number), 11% (percentage), 11.1% (percentage), 1,111 (thousands separator), and 1,111.1 (thousands separator). For more information about data display formats, see Data display formats. This option is available only when the y field is selected for Label Field. Prefix and Suffix: The prefix and suffix of the line labels. Relative Offset: The vertical and horizontal offset of the line labels relative to the line. The unit is px. Rotation Angle: The rotation angle of the line labels relative to the line. Layout Optimization: Automatically optimizes overlapping text and text near borders. Text Style: The text style of the line labels, including the font, weight, size, and color. Text Outline: The text outline style of the line labels, including the width and color of the outline.
  Texture	The texture style of the area. Click the icon to show or hide the texture options. Type: The type of the texture. Options: Point, Line, and Square. Fill Style: The fill style of the texture. For more information, see Color picker. You can use the color picker to configure the color of the texture. Outline Style: The outline style of the texture. For more information, see Color picker. You can use the color picker to configure the color of the texture. This option is available when Type is set to Point or Square. Extra Style: Other styles of the texture, including Shape Size, Shape Spacing, Line Spacing, Rotation Angle, and the Interlaced switch.

• Axes: The widget has an x-axis and a y-axis.

  • X-Axis

    • Show X-Axis: If this option is enabled, the x-axis is visible. If this option is disabled, the x-axis is hidden.

    • Data Type: Specifies the data type of the x-axis. Options include Numeric, Category, and Time.

    • Axis Line: Configures the style of the x-axis line, including the line type, width, and color. You can click the icon to show or hide this option.

    • Axis Title: Configures the style of the x-axis title. You can click the icon to show or hide this option.

      Parameter	Description
      Title Display	The text content of the x-axis title.
      Display Style	The display style of the x-axis title, including the angle and offset.
      Text Style	The font, weight, size, and color of the x-axis title text.

    • Tick Line: Configures the style of the x-axis tick lines, including the length, width, and color. You can click the icon to show or hide this option.

    • Axis Label: Configures the style of the x-axis labels. You can click the icon to show or hide this option.

      Parameter	Description
      Display Format	The display format for the data. This option is valid only for time-series data. For example, use YYYY/MM/DD HH:mm:ss for time, d for integers, and .1f for floating-point numbers.
      End Spacing	The distance between the x-axis labels and the two ends of the axis. The unit is percent (%).
      Label Display	The display style of the labels, including the number of x-axis labels, the prefix and suffix, the angle, the offset, and the alignment.
      Text Style	The font, weight, size, and color of the x-axis label text.

    • Gridline: Configures the style of the x-axis gridlines, including the line type, width, color, length, and spacing. You can click the icon to show or hide this option.

  • Y-Axis

    • Show Y-Axis: If this option is enabled, the y-axis is visible. If this option is disabled, the y-axis is hidden.

    • Display Range: Defines the display range of the y-axis by specifying a minimum and maximum value.

      Parameter	Description
      Minimum	The minimum value of the y-axis. You can enter a custom value or select one of the following system options: 0: The system sets the minimum value of the y-axis range to 0 by default. Data Minimum: Uses the minimum value from the data.
      Maximum	The maximum value of the y-axis. You can enter a custom value or select Data Maximum to use the maximum value from the data.

    • Axis Line: Configures the style of the y-axis line, including the line shape, width, and color. You can click the icon to show or hide this option.

    • Axis Title: Configures the style of the y-axis title. You can click the icon to show or hide this option.

      Parameter	Description
      Title Display	The text content of the y-axis title.
      Display Style	The display style of the y-axis title, including the angle and offset.
      Text Style	The font, weight, size, and color of the y-axis title text.

    • Tick Line: Configures the style of the y-axis tick lines, including the length, width, and color. You can click the icon to show or hide this option.

    • Axis Label: Configures the style of the y-axis labels. You can click the icon to show or hide this option.

      Parameter	Description
      Display Format	The number format for the y-axis labels. Options: Default, 11 (integer), 11.1 (floating-point number), 11.11 (floating-point number), 11% (percentage), 11.1% (percentage), 1,111 (thousands separator), and 1,111.1 (thousands separator). For more information about data display formats, see Data display formats.
      End Spacing	The distance between the y-axis labels and the two ends of the axis. The unit is percent (%).
      Label Display	The display style of the labels, including the number of y-axis labels, the prefix and suffix, the angle, the offset, and the alignment.
      Text Style	The font, weight, size, and color of the y-axis label text.

    • Gridline: Configures the style of the y-axis gridlines, including the line type, width, color, length, and spacing. You can click the icon to show or hide this option.

• Animation: Configures the animation effect style of the area chart.

  Parameter	Description
  Enable Animation	If this option is enabled, you can configure the animation effect for the area chart.
  Animation Effect	The type of animation effect. The system provides multiple common animation effects, such as Fade, Scale In, and Slide In. This option is available only when Enable Animation is turned on.
  Animation Duration	The duration of the animation effect in ms. This option is available only when Enable Animation is turned on.

• Interaction: Configures the interaction effect style of the area chart widget.

  • Tooltip: Configures the style of the tooltip that appears when you hover over or click the area chart on the preview or publish page. You can click the icon to enable or disable the tooltip.

    Parameter	Description
    Mode	The mode of the tooltip. Options: Simple and General.
    Trigger Method	The method to trigger the tooltip. Options: Hover and Click.
    Display Position	The display position of the tooltip. Options: Top, Bottom, Left, and Right.
    Title Spacing	The spacing between titles in the tooltip. The unit is px.
    Title Text	The style of the title text in the tooltip, including the font, weight, size, and color.
    Content Display	This option is available when Mode is set to General. Click the or icon to add or delete a content display series for the tooltip. Click the or icon to arrange multiple content display series. Click the icon to copy the current content display series configuration and add a new series with the same configuration. Field Name: The field name for the tooltip content. This must match a field in the data panel. Display Name: The display name for the tooltip content. Suffix: The suffix for the tooltip content.
    Content Spacing	The spacing between content text in the tooltip. The unit is px.
    Content Text	The style of the content text in the tooltip, including the font, weight, size, and color.
    Suffix	The suffix style for the content text in the tooltip.
    Popup Background	The background style of the tooltip popup. Background Margin: The horizontal and vertical margins of the tooltip popup background. Background Color: The background color of the tooltip. Border Style: The border style of the tooltip, including the line type, border radius, line width, and border color.
    Axis Pointer	The style of the axis pointer for the tooltip, including the type, width, and color. Click the icon to enable or disable the axis pointer. Note If you set the line type to Dashed line or Dotted line, you can also configure the dash length and the distance between dashes.

  • Selected State: Configures the style of an area when it is selected. You can click the icon to enable or disable the selected state style.

    Parameter	Description
    Trigger Method	The method to trigger the selection of an area. Options: Hover and Click.
    Selection Method	The method to select areas. Options: Single and Multiple. If you select Single, the click event triggers only one data item in object format, and only one area can be highlighted. If you select Multiple, the click event can trigger multiple data items in array format, and multiple areas can be highlighted.
    Line Type	Set the line type, width, and color. Click the icon to enable or disable the line type style.
    Selected Color	Set the type, thickness, and color of the outline.
    Marker Size	Set the marker size.
    Marker Outline	Set the type, width, and color of the outline.

  • Overview Axis: If the area chart contains a large amount of data, you can configure the style of the overview axis interaction. You can click the icon to enable or disable the overview axis interaction effect.

    Parameter	Description
    Default Range	The data range displayed by the overview axis. The value ranges from 0 to 1.
    Slider Style	The style of the overview axis slider, including the height, foreground color, and background color.
    Text Style	The style of the text on the overview axis, including the font, weight, size, and color. This option is available only when the overview axis style is enabled.
    Background Trend	The style of the background trend of the area chart displayed on the overview axis, including the line type, width, and color. This trend is usually consistent with the line data trend in the chart. This option is available only when the area chart has a single data series.
    Handle Style	The style of the handles at both ends of the overview axis, including the width and height, the default and highlighted background colors, and the border radius and color.

• Legend: Configures the style of the area chart legend.

  Parameter	Description
  Enable Legend	If this option is enabled, you can configure the legend style. If this option is disabled, you cannot configure the legend style.
  Legend Position	The position of the legend relative to the widget's starting coordinate. Options: Top Left, Top Center, Top Right, Bottom Left, Bottom Center, Bottom Right, Left Top, Left Center, Left Bottom, Right Top, Right Center, and Right Bottom.
  Text Style	The font, weight, size, and color of the legend text.
  Chart Spacing	The horizontal and vertical spacing between the legend and the chart.
  Categorical Legend	The style of the categorical legend. Marker Size: The size of the legend markers. Legend Spacing: The horizontal and vertical distance between different legend categories. Maximum Width: The maximum width of the legend in px. Enable Pagination: If this option is enabled, you can turn on pagination for the legend. You can configure the page number and arrow styles for when the legend has too many items and requires pagination. If this option is disabled, all legend items are displayed on a single page. Maximum Rows: The maximum number of rows for the legend. If the number of rows exceeds this value, the legend will be paginated. Page Number Style: The style of the page numbers, including the font, weight, size, and color. Arrow Style: The size, default color, and disabled color of the arrows in the pagination style.

• Condition: The condition for applying the style.

  Conditional Style: You can click the or icon to add or delete a conditional style. You can click the or icon to arrange multiple conditional styles. You can click the icon to copy the current conditional style configuration and add a new style with the same configuration. For more information about the configuration, see Conditional tree.

  Parameter	Description
  Line Type	The line type for the current conditional style. Options: Solid line, Dashed line, and Dotted line. Click the icon to show or hide the line type.
  Line Width	The line width for the current conditional style in px. Click the icon to show or hide the line width.
  Line Color	The line color for the current conditional style. For more information, see Color picker. You can map colors to different data series. Click the icon to show or hide the line color.
  Point Color	The point color for the current conditional style. For more information, see Color picker. You can map colors to different data series. Click the icon to show or hide the point color.
  Fill Color	The fill color for the current conditional style. For more information, see Color picker. You can map colors to different data series. Click the icon to show or hide the fill color.
  Opacity	The opacity of the line and area for the current conditional style. A larger value indicates higher opacity. Click the icon to show or hide the opacity.
  Marker Symbol	The shape and size of the marker symbol for the current conditional style. Click the icon to show or hide the marker symbol.
  Marker Outline	The line type, width, and color of the marker outline for the current conditional style. Click the icon to show or hide the marker outline.

Data panel (default mode)

Field description

Table 1. Parameters

Parameter	Description
Controlled Mode	If you turn on the switch, data is not requested when a widget is initialized. Data requests are triggered only based on callback IDs or the method configured in Blueprint Editor. If you turn off the switch, data requests are automatically triggered. By default, the switch is turned off.
Auto Data Request	After you select the Auto Data Request check box, you can enable dynamic polling, and manually specify the polling interval. If you do not select this check box, data is not automatically requested. You must manually refresh the page to request data or use Blueprint Editor or callback ID events to trigger data requests.
Data Source	In the right-side panel of Canvas Editor, click the Data tab. Click Set next to Static Data. In the Configure Datasource panel, select a data source from the Data Source Type drop-down list. Enter code for data query in the code editor, click Preview Data Response to preview the response of the data source, and then view the response. For more information, see Configure asset data.
Data Filter	If you select the Data Filter check box, you can convert the data structure, filter data, and perform simple calculations. If you click the plus sign (+) next to Add Filter, you can configure the script for the data filter in the editor that appears. For more information, see Use the data filter.
Data Response Result	The response to a data request. If the data source changes, you can click the icon next to Data Response Result to view the data response in real time.

Data panel (analysis mode)

For more information about the operations in the BI analysis data panel, see BI analysis data panel.

Field description

Interaction panel

Interaction description

Blueprint editor interaction configuration

1. In Canvas Editor, right-click a widget in the Layer panel and select Add to Blueprint Editor.
2. Click the icon in the upper-left corner of the page.

3. On the Blueprint Editor configuration page, click the Area Chart widget in the Added Nodes pane. The configuration parameters for the area chart appear on the canvas.

   • Events

     Event	Description
     When the Line Chart API Request Completes	This event is triggered when the data API request is successful and the returned data is processed by the filter. The processed data is returned in JSON format. For a data example, see the Data Response section on the Data tab of the widget's configuration panel in the canvas editor.
     When the Line Chart API Request Fails	This event is triggered when the data API request fails due to a network issue or an API error and the returned data is processed by the filter. The processed data is returned in JSON format. For a data example, see the Data Response section on the Data tab of the widget's configuration panel in the canvas editor.
     When a data point is selected (point)	This event is triggered when you click a point on the area chart. The data item that corresponds to the point is returned.
     When a data point is selected (line)	This event is triggered when you click a line on the area chart. The data item that corresponds to the line is returned.
     When a data point is selected (area)	This event is triggered when you click an area on the area chart. The data item that corresponds to the area is returned.
     When a legend item is clicked	This event is triggered when you click a legend item of the area chart. The data item that corresponds to the legend item is returned.
     When a line is clicked	This event is triggered when a line is clicked. The data item that corresponds to the line is returned. The following code provides a data example. { "mappingData": [] // Mapping data }

   • Actions

     Action	Description
     Line Chart API Request	Re-requests server-side data using the output from upstream data processing nodes or layer nodes as parameters. For example, if the API data source for a line chart is https://api.test and the data passed to the Request Line Chart API action is { id: '1'}, the final request URL is https://api.test?id=1.
     Line Chart Import API	Processes the data in the required format and imports it into the widget to redraw the chart. You do not need to send a request to the server-side for data again. For a data example, see the Data Response section on the Data tab of the widget's configuration panel in the canvas editor.
     Highlight	Highlights the element corresponding to the data item. The following code provides a reference data example. return { "data": { "x": data.x,// The data item to highlight "colorField": data.colorField }, "style": { "fillStyle": "#f00"// Fill color } }
     Clear Highlight	Clears the highlight. No parameter is required.
     Update Widget Configuration	Dynamically updates the style configuration of the widget. In the Configuration panel of the widget, click Copy Configuration to Clipboard to get the widget configuration data. Then, change the field values for the corresponding styles in the data processing node on the Blueprint Editor configuration page as needed.
     Show	Shows the widget. The following code provides a reference data example. return{ "animationType": "", "animationDuration": 1000, "animationEasing": "linear" }
     Hide	Hides the widget. The following code provides a reference data example. return{ "animationType": "", "animationDuration": 1000, "animationEasing": "linear" }
     Toggle Visibility	Toggles the visibility of the widget. The following code provides a reference data example. return { "animationIn": { "animationType": "", "animationDuration": 1000, "animationEasing": "linear" }, "animationOut": { "animationType": "", "animationDuration": 1000, "animationEasing": "linear" } }
     Move	Moves the widget to a specified position. The following code provides a reference data example. return{ // Move mode. Options: to (absolute positioning) and by (relative positioning). Default value: to. "positionType": "to", // The destination position (x- and y-coordinates). "attr": { "x": 0, "y": 0 }, // Animation settings. "animation": { "enable": false, // Animation duration. "animationDuration": 1000, // Animation curve. Options: linear, easeInOutQuad, and easeInOutExpo. "animationEasing": "linear" } }
