Best practices for accessing Alibaba Cloud OpenAPI

Use RAM Roles for Service Accounts (RRSA)

Prerequisites

• This method applies to cloud services that support RAM.

• Cluster version: Kubernetes 1.22 or later, on an ACK managed cluster (Basic or Pro), ACK Serverless cluster (Basic or Pro), or ACK Edge cluster (Pro only).

• Alibaba Cloud SDK V2.0 is used.

• Custom SDKs for self-managed gateway products cannot be used.

How it works

Procedure

• Enable RRSA for your ACK cluster.

• Use RRSA in your ACK cluster.

Code examples

Alibaba Cloud SDK V2.0 supports RRSA OIDC token authentication. Any cloud service SDK built on V2.0 that supports STS tokens also supports RRSA.

Use an instance RAM role

Prerequisites

• This method applies to cloud services that support RAM.

• Alibaba Cloud SDK V2.0 is used.

• Custom SDKs for self-managed gateway products cannot be used.

How it works

You can attach an instance Resource Access Management (RAM) role to an Elastic Compute Service (ECS) instance. Then, the ECS instance can use the Security Token Service (STS) temporary credential of the instance RAM role to access the APIs of other Alibaba Cloud services. The STS temporary credential is updated on a periodic basis. This ensures the security of your AccessKey pair and implements fine-grained access control and permissions management by using RAM.

Workflow:

1. The application retrieves an STS token by accessing the ECS instance metadata.

2. The application uses the STS token to access cloud resources. What is STS?.

Procedure

Assign a RAM role to an ECS instance. Instance RAM roles.

Code examples

Alibaba Cloud Credentials simplifies instance RAM role usage. These examples call the ECS DescribeRegions operation with an instance RAM role.

Cross-account chained role assumption

If your application on an ECS instance needs to access resources in another Alibaba Cloud account, you can use cross-account chained role assumption to obtain access without storing an AccessKey pair.

How it works

The ECS instance first obtains temporary credentials for its own instance RAM role from instance metadata. It then uses these credentials to call sts:AssumeRole to assume a RAM role in the destination account and obtain an STS token for the destination account. This process is called chained role assumption.

Procedure

1. In the destination account, create a RAM role. Set Principal.RAM in the role's trust policy to the Alibaba Cloud Resource Name (ARN) of the instance RAM role in the source account, for example, acs:ram::<source-account-id>:role/<instance-role-name>. Grant this role the permissions that the application needs.

2. On the instance RAM role in the source account, attach a permission policy that grants the sts:AssumeRole permission. You can use the system policy AliyunSTSAssumeRoleAccess.

3. On the ECS instance, use the Alibaba Cloud Credentials tool to perform chained role assumption. The tool first obtains the temporary credentials of the instance RAM role from instance metadata. It then uses these credentials to call sts:AssumeRole to assume the RAM role in the destination account and obtain a cross-account STS token.

STS token for development and debugging

Scenario

For development, operations, and product personnel who need credentials for O&M, management, or debugging, use role-based SSO to assume a RAM role and obtain an STS token instead of a permanent AccessKey pair.

Procedure

• For single-account scenarios, we recommend that you configure SAML-based role SSO within the cloud account and assign RAM roles to employees based on their job functions. Employees can then use the saml2alibabacloud tool on the command line to obtain an STS token after authenticating with the identity provider (IdP).

• For multi-account scenarios, we recommend that you use CloudSSO to configure single sign-on for multiple accounts. After configuration, employees can use the CLI to log on to CloudSSO and access Alibaba Cloud resources.

Use an STS token in Function Compute

Scenario

Instead of hardcoding a RAM user's AccessKey pair in an FC function, associate the function with a RAM role. The application then uses an STS token to access cloud resources, avoiding permanent credential leaks.

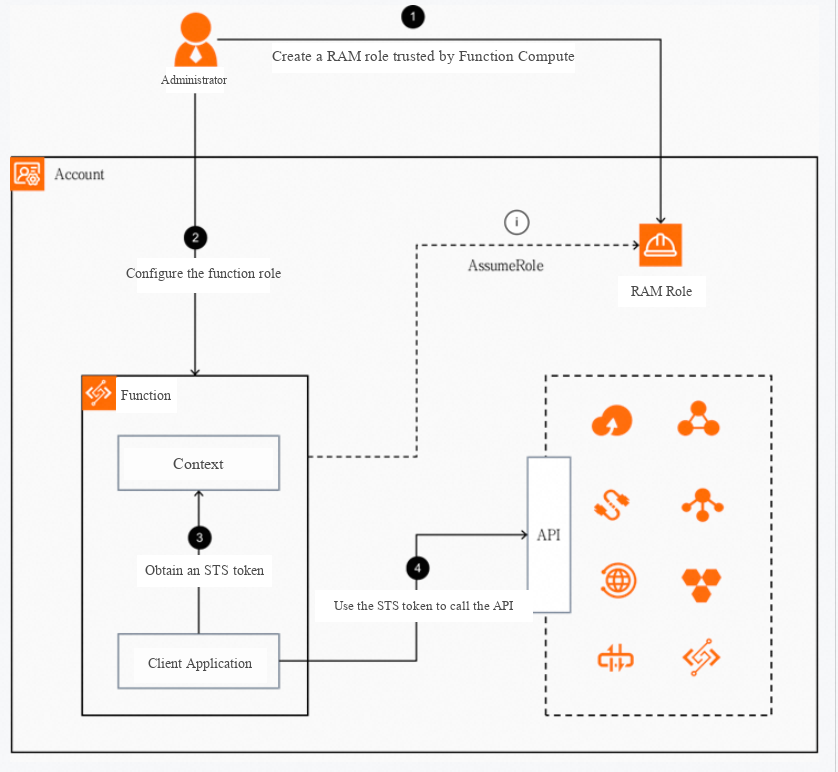

Solution architecture

FC function roles manage temporary credentials at runtime, avoiding long-term AccessKey pair exposure. Configure the role and permissions once; functions obtain temporary credentials automatically.

An administrator creates a role trusted by Function Compute and grants it the required permissions (1), then associates the role with the FC function (2). The application retrieves an STS token from the function context (3). During this process, Function Compute calls AssumeRole to obtain the STS token from RAM/STS (i). The application uses the STS token to call the target cloud resource API (4), and the resource API returns the result to the client application.

Procedure

Obtain and use temporary credentials by using an FC function role.

Configure system environment variables

Procedure

Configure the ALIBABA_CLOUD_ACCESS_KEY_ID and ALIBABA_CLOUD_ACCESS_KEY_SECRET environment variables.

<ACCESS_KEY_ID>

Alibaba Cloud SDK code examples

Alibaba Cloud SDKs create a default credential from the ALIBABA_CLOUD_ACCESS_KEY_ID and ALIBABA_CLOUD_ACCESS_KEY_SECRET environment variables and use it to authenticate requests automatically. These examples call the ECS DescribeRegions operation.

Generic code example

If you cannot use Alibaba Cloud SDKs (for example, custom SDKs for self-managed gateway products), load environment variables directly. Java example:

import com.aliyun.credentials.Client;
import com.aliyun.credentials.models.Config;

public class DemoTest {
    public static void main(String[] args) throws Exception{
        Config config = new Config();
        // Specify the type of credential you want to use.
        config.setType("access_key");
        // The AccessKeyId of your RAM user.
        config.setAccessKeyId(System.getenv("ALIBABA_CLOUD_ACCESS_KEY_ID"));
        // The AccessKeySecret of your RAM user.
        config.setAccessKeySecret(System.getenv("ALIBABA_CLOUD_ACCESS_KEY_SECRET"));
        Client client = new Client(config);
    }
}
