Learn how to create a Hive data source.
Prerequisites
Ensure you have network connectivity:
If you connect Quick BI to your Hive database over the public network, add the IP addresses of Quick BI to the database whitelist. For more information, see Add a security group rule.
If you connect Quick BI to your Hive database over a private network, you must set up a bastion host and use an SSH tunnel to access the database.
You have created a Hive database.
You have the username and password for the Hive database.
Limitations
Supports Apache Hive versions 2.0.1 to 2.3.3.
Procedure
Log on to the Quick BI console.
Follow these steps to add a data source.
Follow the instructions in Create a data source to navigate to the data source creation page.

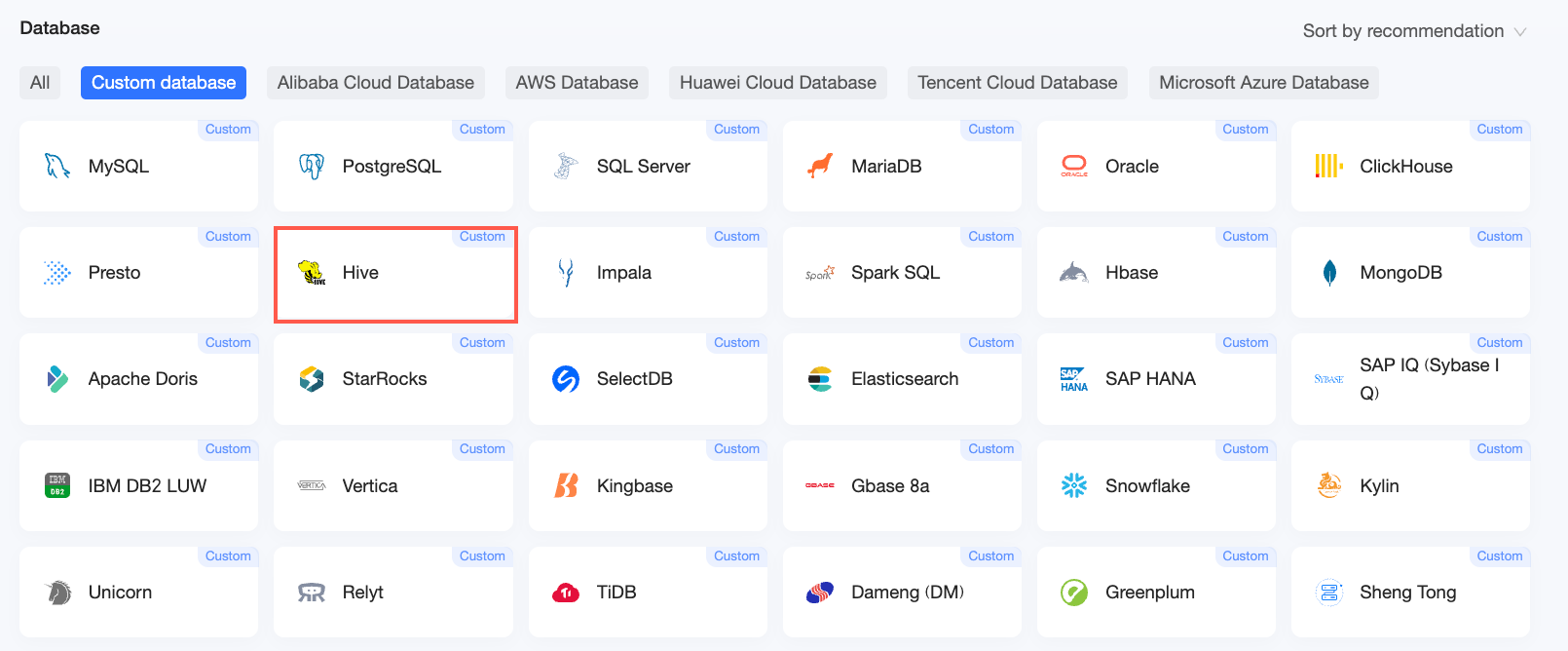

On the Self-managed data sources tab, select Hive.
In the Configure Connection dialog box, configure the following parameters.
Parameter
Description
Display name
Enter a name for the data source. The name cannot contain special characters or leading or trailing spaces.
Database address
The IP address or domain name of your Hive database.
Port
The port number used to connect to the database.
Database
The name of the database to connect to.
Username
The username to access the database.
Password
The password for the specified username.
SSH
Select this option to connect to the data source through an SSH tunnel. If you select this option, configure the following parameters:
SSH host: The hostname or IP address of the bastion host.
SSH username: The username for the SSH connection.
SSH password: The password for the specified SSH username.
SSH port: The port number for the SSH connection. The default value is 22.
Initialization SQL
If you enable this option, you can specify SQL statements that run after a connection is established.
Only SET statements are allowed. Separate multiple statements with semicolons (;).
VPC data source
Select this option if your database is deployed on an Alibaba Cloud ECS instance in a VPC. If you select this option, you must specify the private IP address and port in the Database Address and Port parameters.
Purchaser's AccessKey ID and Purchaser's AccessKey Secret: The AccessKey ID and AccessKey Secret of the account that owns the ECS instance. Ensure that this account has read permissions on the target instance. If the account also has write permissions, Quick BI automatically adds its IP addresses to the whitelist. Otherwise, you must add them manually. For more information, see Create a custom policy.
For more information, see Obtain an AccessKey pair.
Instance ID: The ID of the ECS instance. You can find the instance ID on the Instances page in the ECS console.
For more information, see View instance information.
Region: The region where the ECS instance is located. You can find the region in the upper-left corner of the ECS console.
For more information, see View instance information.
Click Test Connection to verify the data source connection.
After the connection is successfully tested, click OK to add the data source.
Next steps
After you create the data source, you can create a dataset and analyze data.
To create a dataset in Quick BI, add data tables from your Hive database or use custom SQL. For more information, see Create a dataset.
To analyze data, create charts. For more information, see Create a dashboard and Overview of chart types.
Drill down into your data for further analysis. For more information, see Step 3: Configure and view drill-down data.
