Similar to a bar chart, a radial bar chart displays trends over time and allows for data comparison. This topic describes how to add data to a radial bar chart and configure its styles.
Prerequisites
You have created a dashboard. For more information, see Create a dashboard.
Overview
Use cases
Radial bar charts are intuitive. The length of the bars represents the magnitude of the values, making it easy to compare differences and trends across data groups.
Benefits
Calculation capabilities: Configure YoY/MoM comparison and cumulative calculation with a single click.
Visual effects: Customize display options, such as labels, a legend, and a custom background.
Example
Limitations
A radial bar chart consists of a value axis/measure and a category axis/dimension:
The category axis is determined by a dimension. You can add one dimension, such as province or product type.
The value axis is determined by a measure. You can add one measure, such as order quantity or profit amount.
Configure chart fields
On the Fields tab, select the required dimension and measure fields:
In the Dimensions list, find Area, and then double-click it or drag it to the category axis/dimension area.
In the Measures list, find Order Amount, and then double-click it or drag it to the value axis/measure area.
Click Update. The chart updates automatically.

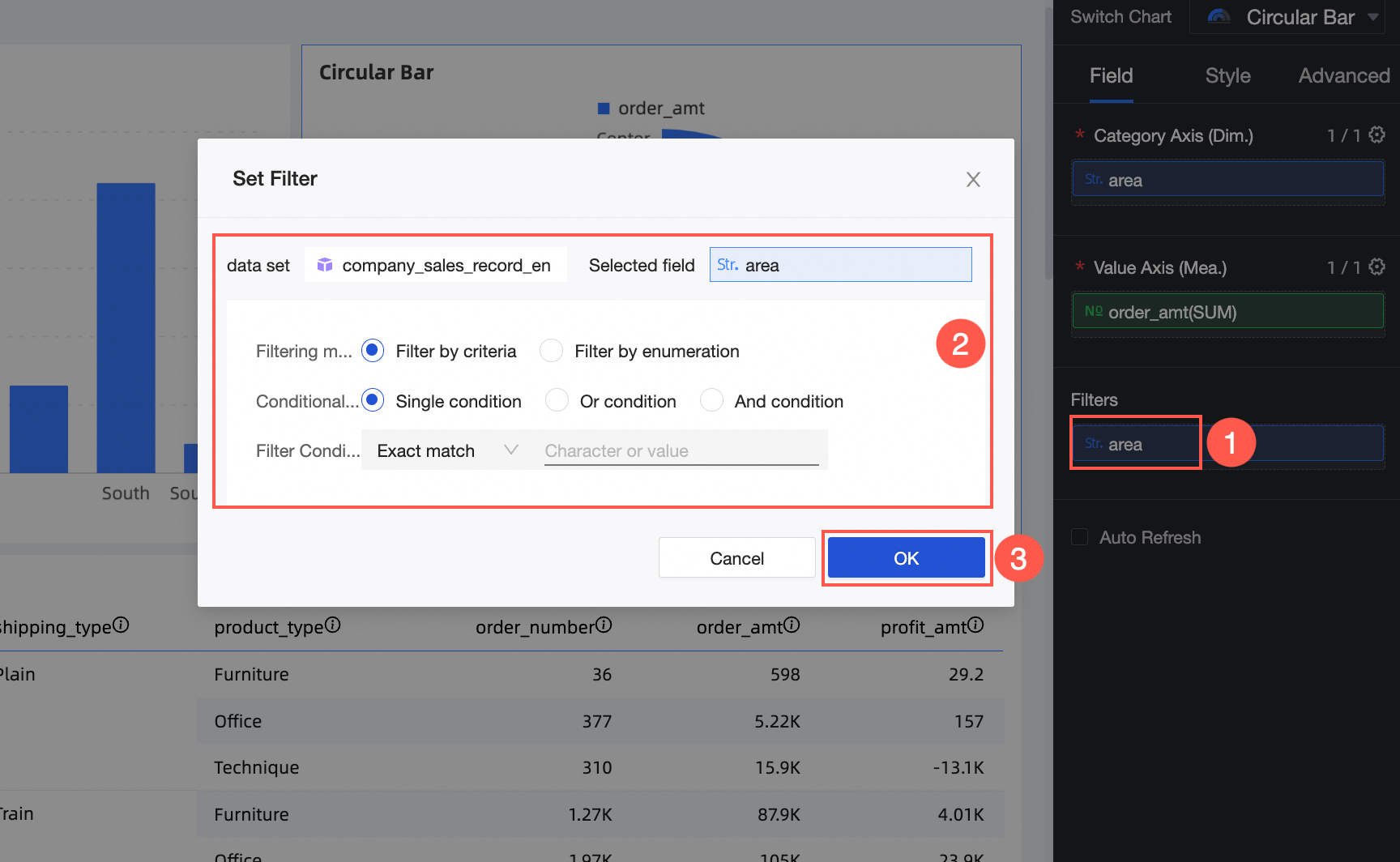

Set a filter to display data for a specific Area.
Auto Refresh.
Enable this option to automatically refresh chart data at a specified interval. For example, if you set the interval to 5 minutes, the data refreshes every 5 minutes.
Configure chart styles
The following sections describe the chart's style settings. For information about common style configurations, see Configure the chart title area.
You can enter keywords in the Search Box at the top of the configuration pane to quickly find a configuration item. You can also click the
icon to Expand/Collapse All Categories.
Plot area
In the Plot area section, you can set a Color Scheme for the radial bar chart.
Axis
In the Axis section, you can configure whether to Show Axis Label and set the label's text style.
Legend
In the Legend section, click the
icon to enable the chart legend and configure its style.
Parameter | Description |
Position | Specifies the position and alignment of the legend.
|
Text | Specifies the text style for the legend. You can set the font color, size, and weight, and specify whether to use italics. |
Mobile legend | The legend settings for PC and mobile are independent. You can switch to the mobile editing view by clicking the PC/mobile toggle button ( |
) at the top of the dashboard editor. This allows you to configure a separate legend for mobile devices, including its position and text style.
Tooltip
In the Tooltip section, click the icon to enable tooltips and configure their style.
Parameter | Description |
Background color | Specifies the background color for the tooltip box. |
Text | Specifies the text style within the tooltip box. You can set the font color, size, and weight, and specify whether to use italics. |
Mobile tooltip | Tooltips can be enabled or disabled independently for PC and mobile. While most style settings are shared, you can set a different font size for the mobile view. To do this, switch to the mobile editing view by using the PC/mobile toggle button ( |
Configure chart analysis
Parameter | Parameter | Description |
Data interaction | Drill-down | After configuring drill-down fields in the Fields panel, you can set the display style for the drill-down hierarchy here. |
Chart linkage | Use chart linkage to interactively analyze data across multiple charts. For configuration details, see Chart linkage. | |
Navigation | Use navigation to connect multiple dashboards for data analysis. Navigation includes two types: parameter jump and external link. |
Next steps
You can share the dashboard with other users. For more information, see Share a dashboard.
If you need to create a complex, menu-driven portal for thematic analysis, you can integrate your dashboards into a data portal. For more information, see Create a data portal.
